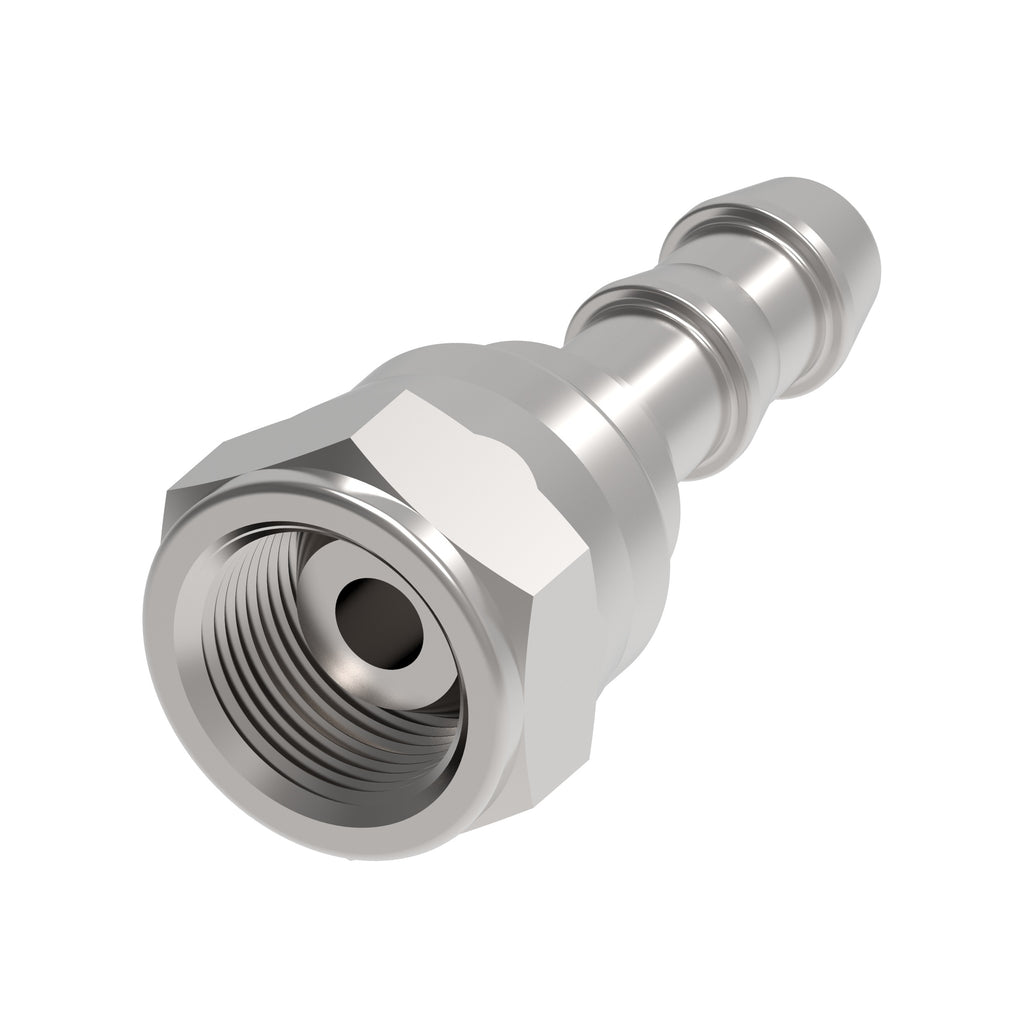

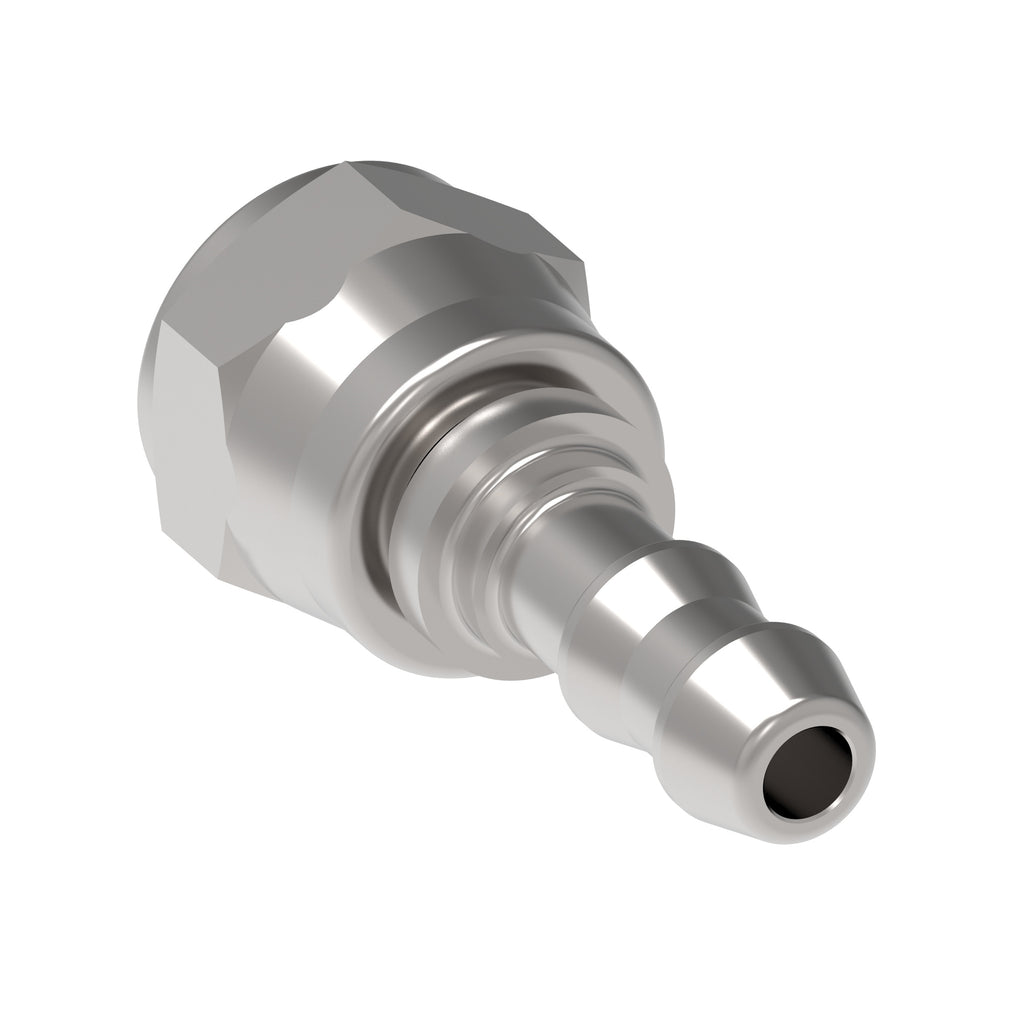

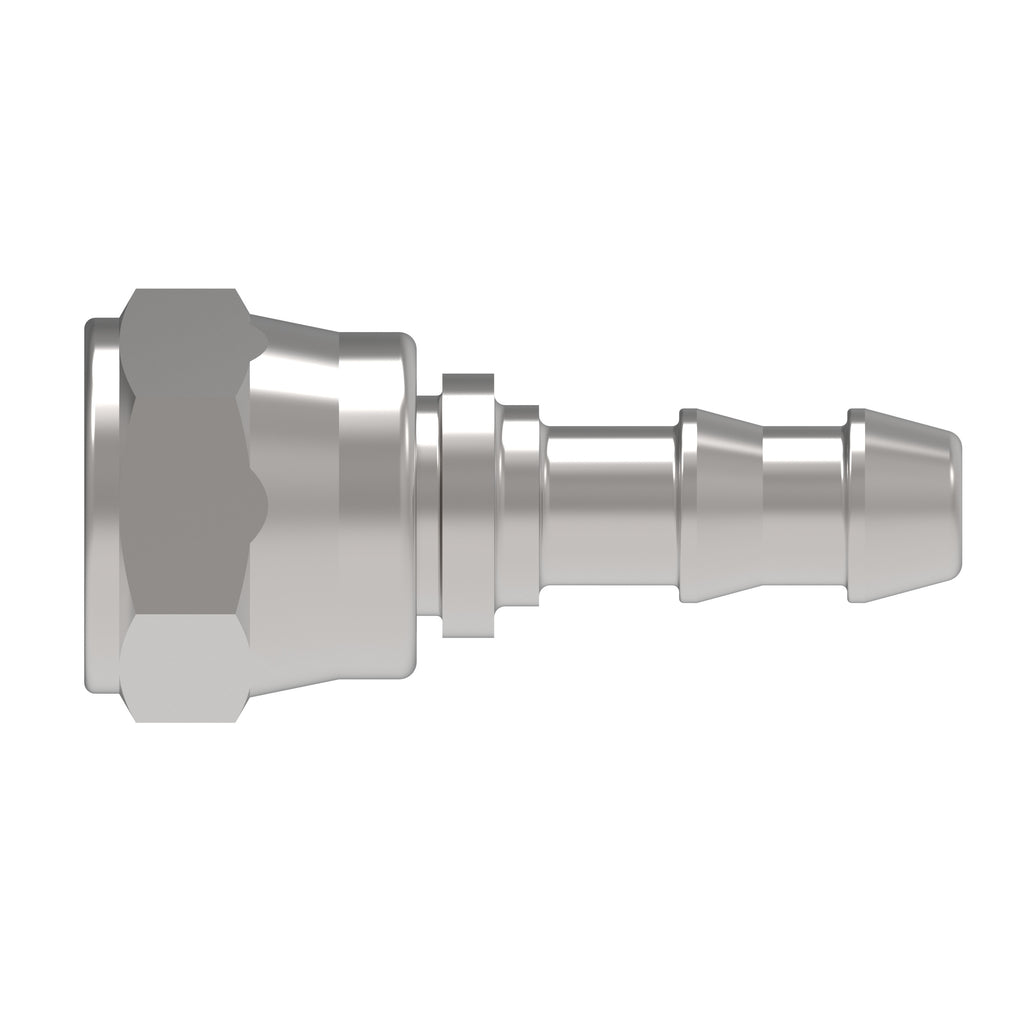

Danfoss 11.390-12-12 Produktbild

11.390-12-12

€38,14
Zu Produktinformationen springen
Danfoss 11.390-12-12 Produktbild
1/3
  • Danfoss 11.390-12-12 Produktbild
  • Danfoss 11.390-12-12 Produktbild
  • Danfoss 11.390-12-12 Produktbild
11.390-12-12

11.390-12-12

HOSE NIPPLE ASSY, SR/12, BF/12, CS, STR

Lieferzeit: ca. 2 Wochen

Danfoss Artikelnummer: 11.390-12-12

€45,39
Auf Lager

Technische Daten

Series Socketless
Legacy part number 11.390-12-12
Brand Aeroquip by Danfoss
Inside diameter IN 0.61
Inside diameter MM 15.5
Product material Carbon steel
Hose size -12
Thread size 1 G 3/4
Angle shape Straight
End size 1 -12
End Type 1 Female BSPP swivel
Hex size 1 IN 1.26
Hex size 1 MM 32.004
Finish plating Dura-Kote
Construction Style Reusable
A dimension IN 2.283
Compatible hose ID MM 19
Compatible hose ID IN 0.75
A dimension MM 58
End connection torque 103-118 lb-ft(140-160 Nm)
Hose cut off factor IN 0.748
Hose cut off factor MM 19
Product height in 1.45
Product width in 1.45
Product width mm 36.83
Product height mm 36.83
Product length mm 57.912
Product length in 2.28
End connection hex size in 1.26
End connection hex size mm 32.004
