12IAS8L
€29,45
Zu Produktinformationen springen
Auf Lager
12IAS8L

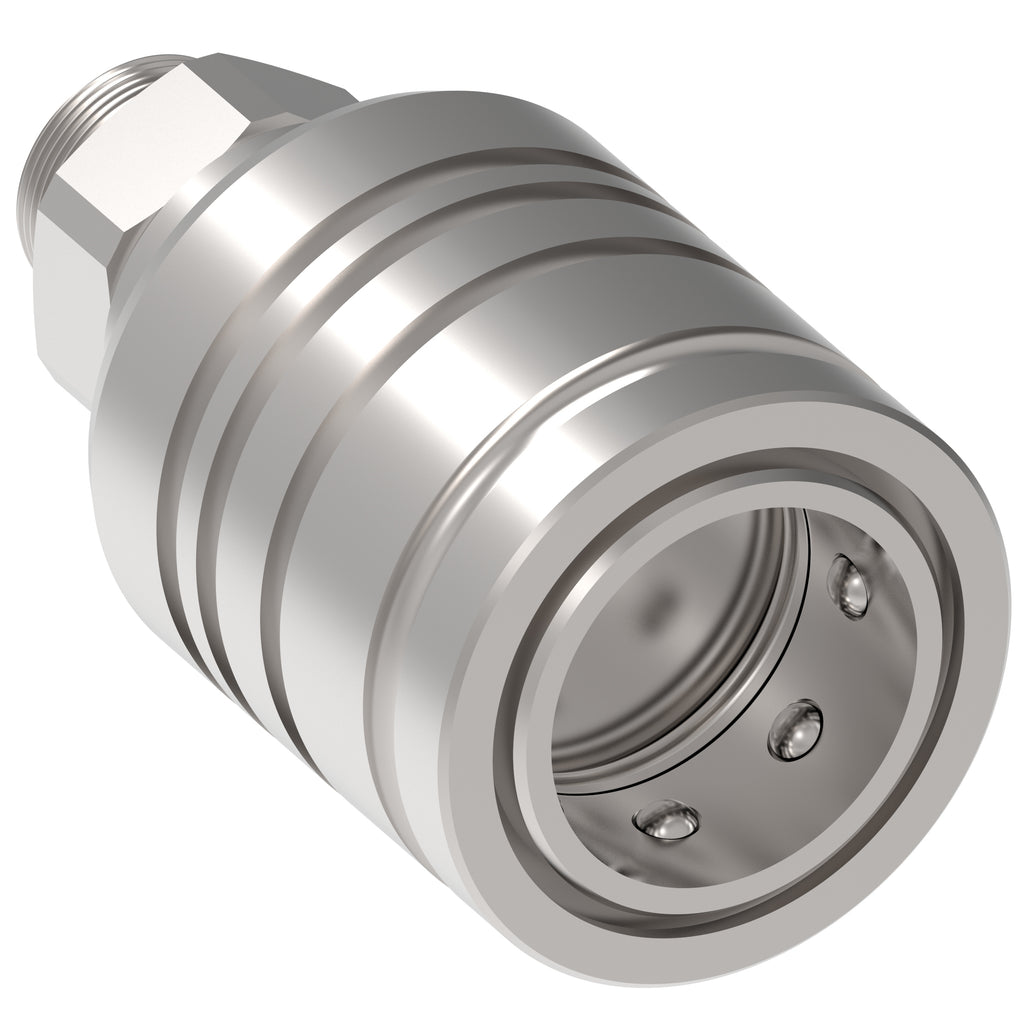

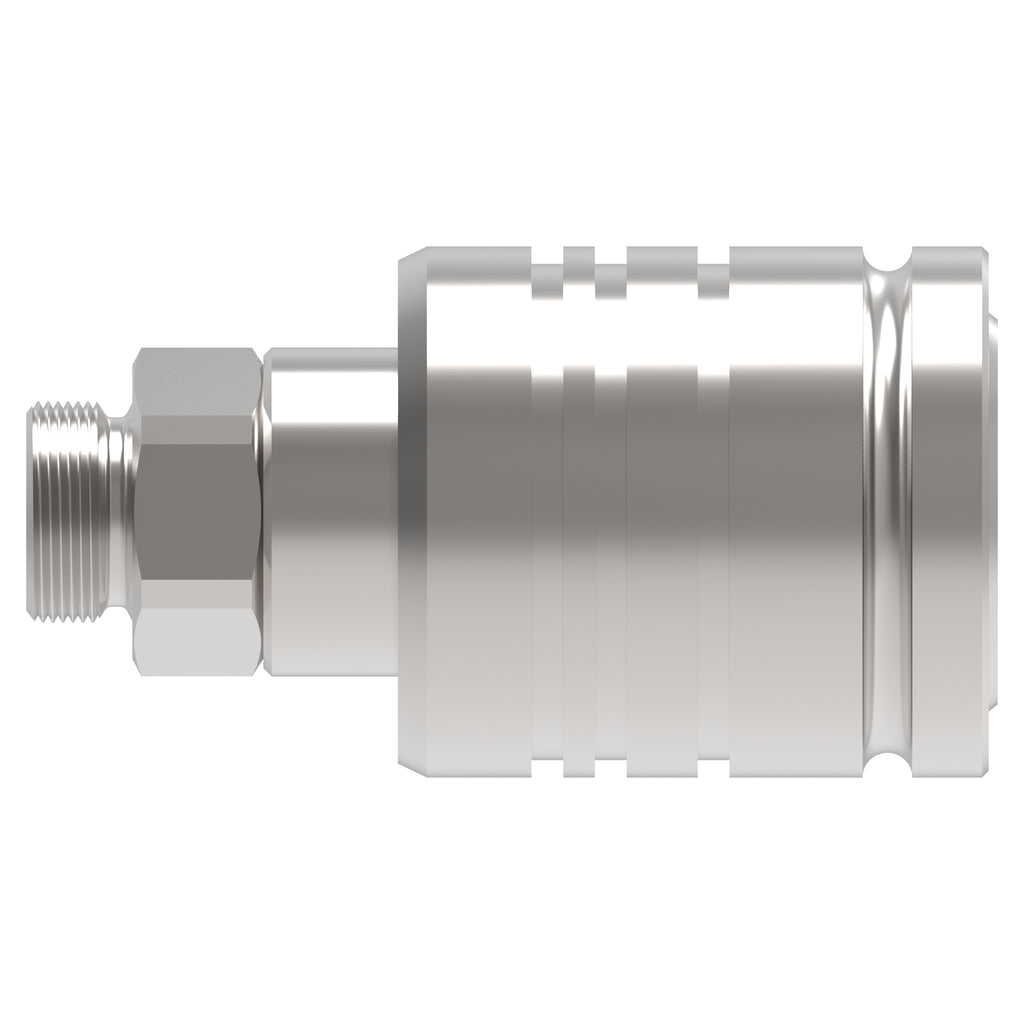

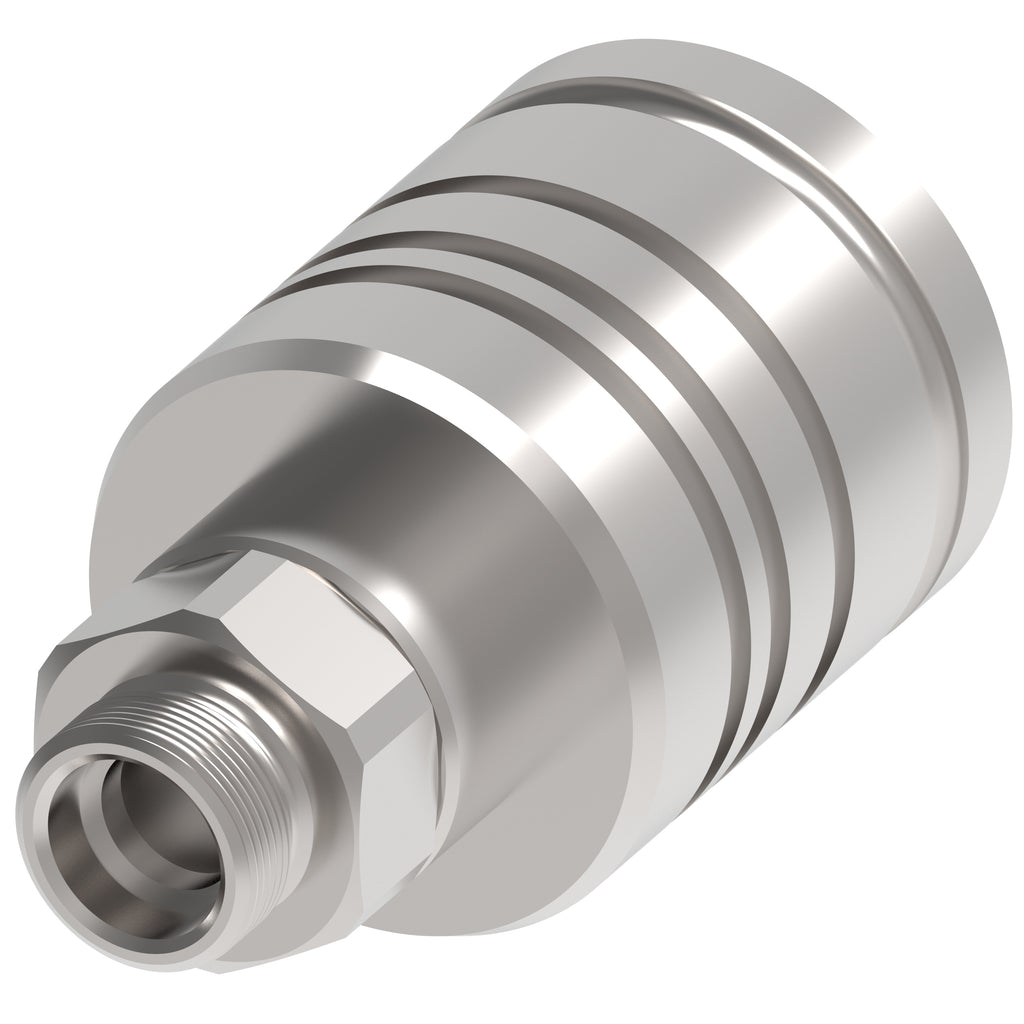

COUPLING,IA,F,1/2,CS,8L,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 12IAS8L
€35,05
Technische Daten
| Certifications | ISO 7241-1 Series A |
| Compliances | PED 2014/68 EU Article 4.3 |
| Application | Agriculture Forest machinery |
| Legacy part number | 12IAS8L |
| Sub brand | Hansen |
| Brand | Danfoss |
| Working pressure max bar | 250 |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | M14X1.5 |
| Angle shape | Straight |
| Body size | 1/2 |
| Connection style | Automatic connect |
| End size 1 | 8L |
| End type 1 | 24 deg. tube port light duty |
| Finish plating | Zinc trivalent |
| Fluid loss cc | 2.6 |
| Hex size 1 IN | 1.06 |
| Hex size 1 MM | 26.924 |
| Latch type | Push/pull |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 3625 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
| Fluid compatibility | Hydraulic fluid |
| Flow rate gpm | 11.9 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
