1H11BS
€21,48
Zu Produktinformationen springen
Auf Lager
1H11BS

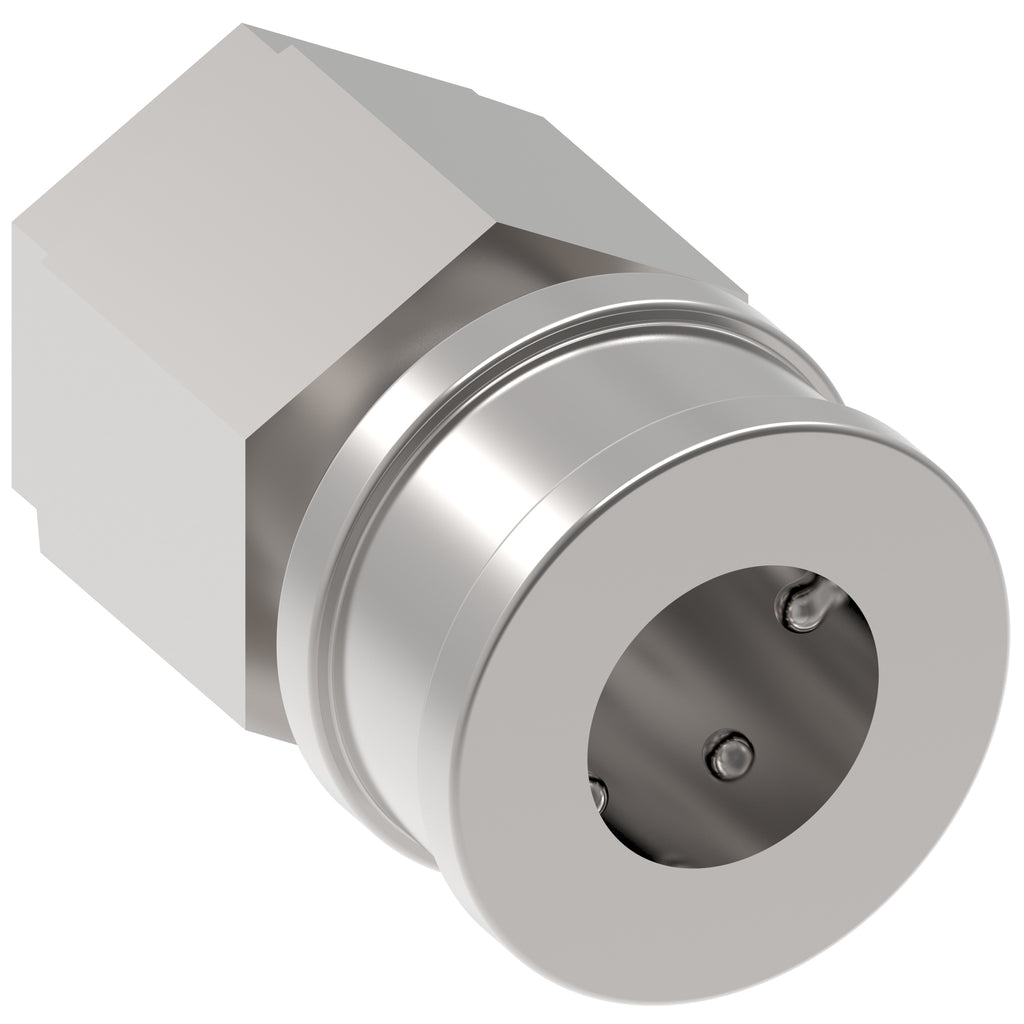

COUPLING,HK,F,1/8,CS,-2BSP,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 1H11BS
€25,56
Technische Daten
| Certifications | ISO 7241-1 Series B |
| Application | Aerospace Agriculture Chemical Construction Consumer products Fluid transfer Food and beverage General industry Hvac Hydraulics Law enforcement/rescue Medical Military Oil and gas Transportation Trucks |
| Legacy part number | 1H11BS |
| Sub brand | Hansen |
| Brand | Danfoss |
| Working pressure max bar | 276 |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | G 1/8 |
| Air inclusion max cc | 0.6 |
| Angle shape | Straight |
| Body size | 1/8 |
| Connection style | Manual connect |
| End size 1 | -2 |
| End type 1 | Female BSPP port washer seal. |
| Finish plating | Zinc trivalent |
| Fluid loss cc | 0.5 |
| Fluid loss in3 | 0.031 |
| Hex size 1 IN | 0.56 |
| Hex size 1 MM | 14.224 |
| Latch type | Push/pull |
| Safety locking mechanism | None |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 4000 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
| Fluid compatibility | Hydraulic service |
| Product length mm | 48.514 |
| Product length in | 1.91 |
| Flow rate gpm | 0.8 |
Weitere Produktdaten
- Herkunftsland: Mexico
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
