26711D-08-08Z
€1,42
Zu Produktinformationen springen
Auf Lager
26711D-08-08Z

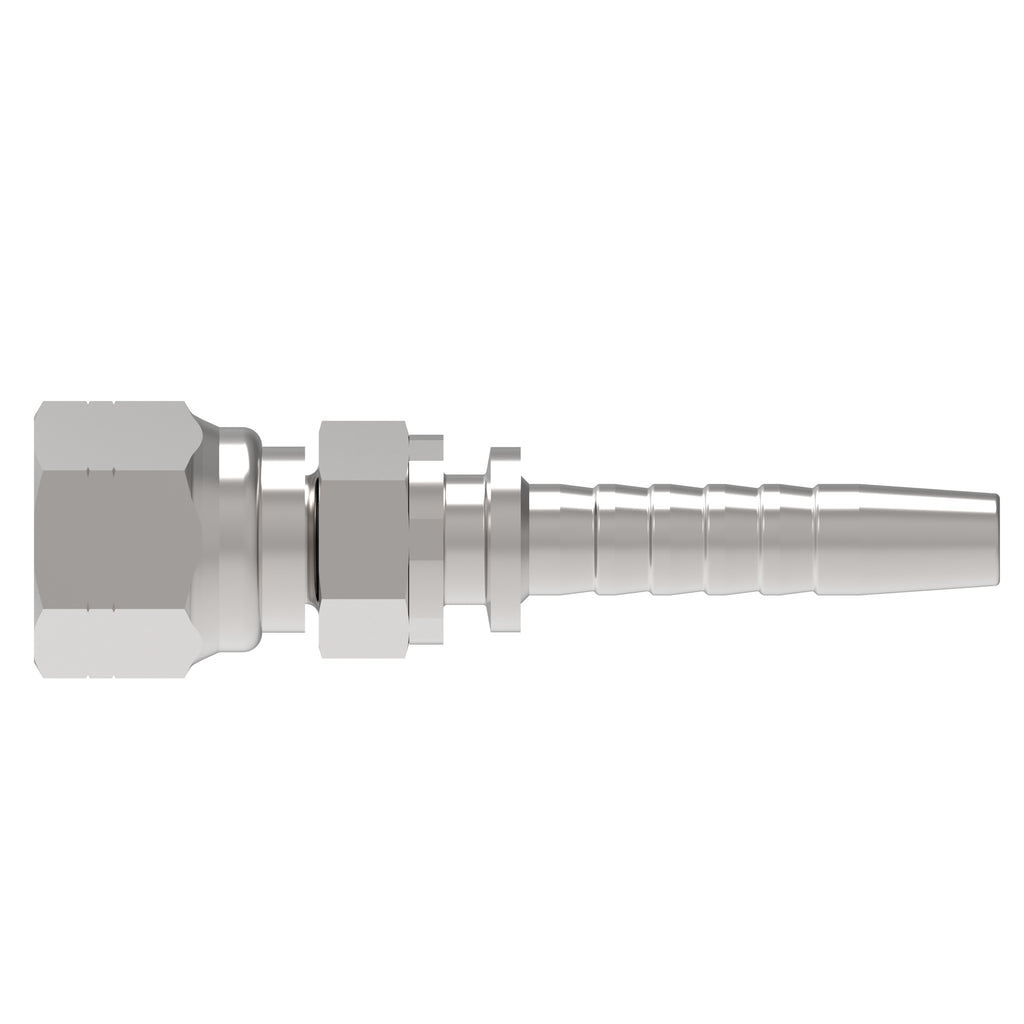

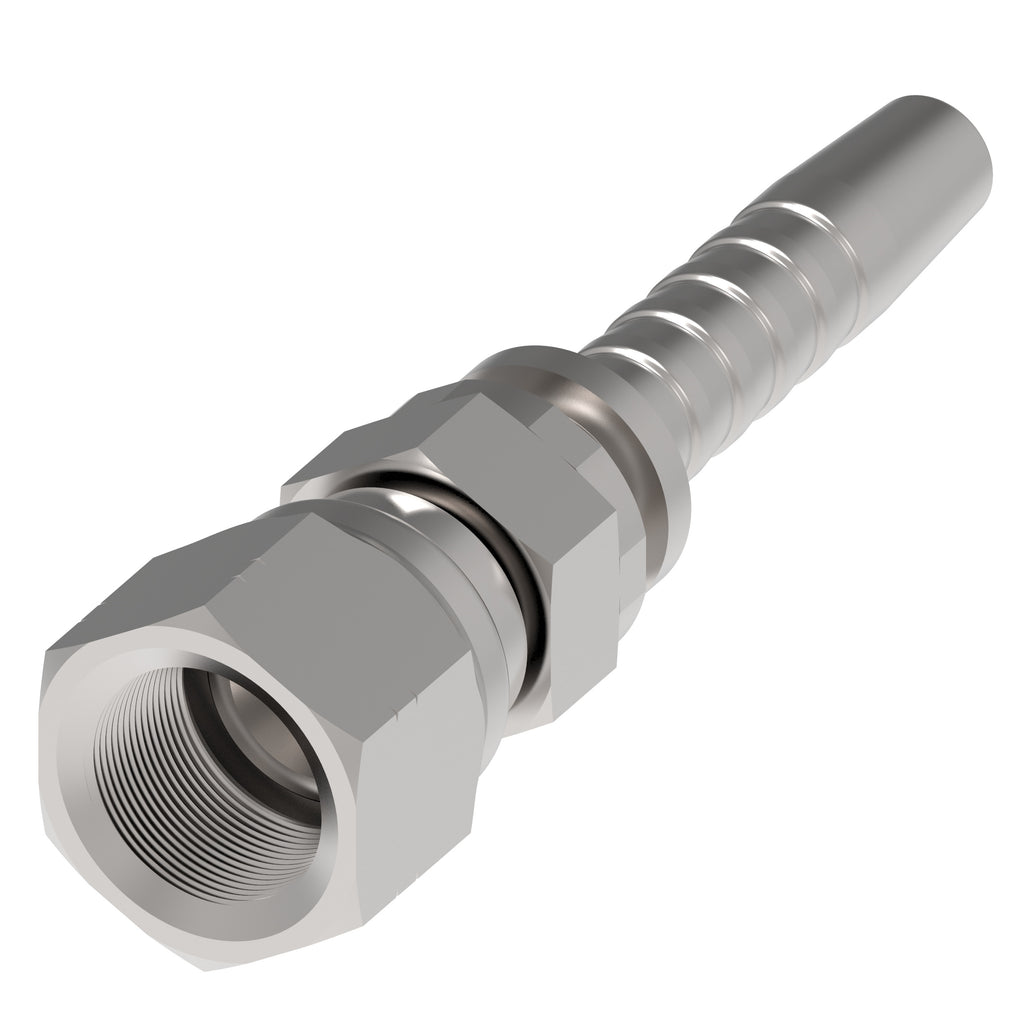

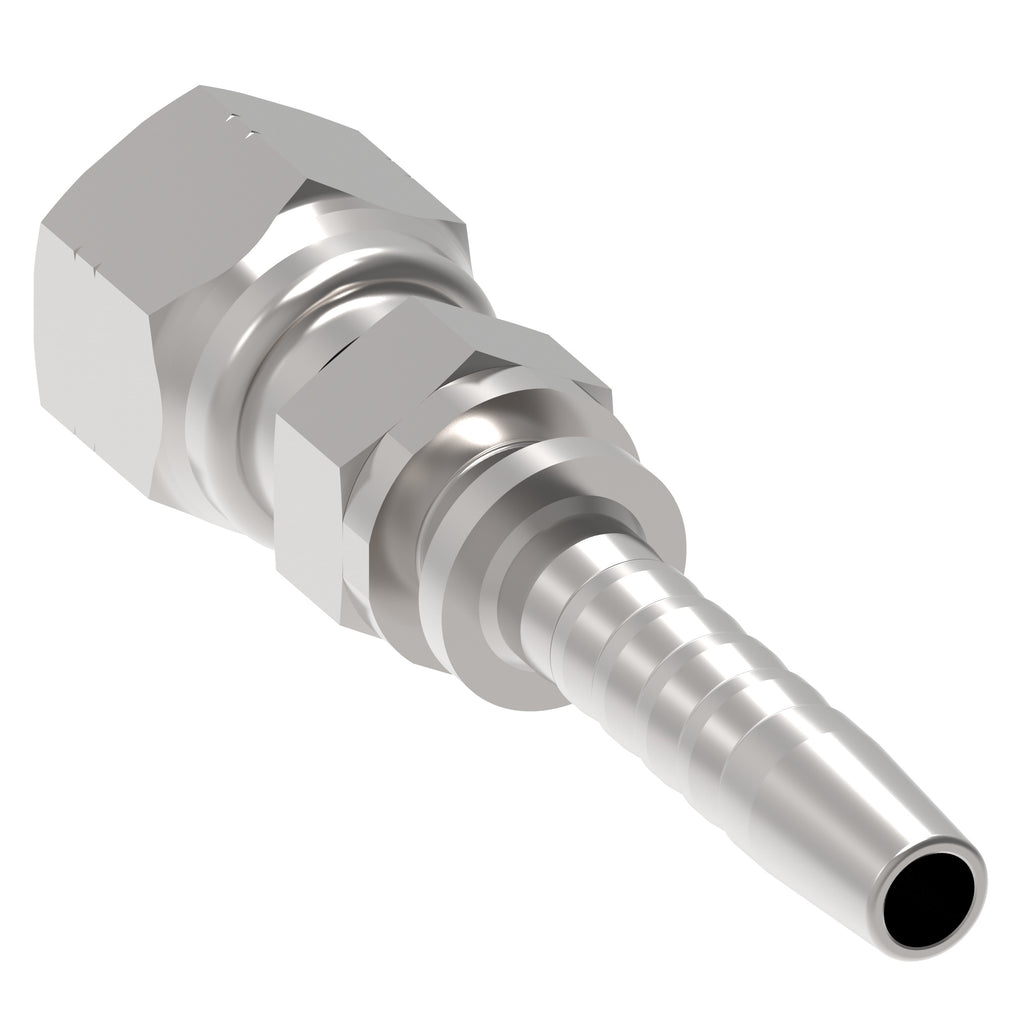

HOSE NIPPLE ASSY,2P/08,JIC-F/08,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 26711D-08-08Z
€1,69
Technische Daten
| Series | Winner 2-Piece |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.389 |
| Inside diameter MM | 9.9 |
| Product material | Carbon steel |
| Hose size | -8 |
| Thread size 1 | 3/4-16 UNF |
| Angle shape | Straight |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 2.204 |
| Compatible hose ID MM | 12.7 |
| Compatible hose ID IN | 0.5 |
| A dimension MM | 56 |
| End connection torque | 38-42 lb-ft(52-58 Nm) |
| Hose cut off factor IN | 0.964 |
| Hose cut off factor MM | 24.5 |
| Product height in | 1 |
| Product width in | 0.866 |
| Product width mm | 21.996 |
| Product height mm | 25.4 |
| Product length mm | 66.979 |
| Product length in | 2.637 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
