26711D-10-08Z
€1,79
Zu Produktinformationen springen
Auf Lager
26711D-10-08Z

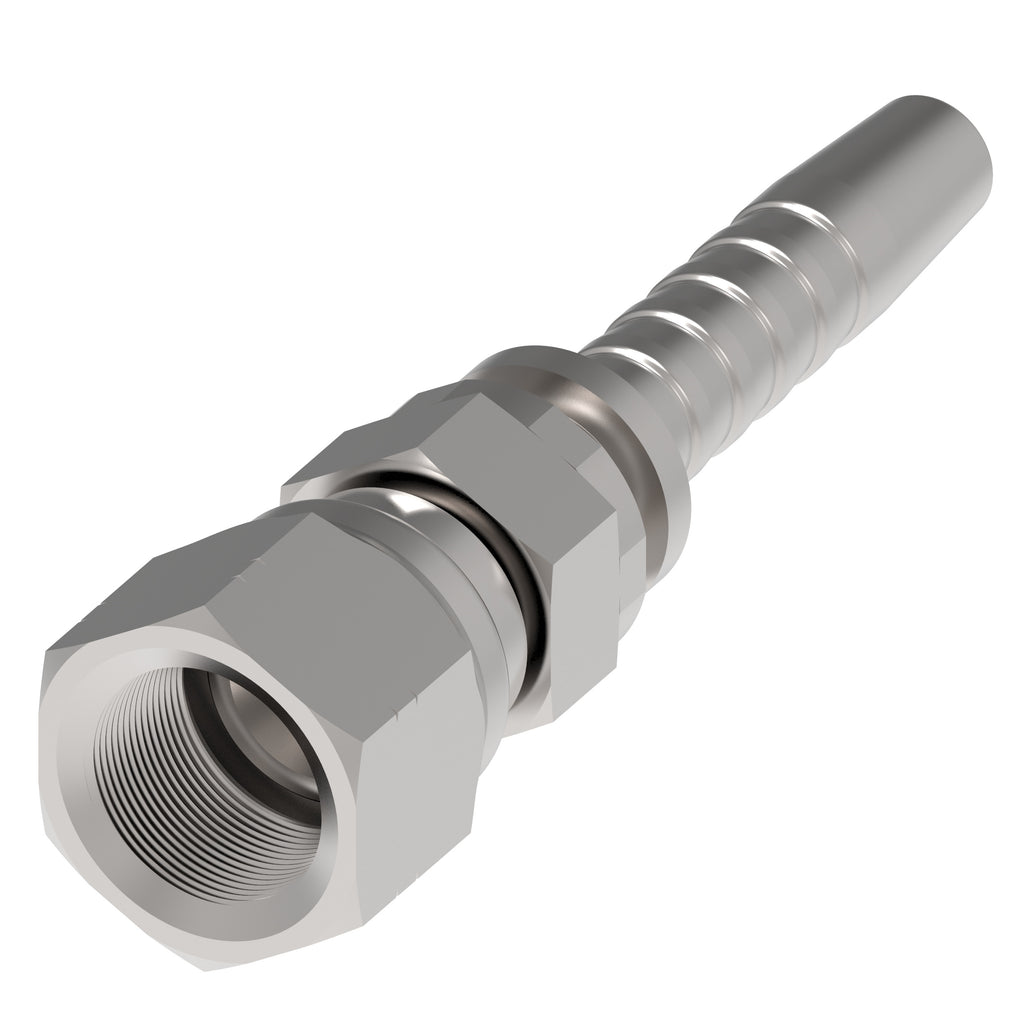

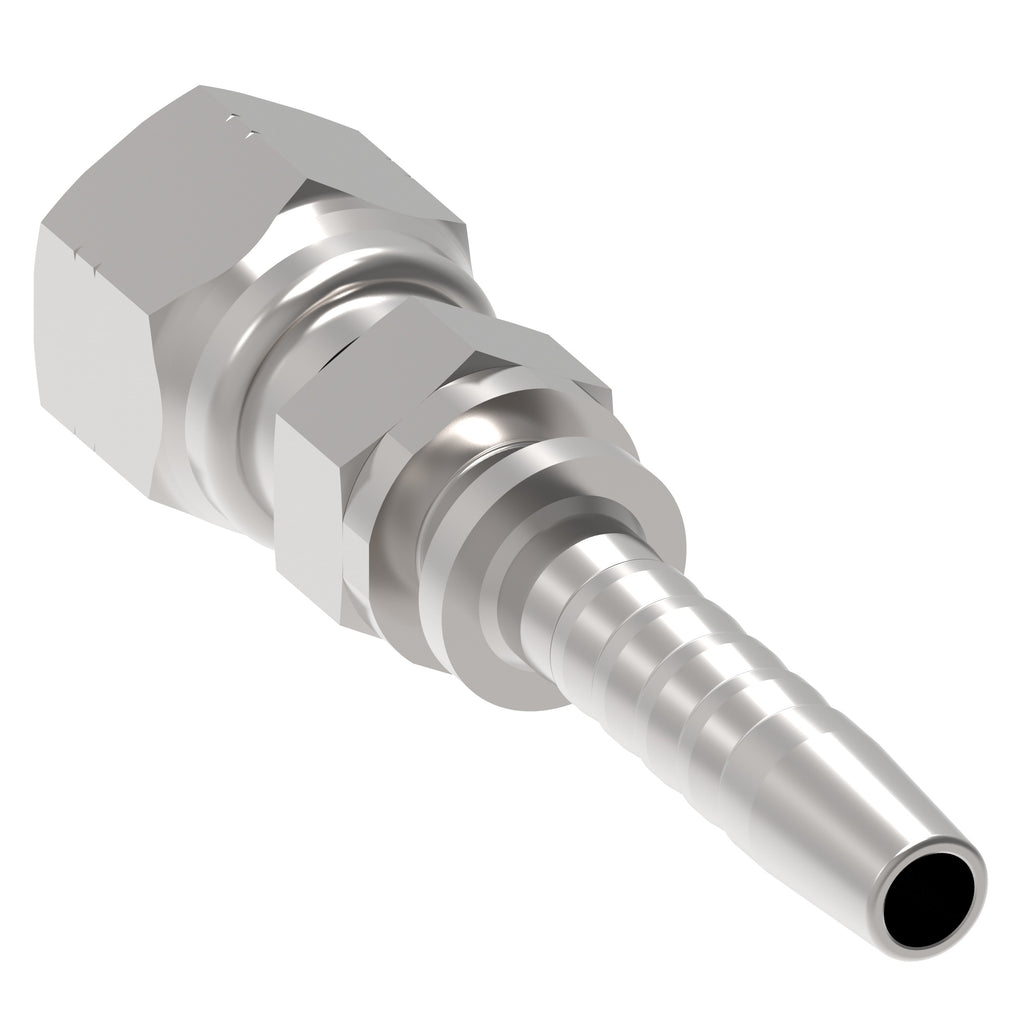

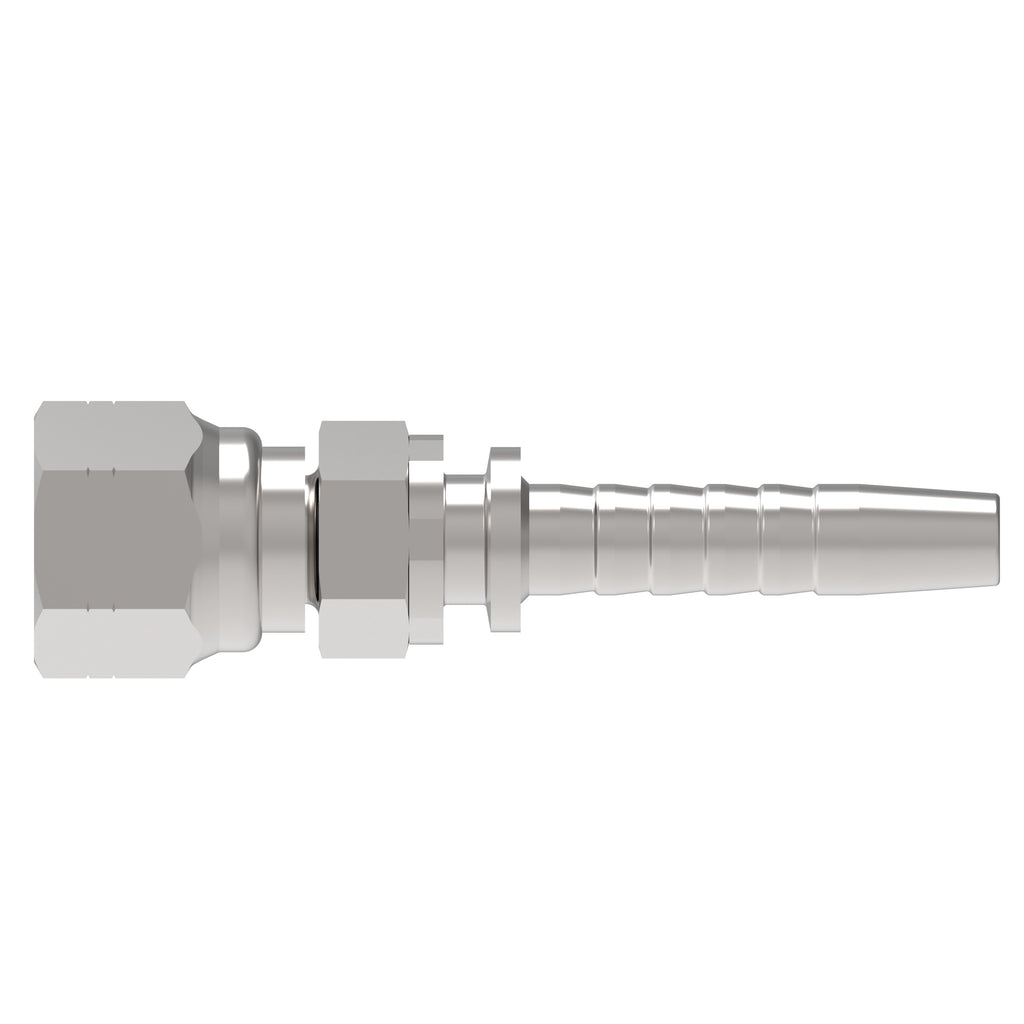

HOSE NIPPLE ASSY,2P/08,JIC-F/10,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 26711D-10-08Z
€2,13
Technische Daten
| Series | Winner 2-Piece |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.393 |
| Inside diameter MM | 10 |
| Product material | Carbon steel |
| Hose size | -8 |
| Thread size 1 | 7/8-14 UNF |
| Angle shape | Straight |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 2.263 |
| Compatible hose ID MM | 12.7 |
| Compatible hose ID IN | 0.5 |
| A dimension MM | 57.5 |
| End connection torque | 57-62 lb-ft(77-85 Nm) |
| Hose cut off factor IN | 1.023 |
| Hose cut off factor MM | 26 |
| Product height in | 1.22 |
| Product width in | 1.06 |
| Product width mm | 26.924 |
| Product height mm | 30.988 |
| Product length mm | 70.612 |
| Product length in | 2.78 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
