26711D-10-10SMZ

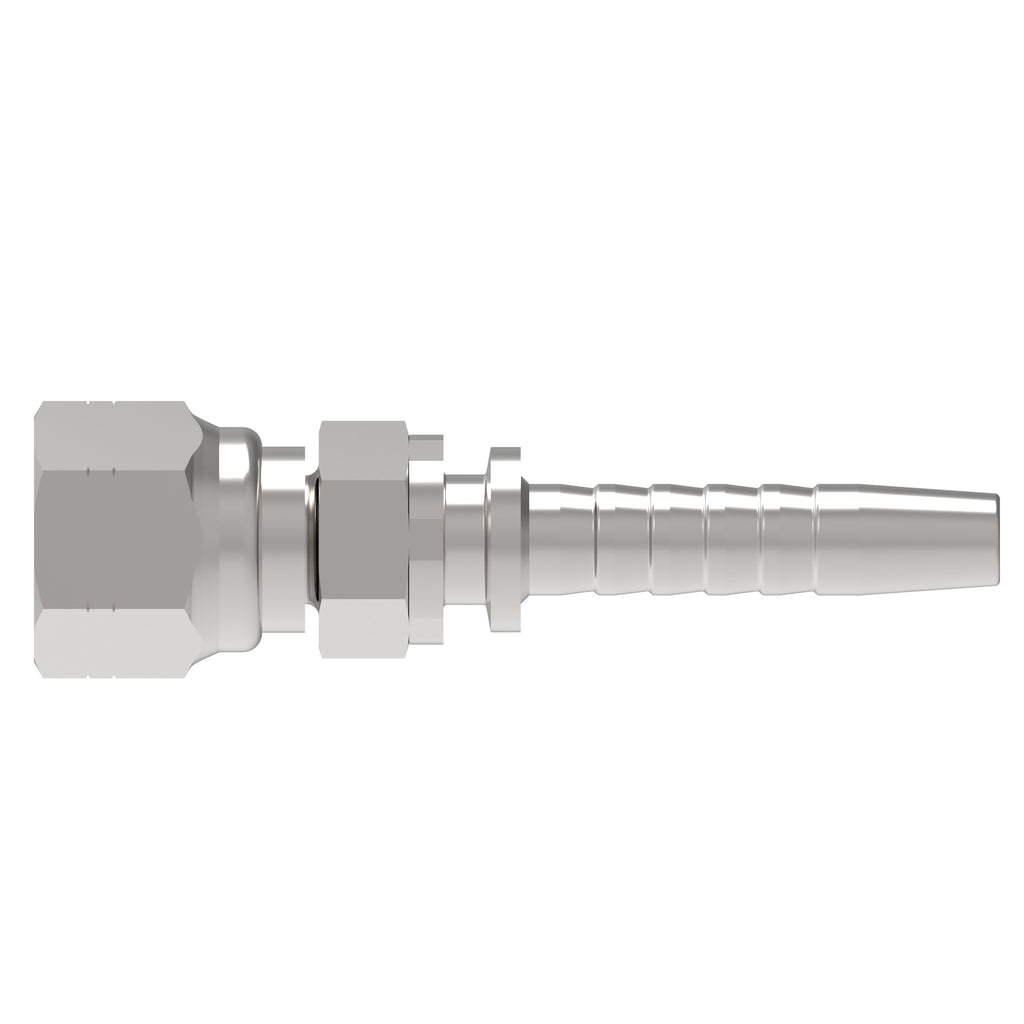

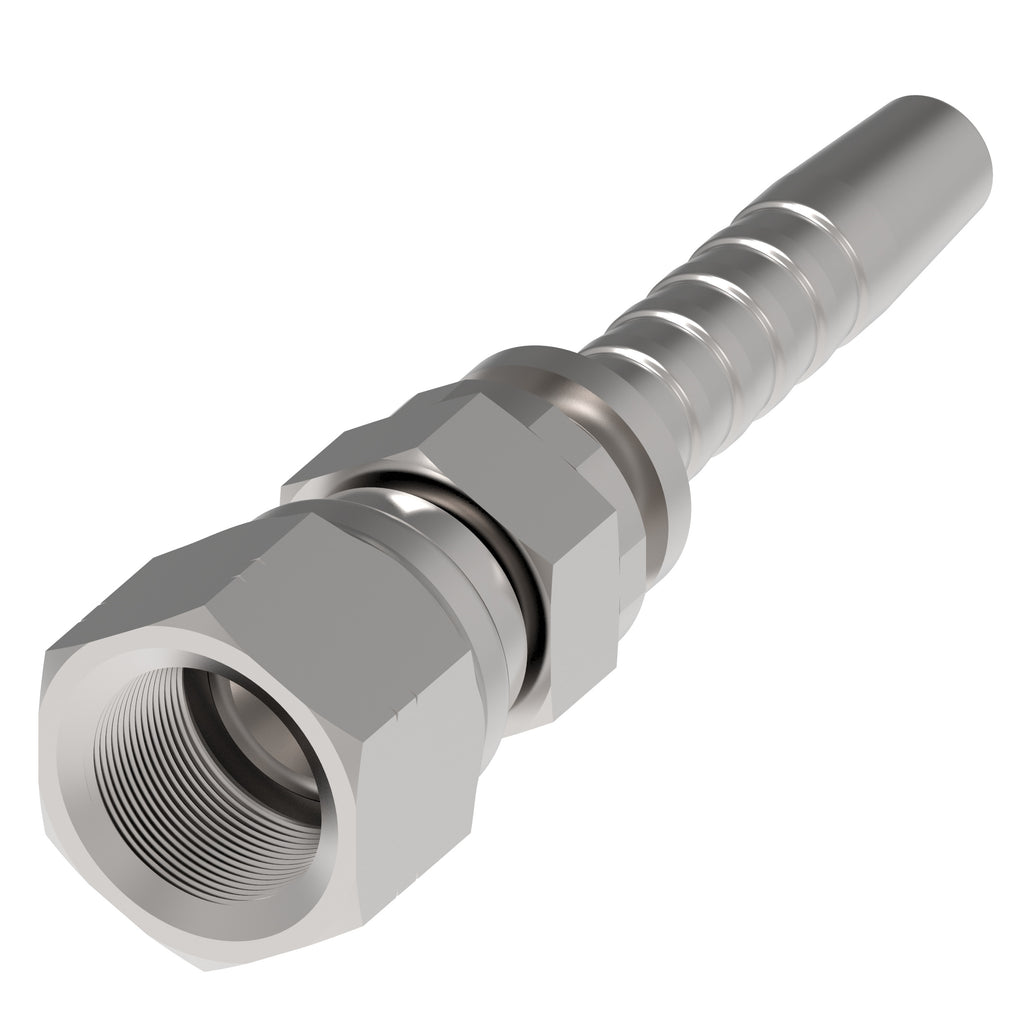

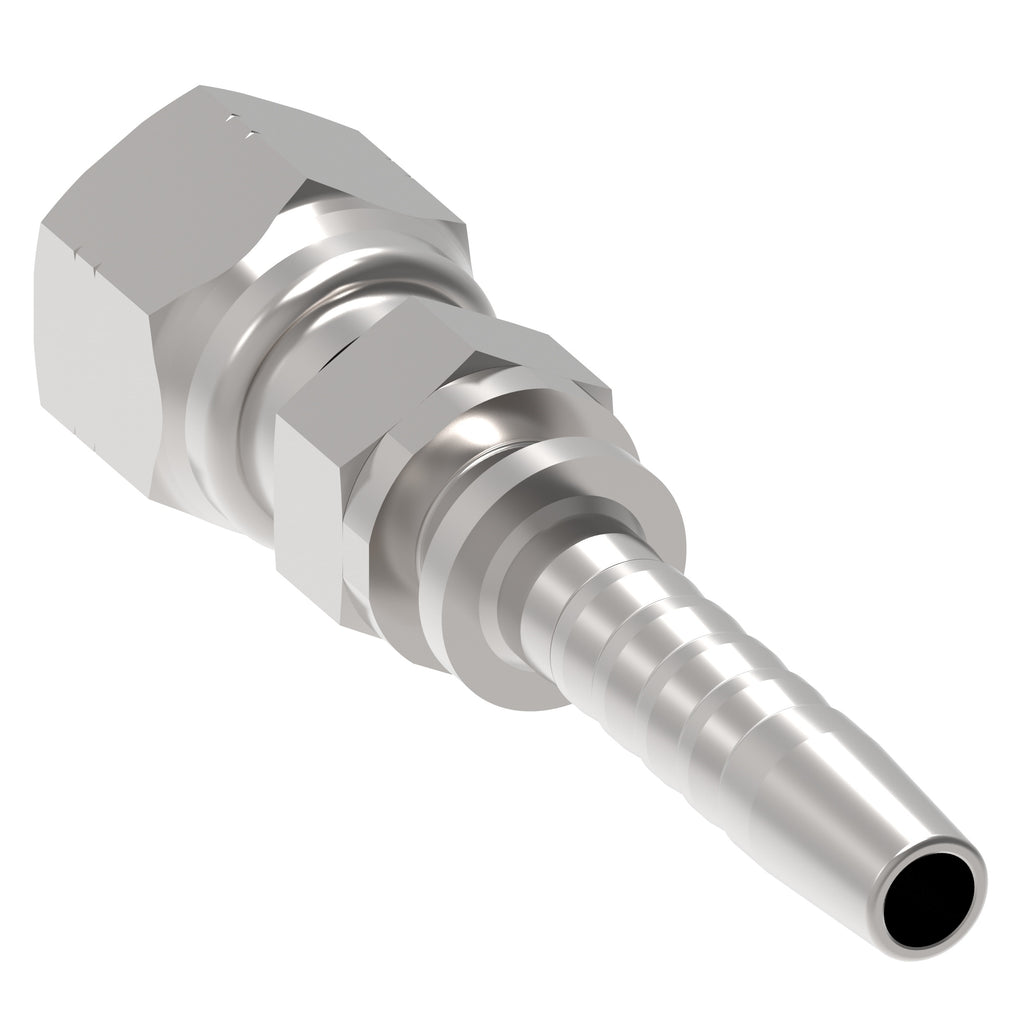

HOSE NIPPLE ASSY,2P/10,JIC-F/10,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 26711D-10-10SMZ
€2,37
Technische Daten
| Series | Winner 2-Piece |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.472 |
| Inside diameter MM | 12 |
| Product material | Carbon steel |
| Hose size | -10 |
| Thread size 1 | 7/8-14 UNF |
| Angle shape | Straight |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 2.381 |
| Compatible hose ID MM | 15.9 |
| Compatible hose ID IN | 0.62 |
| A dimension MM | 60.5 |
| End connection torque | 57-62 lb-ft(77-85 Nm) |
| Hose cut off factor IN | 1.043 |
| Hose cut off factor MM | 26.5 |
| Product height in | 1.22 |
| Product width in | 1.06 |
| Product width mm | 26.924 |
| Product height mm | 30.988 |
| Product length mm | 73.482 |
| Product length in | 2.893 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
