26711D-12-10Z
€3,70
Zu Produktinformationen springen
Auf Lager
26711D-12-10Z

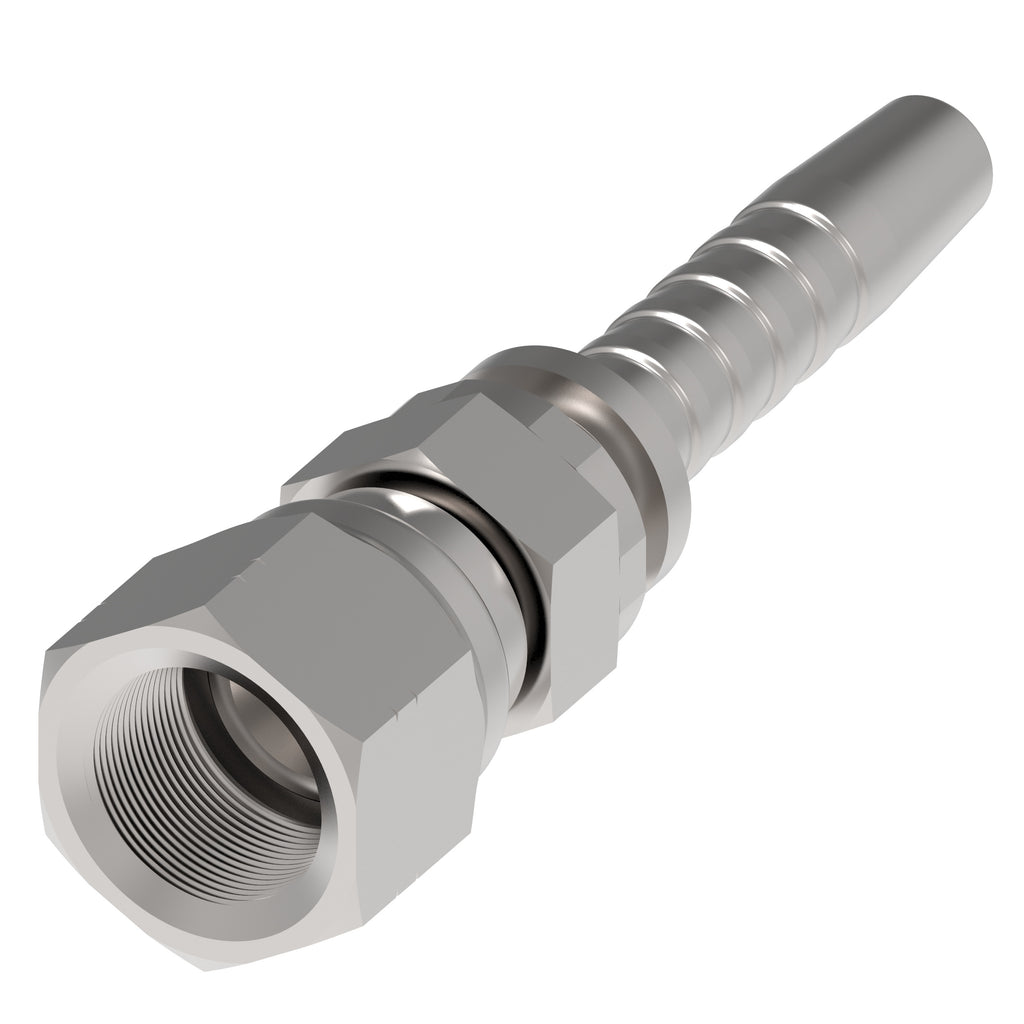

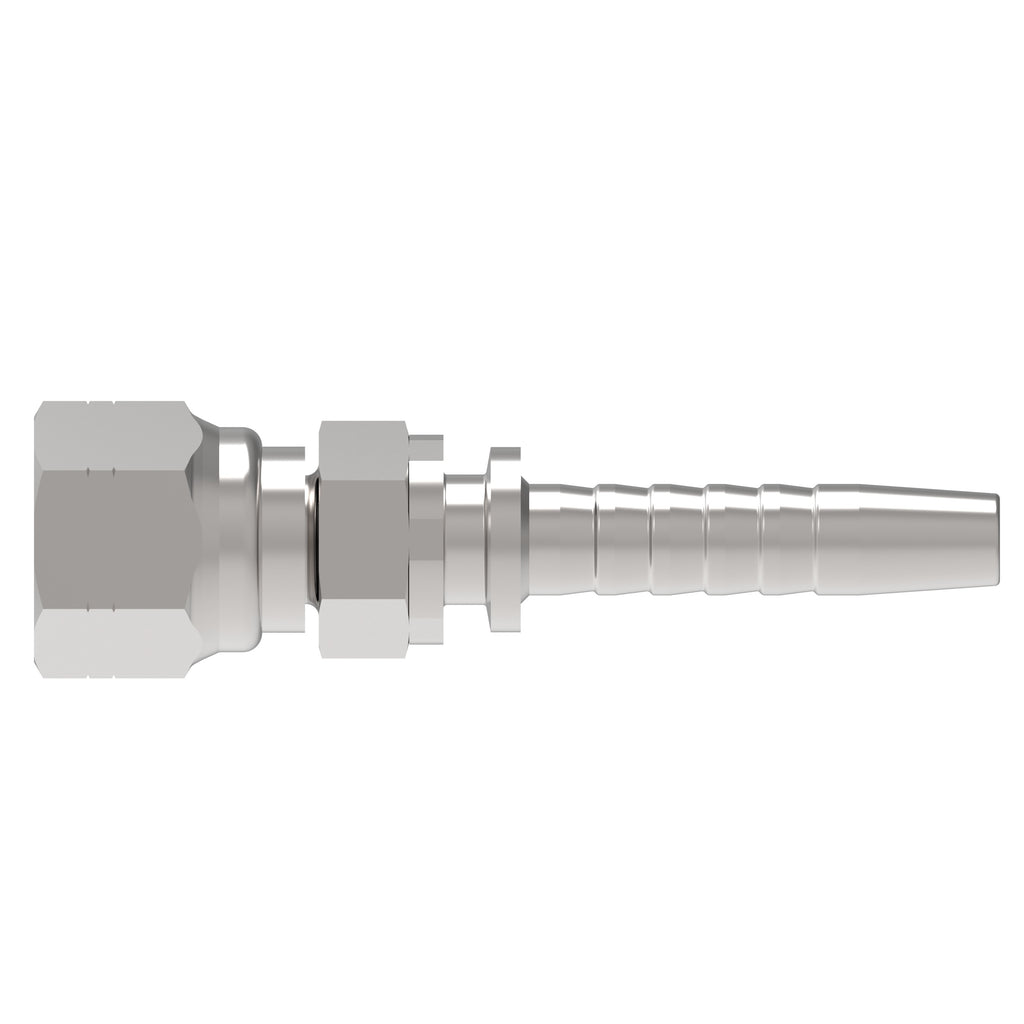

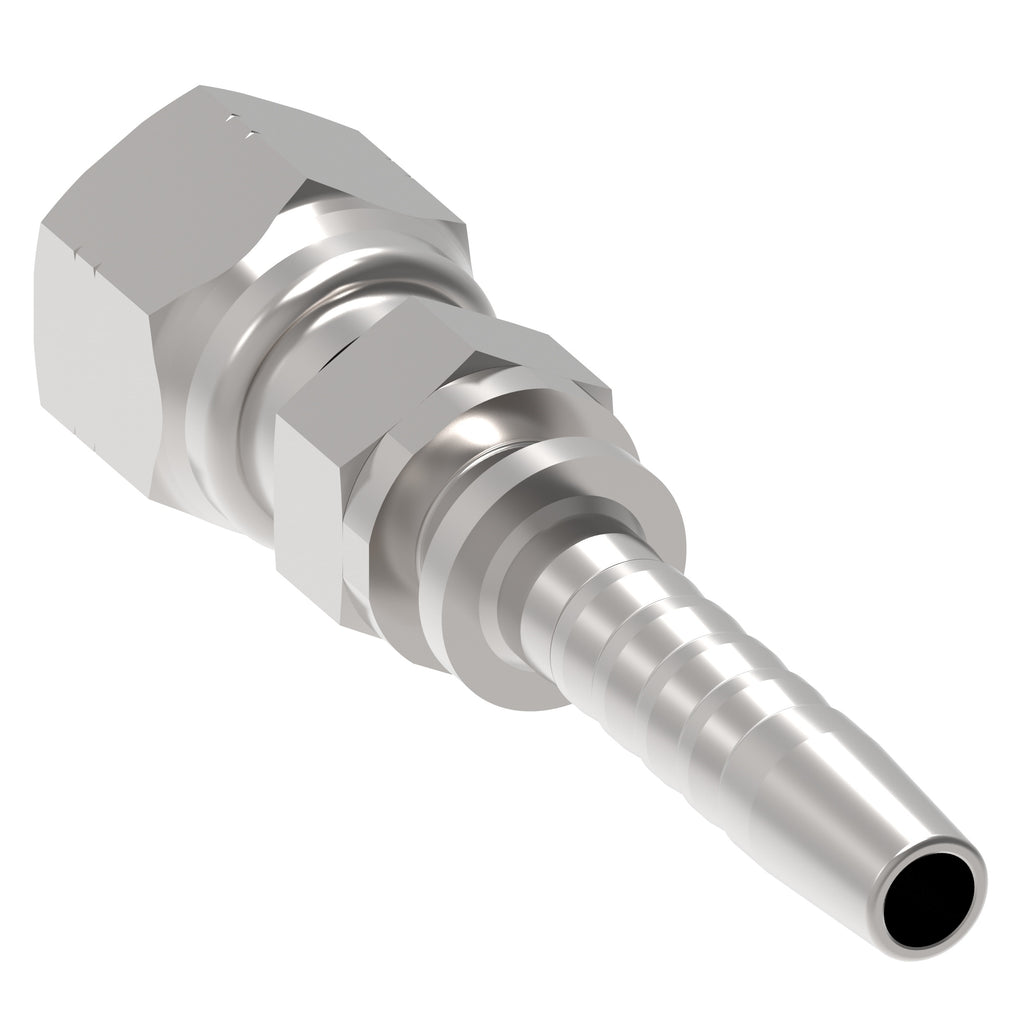

HOSE NIPPLE ASSY,2P/10,JIC-F/12,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 26711D-12-10Z
€4,40
Technische Daten
| Series | Winner 2-Piece |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.472 |
| Inside diameter MM | 12 |
| Product material | Carbon steel |
| Hose size | -10 |
| Thread size 1 | 1 1/16-12 UN |
| Angle shape | Straight |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 2.559 |
| Compatible hose ID MM | 15.9 |
| Compatible hose ID IN | 0.62 |
| A dimension MM | 65 |
| End connection torque | 79-87 lb-ft(108-119 Nm) |
| Hose cut off factor IN | 1.22 |
| Hose cut off factor MM | 31 |
| Product height in | 1.44 |
| Product width in | 1.26 |
| Product width mm | 32.004 |
| Product height mm | 36.576 |
| Product length mm | 65.024 |
| Product length in | 2.56 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
