26711D-12-12Z
€3,83
Zu Produktinformationen springen
Auf Lager
26711D-12-12Z

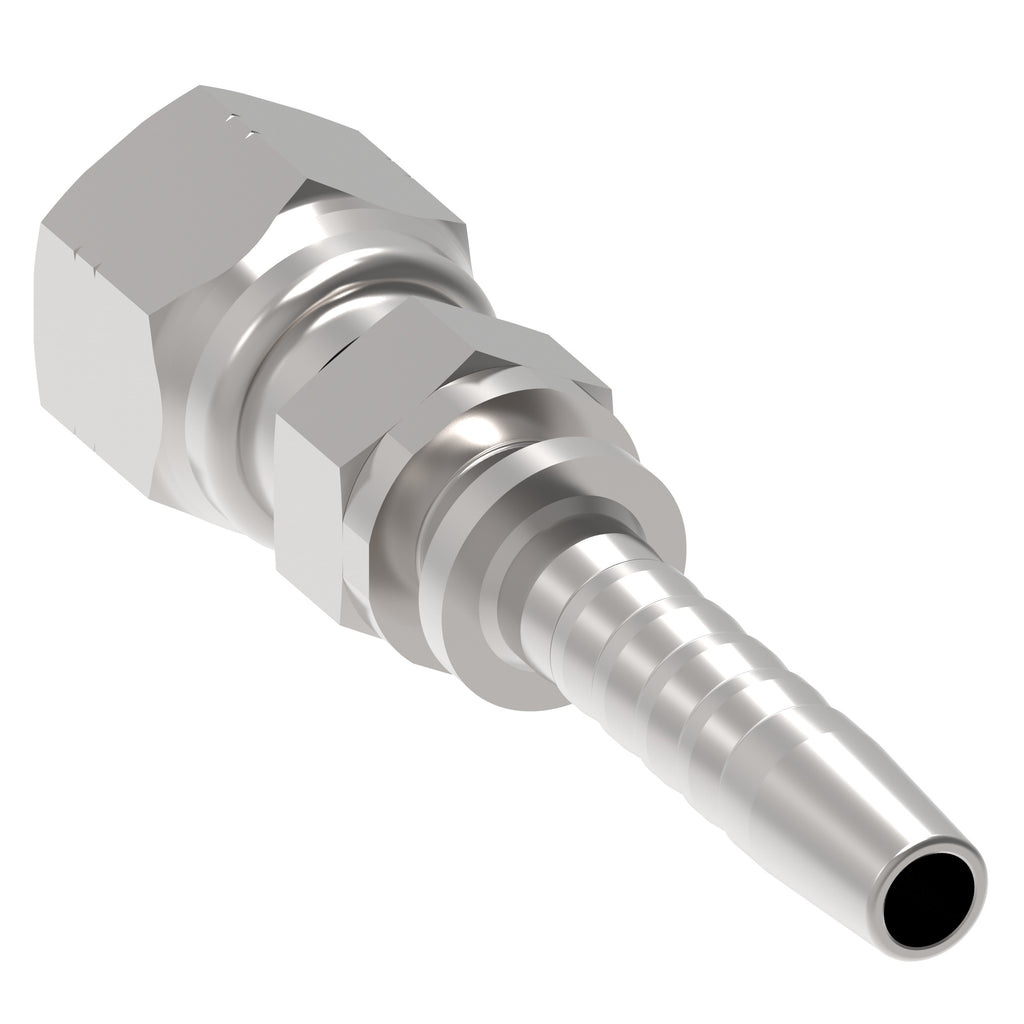

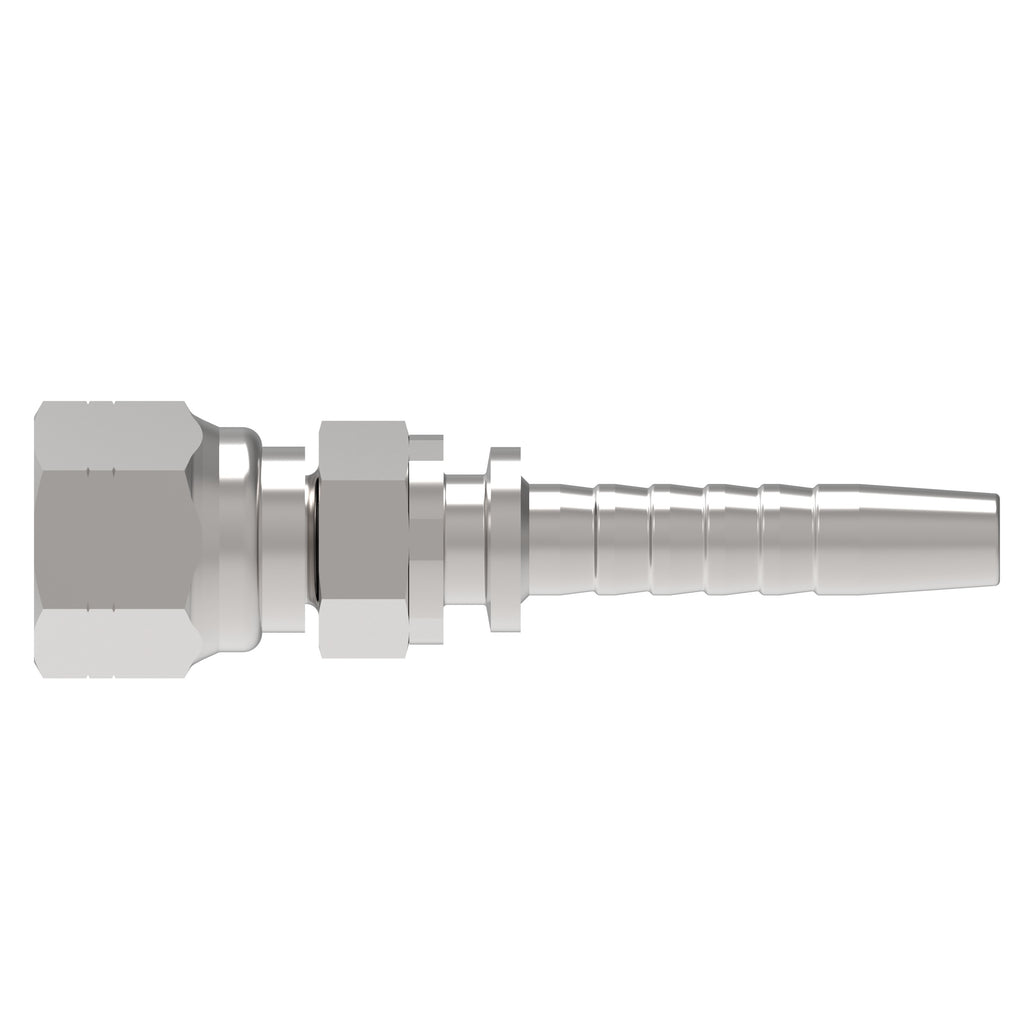

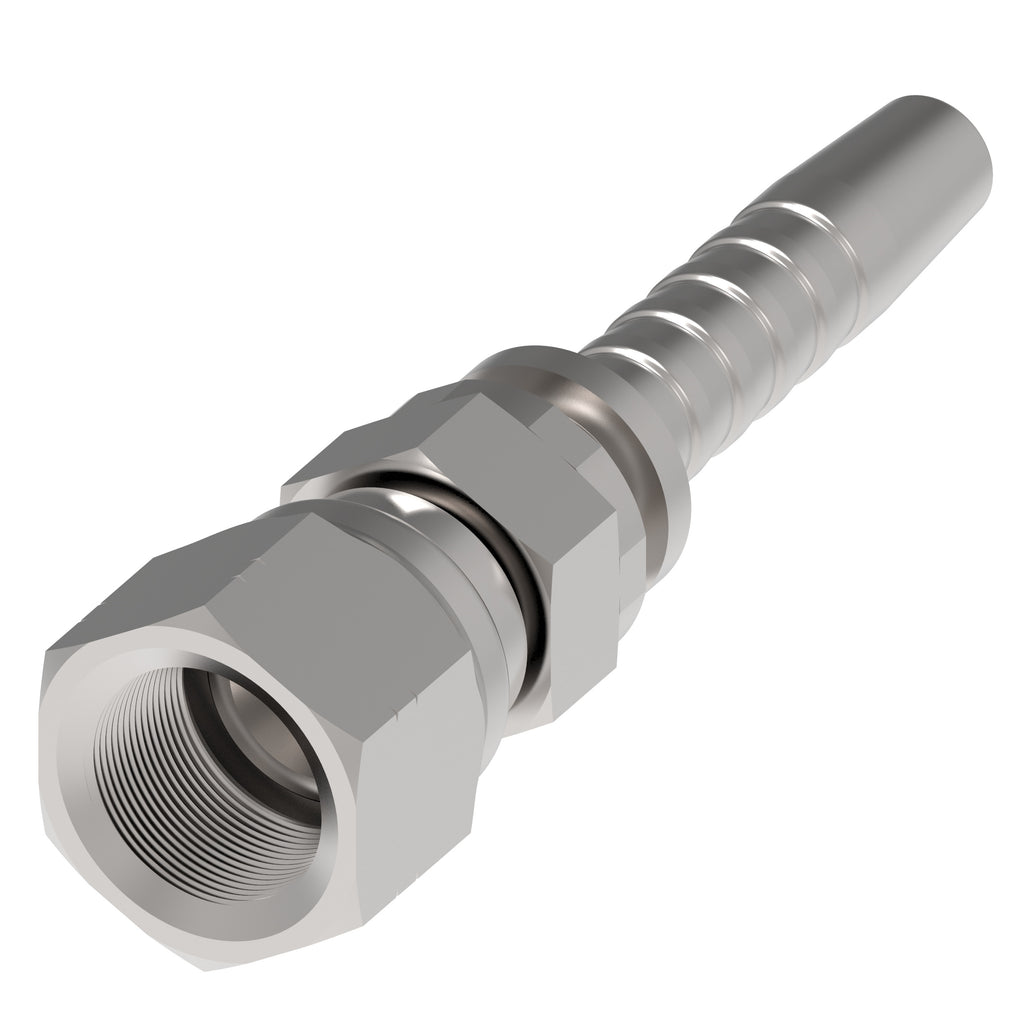

HOSE NIPPLE ASSY,2P/12,JIC-F/12,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 26711D-12-12Z
€4,56
Technische Daten
| Series | Winner 2-Piece |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.59 |
| Inside diameter MM | 15 |
| Product material | Carbon steel |
| Hose size | -12 |
| Thread size 1 | 1 1/16-12 UN |
| Angle shape | Straight |
| End Type 1 | Female 37 degree swivel |
| Hex size 1 IN | 1.26 |
| Hex size 2 IN | 0 |
| Hex size 1 MM | 32 |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 2.755 |
| Compatible hose ID MM | 19 |
| Compatible hose ID IN | 0.75 |
| A dimension MM | 70 |
| End connection torque | 79-87 lb-ft(108-119 Nm) |
| Hose cut off factor IN | 1.24 |
| Hose cut off factor MM | 31.5 |
| Product height in | 1.45 |
| Product width in | 1.26 |
| Product width mm | 32.004 |
| Product height mm | 36.83 |
| Product length mm | 84.582 |
| Product length in | 3.33 |
| End connection hex size in | 1.26 |
| End connection hex size mm | 32 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
