26711D-16-16Z
€6,35
Zu Produktinformationen springen
Auf Lager
26711D-16-16Z

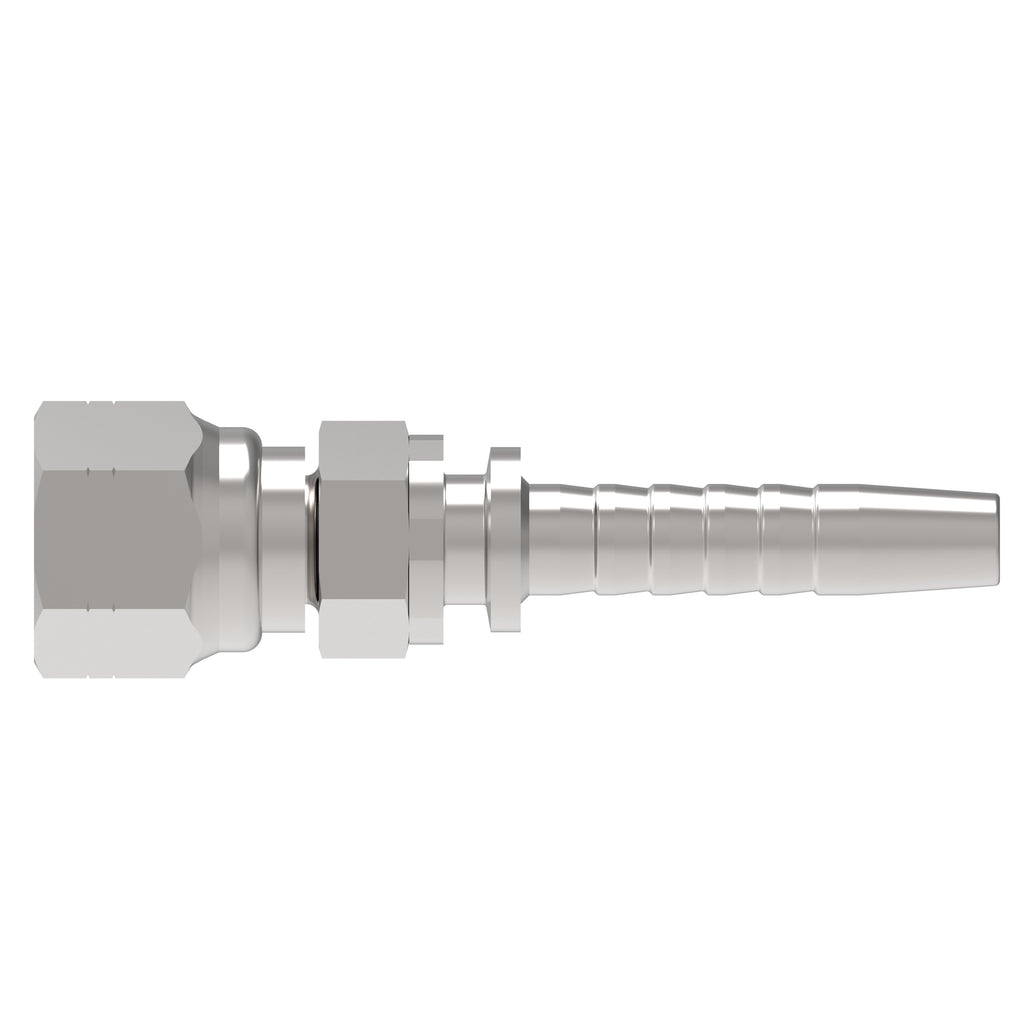

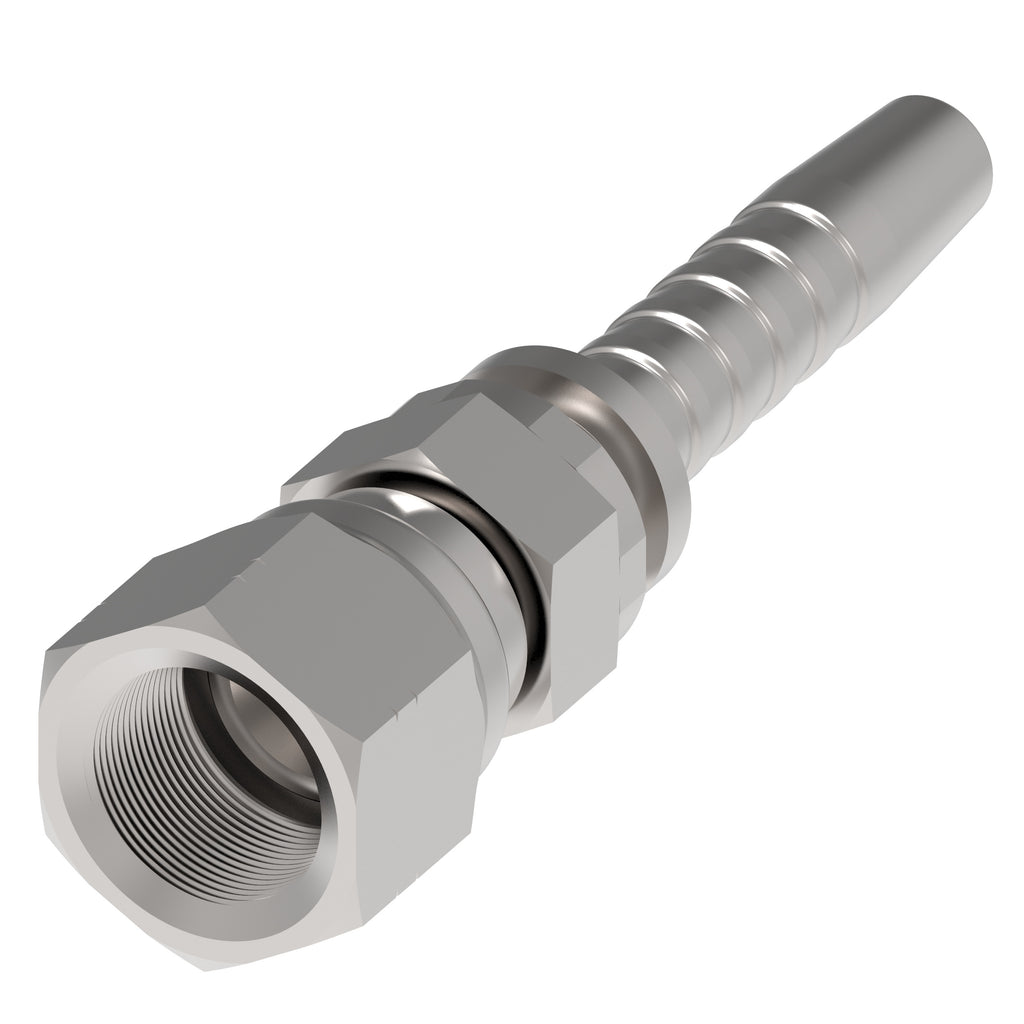

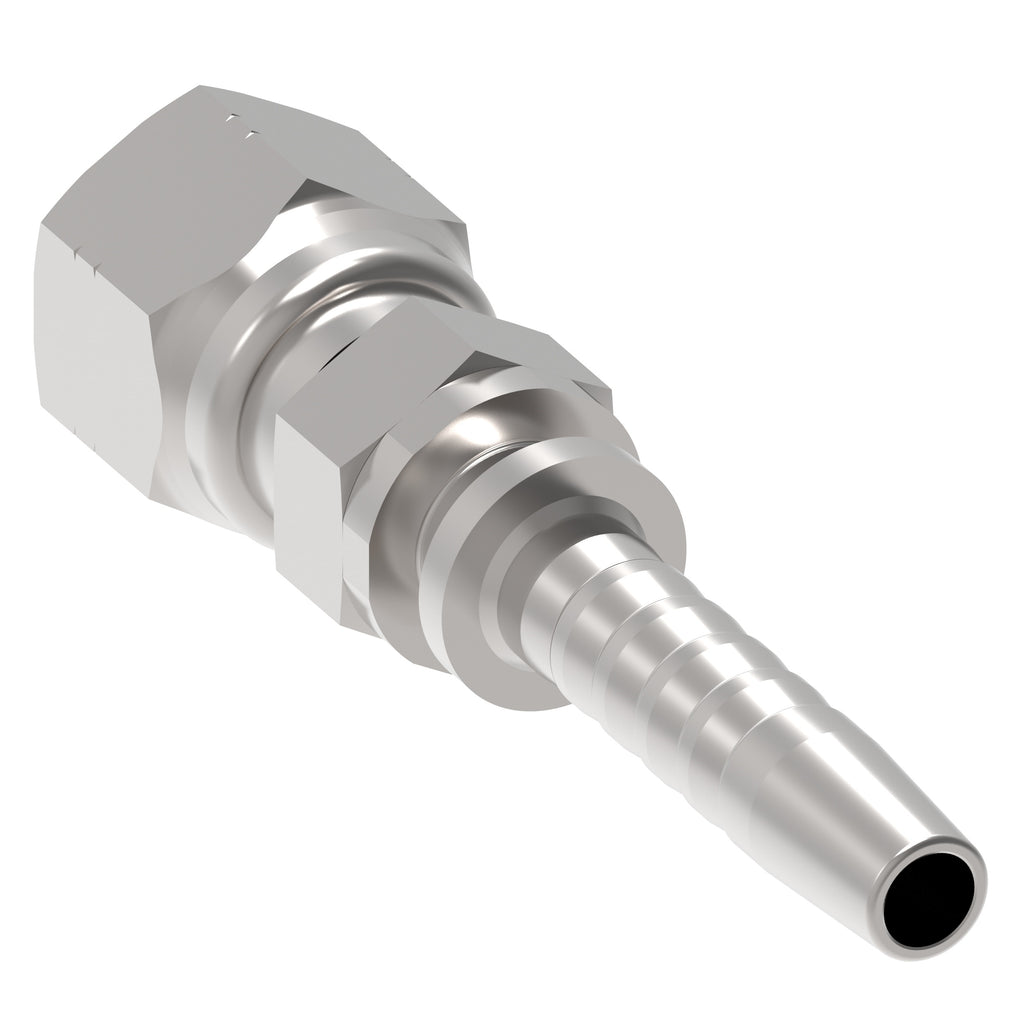

HOSE NIPPLE ASSY,2P/16,JIC-F/16,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 26711D-16-16Z
€7,56
Technische Daten
| Series | Winner 2-Piece |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.826 |
| Inside diameter MM | 21 |
| Product material | Carbon steel |
| Hose size | -16 |
| Thread size 1 | 1 5/16-12 UN |
| Angle shape | Straight |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 3.208 |
| Compatible hose ID MM | 25.4 |
| Compatible hose ID IN | 1 |
| A dimension MM | 81.5 |
| End connection torque | 108-113 lb-ft(148-154 Nm) |
| Hose cut off factor IN | 1.358 |
| Hose cut off factor MM | 34.5 |
| Product height in | 1.86 |
| Product width in | 1.61 |
| Product width mm | 40.894 |
| Product height mm | 47.244 |
| Product length mm | 96.672 |
| Product length in | 3.806 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
