310
€31,66
Zu Produktinformationen springen
Auf Lager
310

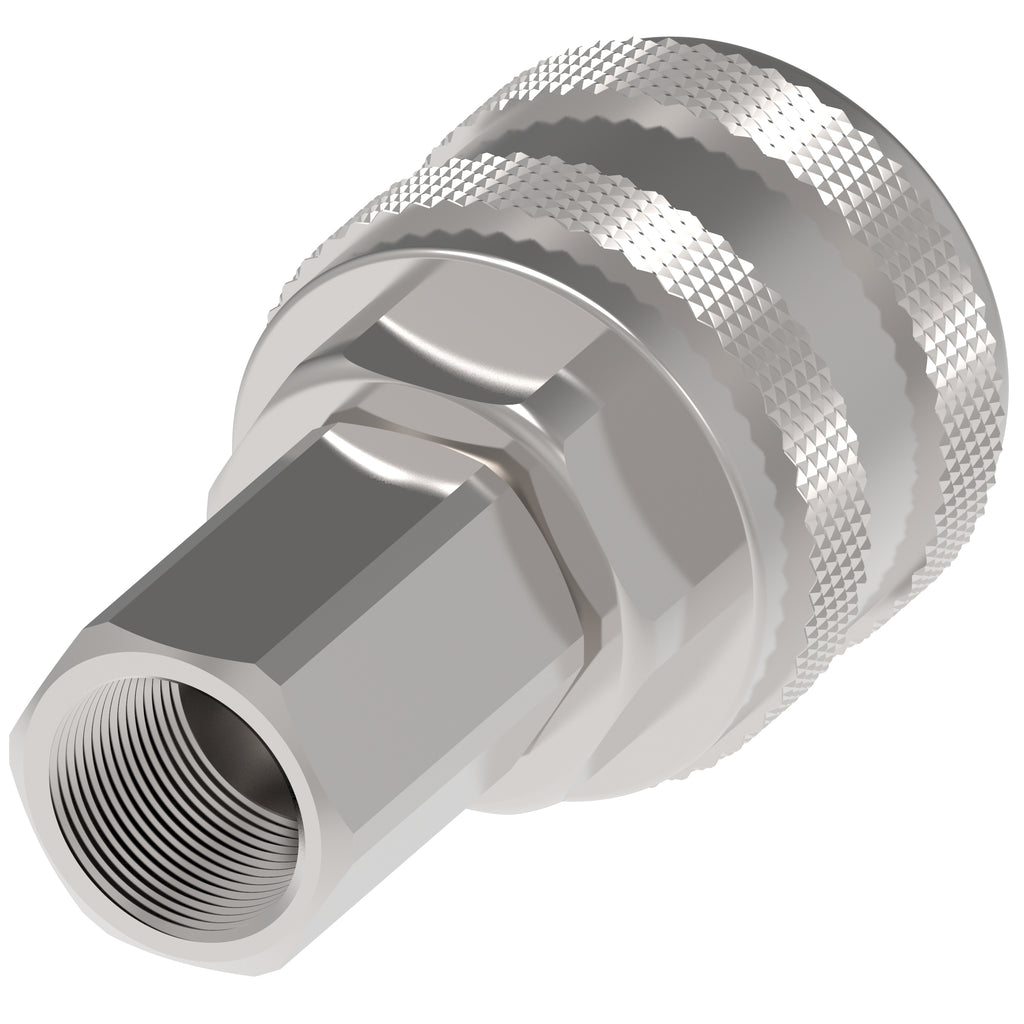

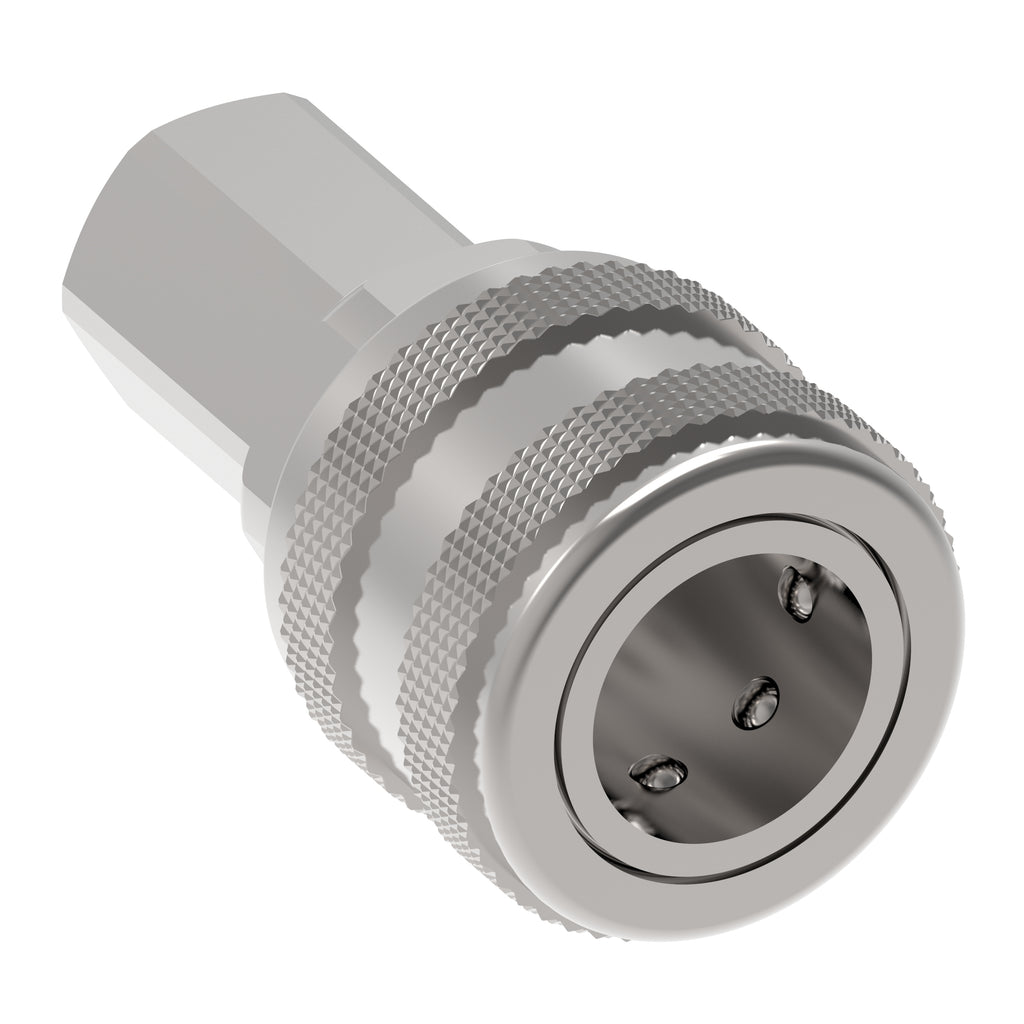

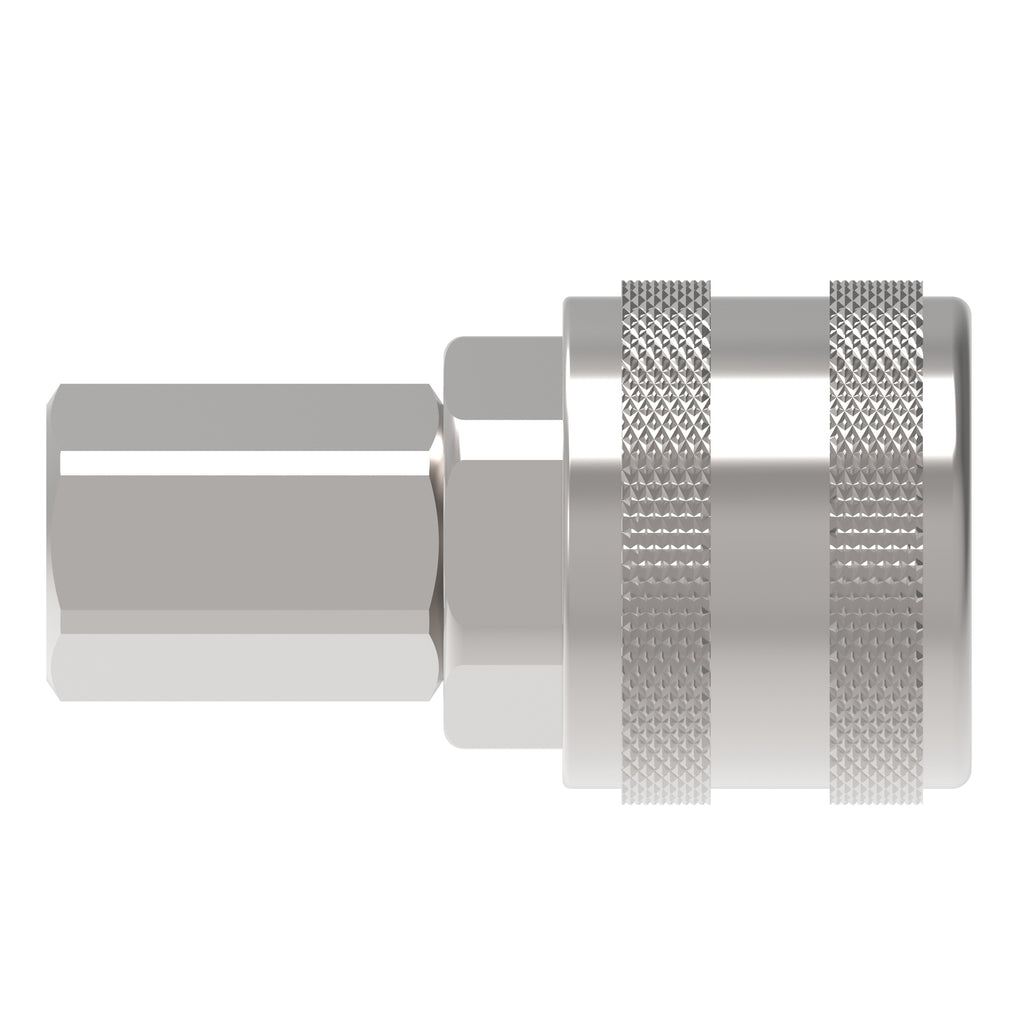

COUPLING,3000,F,1/4,B,-6NPT,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 310
€37,68
Technische Daten
| Application | Construction In-plant/Industrial Maintenance and repair Pneumatic tools |
| Legacy part number | 310 |
| Sub brand | Hansen |
| Brand | Danfoss |
| Working pressure max bar | 17 |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Carbon steel |
| Angle shape | Straight |
| Burst pressure min bar | 69 |
| Body size | 3/8 |
| Burst pressure min psi | 1000 |
| Connection style | Manual connect |
| End size 2 | -6 |
| End type 2 | Female pipe (NPTF) |
| End type 1 | Female Push to Connect |
| Finish plating | Zinc |
| Hex size 1 IN | 0.94 |
| Hex size 1 MM | 23.876 |
| Latch type | Push/pull |
| Safety locking mechanism | Pin lock |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 250 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
| Fluid compatibility | Compressed air Gases and liquids |
| Product height in | 1.21 |
| Product width in | 1.21 |
| Product width mm | 30.734 |
| Product height mm | 30.734 |
| Product length mm | 53.34 |
| Product length in | 2.1 |
| Flow rate gpm | 374 |
| Flow rate lpm | 1415.74 |
Weitere Produktdaten
- Herkunftsland: Mexico
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
