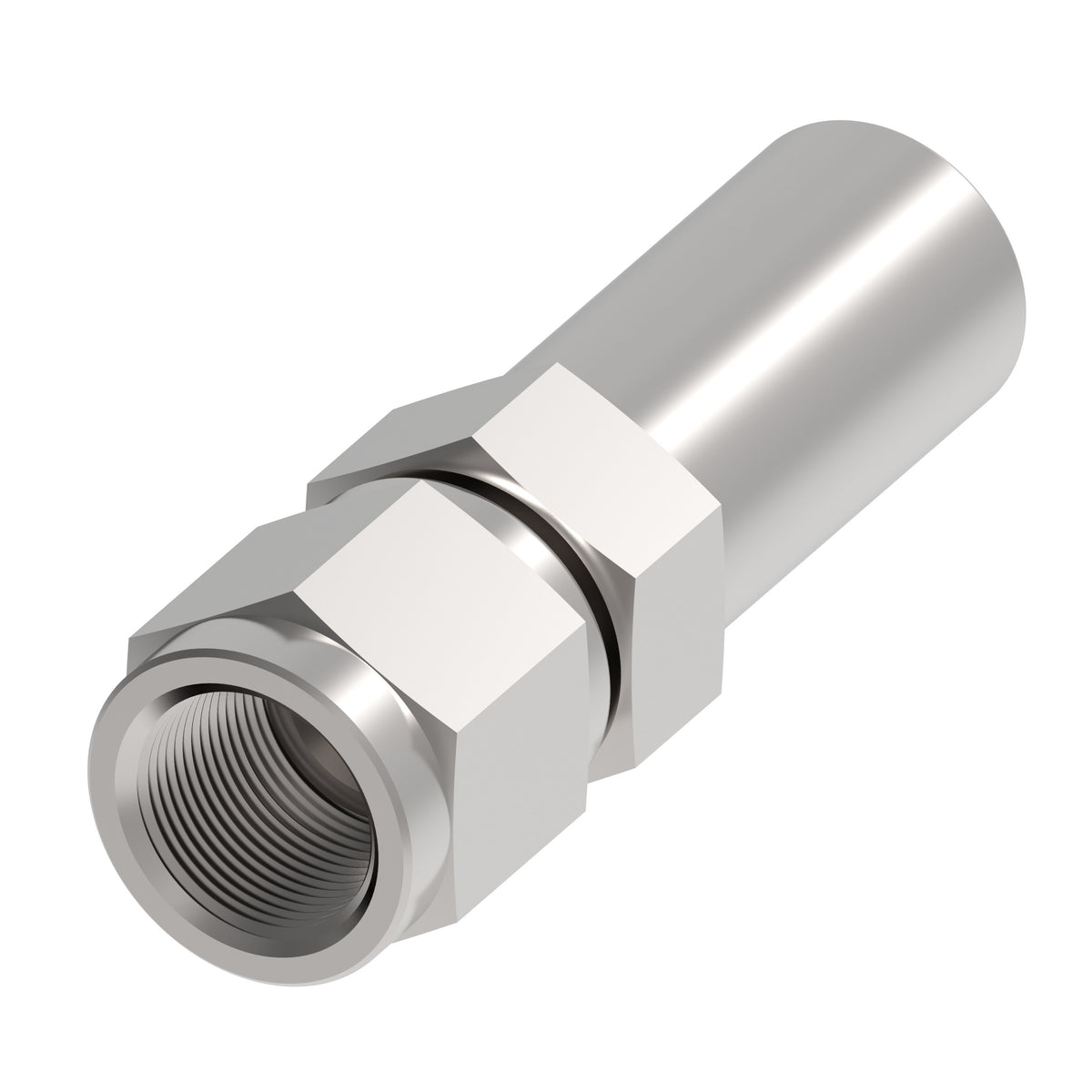

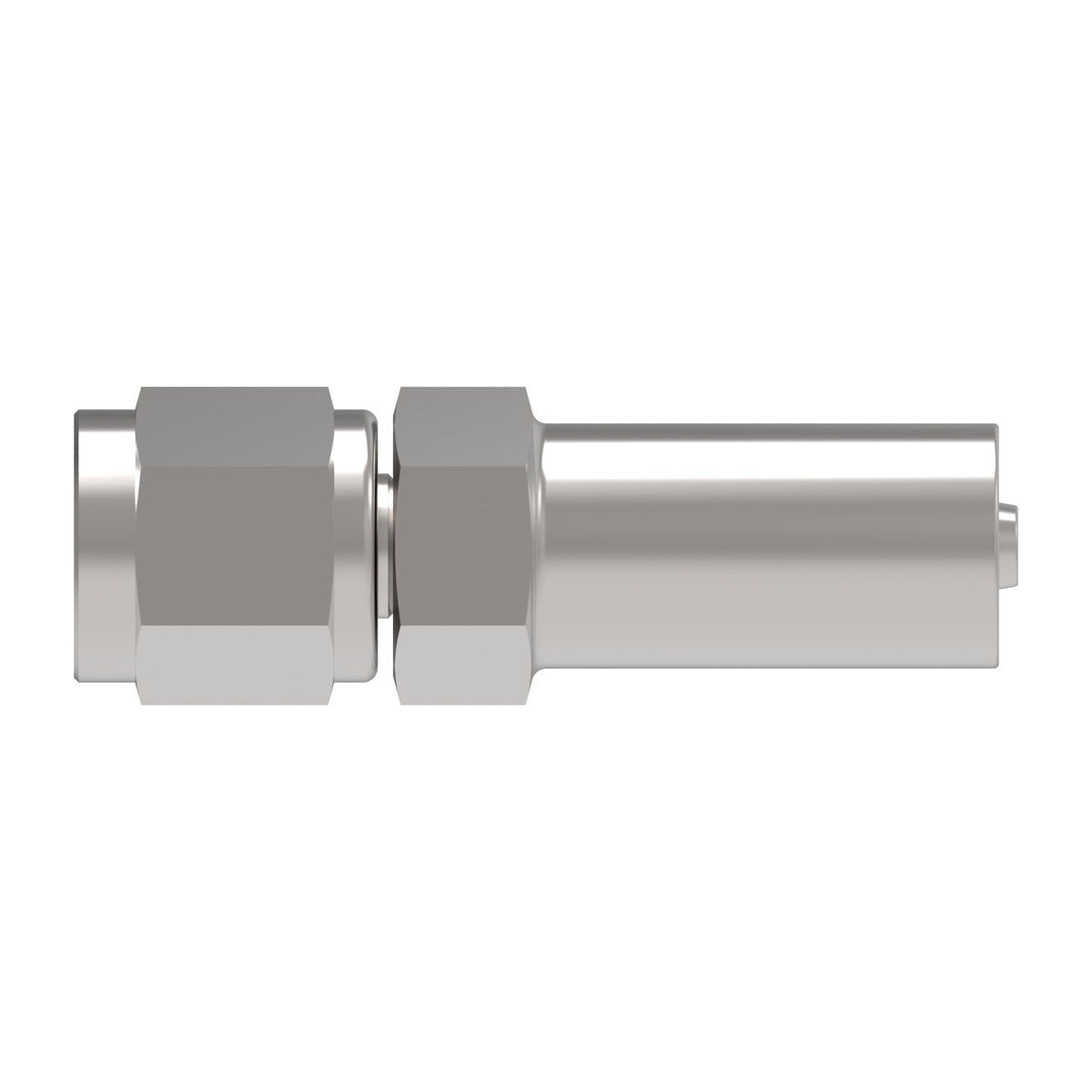

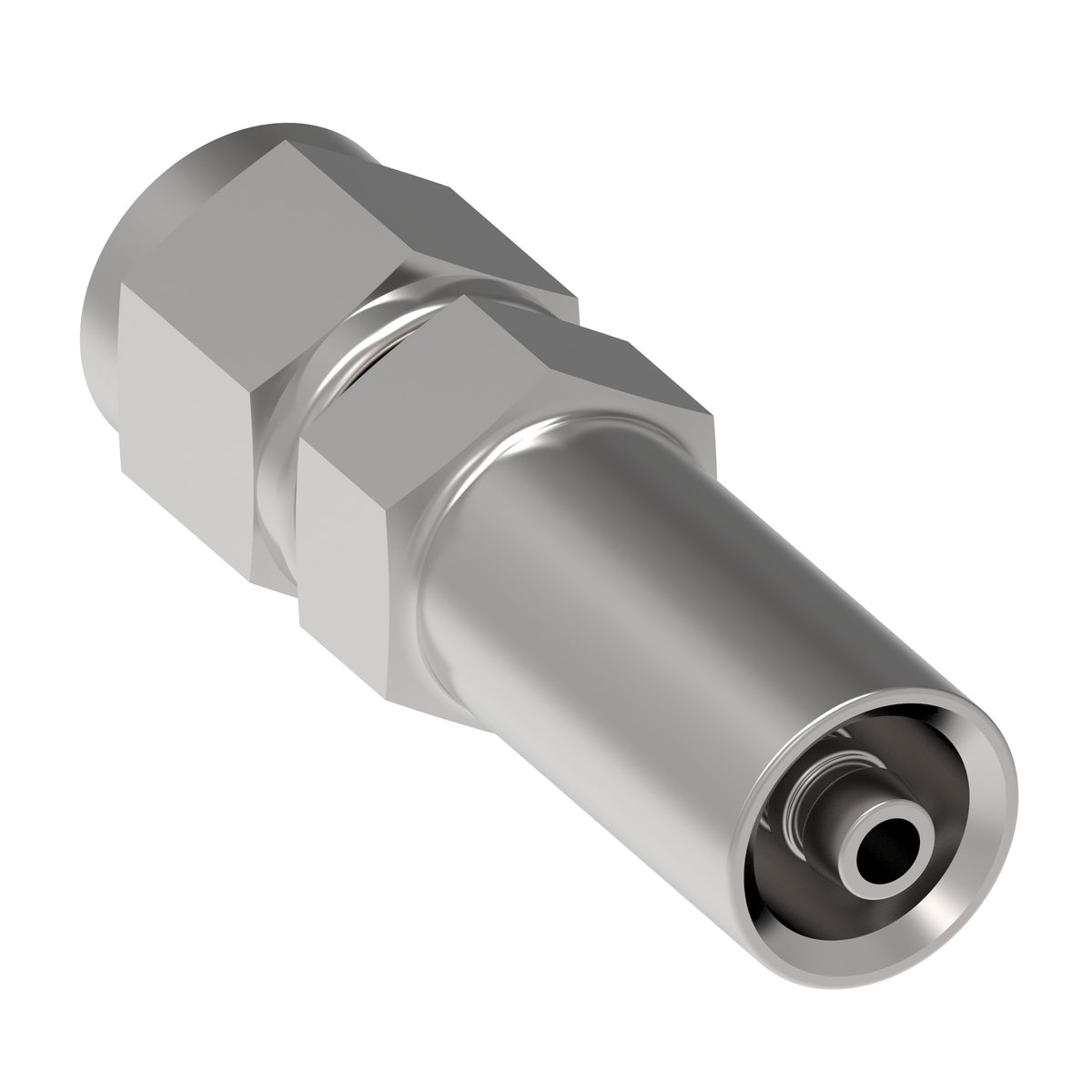

Danfoss Synflex 390E-03544-C05 – Thermoplast-Schlaucharmatur

Name: Danfoss Synflex 390E-03544-C05 – Thermoplast-Schlaucharmatur
Brand: Danfoss
SKU: 390E-03544-C05
Price: 86.59 EUR
Availability: InStock

Fitting-nipple

Lieferzeit: ca. 2 Wochen

Danfoss Artikelnummer: 390E-03544-C05

€103,04

Auf Lager

Technische Daten

Herkunftsland: USA
Zolltarifnummer: 73269098
Danfoss Produktseite: <a href="https://powersource.danfoss.com/p/390E-03544-C05" target="_blank" rel="noopener">Produkt bei Danfoss

Brand	Synflex by Danfoss
Inside diameter IN	0.109
Inside diameter MM	2.769
Product material	304 Stainless steel
Thread size 1	7/16-20 UNF
Angle shape	Straight
End type 1	Female 37 degree swivel
Hex size 1 IN	0.563
Hex size 2 IN	0.563
Hex size 1 MM	14.288
Hex size 2 MM	14.288
Construction Style	Reusable
A dimension IN	1.887
Compatible hose ID IN	0.251
A dimension MM	47.93
Hose cut off factor IN	0.937
Hose cut off factor MM	23.8
Reusable socket hex MM	14.288
Product height in	0.65
Product width in	0.56
Product width mm	14.224
Product height mm	16.51
Product length mm	47.498
Product length in	1.87
End connection hex size in	0.563
End connection hex size mm	14.288
Backup hex size in	0.563
