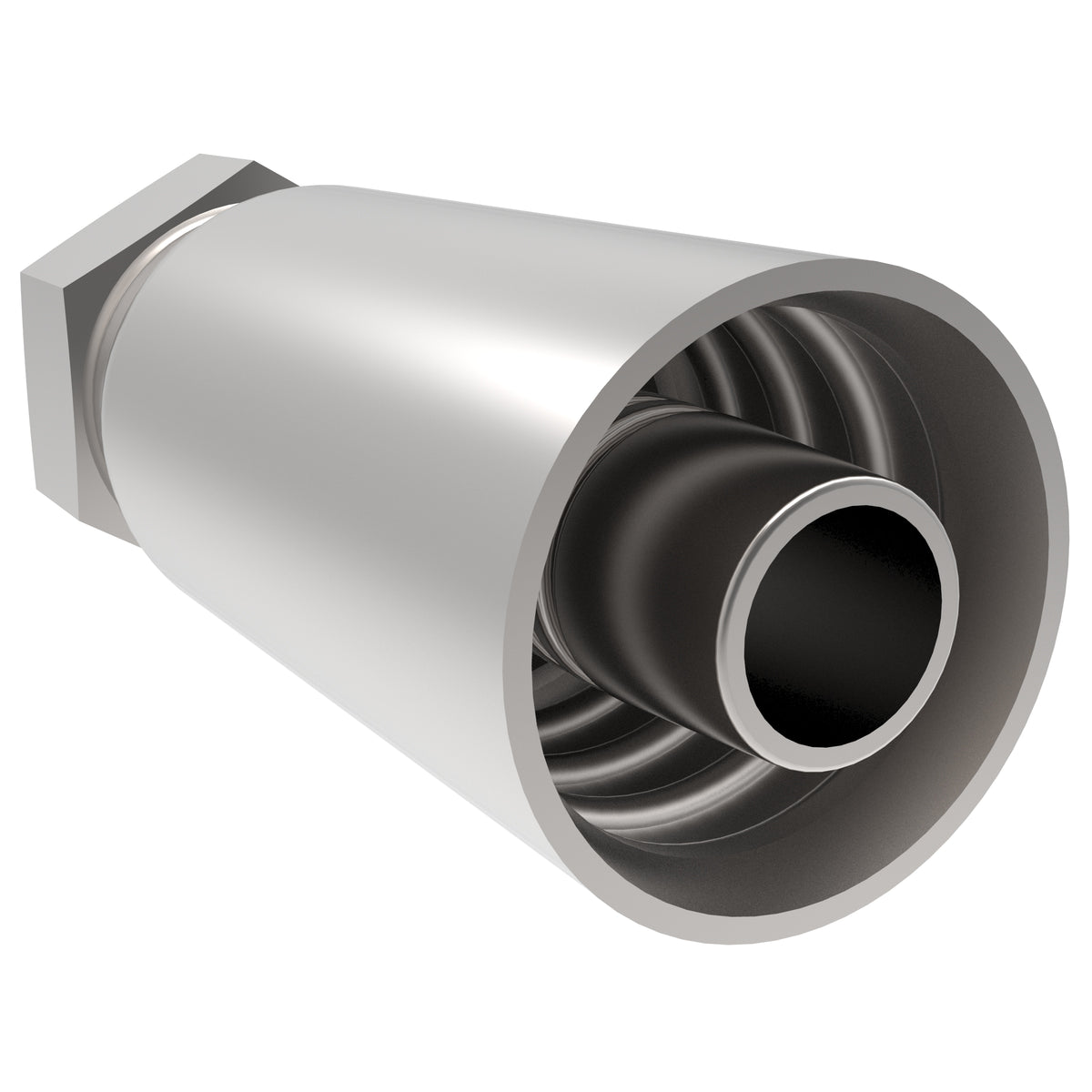

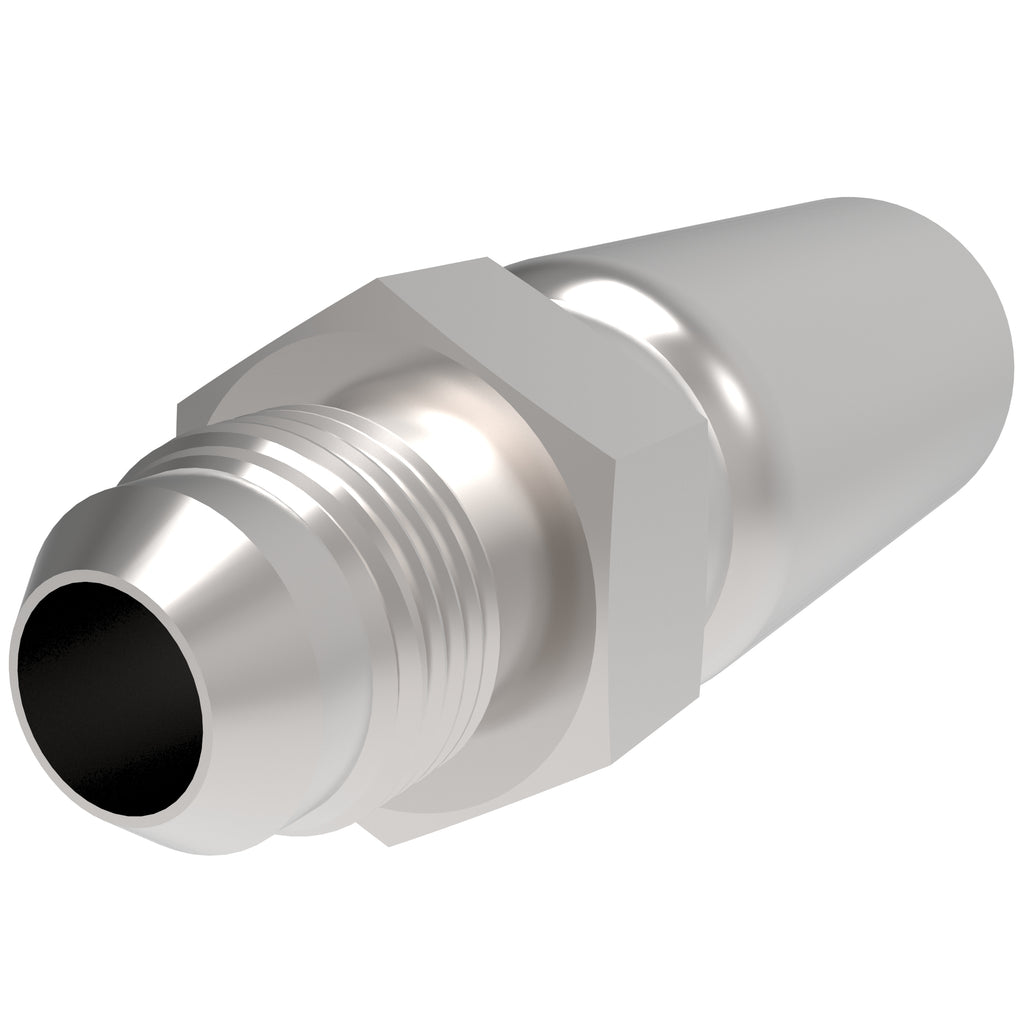

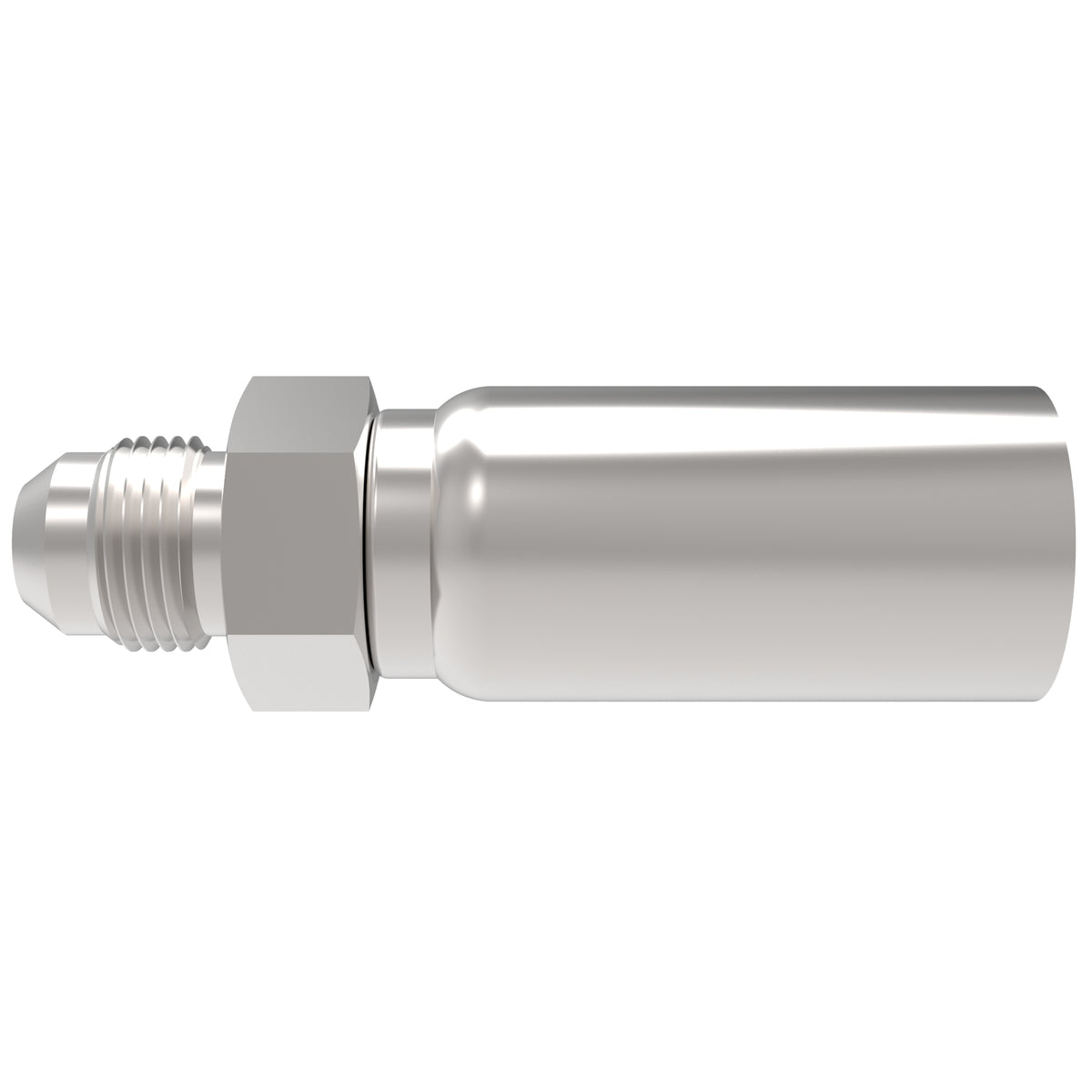

Danfoss Synflex 390E-16556-C05 – Thermoplast-Schlaucharmatur
€423,63
Zu Produktinformationen springen
Auf Lager
Danfoss Synflex 390E-16556-C05 – Thermoplast-Schlaucharmatur
CONEXAO INOX P/MANGUEIRASYNFLEX 38LV-16
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 390E-16556-C05
€504,12
Technische Daten
| Legacy part number | 390E-16556-C05 |
| Brand | Synflex by Danfoss |
| Inside diameter IN | 0.813 |
| Inside diameter MM | 20.65 |
| Product material | 316 Stainless steel |
| Hose size | -16 |
| Thread size 1 | 1 5/16-12 UN |
| Angle shape | Straight |
| End size 1 | -16 |
| End type 1 | Female 37 degree swivel |
| Hex size 1 IN | 1.5 |
| Hex size 2 IN | 1.5 |
| Hex size 1 MM | 38.1 |
| Hex size 2 MM | 38.1 |
| Finish plating | Passivate |
| Construction Style | Reusable |
| A dimension IN | 4.597 |
| Compatible hose ID MM | 25.4 |
| Compatible hoses | H335 H336 |
| Compatible hose ID IN | 1 |
| A dimension MM | 116.76 |
| Compatible tube OD IN | 1 |
| Compatible tube OD MM | 25.4 |
| Hose cut off factor IN | 2.037 |
| Hose cut off factor MM | 51.74 |
| Tube OD 1 IN | 1 |
| Tube OD 1 MM | 25.4 |
| Product height in | 2.02 |
| Product width in | 1.75 |
| Product width mm | 44.45 |
| Product height mm | 51.308 |
| Product length mm | 116.586 |
| Product length in | 4.59 |
| End connection hex size in | 1.5 |
| End connection hex size mm | 38.1 |
| Backup hex size in | 1.5 |
| Backup hex size mm | 38.1 |
Weitere Produktdaten
- Herkunftsland: USA
- Zolltarifnummer: 73072910
- Danfoss Produktseite: Produkt bei Danfoss
