473A-6C
€52,25
Zu Produktinformationen springen
Auf Lager
473A-6C

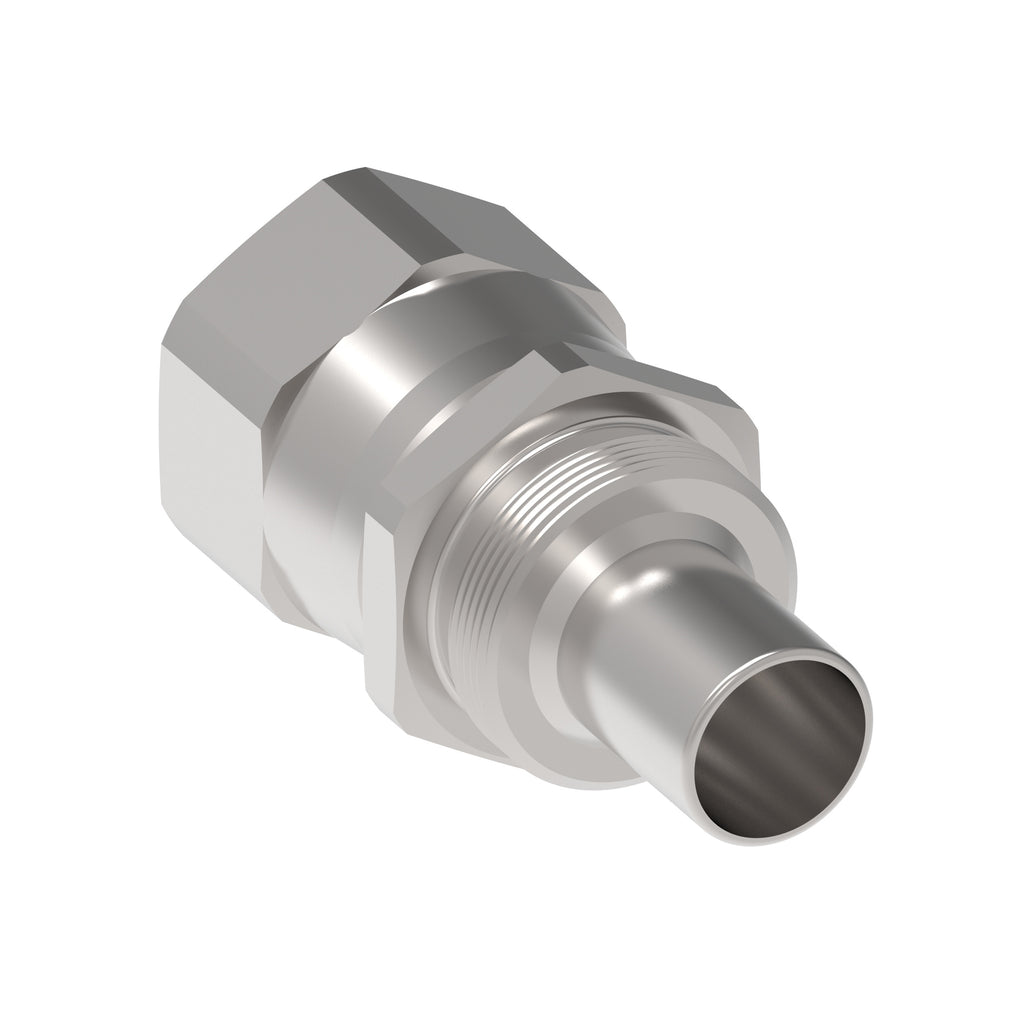

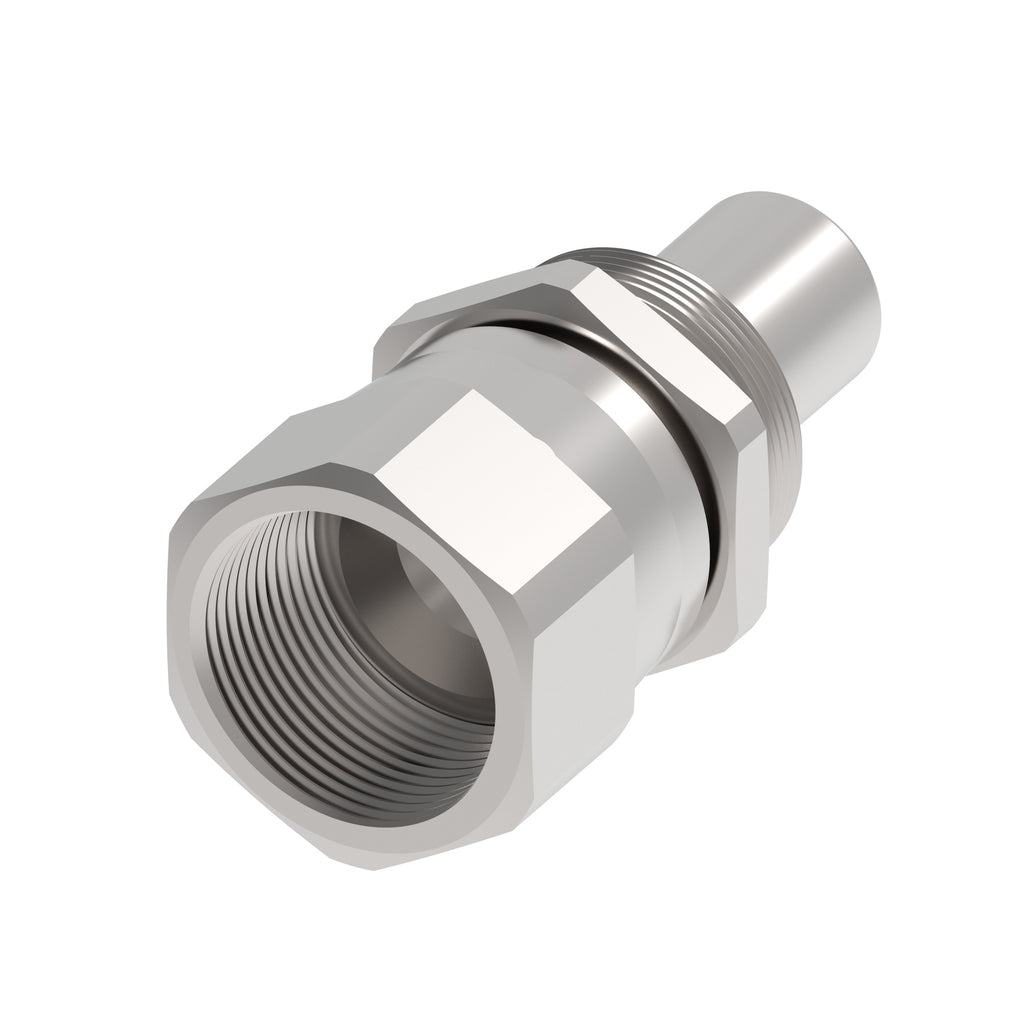

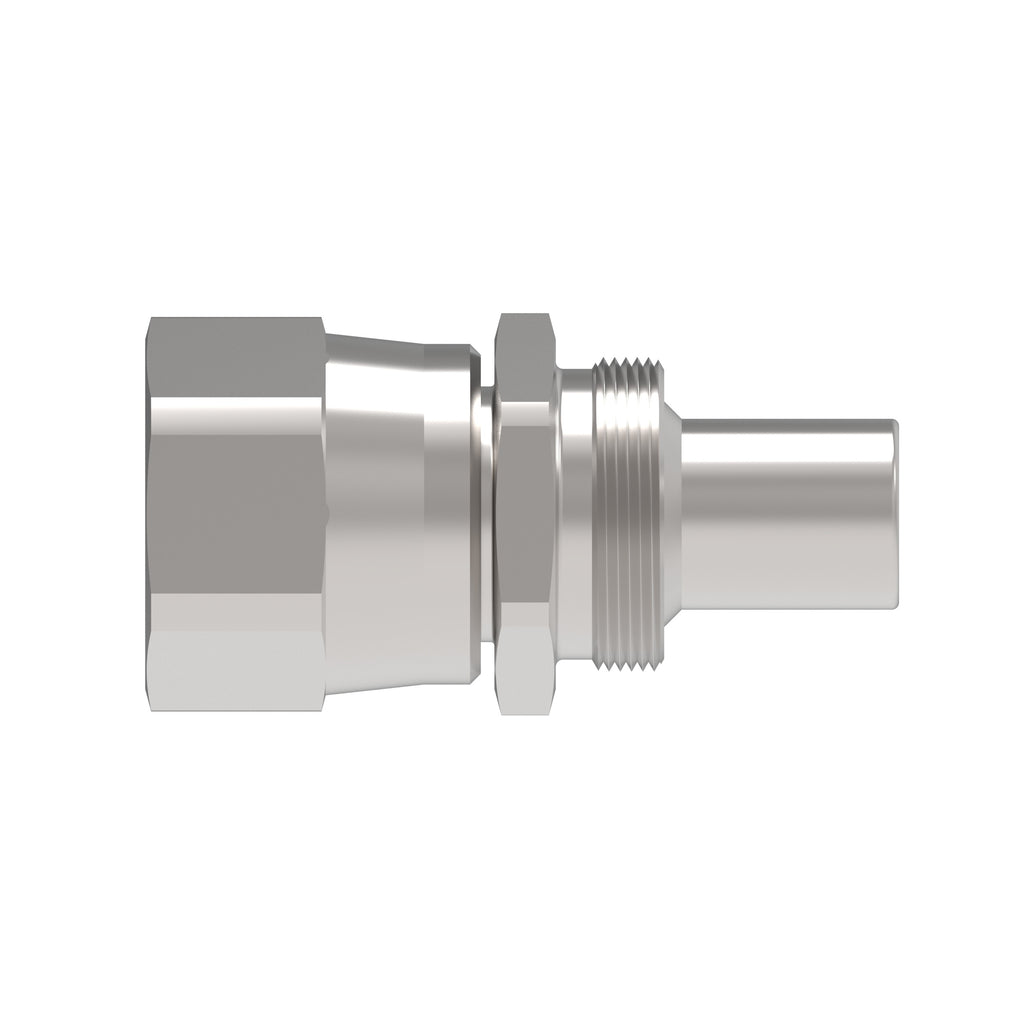

HOSE NIPPLE ASSY,GR/06,JIC-F/06,AP,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 473A-6C
€62,18
Technische Daten
| Legacy part number | 473A-6C |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.28 |
| Inside diameter MM | 7.112 |
| Product material | 316 Stainless steel |
| Hose size | -6 |
| Thread size 1 | 9/16-18 UNF |
| Angle shape | Straight |
| End size 1 | -6 |
| End size 2 | -6 |
| End type 1 | Female 37 degree swivel |
| Hex size 1 IN | 0.688 |
| Hex size 2 IN | 0.688 |
| Hex size 1 MM | 17.462 |
| Hex size 2 MM | 17.462 |
| Finish plating | Passivate |
| Construction Style | Reusable |
| A dimension IN | 1.63 |
| Compatible hose ID MM | 9.652 |
| Compatible hoses | 2807 |
| Compatible hose ID IN | 0.38 |
| A dimension MM | 41.4 |
| Hose cut off factor IN | 0.72 |
| Hose cut off factor MM | 18.4 |
| Product height in | 0.76 |
| Product width in | 0.69 |
| Product width mm | 17.526 |
| Product height mm | 19.304 |
| Product length mm | 41.402 |
| Product length in | 1.63 |
| End connection hex size in | 0.688 |
| End connection hex size mm | 17.462 |
| Backup hex size in | 0.688 |
| Backup hex size mm | 17.462 |
Weitere Produktdaten
- Herkunftsland: USA
- Zolltarifnummer: 73072910
- Danfoss Produktseite: Produkt bei Danfoss
