4753-4-4B
€9,81
Zu Produktinformationen springen
Auf Lager
4753-4-4B

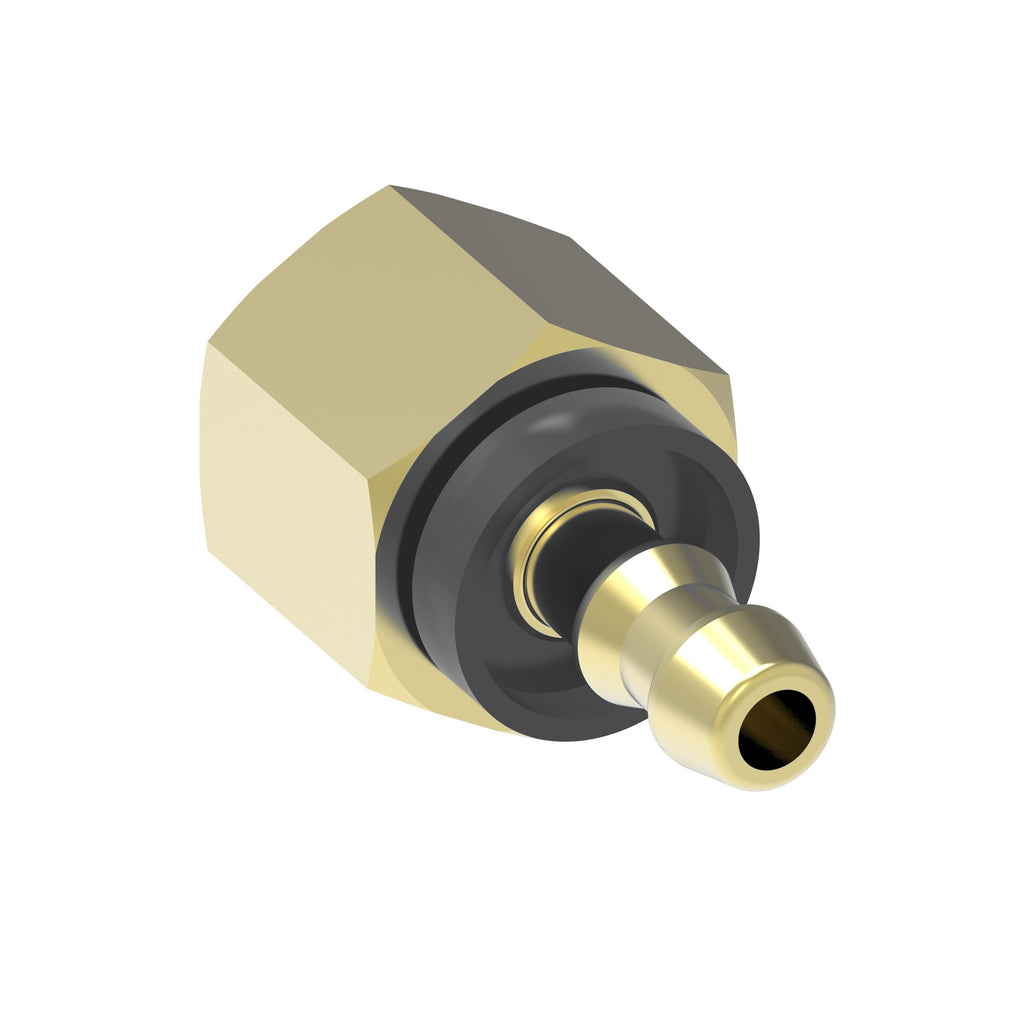

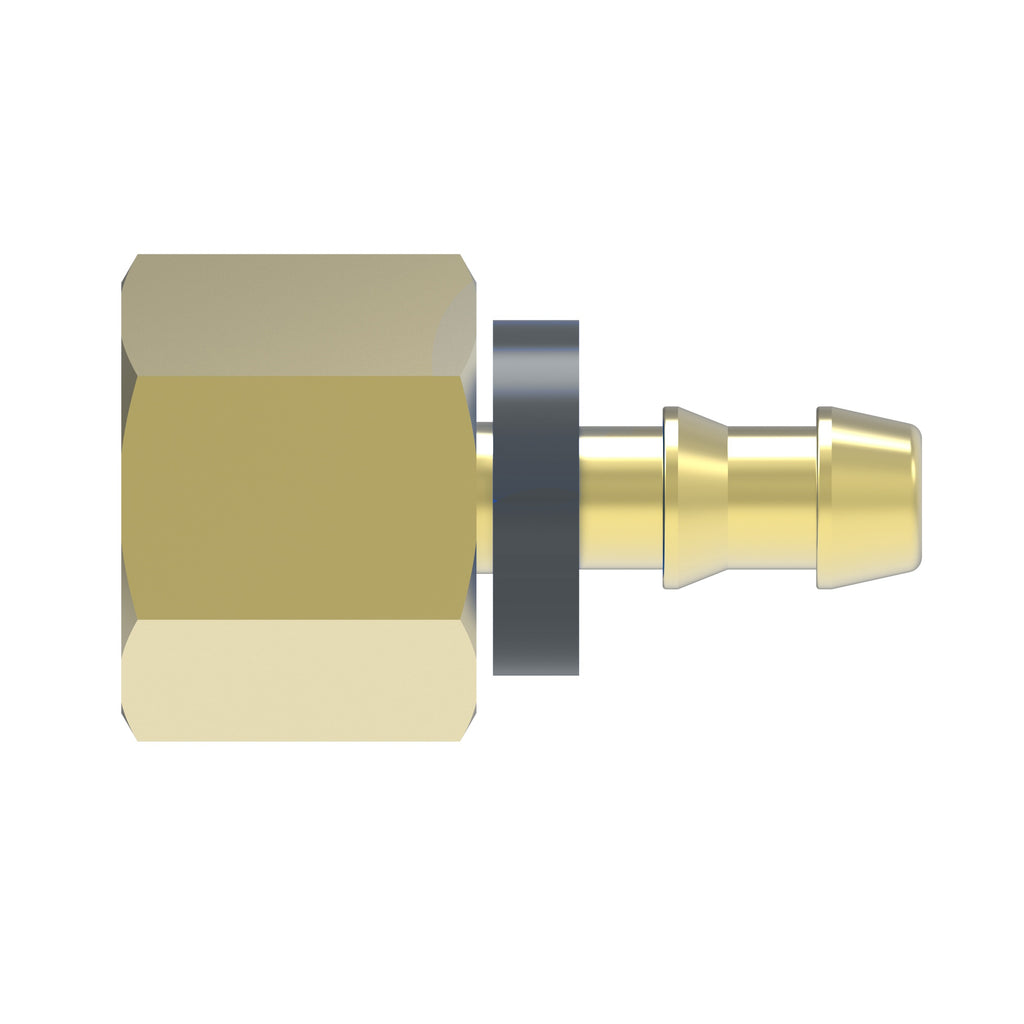

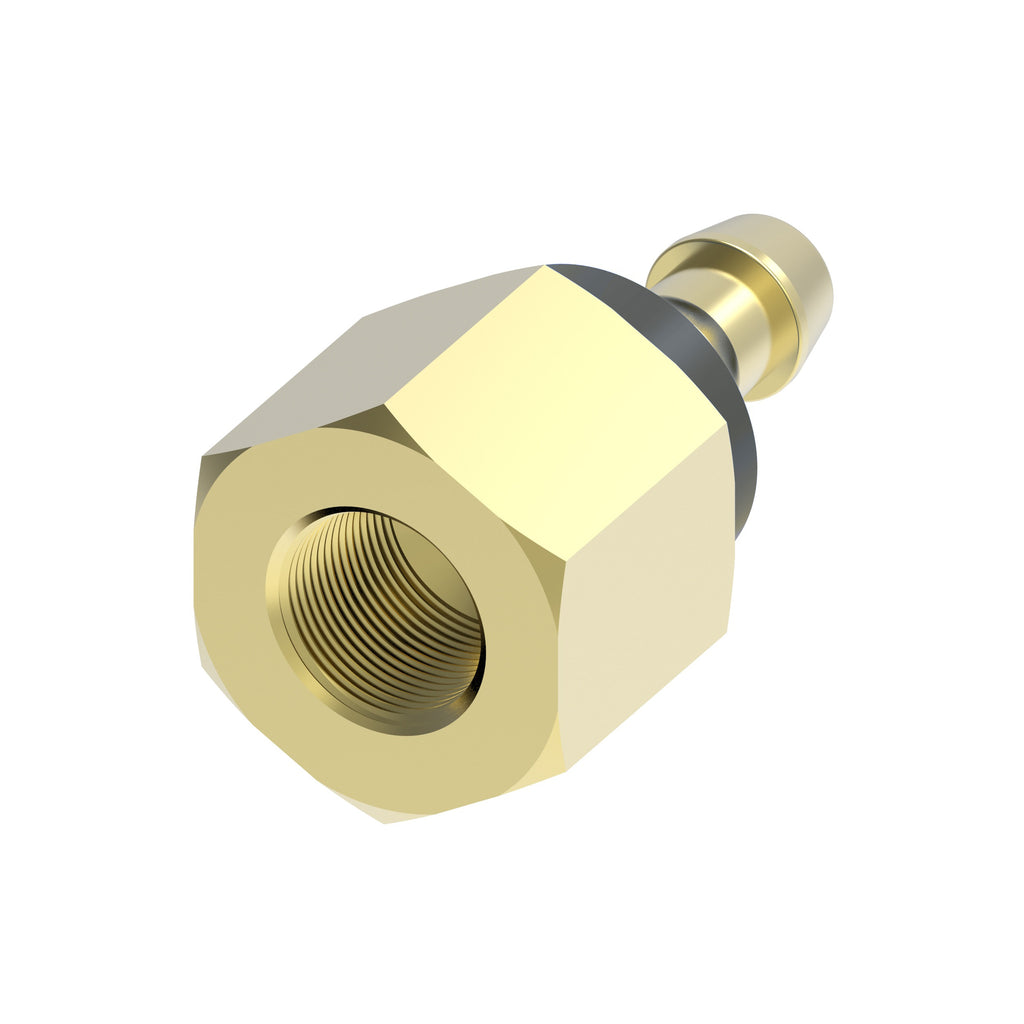

HOSE NIPPLE ASSY, SR/04, FP/04, B, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 4753-4-4B
€11,67
Technische Daten
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.17 |
| Inside diameter MM | 4.3 |
| Product material | Brass |
| Thread size 1 | 1/4-18 NPTF |
| Angle shape | Straight |
| End size 1 | -4 |
| End Type 1 | Female pipe (NPTF) |
| Hex size 2 IN | 0.75 |
| Hex size 2 MM | 19.05 |
| Construction Style | Crimp |
| A dimension IN | 1.55 |
| Compatible hose ID IN | 0.251 |
| A dimension MM | 39.4 |
| Hose cut off factor IN | 0.88 |
| Hose cut off factor MM | 22.4 |
| Product height in | 0.75 |
| Product width in | 0.75 |
| Product width mm | 19.05 |
| Product height mm | 19.05 |
| Product length mm | 39.37 |
| Product length in | 1.55 |
| End connection hex size IN | 0.75 |
| Backup hex size IN | 0.75 |
| Backup hex size MM | 19.05 |
Weitere Produktdaten
- Herkunftsland: USA
- Zolltarifnummer: 74122000
- Danfoss Produktseite: Produkt bei Danfoss
