4T5DLA3
€27,94
Zu Produktinformationen springen
Auf Lager
4T5DLA3

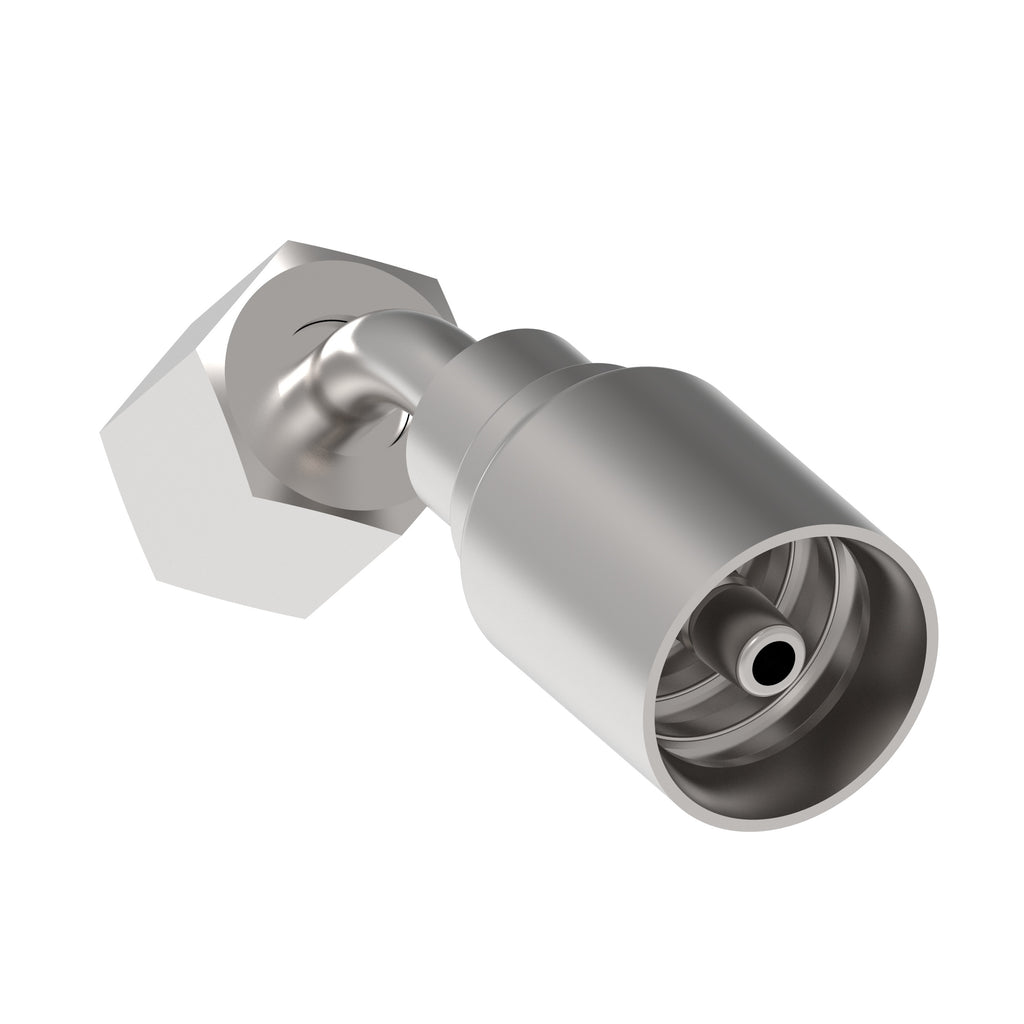

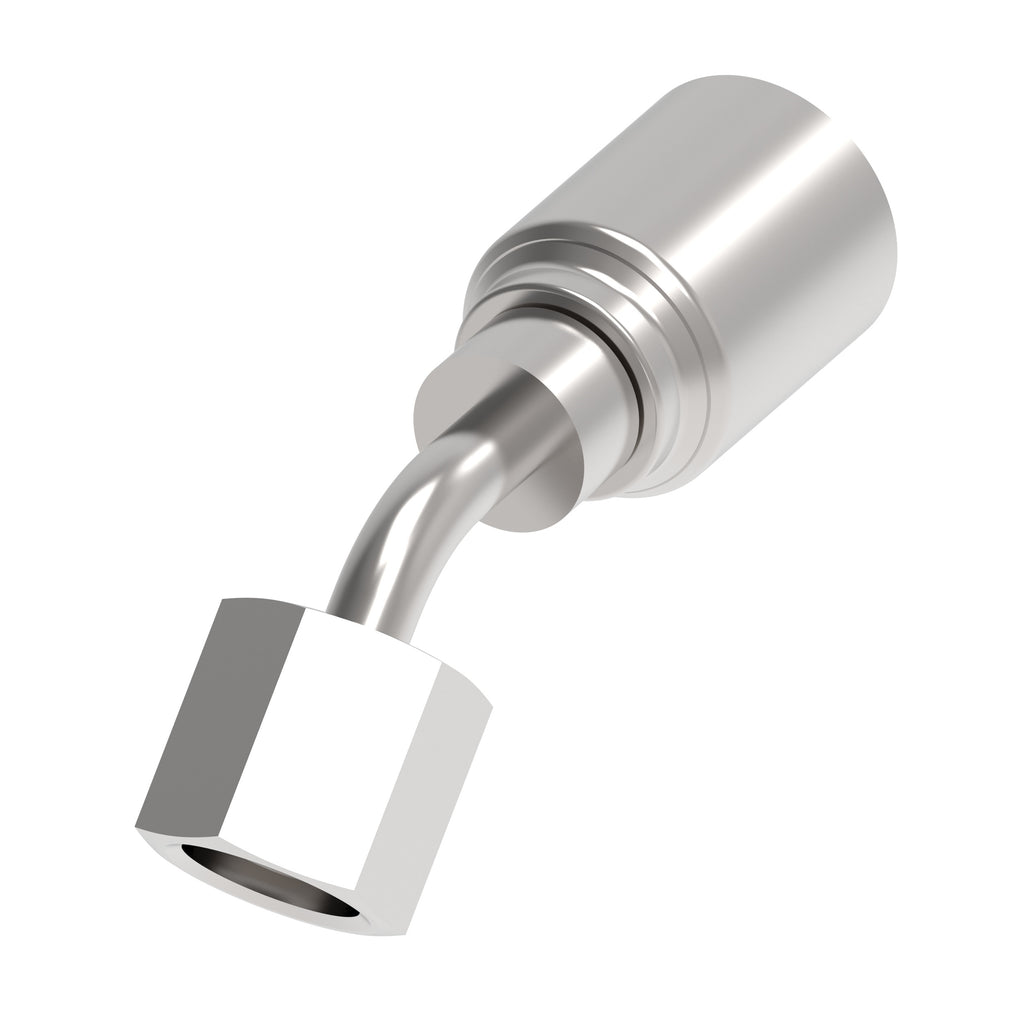

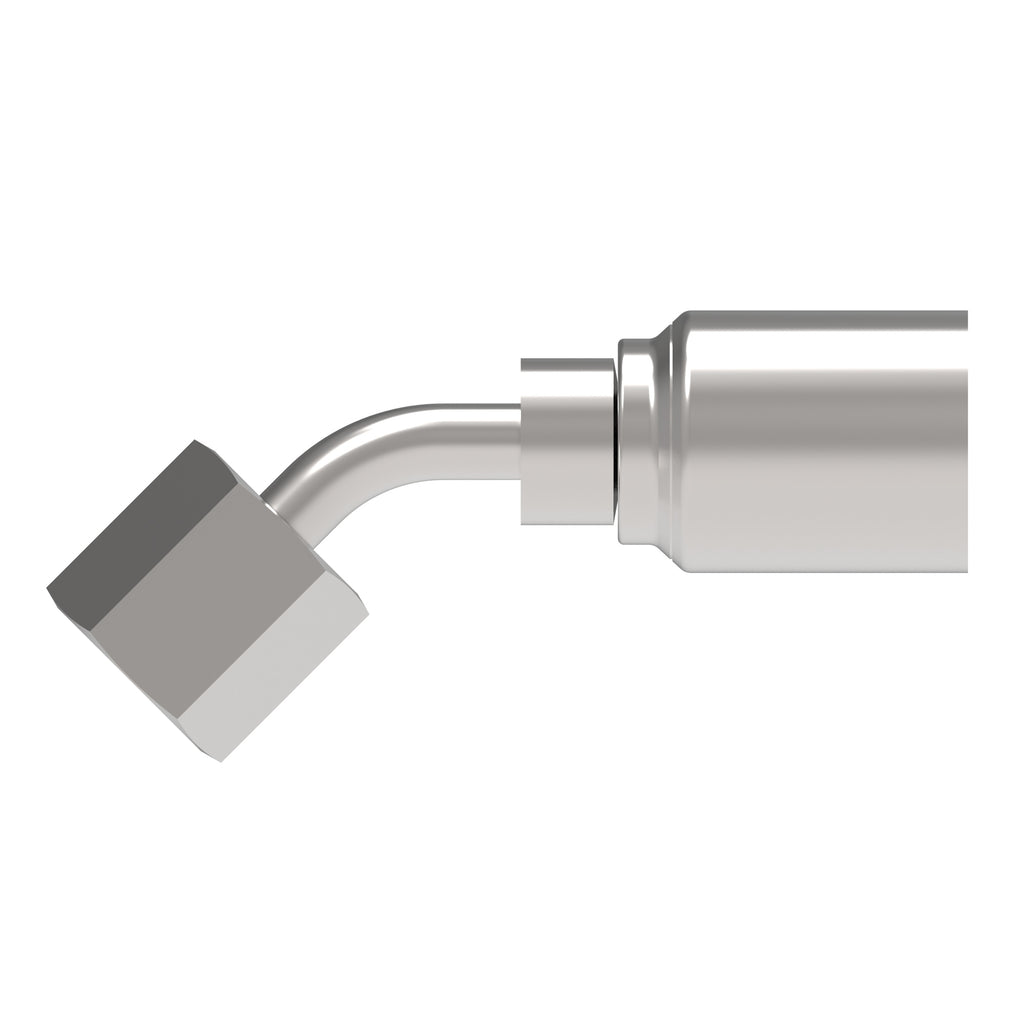

HOSE FTG, 4T/03, DKOL/05, CS, 45D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 4T5DLA3
€33,25
Technische Daten
| Legacy part number | 4T5DLA3 |
| Inside diameter IN | 0.1 |
| Inside diameter MM | 2.5 |
| Product material | Carbon steel |
| Hose size | -3 |
| Thread size 1 | M12x1.5 |
| Angle shape | 45 Degree |
| End size 1 | -5 |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.551 |
| Hex size 1 MM | 14 |
| Drop dimension IN | 0.6 |
| Drop dimension MM | 15.2 |
| Finish plating | Dura-Kote |
| Construction Style | Crimp |
| A dimension IN | 2.07 |
| Compatible hose ID MM | 4.76 |
| Compatible hose ID IN | 0.19 |
| A dimension MM | 52.7 |
| Hose cut off factor IN | 1.39 |
| Hose cut off factor MM | 35.2 |
| Product height in | 0.984 |
| Product width in | 0.708 |
| Product width mm | 18 |
| Product height mm | 25 |
| Product length mm | 55 |
| Product length in | 2.165 |
| End connection hex size in | 0.551 |
| End connection hex size mm | 14 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73269098
- Danfoss Produktseite: Produkt bei Danfoss
