4T5DLB3
€18,75
Zu Produktinformationen springen
Auf Lager
4T5DLB3

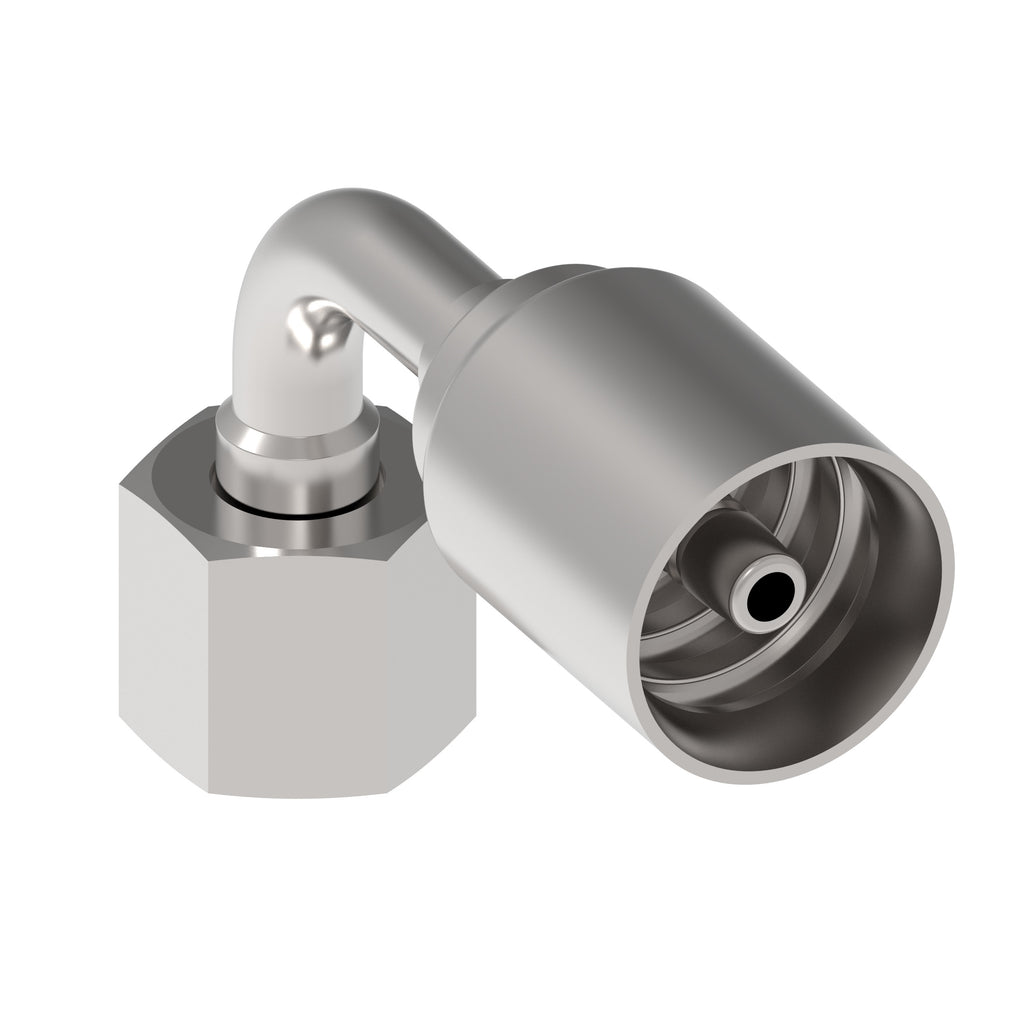

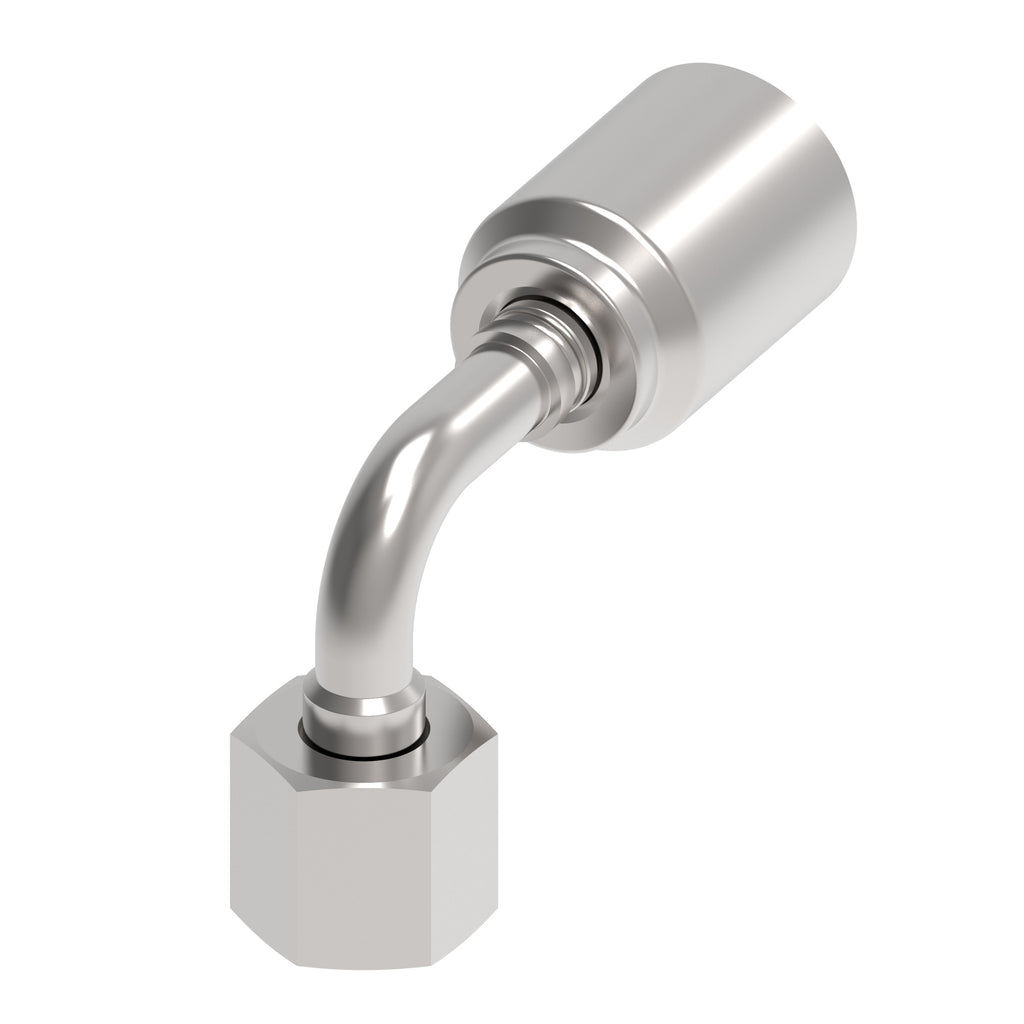

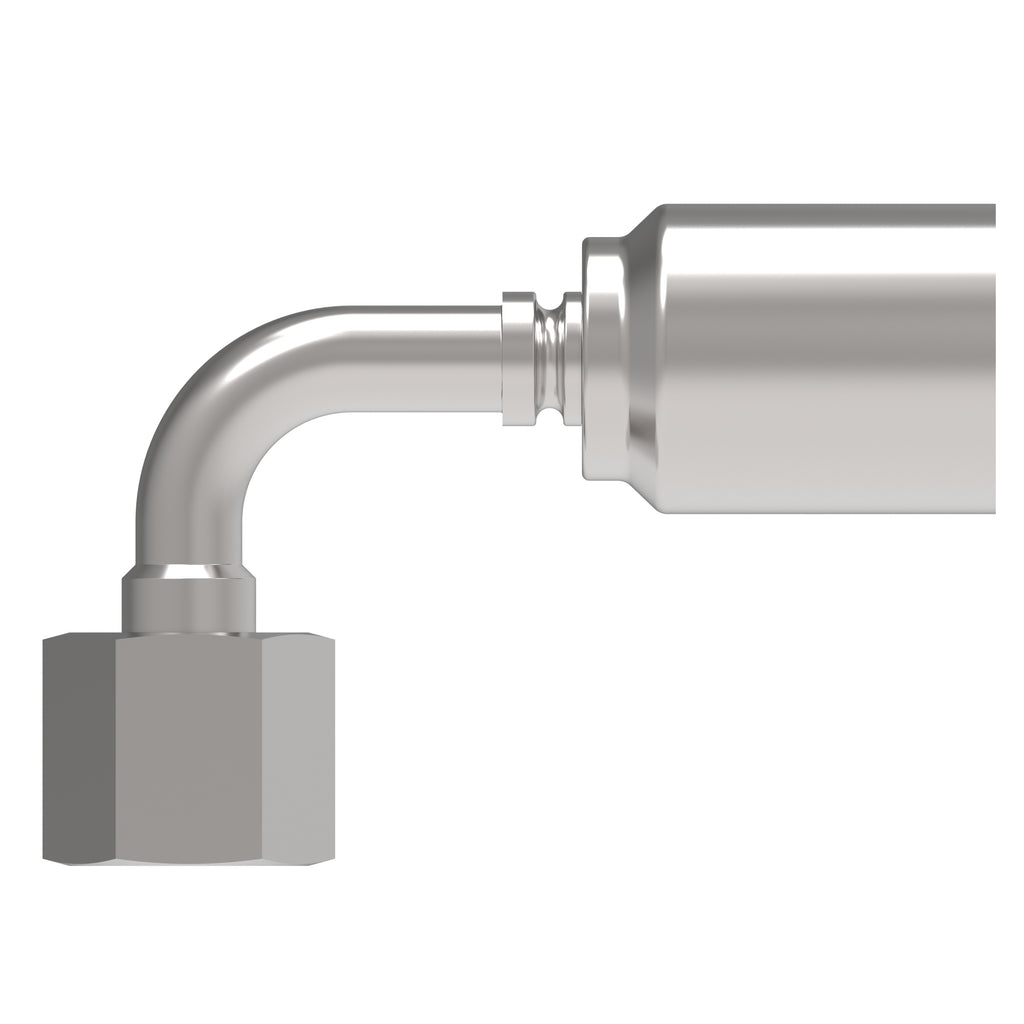

HOSE FTG, 4T/03, DKOL/05, CS, 90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 4T5DLB3
€22,31
Technische Daten
| Legacy part number | 4T5DLB3 |
| Inside diameter IN | 0.1 |
| Inside diameter MM | 2.5 |
| Product material | Carbon steel |
| Hose size | -3 |
| Thread size 1 | M12x1.5 |
| Angle shape | 90 Degree |
| End size 1 | -5 |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.551 |
| Hex size 1 MM | 14 |
| Drop dimension IN | 1.04 |
| Drop dimension MM | 26.5 |
| Finish plating | Dura-Kote |
| Construction Style | Crimp |
| A dimension IN | 1.69 |
| Compatible hose ID MM | 4.76 |
| Compatible hose ID IN | 0.19 |
| A dimension MM | 42.8 |
| Hose cut off factor IN | 1 |
| Hose cut off factor MM | 25.3 |
| Product height in | 1.378 |
| Product width in | 0.708 |
| Product width mm | 18 |
| Product height mm | 35 |
| Product length mm | 48 |
| Product length in | 1.889 |
| End connection hex size in | 0.551 |
| End connection hex size mm | 14 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73269098
- Danfoss Produktseite: Produkt bei Danfoss
