5600-2-4S
€73,59
Zu Produktinformationen springen
Auf Lager
5600-2-4S

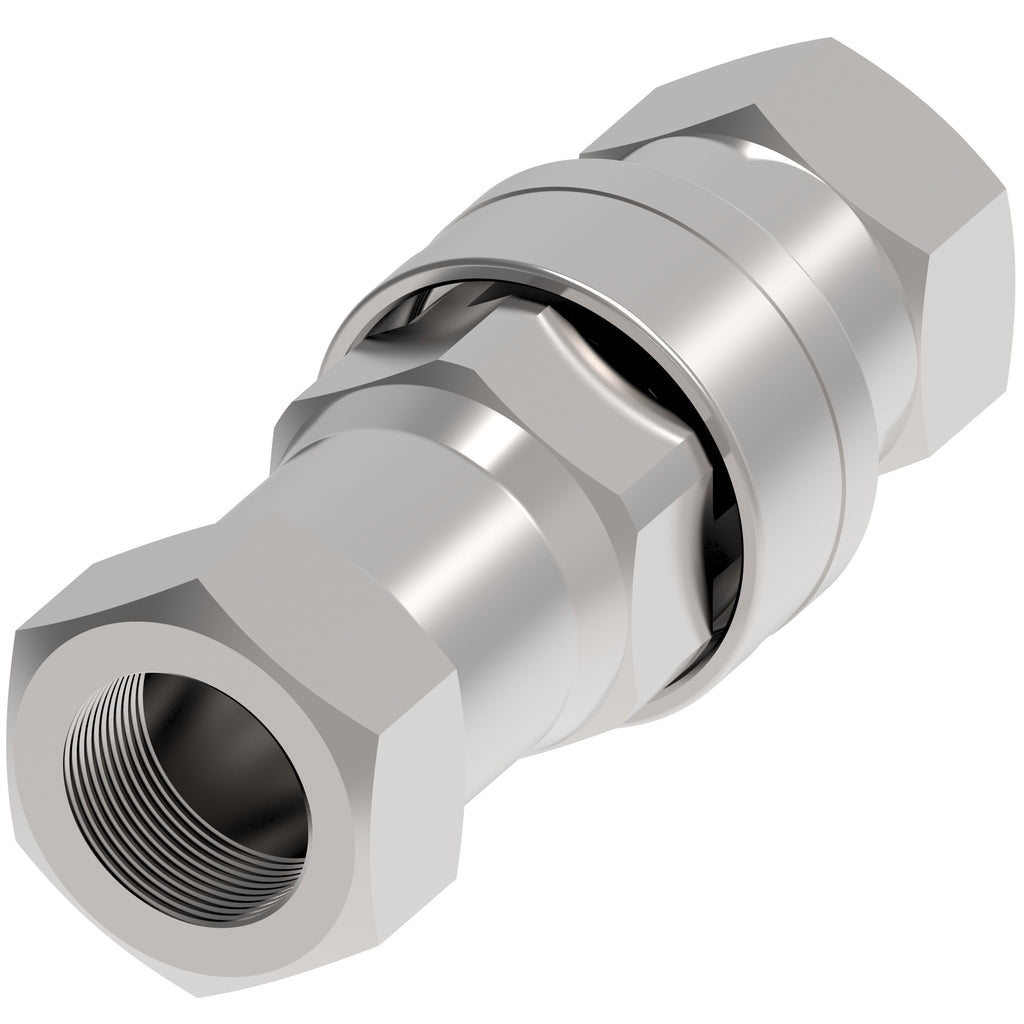

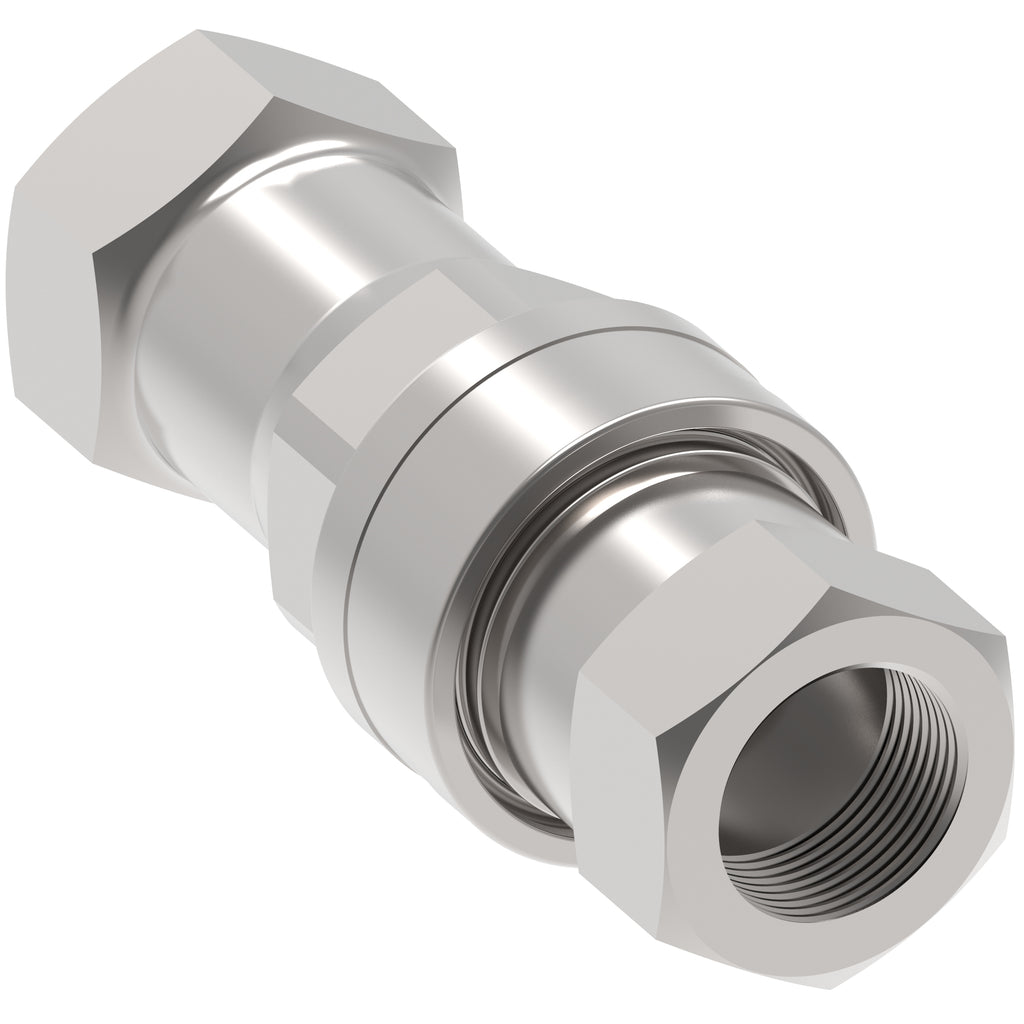

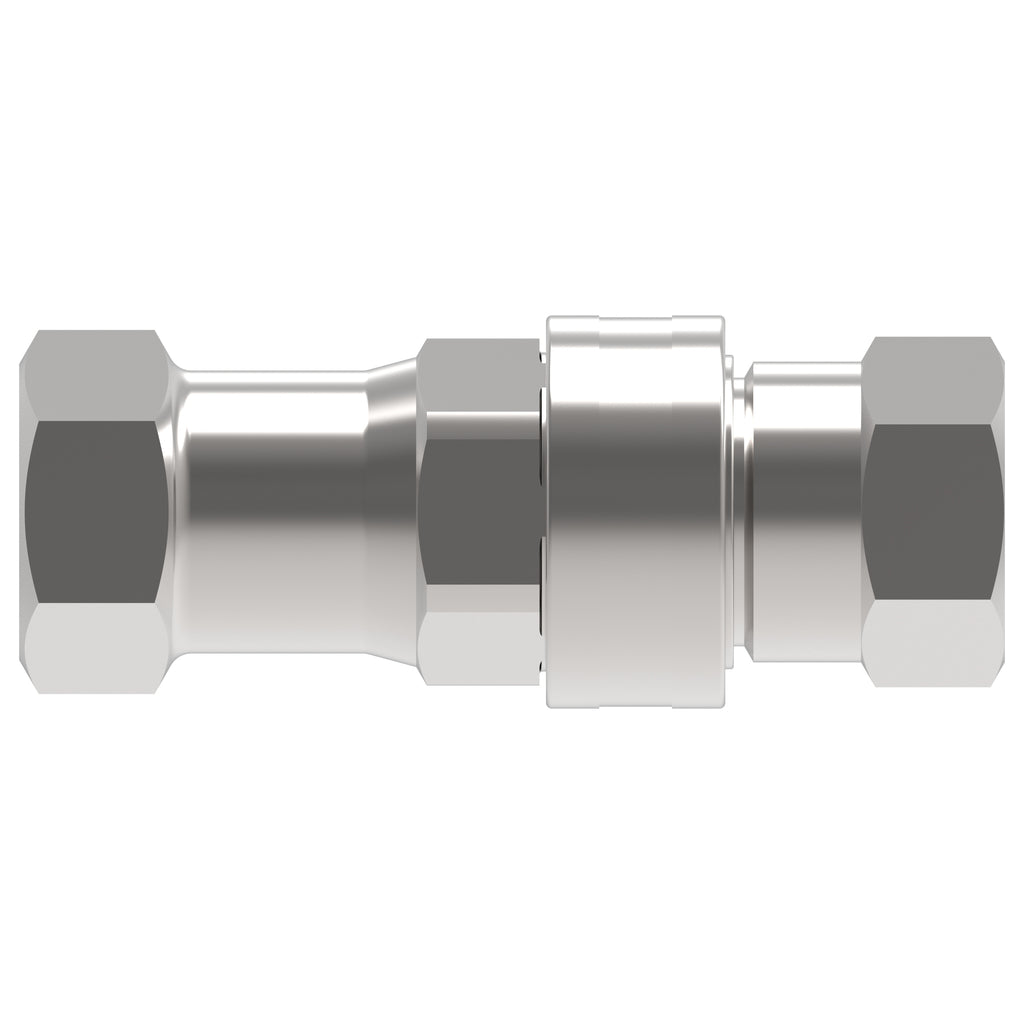

COUPLING,5600,C,1/4,CS,-2NPT,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 5600-2-4S
€87,57
Technische Daten
| Certifications | ISO 7241-1 Series A |
| Application | Agriculture Construction Fluid transfer Snow plow/groomer |
| Legacy part number | 5600-2-4S |
| Sub brand | Hansen |
| Brand | Danfoss |
| Working pressure max bar | 345 |
| Item type | Complete |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | 1/8-27 NPT |
| Angle shape | Straight |
| Body size | 1/4 |
| End size 1 | -2 |
| End Type 1 | Female pipe (NPTF) |
| Finish plating | Zinc trivalent |
| Hex size 1 IN | 0.88 |
| Hex size 1 MM | 22.352 |
| Latch type | Push/pull |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 5000 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
| Product length mm | 61.468 |
| Product length in | 2.42 |
Weitere Produktdaten
- Herkunftsland: Mexico
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
