87311-12-12Z
€2,99
Zu Produktinformationen springen
Auf Lager
87311-12-12Z

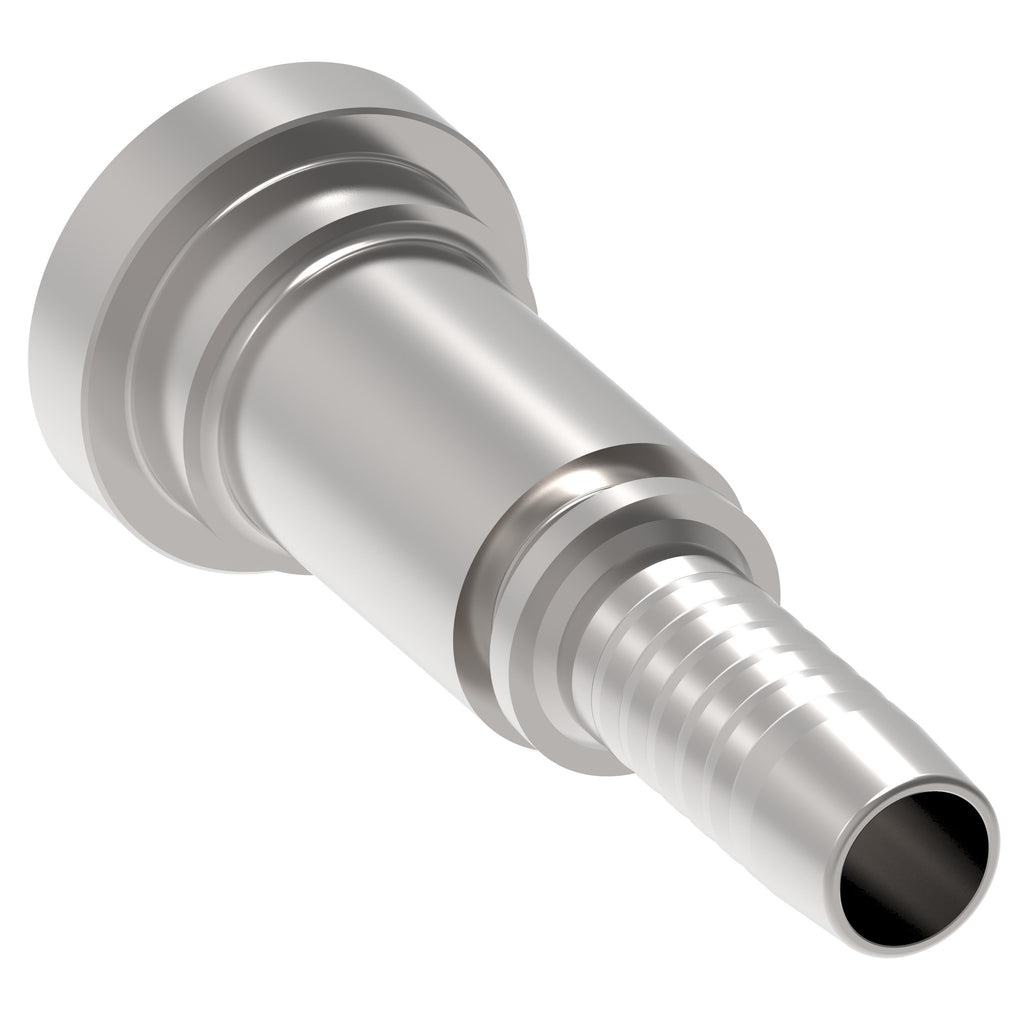

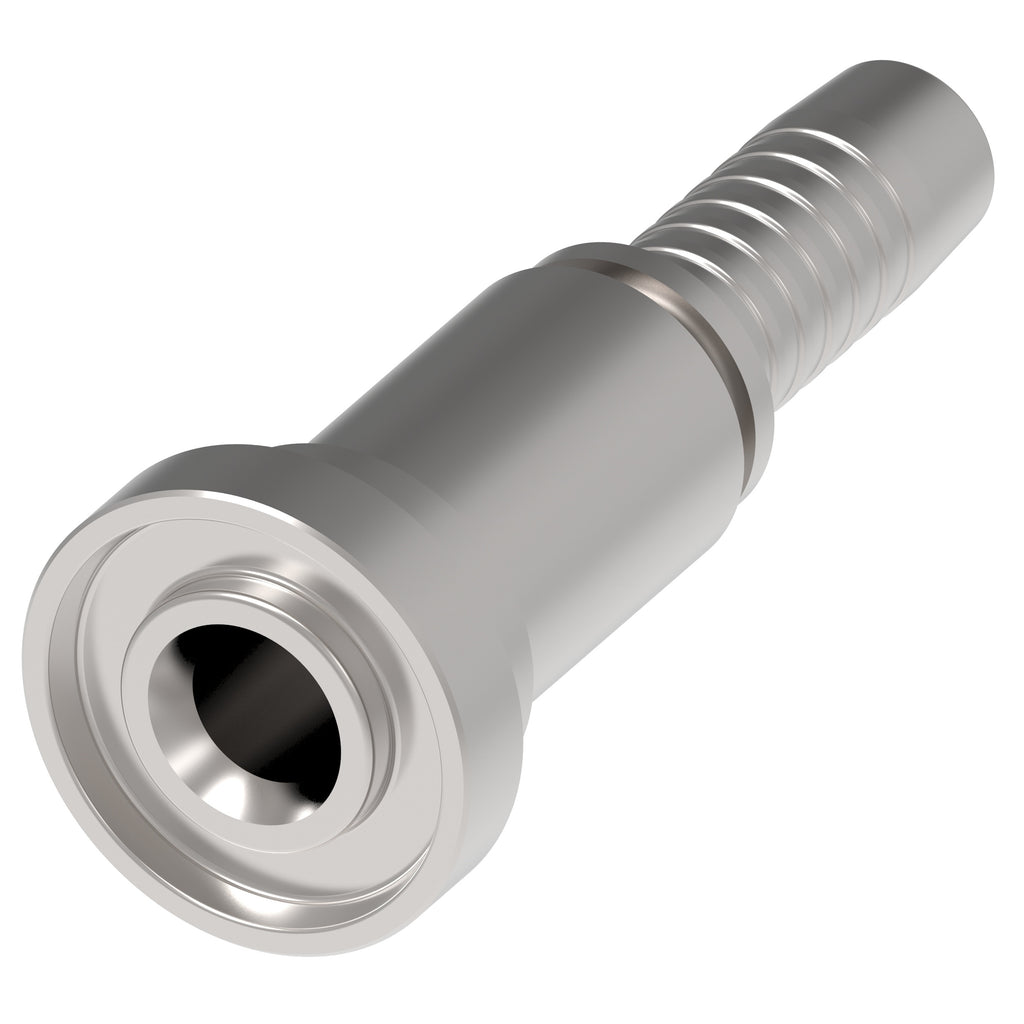

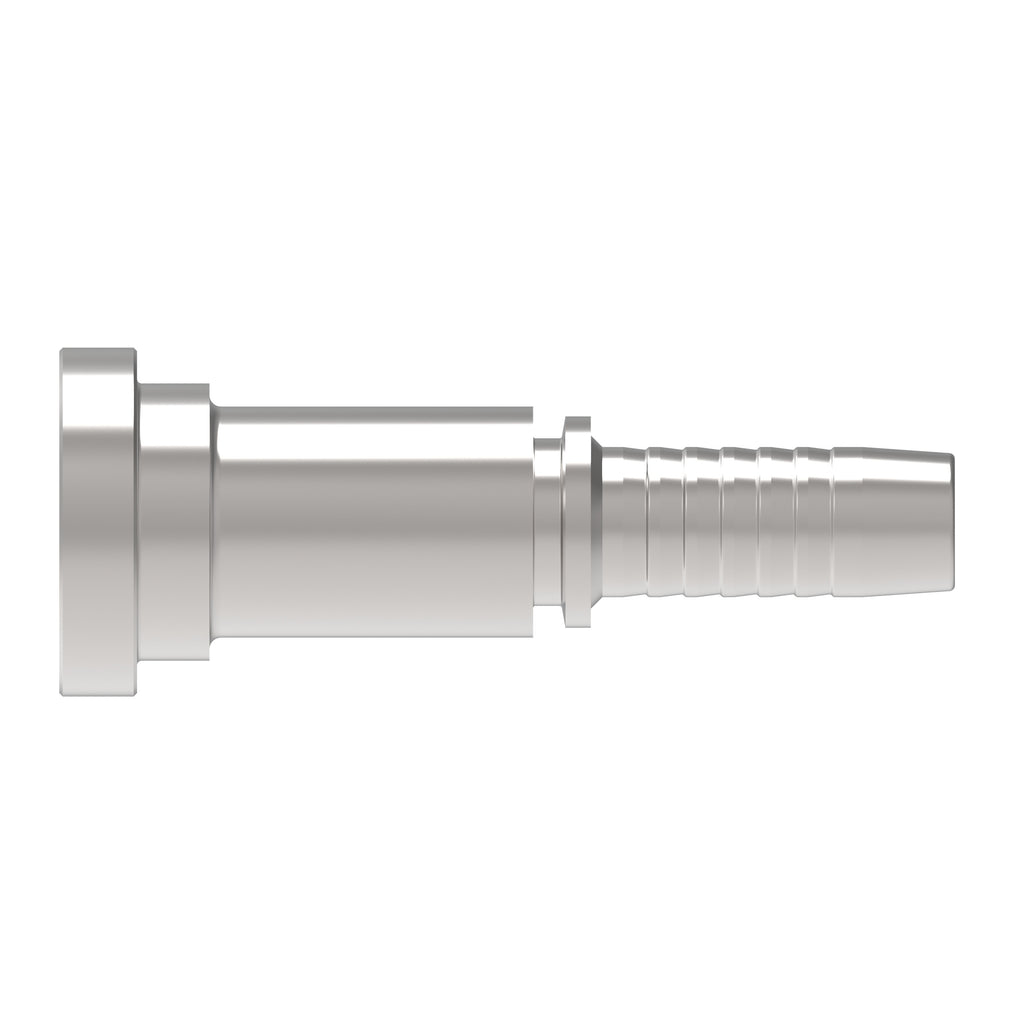

HOSE NIPPLE ASSY, 2P/12, C61/12, CS, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 87311-12-12Z
€3,56
Technische Daten
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.59 |
| Inside diameter MM | 15 |
| Product material | Carbon steel |
| Angle shape | Straight |
| End size 1 | -12 |
| End type 1 | Split flange code 61 |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 3.405 |
| Compatible hose ID IN | 0.75 |
| A dimension MM | 86.5 |
| Hose cut off factor IN | 1.889 |
| Hose cut off factor MM | 48 |
| Product height in | 1.5 |
| Product width in | 1.5 |
| Product width mm | 38.1 |
| Product height mm | 38.1 |
| Product length mm | 86.614 |
| Product length in | 3.41 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73269098
- Danfoss Produktseite: Produkt bei Danfoss
