87341-12-12Z
€3,91
Zu Produktinformationen springen
Auf Lager
87341-12-12Z

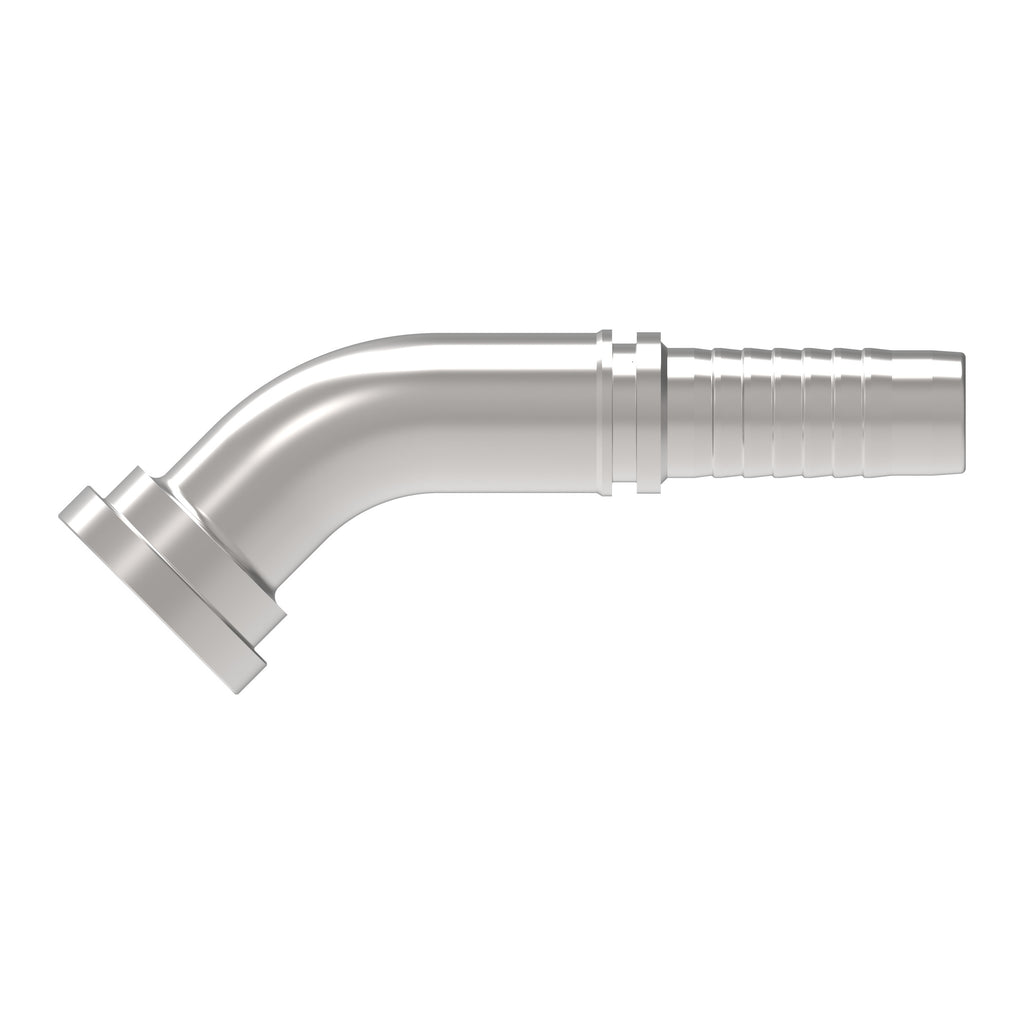

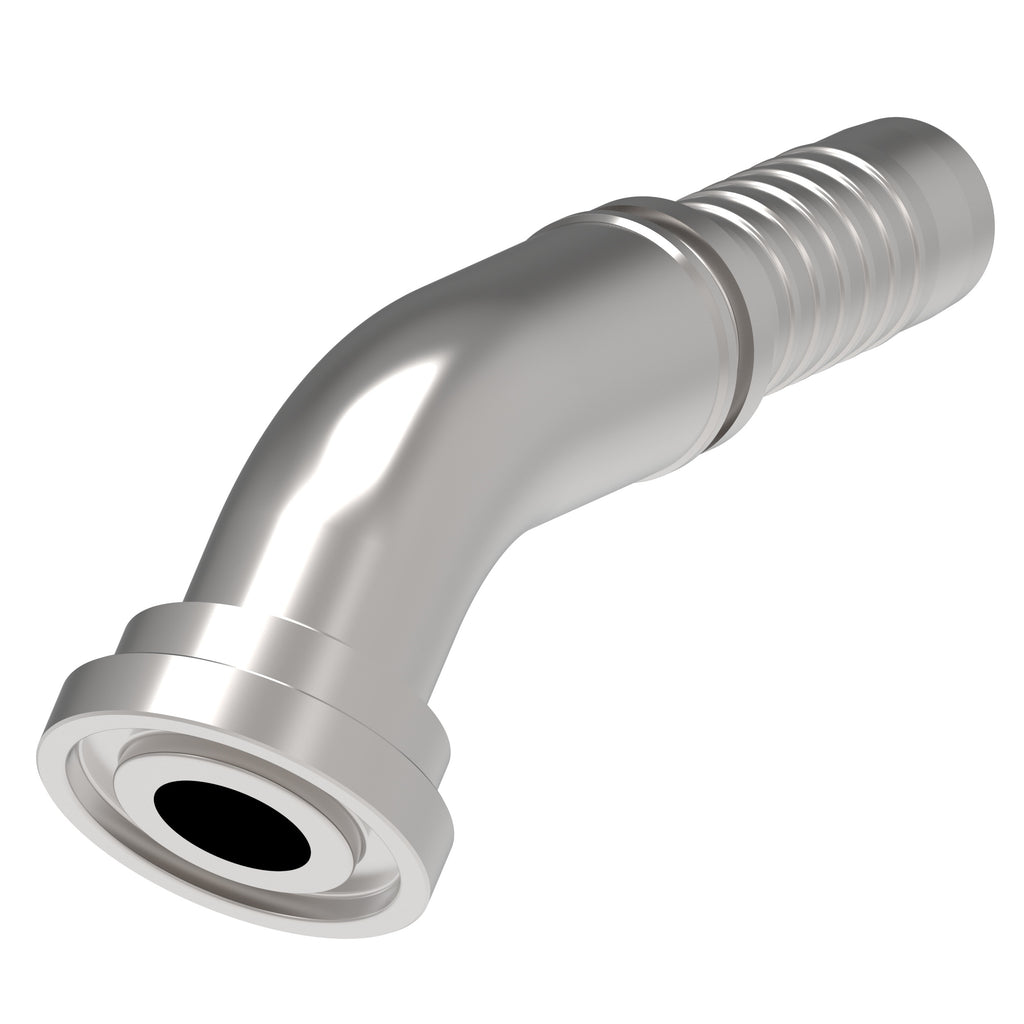

HOSE NIPPLE, 2P/12, C61/12, CS, 45D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 87341-12-12Z
€4,65
Technische Daten
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.59 |
| Inside diameter MM | 15 |
| Product material | Carbon steel |
| Angle shape | 45 Degree |
| End size 1 | -12 |
| End type 1 | Split flange code 61 |
| Drop dimension IN | 0.933 |
| Drop dimension MM | 23.7 |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 8.779 |
| Compatible hose ID IN | 0.75 |
| A dimension MM | 223 |
| Hose cut off factor IN | 3.003 |
| Hose cut off factor MM | 76.3 |
| Product height in | 2.37 |
| Product width in | 1.5 |
| Product width mm | 38.1 |
| Product height mm | 60.198 |
| Product length mm | 133.604 |
| Product length in | 5.26 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
