87391-16-12Z
€4,23
Zu Produktinformationen springen
Auf Lager
87391-16-12Z

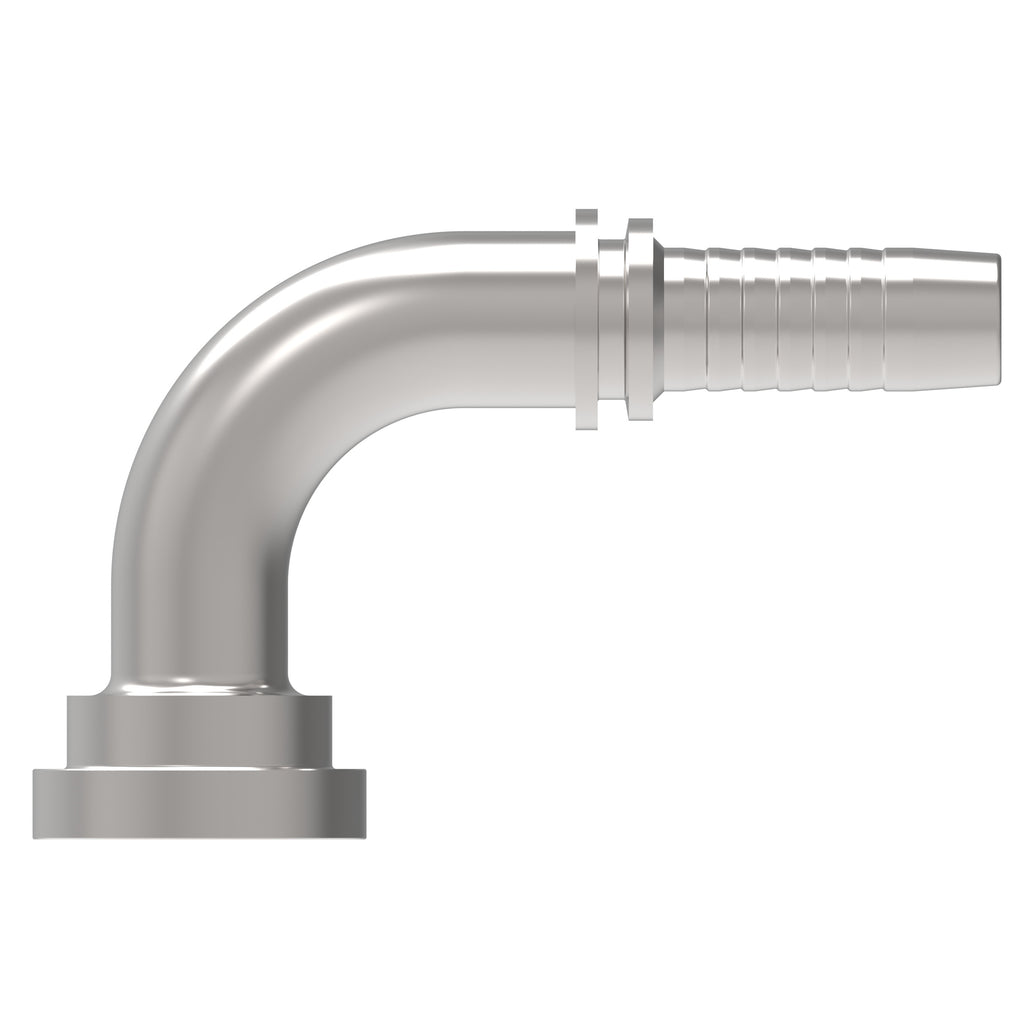

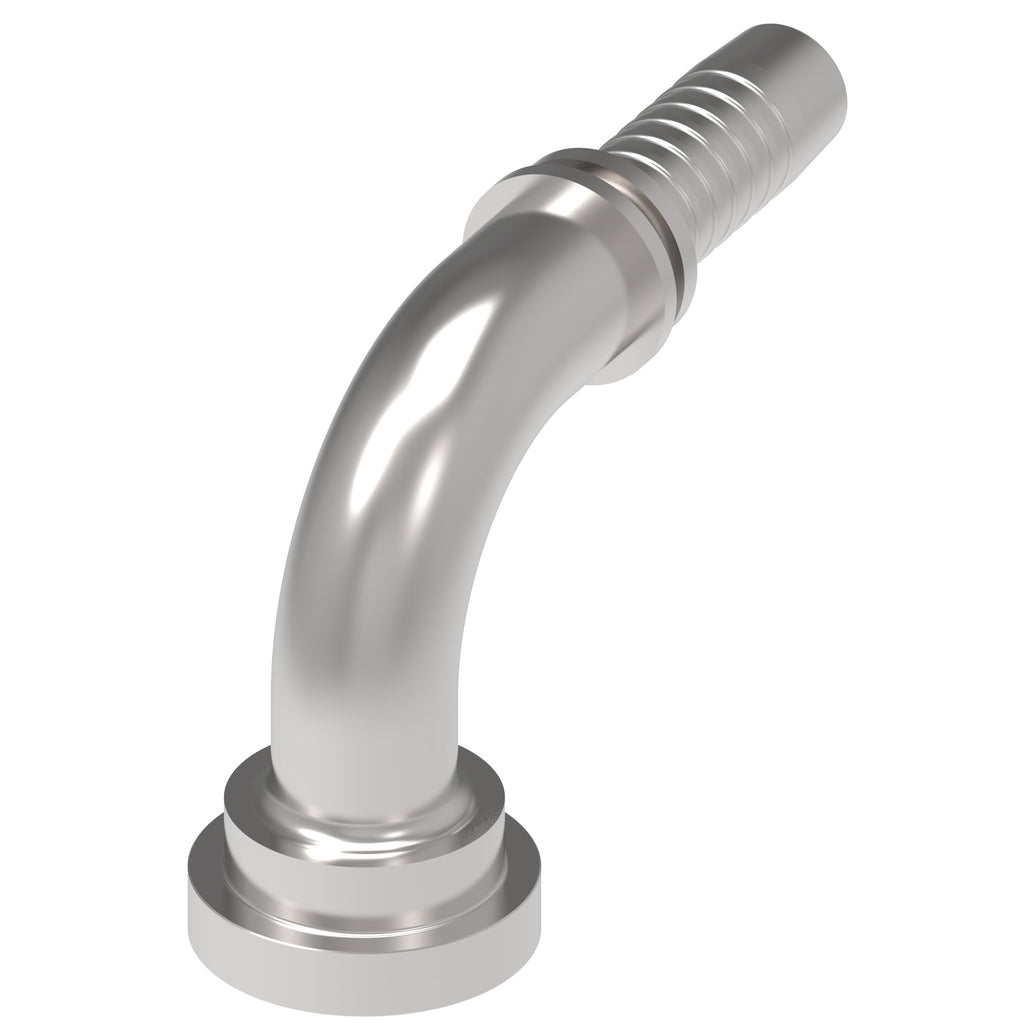

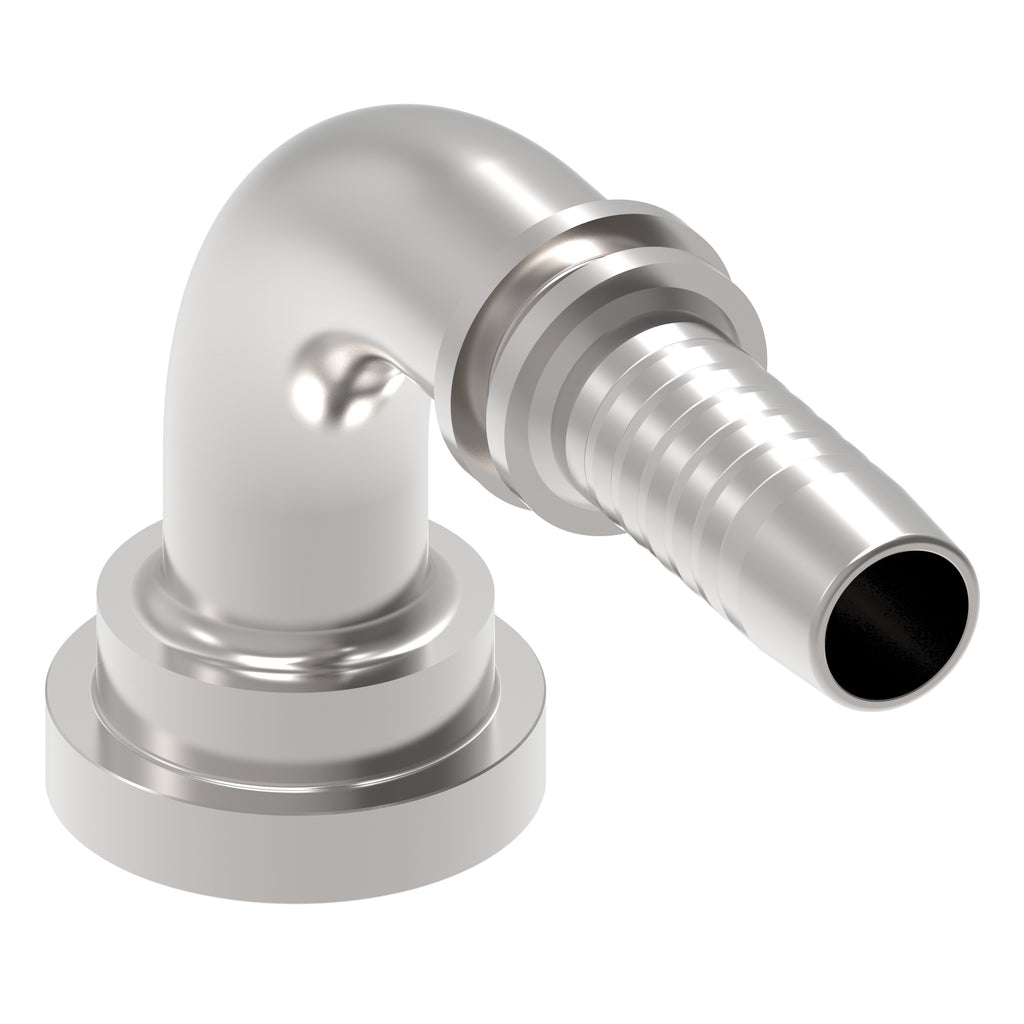

HOSE NIPPLE ASSY, 2P/12, C61/16, CS, 90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 87391-16-12Z
€5,03
Technische Daten
| Legacy part number | 87391-16-12Z |
| Brand | Winner by Danfoss |
| Inside diameter IN | 0.59 |
| Inside diameter MM | 15 |
| Product material | Carbon steel |
| Hose size | -12 |
| Angle shape | 90 Degree |
| End size 1 | -16 |
| End type 1 | Split flange code 61 |
| Drop dimension IN | 2.44 |
| Drop dimension MM | 62 |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 4.094 |
| Compatible hose ID MM | 19.05 |
| Compatible hose ID IN | 0.75 |
| A dimension MM | 104 |
| Hose cut off factor IN | 2.578 |
| Hose cut off factor MM | 65.5 |
| Product height in | 2.95 |
| Product width in | 1.75 |
| Product width mm | 44.45 |
| Product height mm | 74.93 |
| Product length mm | 103.886 |
| Product length in | 4.09 |
Weitere Produktdaten
- Herkunftsland: China
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
