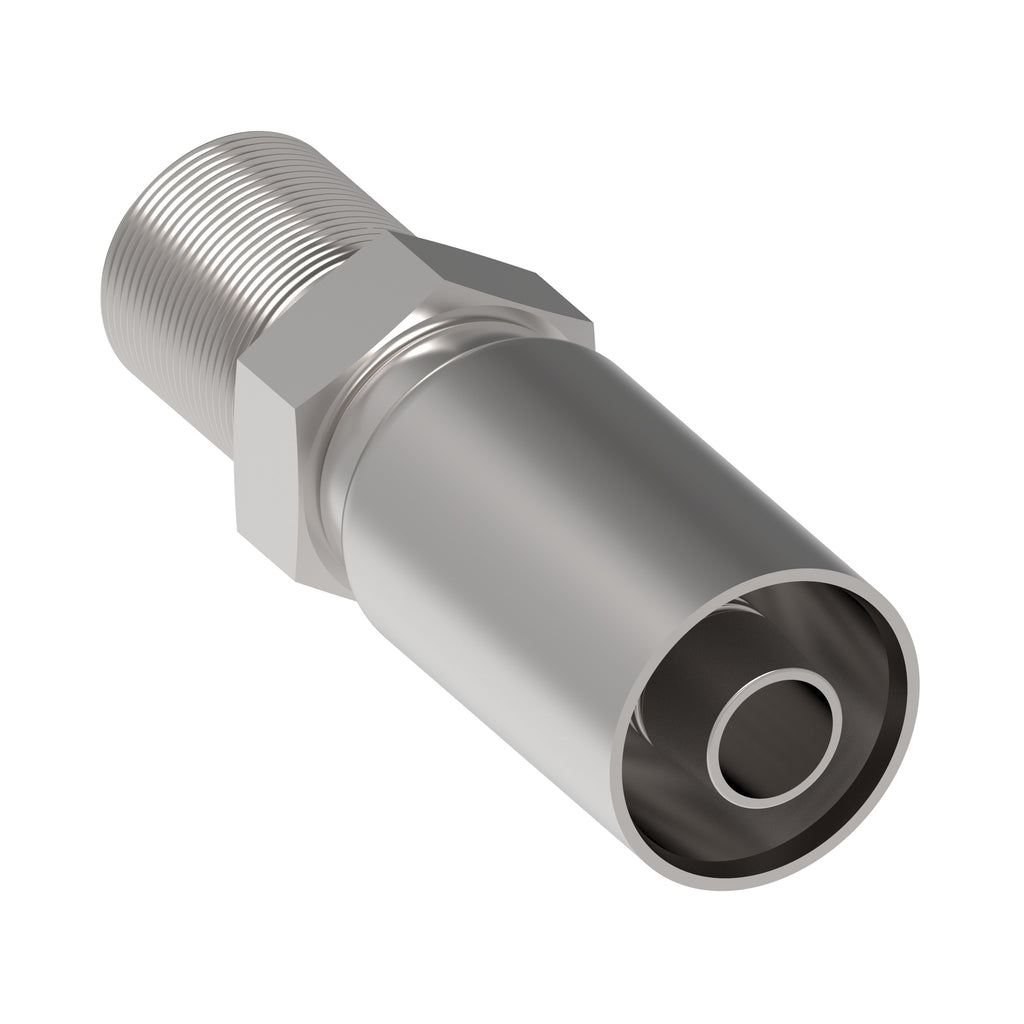

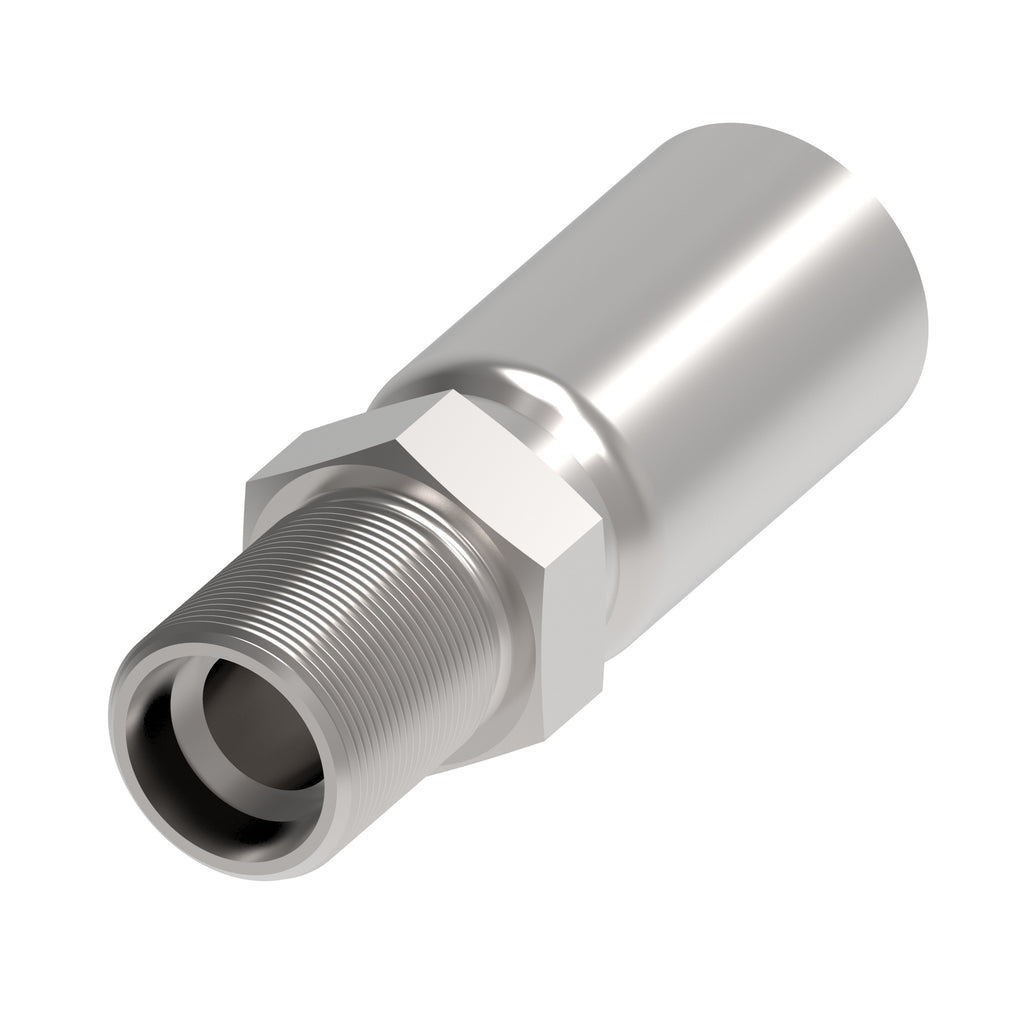

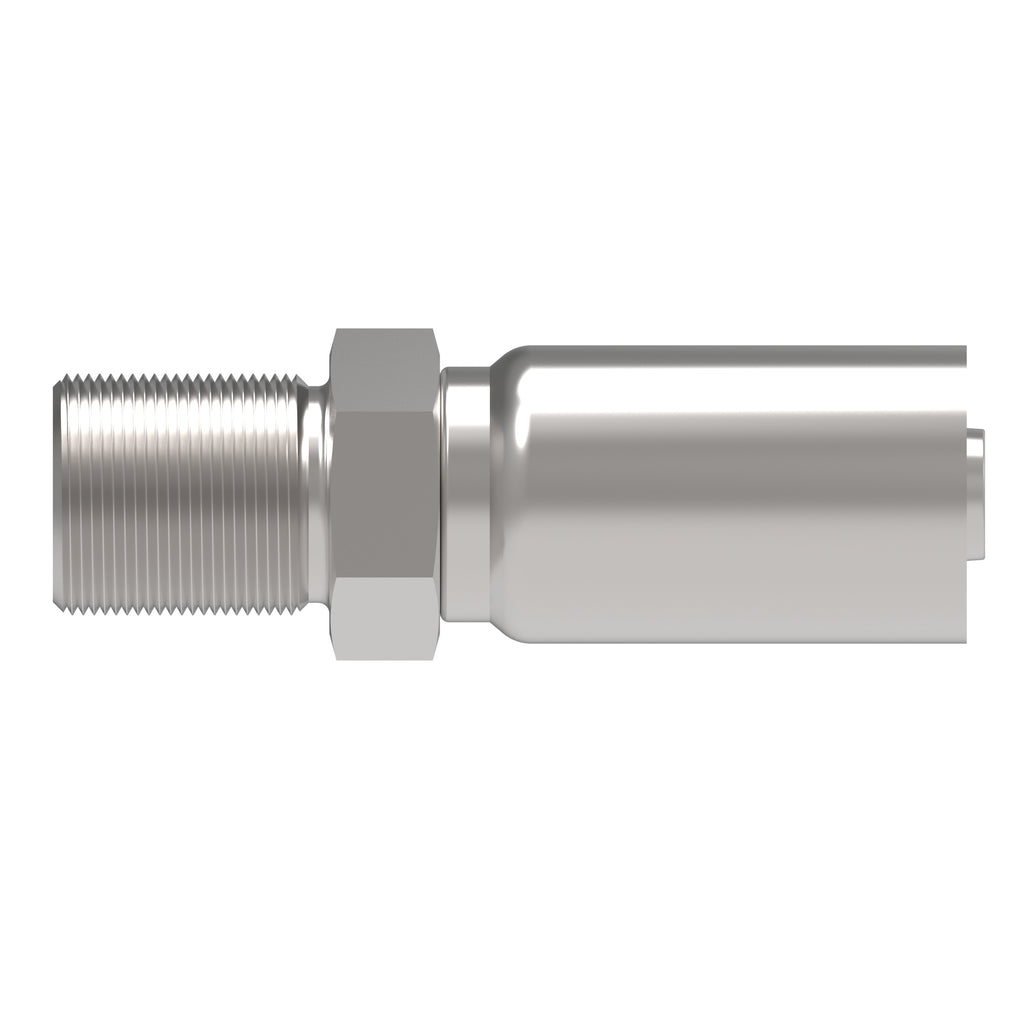

Danfoss Synflex 9MH08-22SL01 – Thermoplast-Schlaucharmatur
€11,54
Zu Produktinformationen springen
Auf Lager
Danfoss Synflex 9MH08-22SL01 – Thermoplast-Schlaucharmatur
HOSE FTG, SS/22, DKOL/08, CS, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: 9MH08-22SL01
€13,73
Technische Daten
| Legacy part number | 9MH08-22SL01 |
| Brand | Synflex by Danfoss |
| Inside diameter IN | 0.39 |
| Inside diameter MM | 10 |
| Product material | Carbon steel |
| Hose size | -8 |
| Thread size 1 | M22x1.5 |
| Angle shape | Straight |
| End size 1 | -8 |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.023 |
| Hex size 1 MM | 26 |
| Finish plating | Dura-Kote |
| Construction Style | Crimp |
| A dimension IN | 3.32 |
| Compatible hose ID MM | 12.7 |
| Compatible hose ID IN | 1.38 |
| A dimension MM | 84.3 |
| Hose cut off factor IN | 1.76 |
| Hose cut off factor MM | 44.7 |
| Product height in | 1.062 |
| Product width in | 1.062 |
| Product width mm | 26.97 |
| Product height mm | 26.97 |
| Product length mm | 84.3 |
| Product length in | 3.32 |
| End connection hex size in | 1.023 |
| End connection hex size mm | 26 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
