FC699-12
€39,92
Zu Produktinformationen springen
Auf Lager
FC699-12

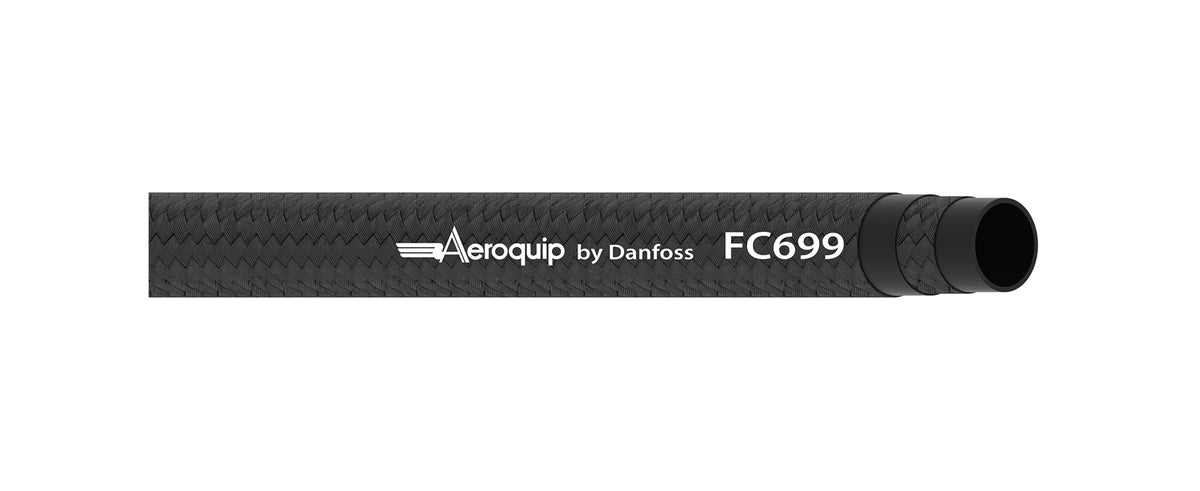

HOSE-AER, FC699, -12, FUEL
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: FC699-12
€47,50
Technische Daten
| Series | FC699 Series |
| Bend radius min (mm) | 101.6 |
| Abrasion resistance | Premium |
| Bend radius min (inch) | 4 |
| Construction | 2 Textile Braid |
| Compliances | MIL-PRF-2104 |
| Application | Lubrication systems |
| Burst pressure (psi) | 1200 |
| Burst pressure (bar) | 83 |
| Conditional temp range | Air not to exceed 121C |
| Inside diameter (mm) | 19 |
| Impulse cycle (cycles) | 500000 |
| Conductivity | Conductive |
| Inside diameter (inch) | 0.75 |
| Lay line style | Ink wheel |
| Outside diameter (inch) | 1.08 |
| Package form | Bulk |
| Outside diameter (mm) | 27.43 |
| Qualified hose fittings | OTC |
| Reinforcement material | Aramid (Kevlar) |
| Size | -12 |
| Vacuum rating (inHg) | 18 |
| Working pressure max (bar) | 21 |
| Vacuum rating (mmHg) | 457.2 |
| Working pressure max (psi) | 300 |
| Working temperature max (C) | 149 |
| Working temperature max (F) | 300 |
| Working temperature min (F) | -40 |
| Working temperature min (C) | -40 |
| Brand | Aeroquip by Danfoss |
| Color | Black |
| Cover material | Polyester (PET) |
| Tube material | Chlorinated Polyethylene (CPE) |
| Product height in | 0.75 |
| Product width in | 0.75 |
| Product width mm | 19 |
| Product height mm | 19 |
Weitere Produktdaten
- Herkunftsland: Turkey
- Zolltarifnummer: 39173900
- Danfoss Produktseite: Produkt bei Danfoss
