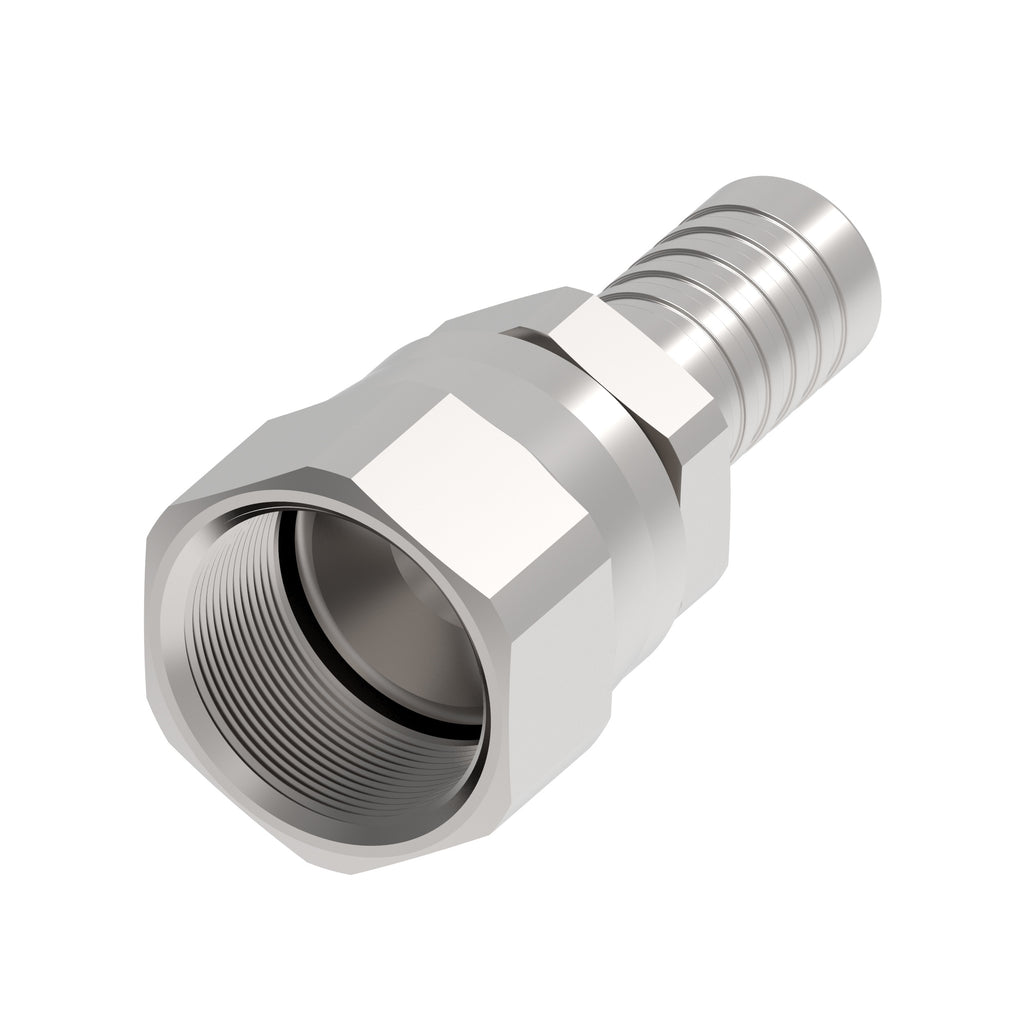

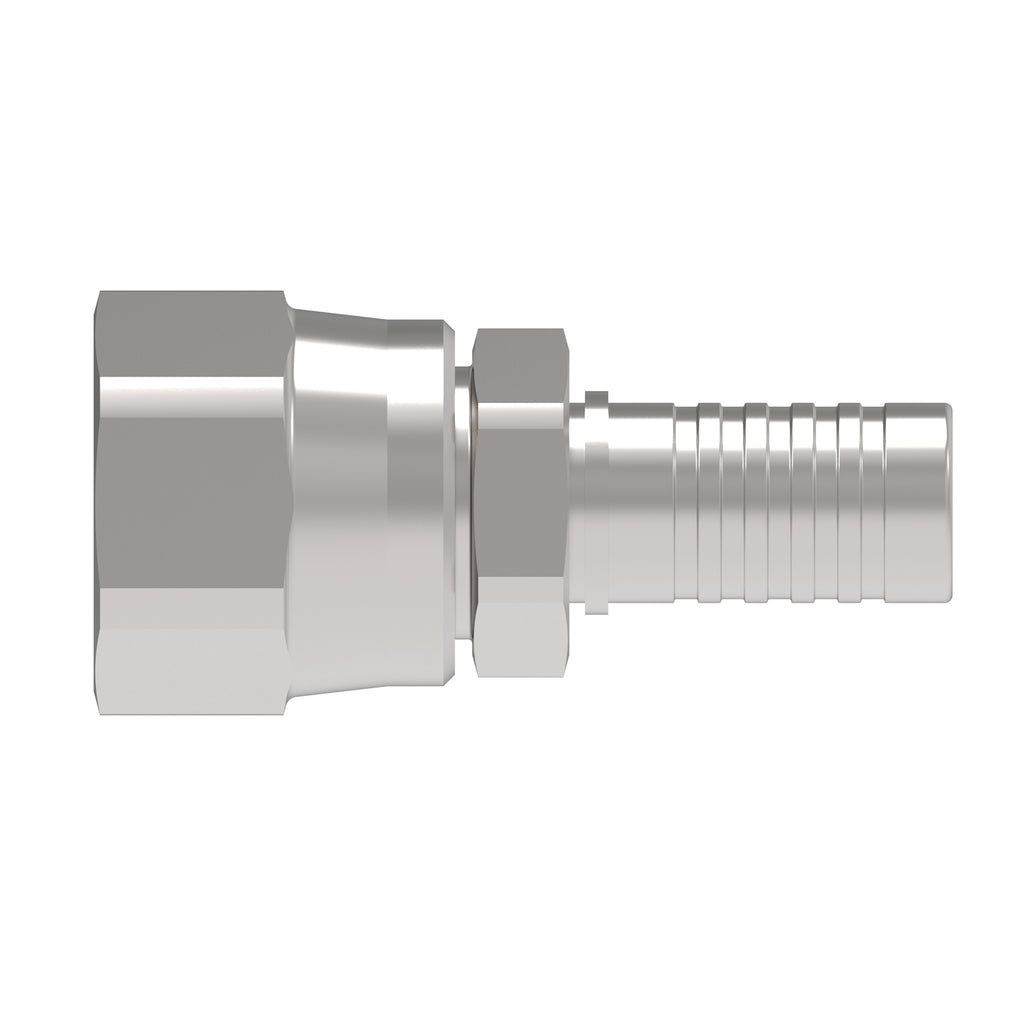

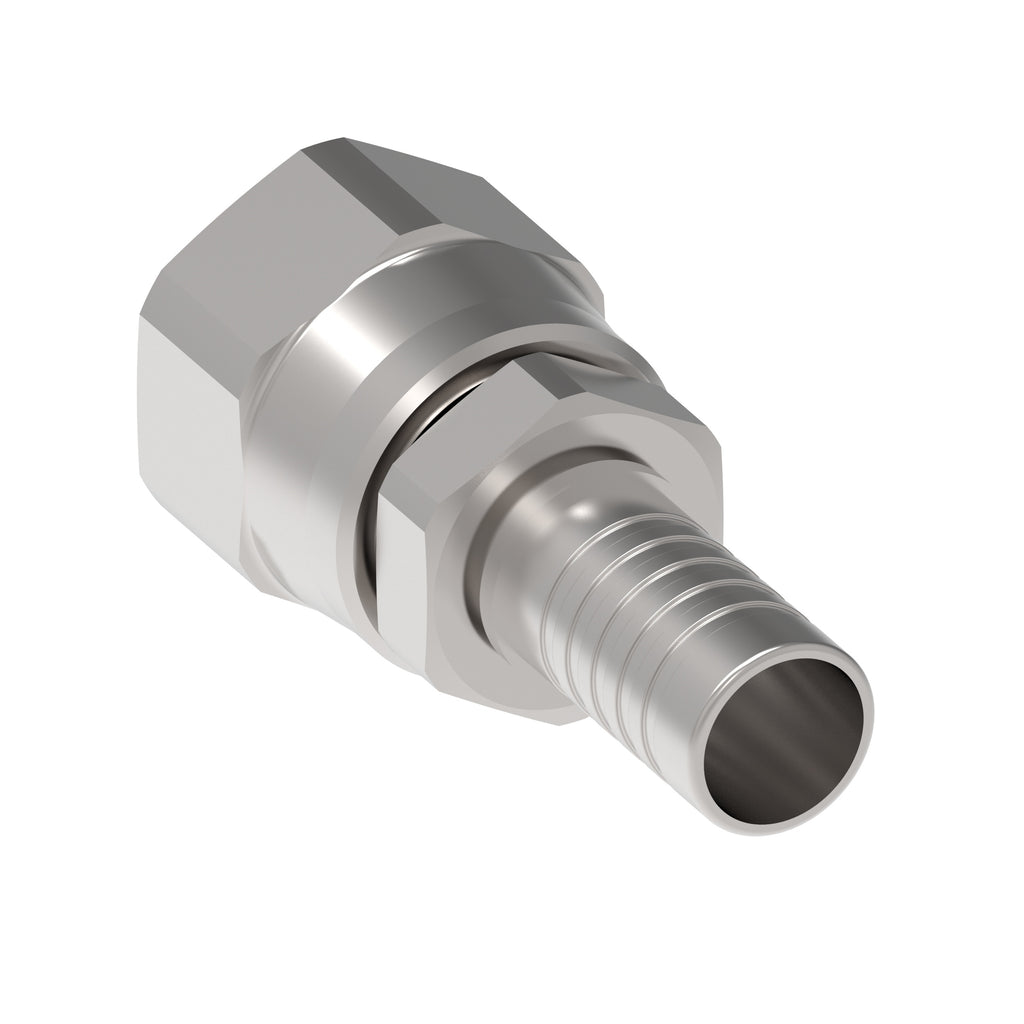

FC8779-0808S
€10,14
Zu Produktinformationen springen
Auf Lager
FC8779-0808S
Ftng (perm), SAE 37teflon
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: FC8779-0808S
€12,07
Technische Daten
| Brand | Danfoss |
| Inside diameter IN | 0.34 |
| Inside diameter MM | 8.6 |
| Product material | Carbon steel |
| Hose size | -8 |
| Thread size 1 | 3/4-16 UNF |
| Angle shape | Straight |
| End size 1 | -8 |
| End Type 1 | Male 37 degree |
| Hex size 1 IN | 0.87 |
| Hex size 2 IN | 0.68 |
| Hex size 1 MM | 22.225 |
| Hex size 2 MM | 17.462 |
| Finish plating | Zinc plating |
| Construction Style | Crimp |
| A dimension IN | 2.1 |
| Compatible hose ID MM | 12.7 |
| Compatible hose ID IN | 0.5 |
| A dimension MM | 53.3 |
| End connection torque | 33-40 lb-ft(45-55 Nm) |
| Hose cut off factor IN | 1.21 |
| Hose cut off factor MM | 30.7 |
| End connection hex size IN | 0.87 |
| End connection hex size MM | 22.225 |
| Backup hex size IN | 0.68 |
| Backup hex size MM | 17.462 |
Weitere Produktdaten
- Herkunftsland: Mexico
- Zolltarifnummer: 73269098
- Danfoss Produktseite: Produkt bei Danfoss
