FJ3114-0606S
€6,02
Zu Produktinformationen springen
Auf Lager
FJ3114-0606S
HOSE FTG, HP/06, JIC-F/06, CS, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: FJ3114-0606S
€7,16
Technische Daten
| Brand | Danfoss |
| Inside diameter IN | 0.23 |
| Inside diameter MM | 5.9 |
| Product material | Carbon steel |
| Thread size 1 | 9/16-18 UNF |
| Angle shape | Straight |
| End size 1 | -6 |
| End Type 1 | Female 37 degree swivel |
| Hex size 1 IN | 0.688 |
| Hex size 2 IN | 0.563 |
| Hex size 1 MM | 17.462 |
| Hex size 2 MM | 14.288 |
| Finish plating | Dura-Kote |
| Construction Style | Crimp |

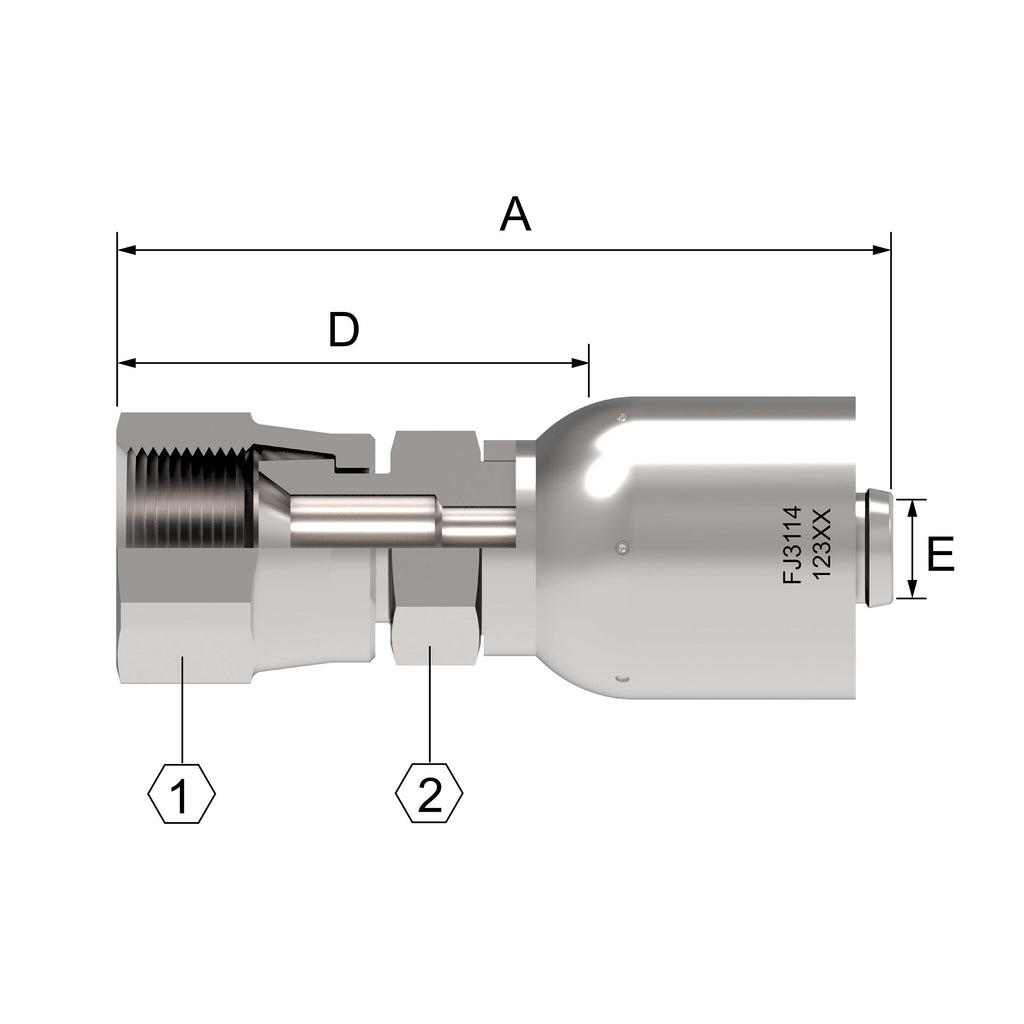

| A dimension IN | 2.04 |
| Compatible hose ID IN | 0.38 |
| A dimension MM | 51.9 |
| Hose cut off factor IN | 1.25 |
| Hose cut off factor MM | 31.8 |
| Product height in | 0.83 |
| Product width in | 0.69 |
| Product width mm | 17.526 |
| Product height mm | 21.082 |
| Product length mm | 52.578 |
| Product length in | 2.07 |
| End connection hex size IN | 0.688 |
| End connection hex size MM | 17.462 |
| Backup hex size IN | 0.563 |
| Backup hex size MM | 14.288 |
Weitere Produktdaten
- Herkunftsland: USA
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
