FJ3114-0808S
€7,86
Zu Produktinformationen springen
Auf Lager
FJ3114-0808S
HOSE FTG, HP/08, JIC-F/08, CS, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: FJ3114-0808S
€9,35
Technische Daten
| Brand | Danfoss |
| Inside diameter IN | 0.28 |
| Inside diameter MM | 7.2 |
| Product material | Carbon steel |
| Thread size 1 | 3/4-16 UNF |
| Angle shape | Straight |
| End size 1 | -8 |
| End Type 1 | Female 37 degree swivel |
| Hex size 1 IN | 0.875 |
| Hex size 2 IN | 0.688 |
| Hex size 1 MM | 22.225 |
| Hex size 2 MM | 17.462 |
| Finish plating | Dura-Kote |
| Construction Style | Crimp |

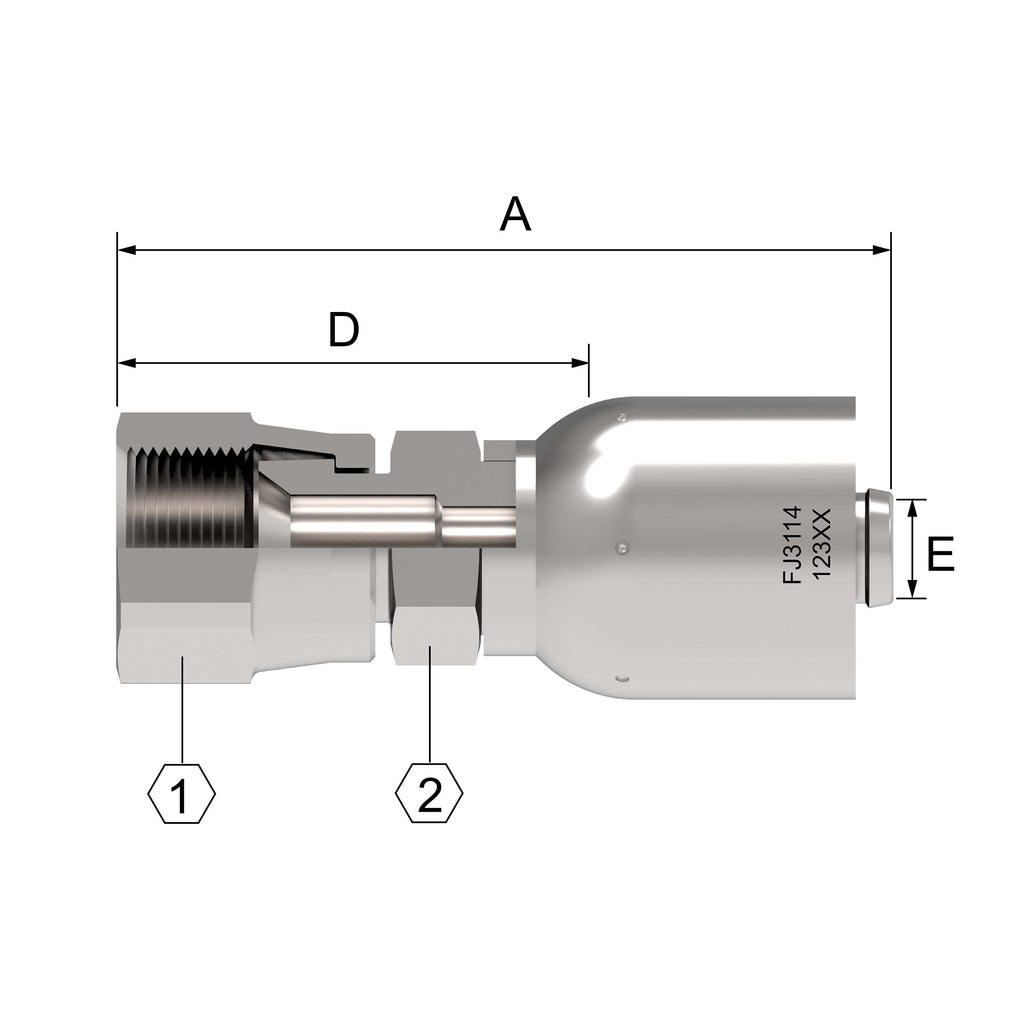

| A dimension IN | 2.15 |
| Compatible hose ID IN | 0.5 |
| A dimension MM | 54.5 |
| Hose cut off factor IN | 1.35 |
| Hose cut off factor MM | 34.3 |
| Product height in | 1.01 |
| Product width in | 0.88 |
| Product width mm | 22.352 |
| Product height mm | 25.654 |
| Product length mm | 54.61 |
| Product length in | 2.15 |
| End connection hex size IN | 0.875 |
| End connection hex size MM | 22.225 |
| Backup hex size IN | 0.688 |
| Backup hex size MM | 17.462 |
Weitere Produktdaten
- Danfoss Produktseite: Produkt bei Danfoss
