G190600-12B
€49,00
Zu Produktinformationen springen
Auf Lager
G190600-12B

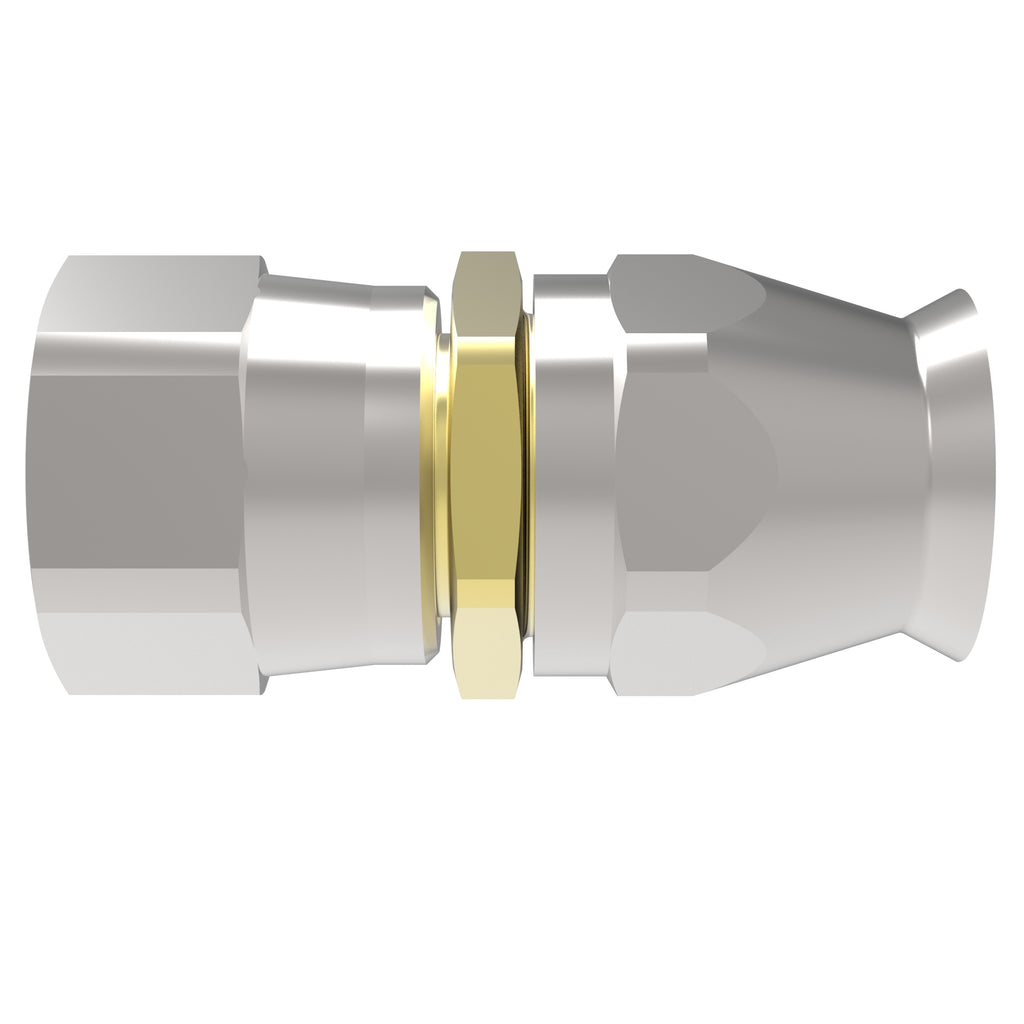

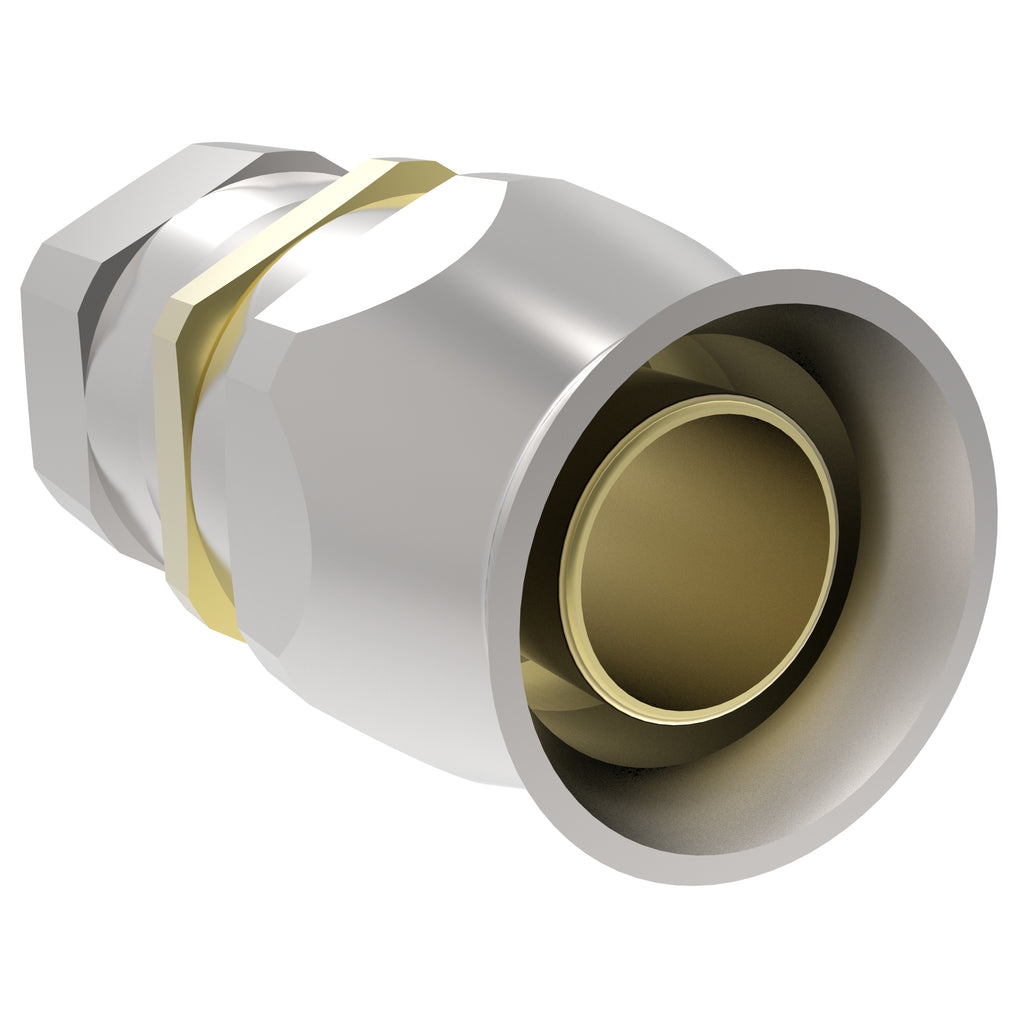

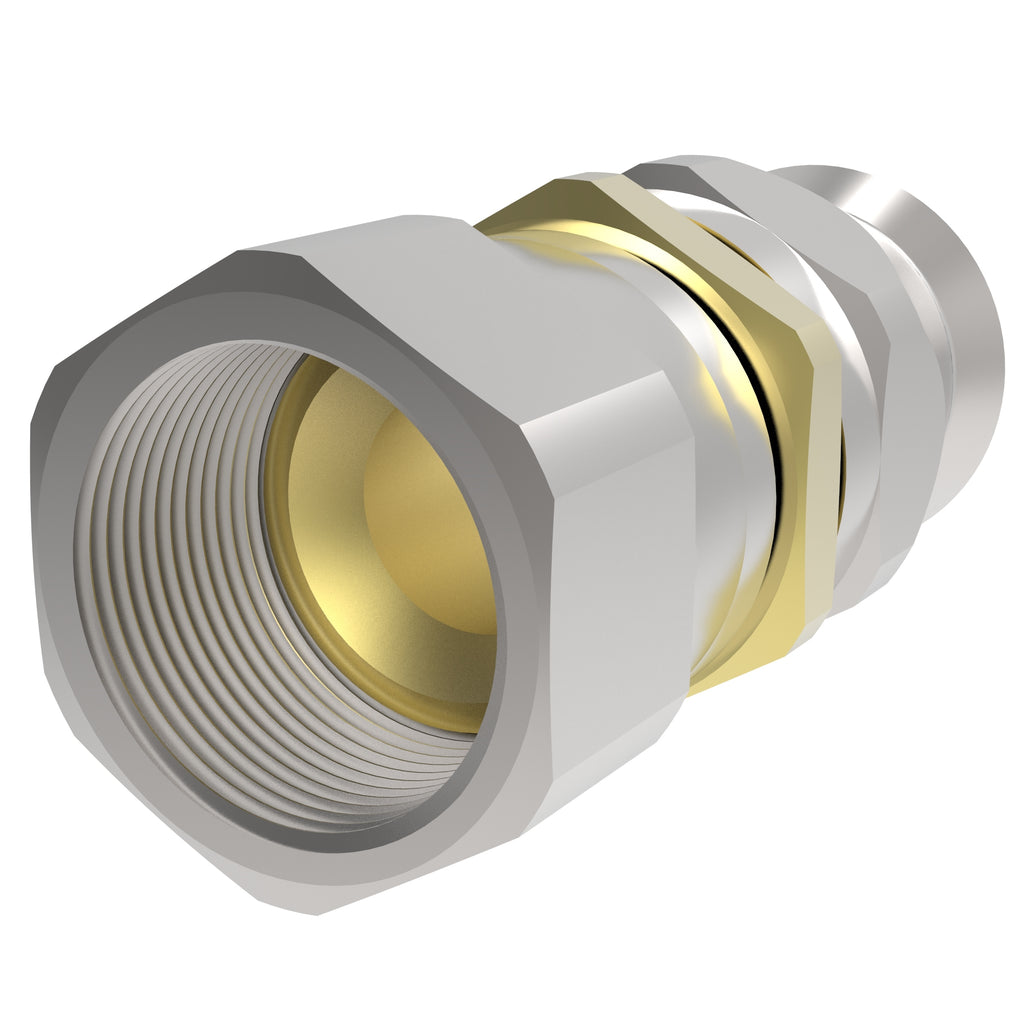

HOSE FTG, GR/12, JIC-F/12, AM, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: G190600-12B
€58,31
Technische Daten
| Legacy part number | G190600-12B |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.571 |
| Inside diameter MM | 14.5 |
| Product material | 303 Stainless steel |
| Hose size | -12 |
| Thread size 1 | 1 1/16-12 UN |
| Angle shape | Straight |
| End size 1 | -12 |
| End type 2 | Line/hose/tube |
| End type 1 | Female 37 degree swivel |
| Hex size 1 IN | 1.25 |
| Hex size 2 IN | 1.25 |
| Hex size 1 MM | 31.75 |
| Hex size 2 MM | 31.75 |
| Finish plating | Passivate |
| Construction Style | Crimp |
| A dimension IN | 1.657 |
| Compatible hose ID MM | 19.05 |
| Compatible hoses | 2807 |
| Compatible hose ID IN | 0.75 |
| A dimension MM | 42.1 |
| Hose cut off factor IN | 1.102 |
| Hose cut off factor MM | 28 |
| Product height in | 1.5 |
| Product width in | 1.5 |
| Product width mm | 38.1 |
| Product height mm | 38.1 |
| Product length mm | 54.787 |
| Product length in | 2.157 |
| End connection hex size in | 1.25 |
| End connection hex size mm | 31.75 |
| Backup hex size in | 1.25 |
| Backup hex size mm | 31.75 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 74122000
- Danfoss Produktseite: Produkt bei Danfoss
