GA15067-16E
€38,94
Zu Produktinformationen springen
Auf Lager
GA15067-16E

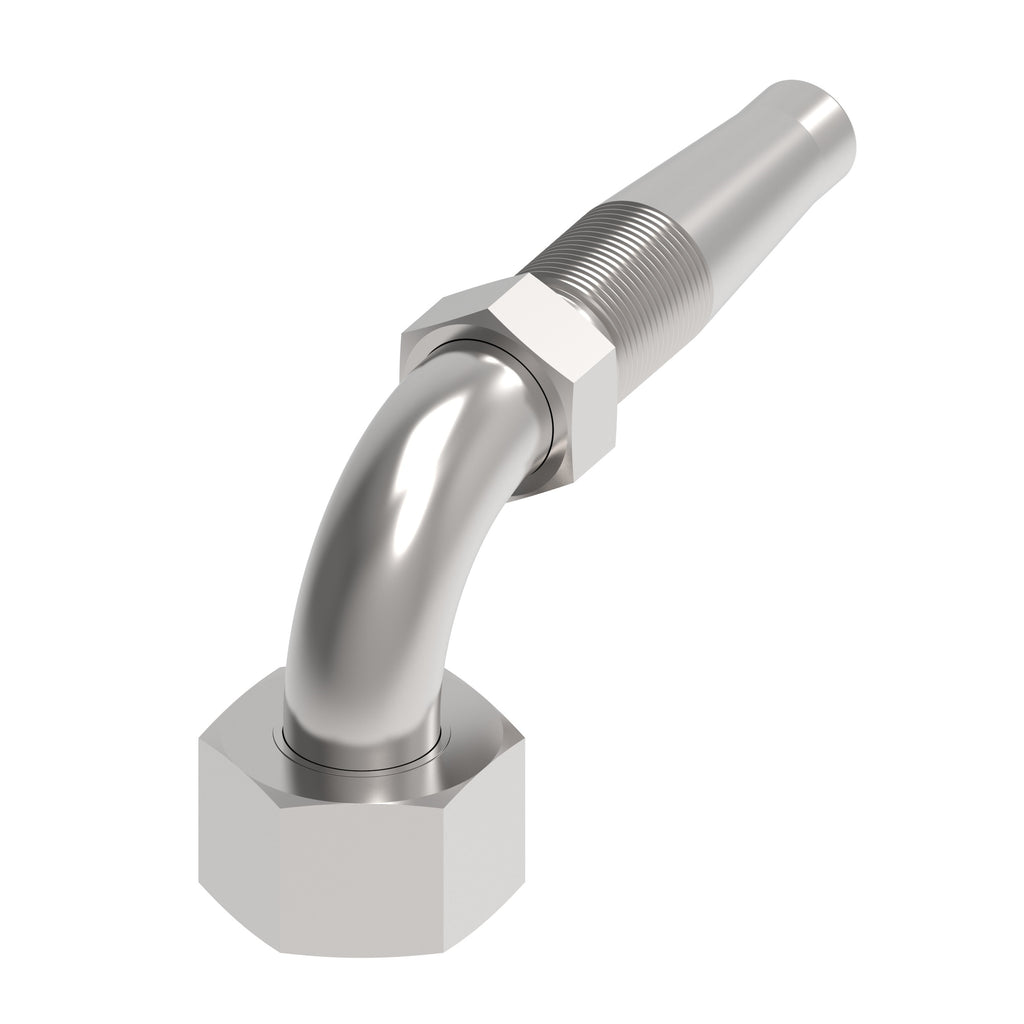

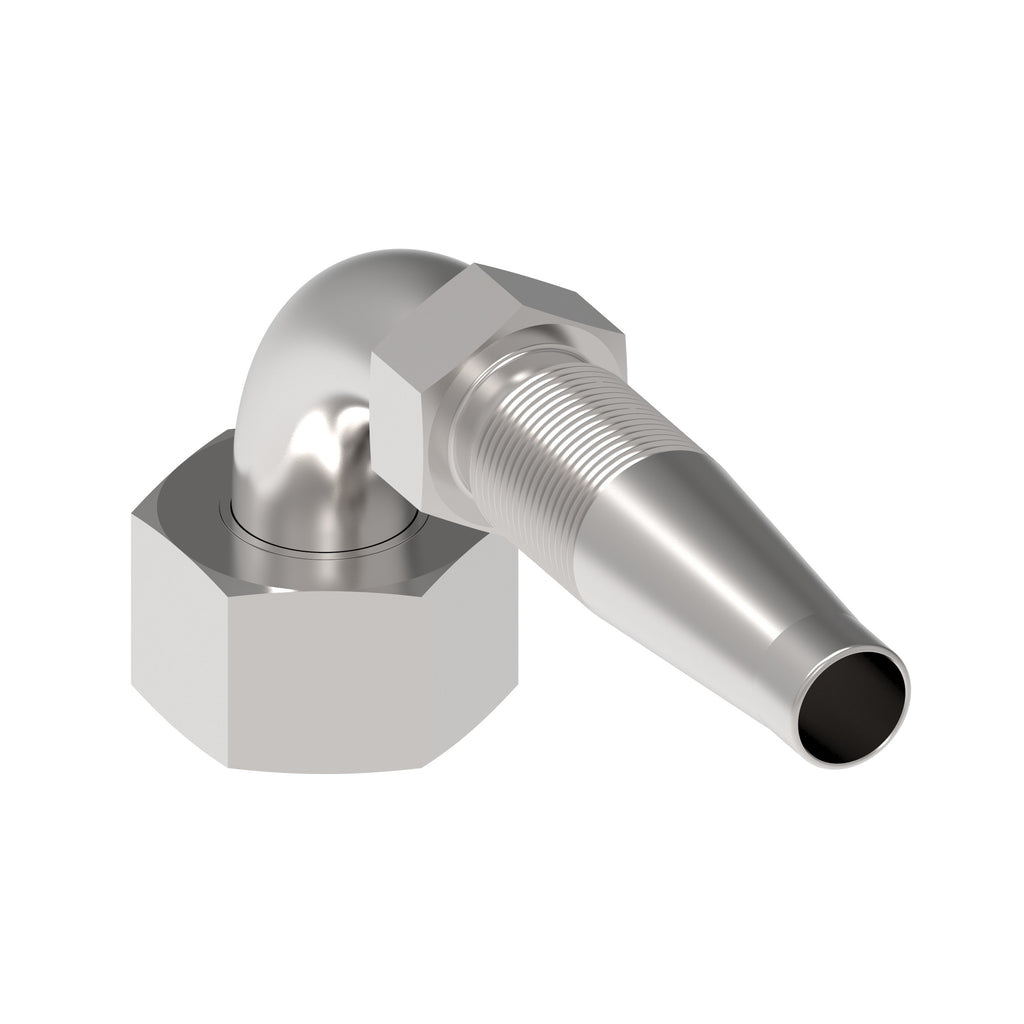

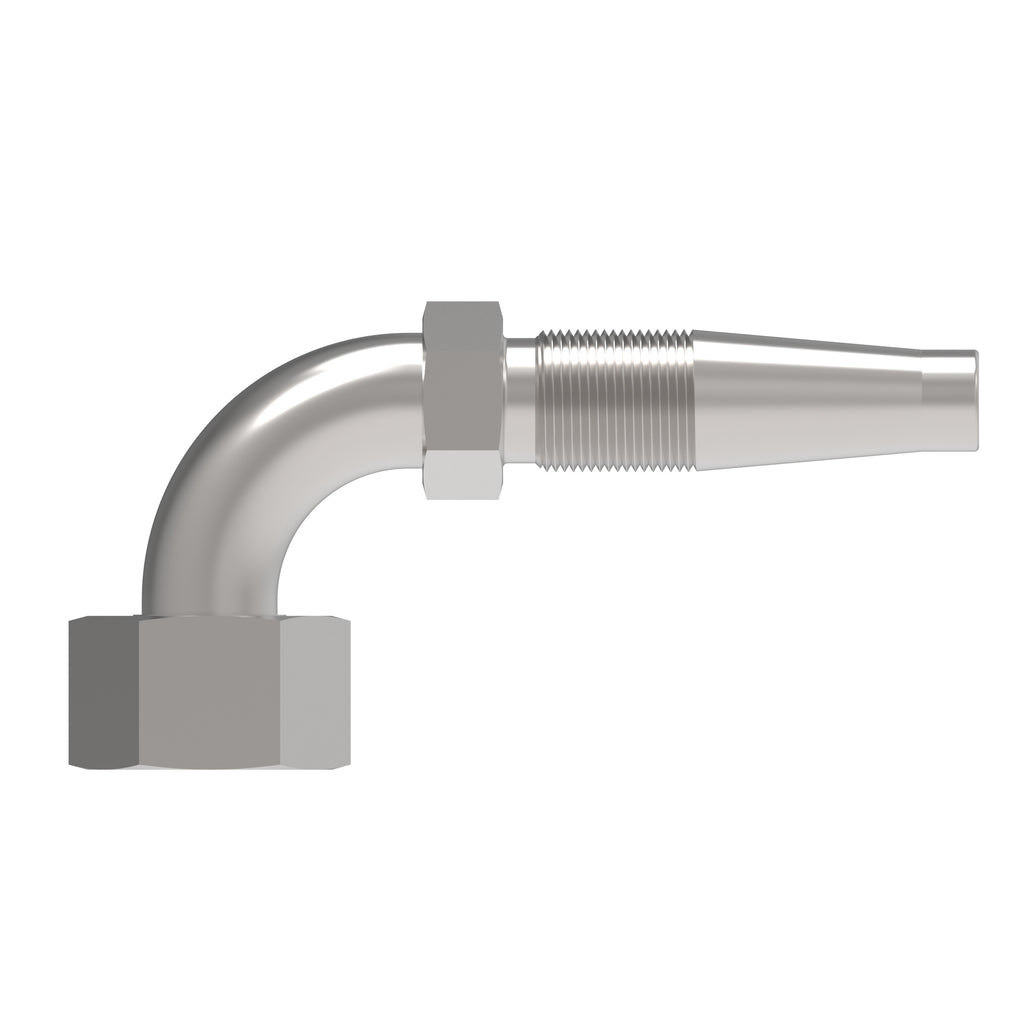

HOSE NIPPLE ASSY,5R/16,DKOL/22,CS,90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15067-16E
€46,34
Technische Daten
| Legacy part number | GA15067-16E |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.747 |
| Inside diameter MM | 18.95 |
| Product material | Carbon steel |
| Hose size | -16 |
| Thread size 1 | M30x2 |
| Angle shape | 90 Degree |
| End size 1 | -16 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.417 |
| Hex size 2 IN | 1.181 |
| Hex size 1 MM | 36 |
| Hex size 2 MM | 30 |
| Drop dimension IN | 2.165 |
| Drop dimension MM | 55 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 3.523 |
| Compatible hose ID MM | 25.4 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 0.88 |
| Hose cut off factor IN | 2.362 |
| Hose cut off factor MM | 60 |
| Seal material | Nitrile (NBR) |
| Product height in | 2.98 |
| Product width in | 1.42 |
| Product width mm | 36.068 |
| Product height mm | 75.692 |
| Product length mm | 107.442 |
| Product length in | 4.23 |
| End connection hex size in | 1.417 |
| End connection hex size mm | 36 |
| Backup hex size in | 1.181 |
| Backup hex size mm | 30 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
