GA15067-20E
€49,27
Zu Produktinformationen springen
Auf Lager
GA15067-20E

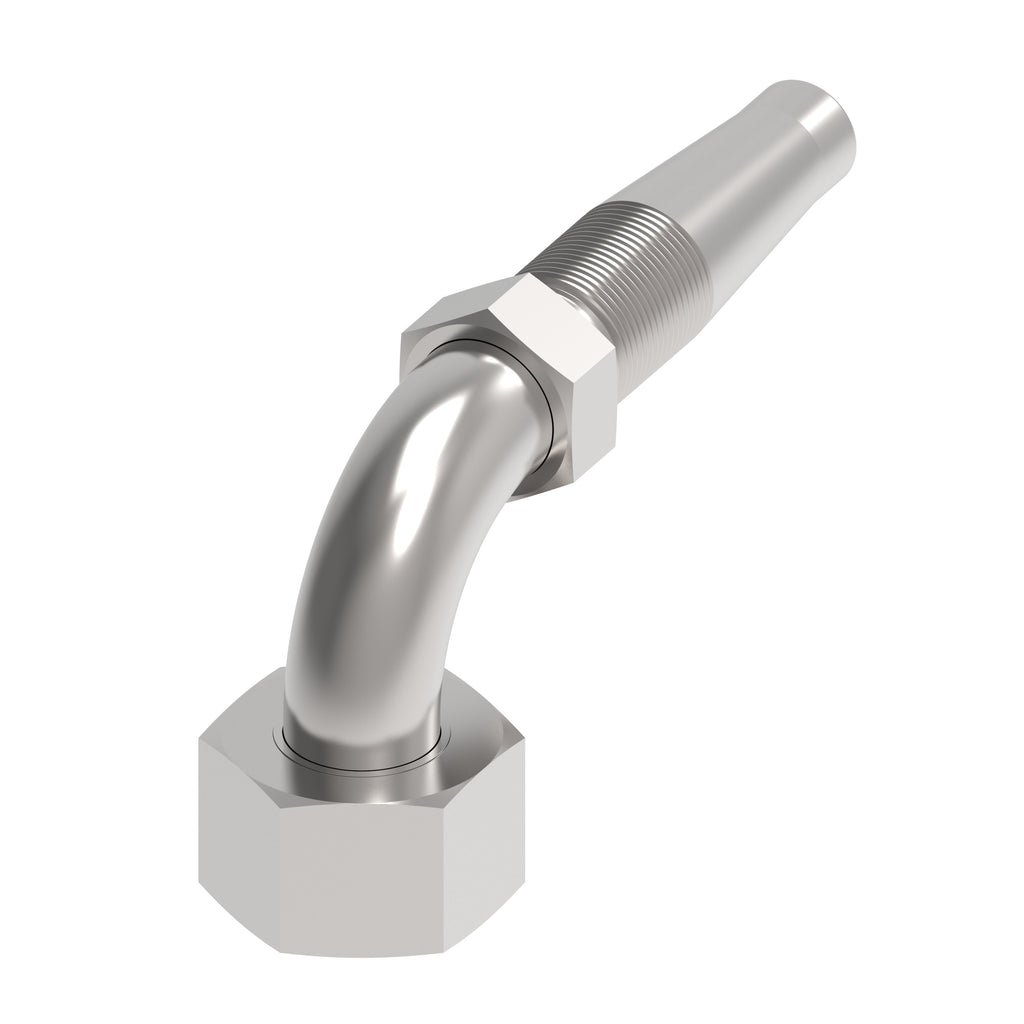

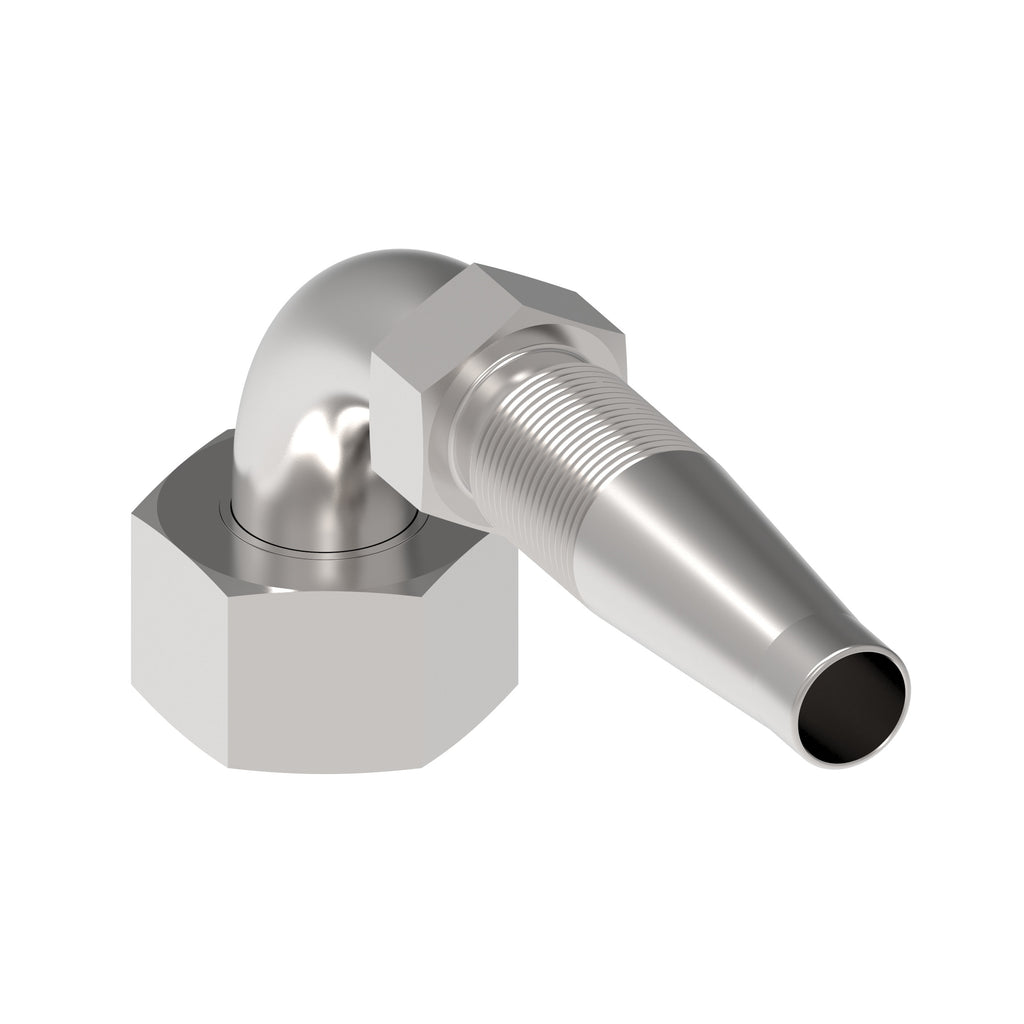

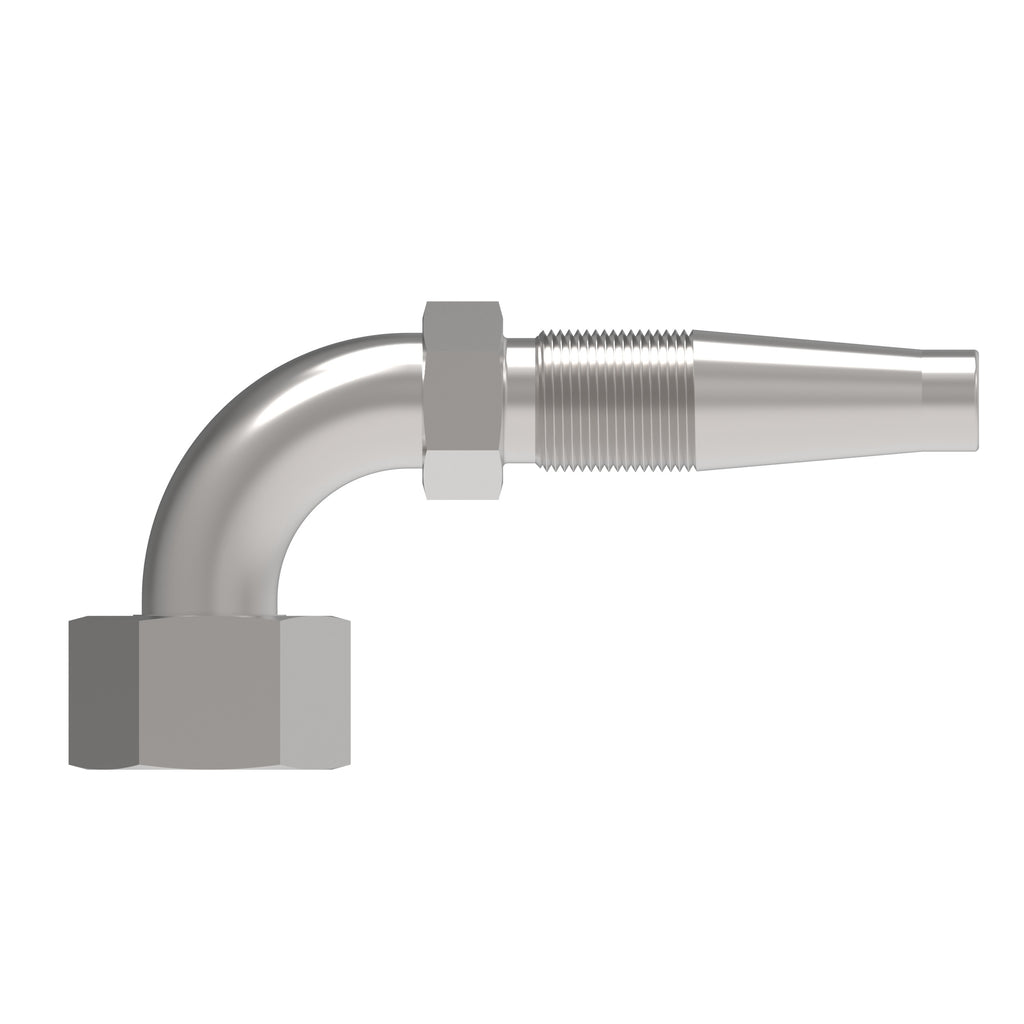

HOSE NIPPLE ASSY,5R/20,DKOL/28,CS,90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15067-20E
€58,63
Technische Daten
| Legacy part number | GA15067-20E |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.975 |
| Inside diameter MM | 24.75 |
| Product material | Carbon steel |
| Hose size | -20 |
| Thread size 1 | M36x2 |
| Angle shape | 90 Degree |
| End size 1 | -20 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.614 |
| Hex size 2 IN | 1.417 |
| Hex size 1 MM | 41 |
| Hex size 2 MM | 36 |
| Drop dimension IN | 2.303 |
| Drop dimension MM | 58.5 |
| Finish plating | Zinc plating |
| Construction Style | Reusable |
| A dimension IN | 3.818 |
| Compatible hose ID MM | 31.75 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.12 |
| A dimension MM | 97 |
| Hose cut off factor IN | 2.5 |
| Hose cut off factor MM | 63.5 |
| Seal material | Nitrile (NBR) |
| Product height in | 3.25 |
| Product width in | 1.61 |
| Product width mm | 40.894 |
| Product height mm | 82.55 |
| Product length mm | 116.586 |
| Product length in | 4.59 |
| End connection hex size in | 1.614 |
| End connection hex size mm | 41 |
| Backup hex size in | 1.417 |
| Backup hex size mm | 36 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
