GA15067-24
€88,71
Zu Produktinformationen springen
Auf Lager
GA15067-24

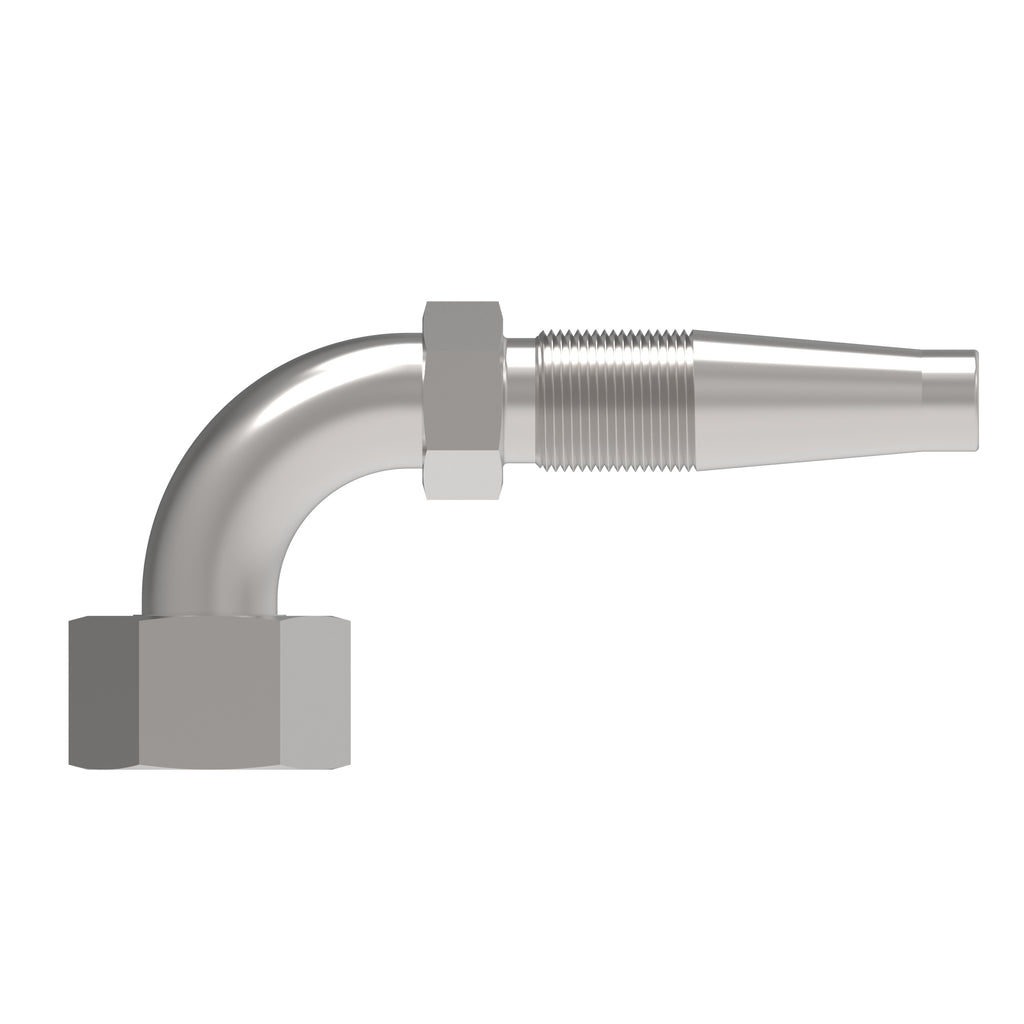

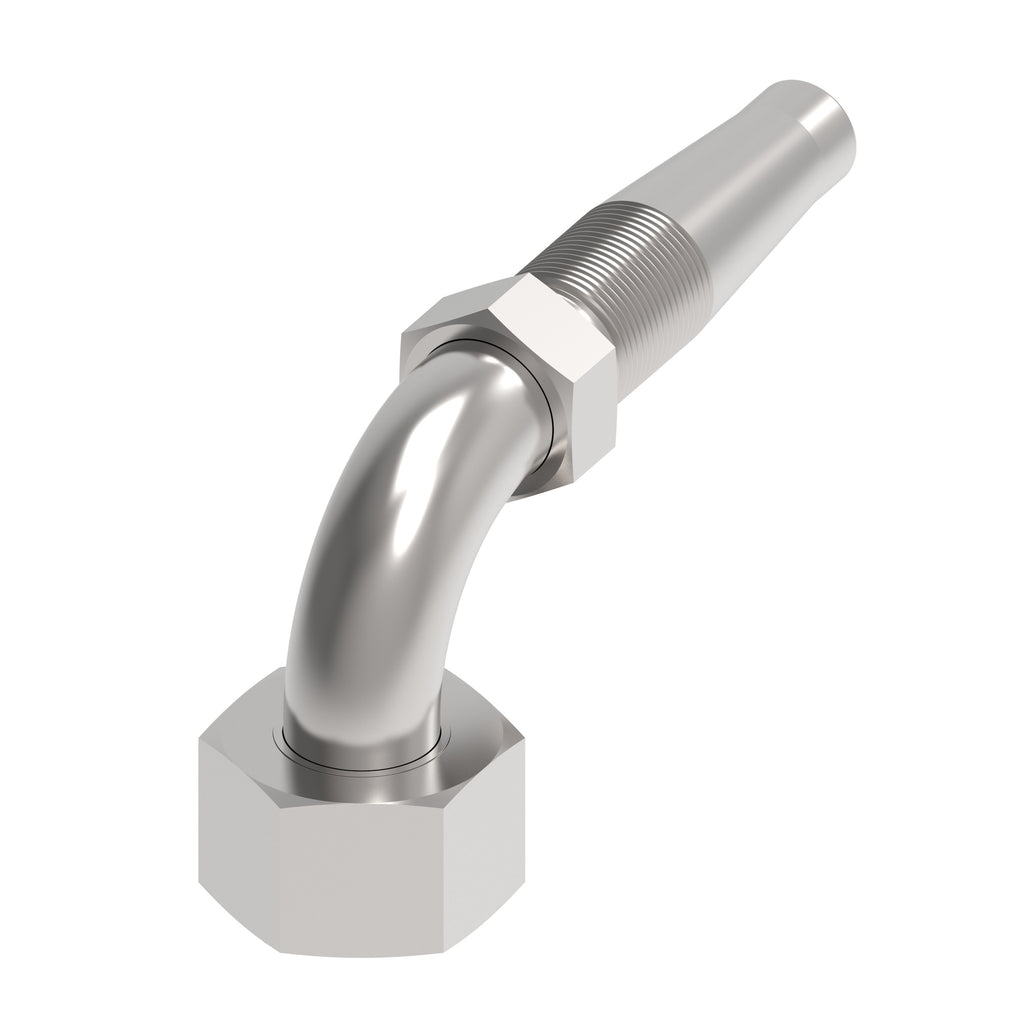

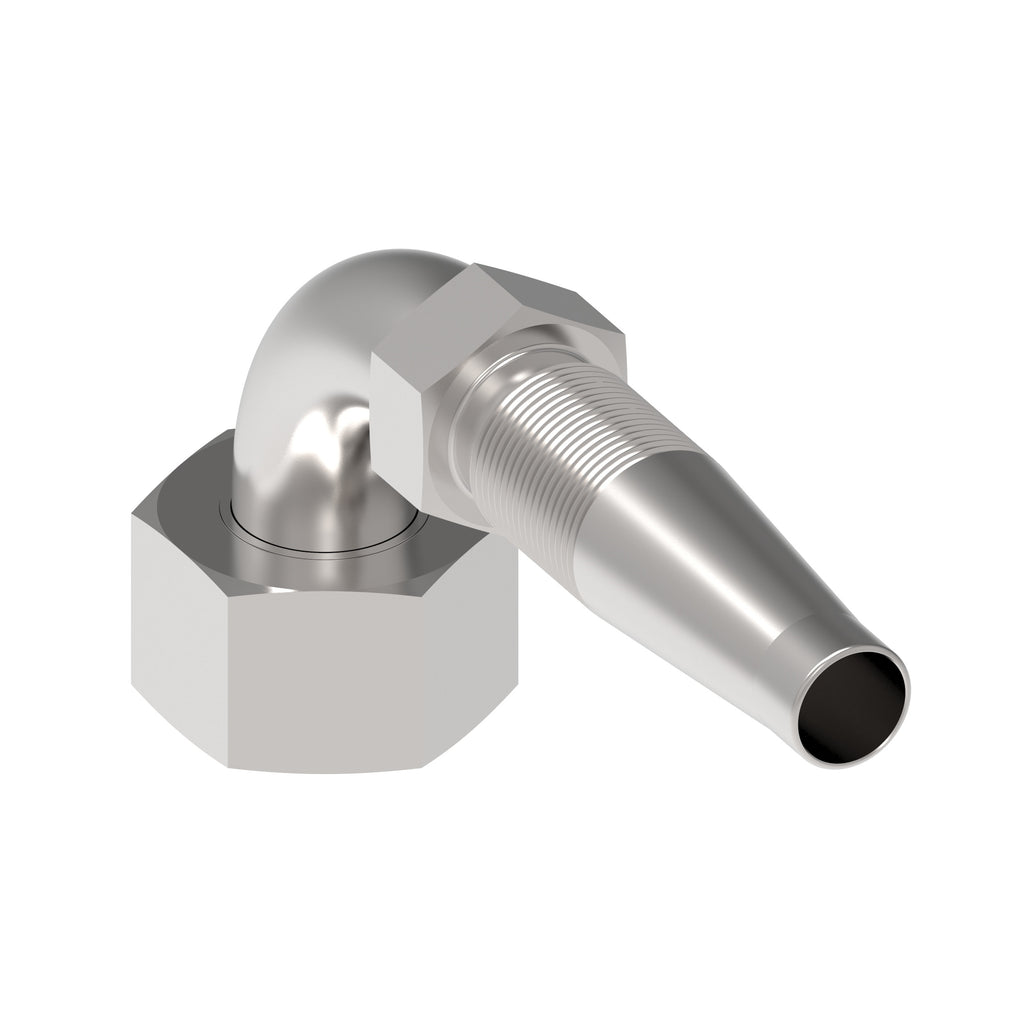

HOSE NIPPLE ASSY,5R/24,DKOL/35,CS,90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15067-24
€105,56
Technische Daten
| Legacy part number | GA15067-24 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 1.19 |
| Inside diameter MM | 30.3 |
| Product material | Carbon steel |
| Hose size | -24 |
| Thread size 1 | M45x2 |
| Angle shape | 90 Degree |
| End size 1 | -24 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.969 |
| Hex size 2 IN | 1.811 |
| Hex size 1 MM | 50 |
| Hex size 2 MM | 46 |
| Drop dimension IN | 2.77 |
| Drop dimension MM | 70.3 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 4.23 |
| Compatible hose ID MM | 38.1 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.38 |
| A dimension MM | 107.5 |
| Hose cut off factor IN | 2.85 |
| Hose cut off factor MM | 72.5 |
| Seal material | Nitrile (NBR) |
| Product height in | 3.89 |
| Product width in | 1.97 |
| Product width mm | 50.038 |
| Product height mm | 98.806 |
| Product length mm | 132.588 |
| Product length in | 5.22 |
| End connection hex size in | 1.969 |
| End connection hex size mm | 50 |
| Backup hex size in | 1.811 |
| Backup hex size mm | 46 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
