GA15067-32
€137,47
Zu Produktinformationen springen
Auf Lager
GA15067-32

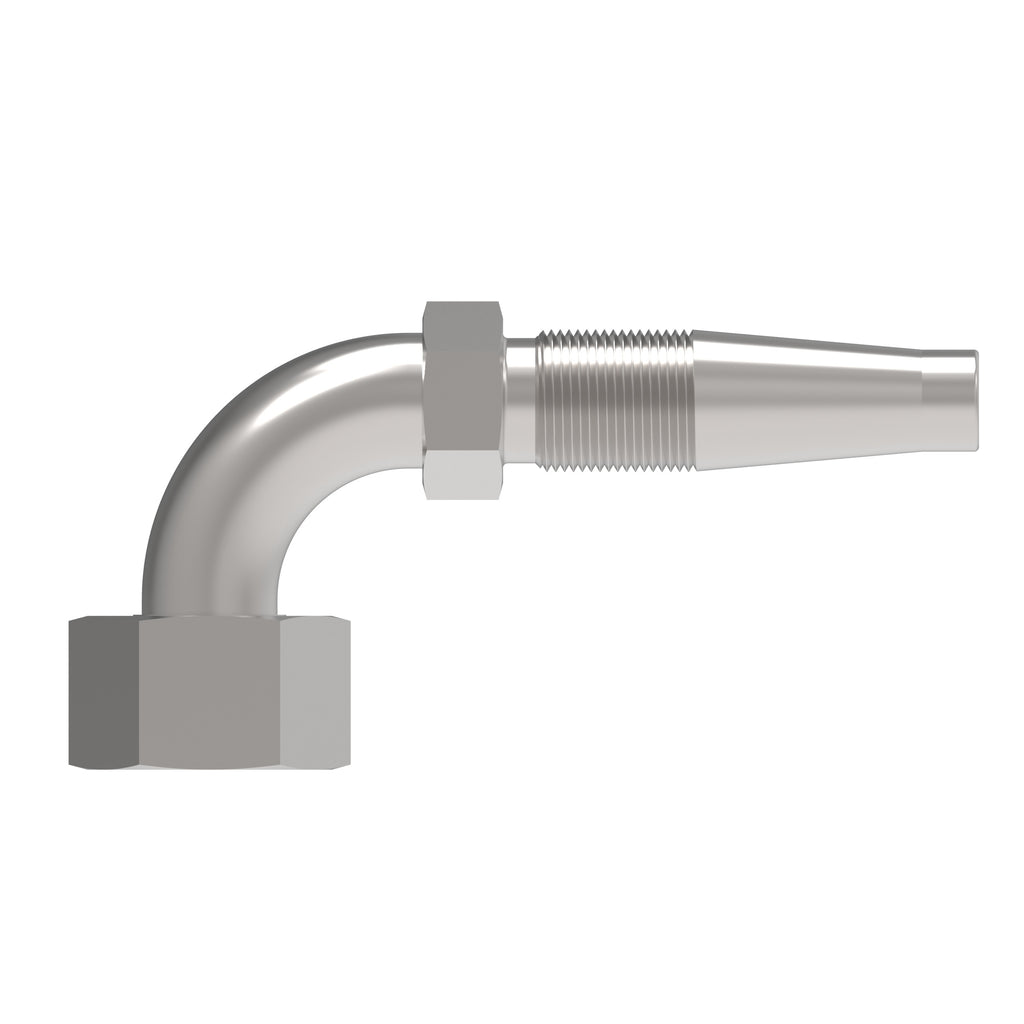

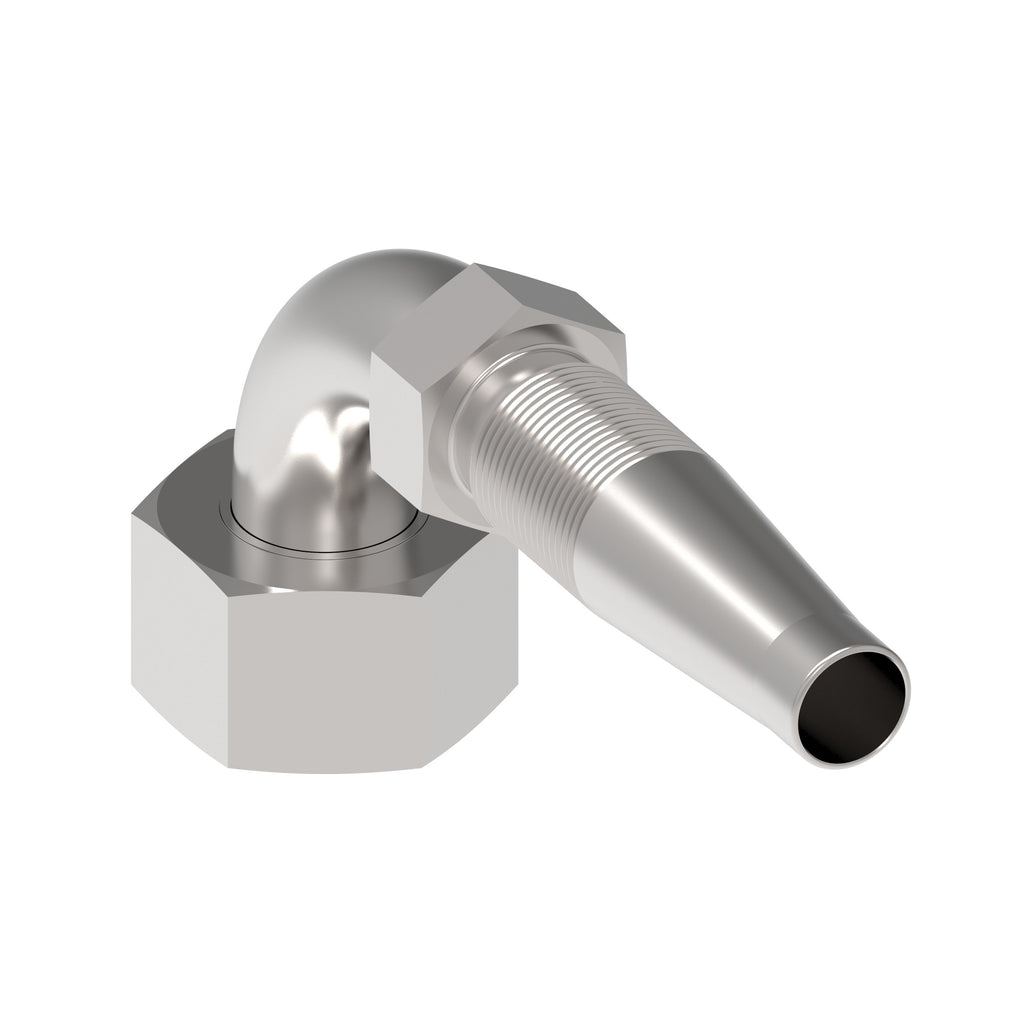

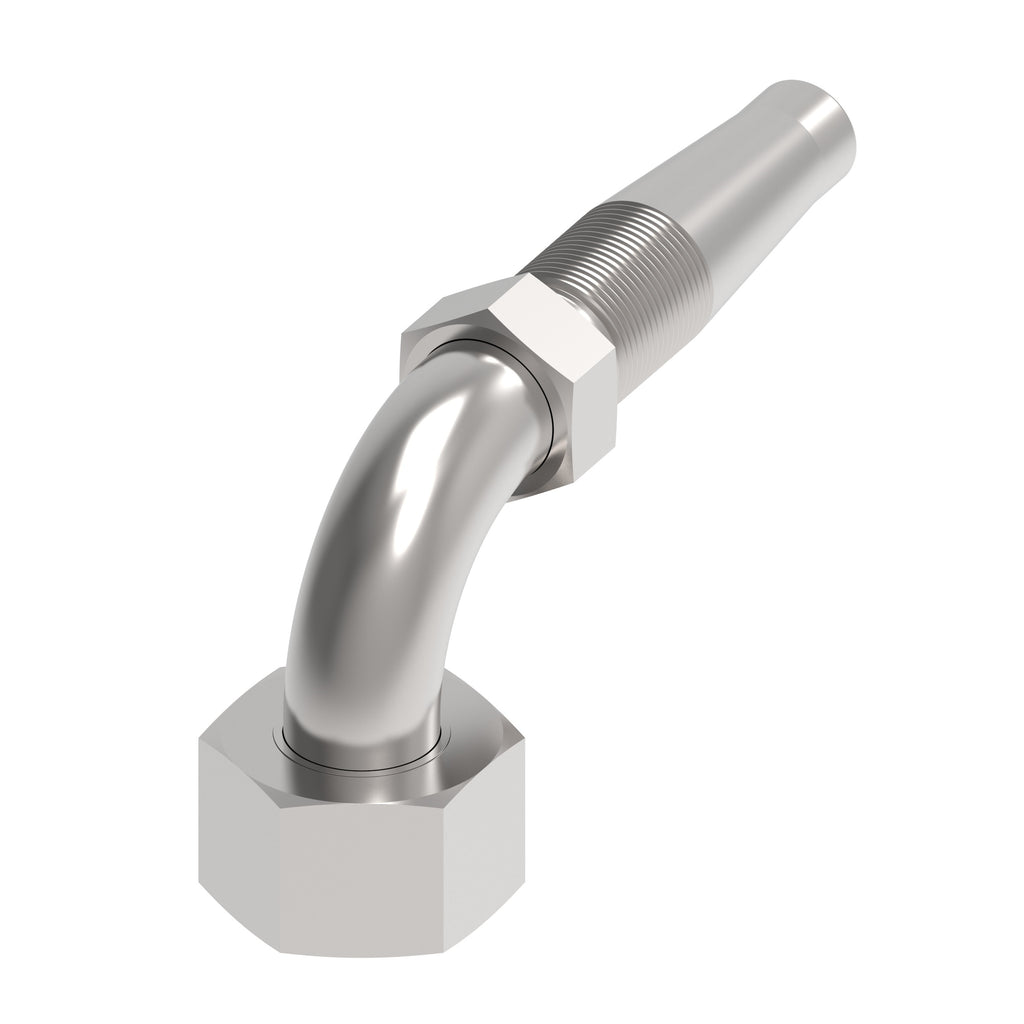

HOSE NIPPLE ASSY,5R/32,DKOL/42,CS,90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15067-32
Hydroflex Artikelnummer: 10000920
€163,59
Technische Daten
| Legacy part number | GA15067-32 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 1.69 |
| Inside diameter MM | 43 |
| Product material | Carbon steel |
| Hose size | -32 |
| Thread size 1 | M52x2 |
| Angle shape | 90 Degree |
| End size 1 | -32 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 2.362 |
| Hex size 2 IN | 2.165 |
| Hex size 1 MM | 60 |
| Hex size 2 MM | 55 |
| Drop dimension IN | 3.65 |
| Drop dimension MM | 92.8 |
| Finish plating | Zinc plating |
| Construction Style | Reusable |
| A dimension IN | 5.61 |
| Compatible hose ID MM | 50.8 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.81 |
| A dimension MM | 142.5 |
| Hose cut off factor IN | 3.77 |
| Hose cut off factor MM | 95.8 |
| Seal material | Nitrile (NBR) |
| Product height in | 5.01 |
| Product width in | 2.36 |
| Product width mm | 59.944 |
| Product height mm | 127.254 |
| Product length mm | 172.466 |
| Product length in | 6.79 |
| End connection hex size in | 2.362 |
| End connection hex size mm | 60 |
| Backup hex size in | 2.165 |
| Backup hex size mm | 55 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
