GA15772-12
€32,07
Zu Produktinformationen springen
Auf Lager
GA15772-12

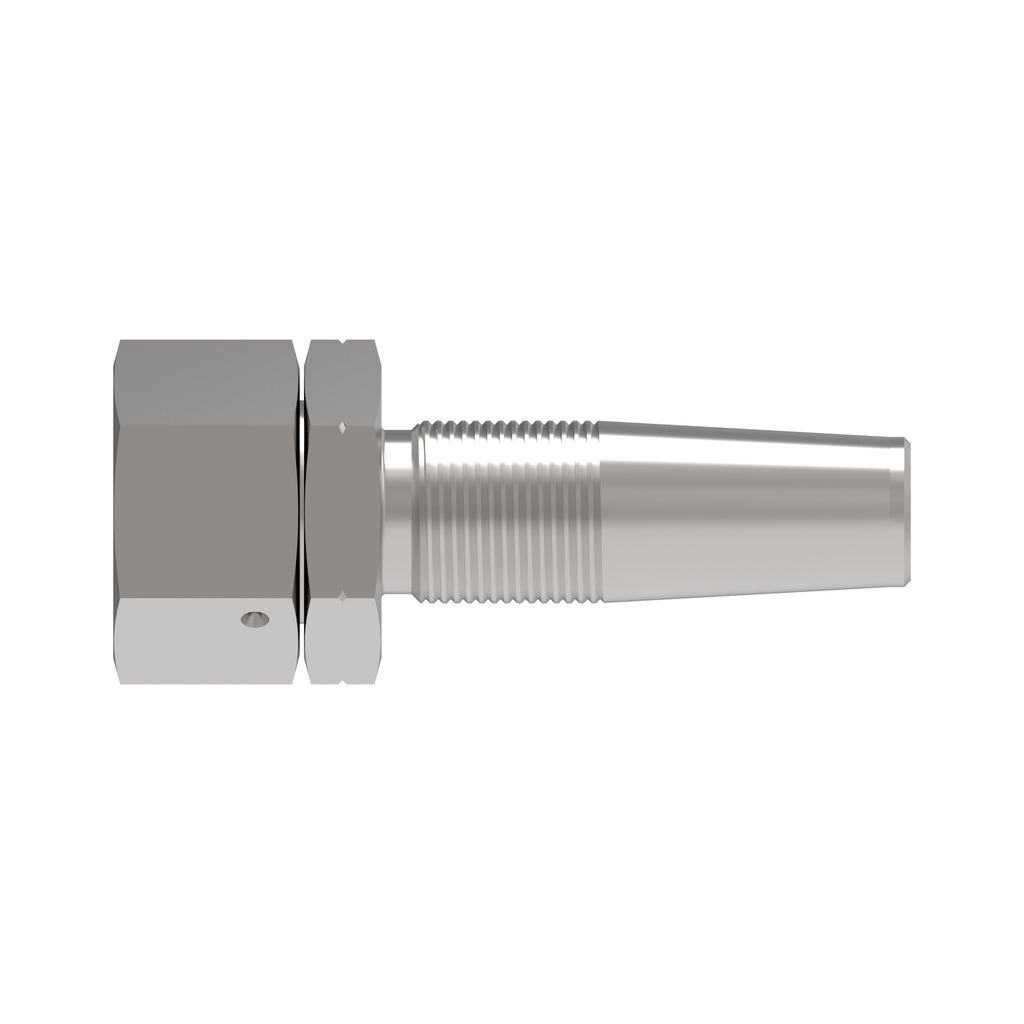

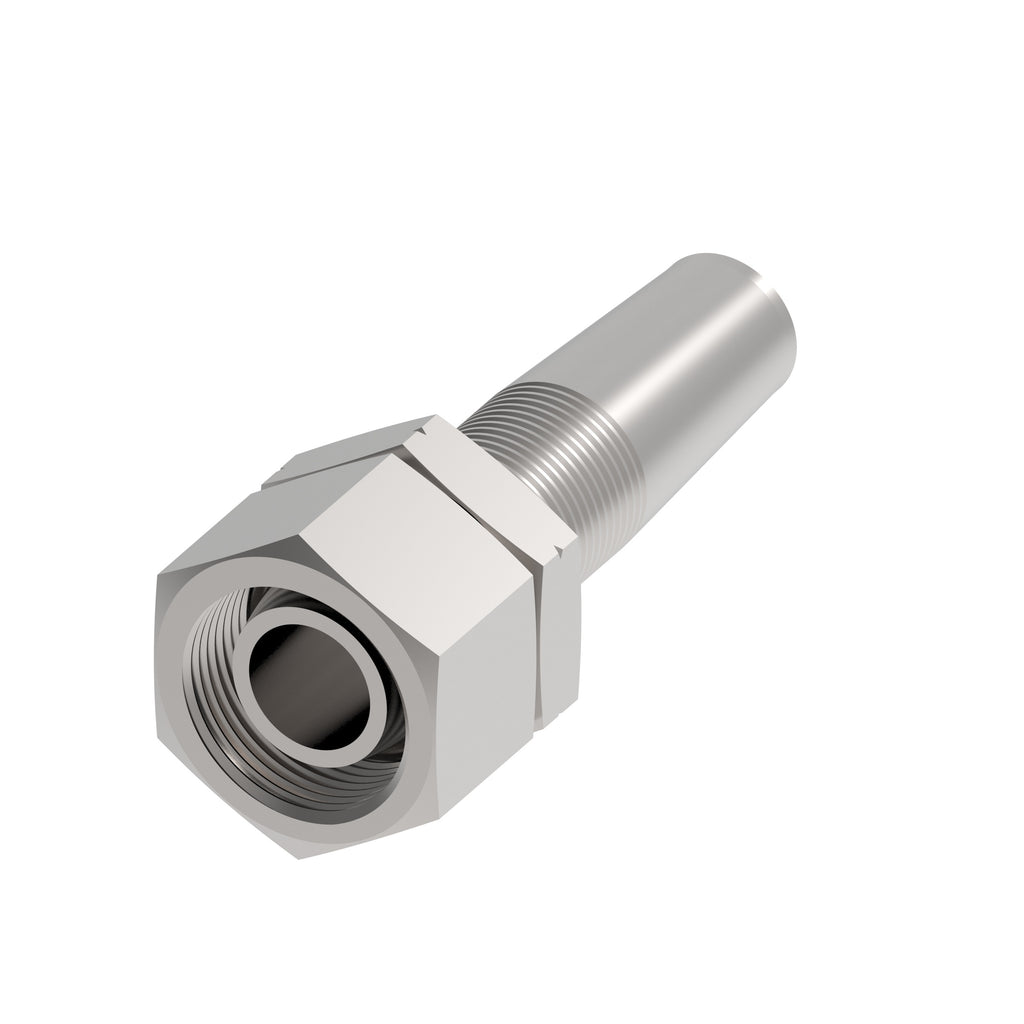

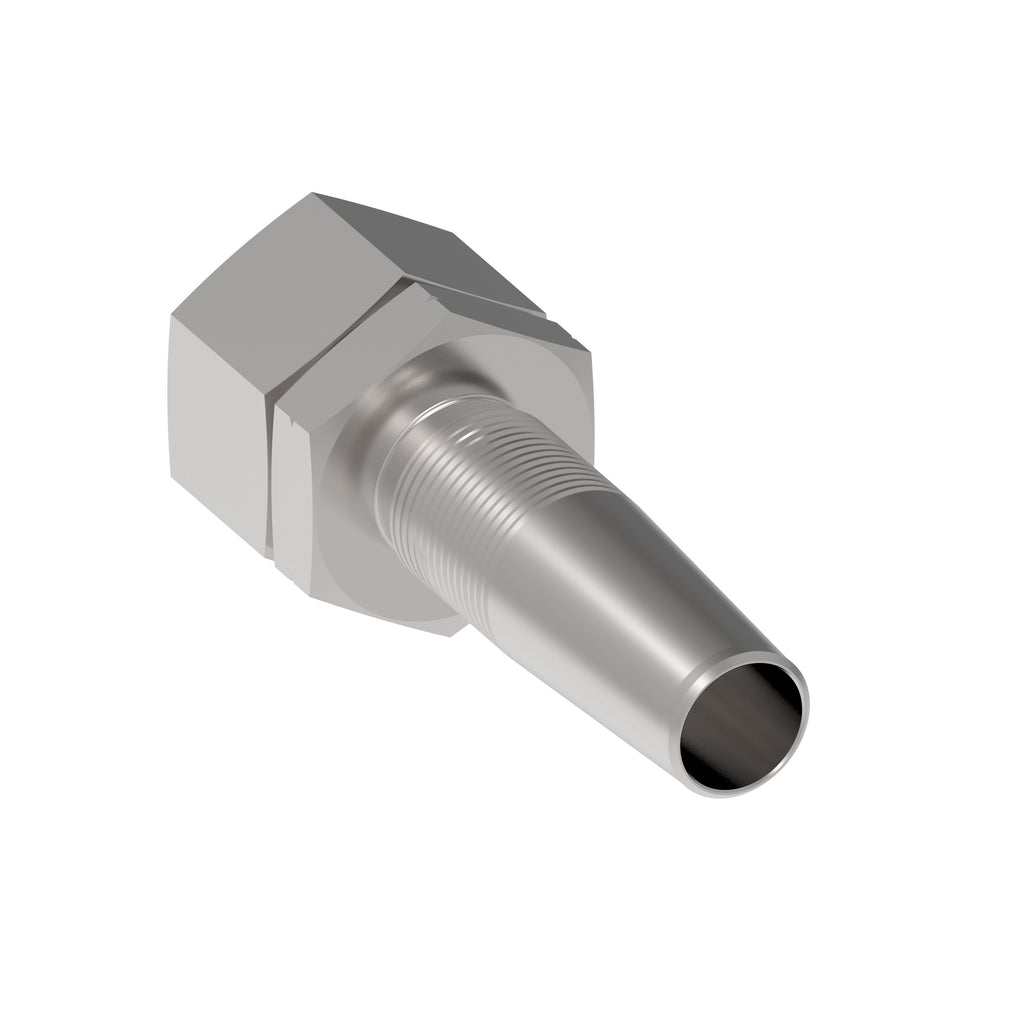

HOSE NIPPLE ASSY,5R/12,DKOL/18,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15772-12
€38,16
Technische Daten
| Legacy part number | GA15772-12 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.5 |
| Inside diameter MM | 12.7 |
| Product material | Carbon steel |
| Hose size | -12 |
| Thread size 1 | M26x1.5 |
| Angle shape | Straight |
| End size 1 | -12 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.26 |
| Hex size 2 IN | 1.259 |
| Hex size 1 MM | 32 |
| Hex size 2 MM | 32 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 3.14 |
| Compatible hose ID MM | 19.05 |
| Compatible hoses | FC350 |
| Compatible hose ID IN | 0.62 |
| A dimension MM | 79.8 |
| Hose cut off factor IN | 1.62 |
| Hose cut off factor MM | 41.2 |
| Seal material | Nitrile (NBR) |
| Product height in | 1.45 |
| Product width in | 1.26 |
| Product width mm | 32.004 |
| Product height mm | 36.83 |
| Product length mm | 80.01 |
| Product length in | 3.15 |
| End connection hex size in | 1.26 |
| End connection hex size mm | 32 |
| Backup hex size in | 1.259 |
| Backup hex size mm | 32 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
