GA15772-16E
€32,56
Zu Produktinformationen springen
Auf Lager
GA15772-16E

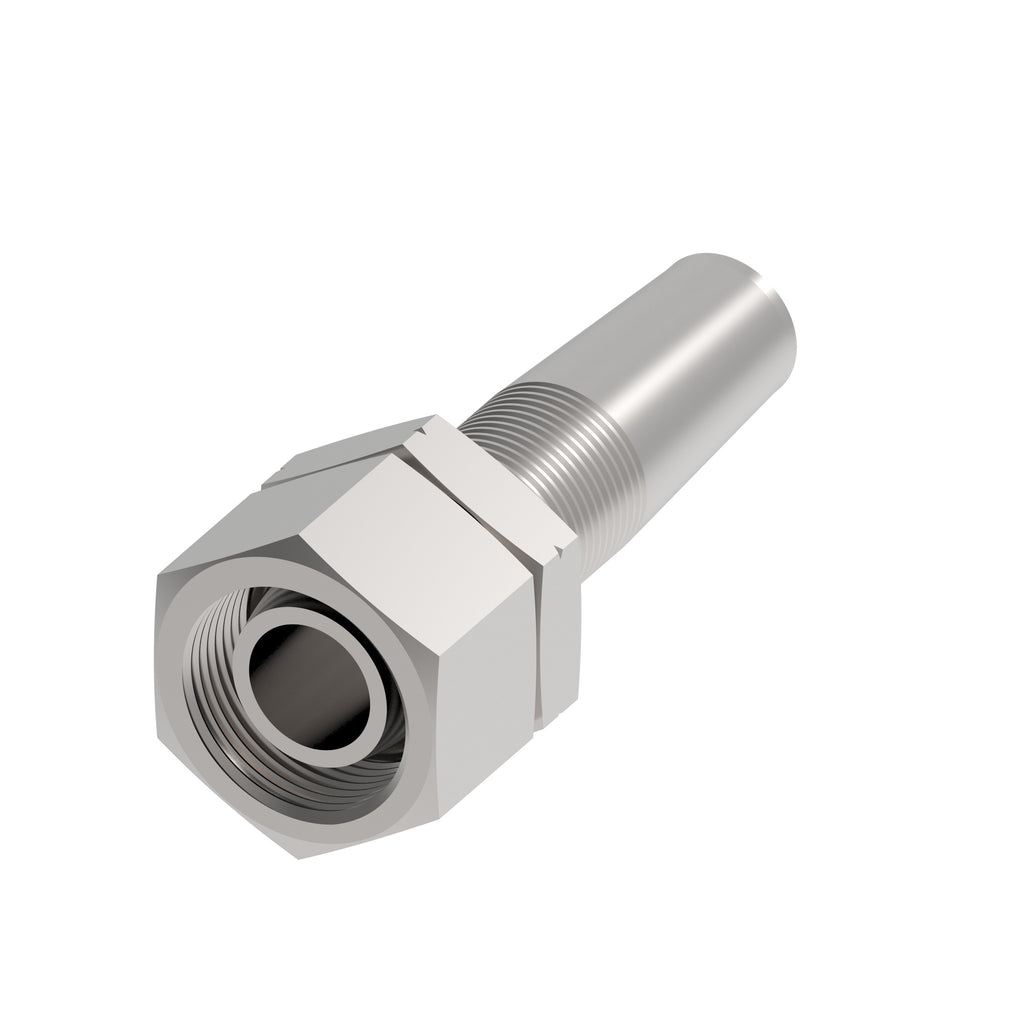

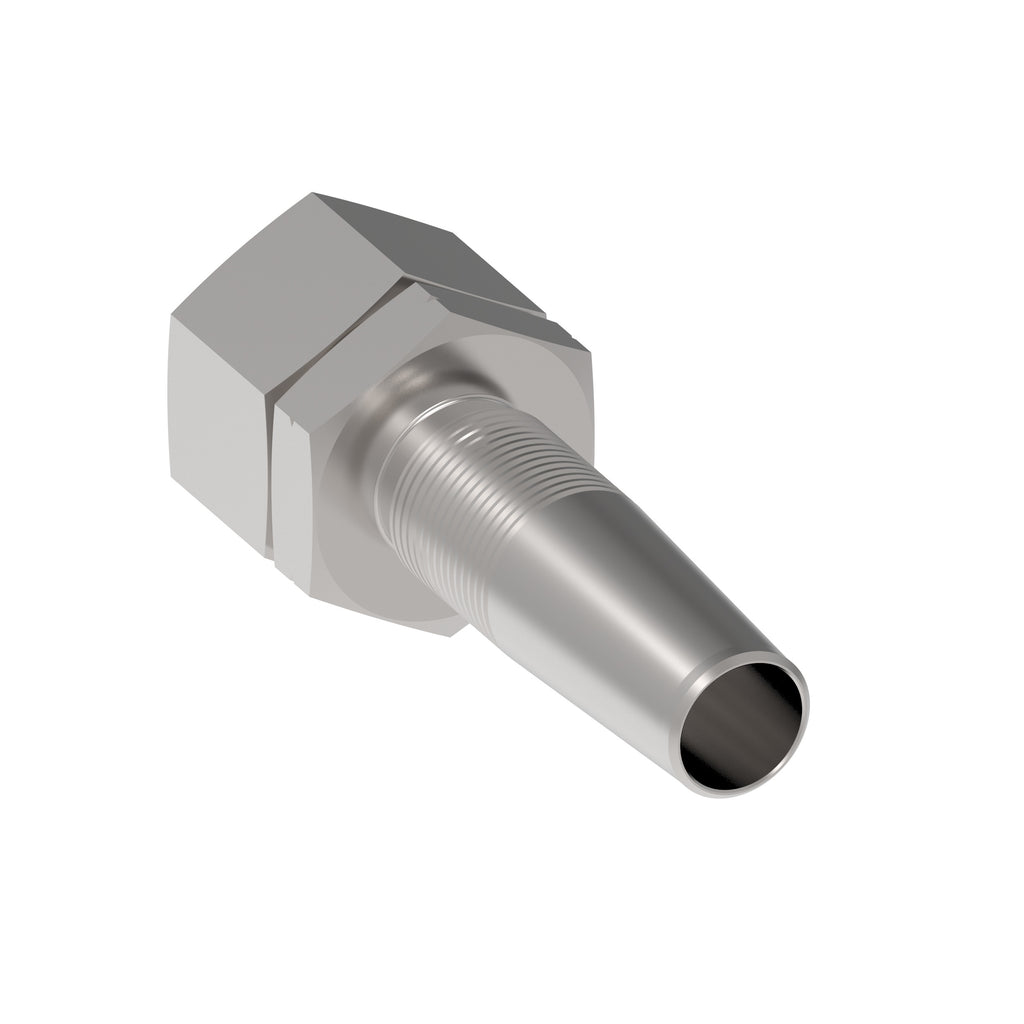

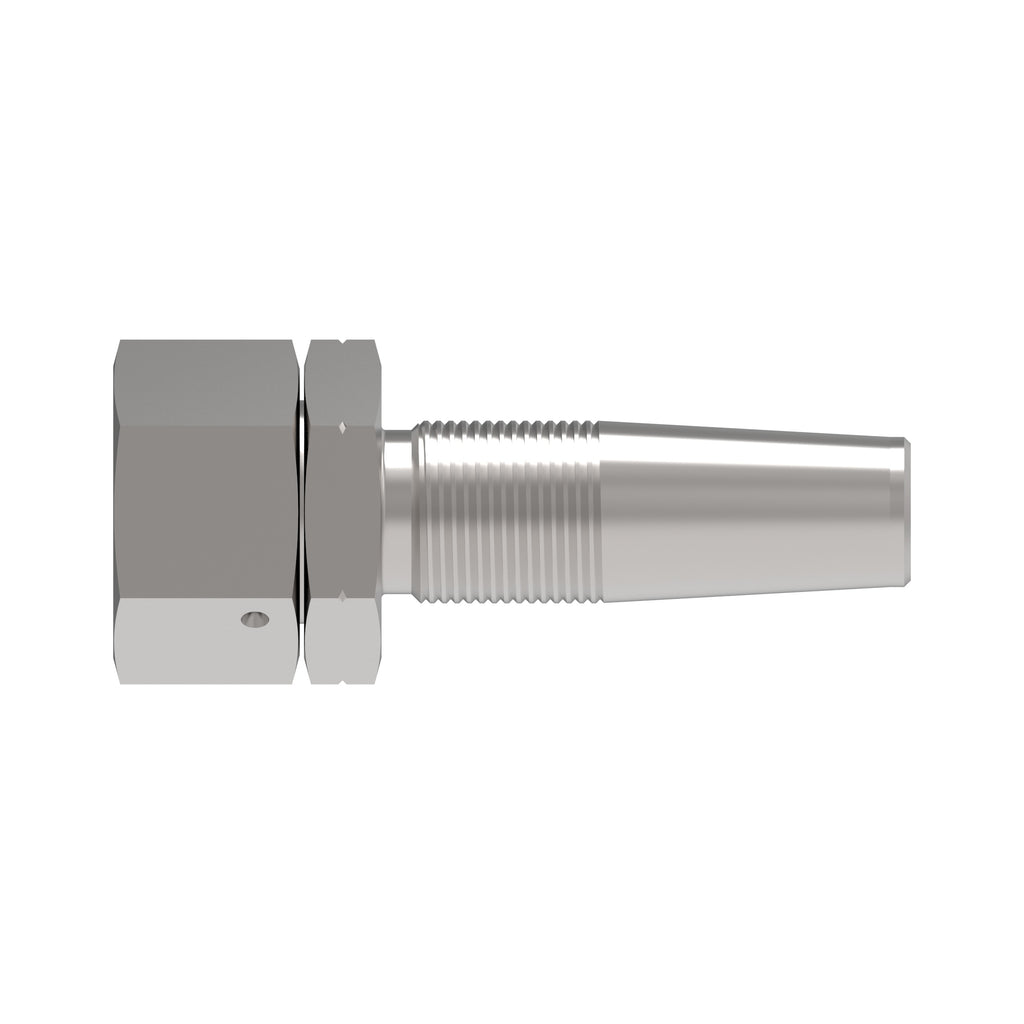

HOSE NIPPLE ASSY,5R/16,DKOL/22,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15772-16E
€38,75
Technische Daten
| Legacy part number | GA15772-16E |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.76 |
| Inside diameter MM | 19.2 |
| Product material | Carbon steel |
| Hose size | -16 |
| Thread size 1 | M30x2 |
| Angle shape | Straight |
| End size 1 | -16 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.417 |
| Hex size 2 IN | 1.417 |
| Hex size 1 MM | 36 |
| Hex size 2 MM | 36 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 2.74 |
| Compatible hose ID MM | 25.4 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 0.88 |
| A dimension MM | 69.5 |
| Hose cut off factor IN | 1.57 |
| Hose cut off factor MM | 40 |
| Seal material | Nitrile (NBR) |
| Product height in | 1.64 |
| Product width in | 1.42 |
| Product width mm | 36.068 |
| Product height mm | 41.656 |
| Product length mm | 70.104 |
| Product length in | 2.76 |
| End connection hex size in | 1.417 |
| End connection hex size mm | 36 |
| Backup hex size in | 1.417 |
| Backup hex size mm | 36 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
