GA15772-32
€69,53
Zu Produktinformationen springen
Auf Lager
GA15772-32

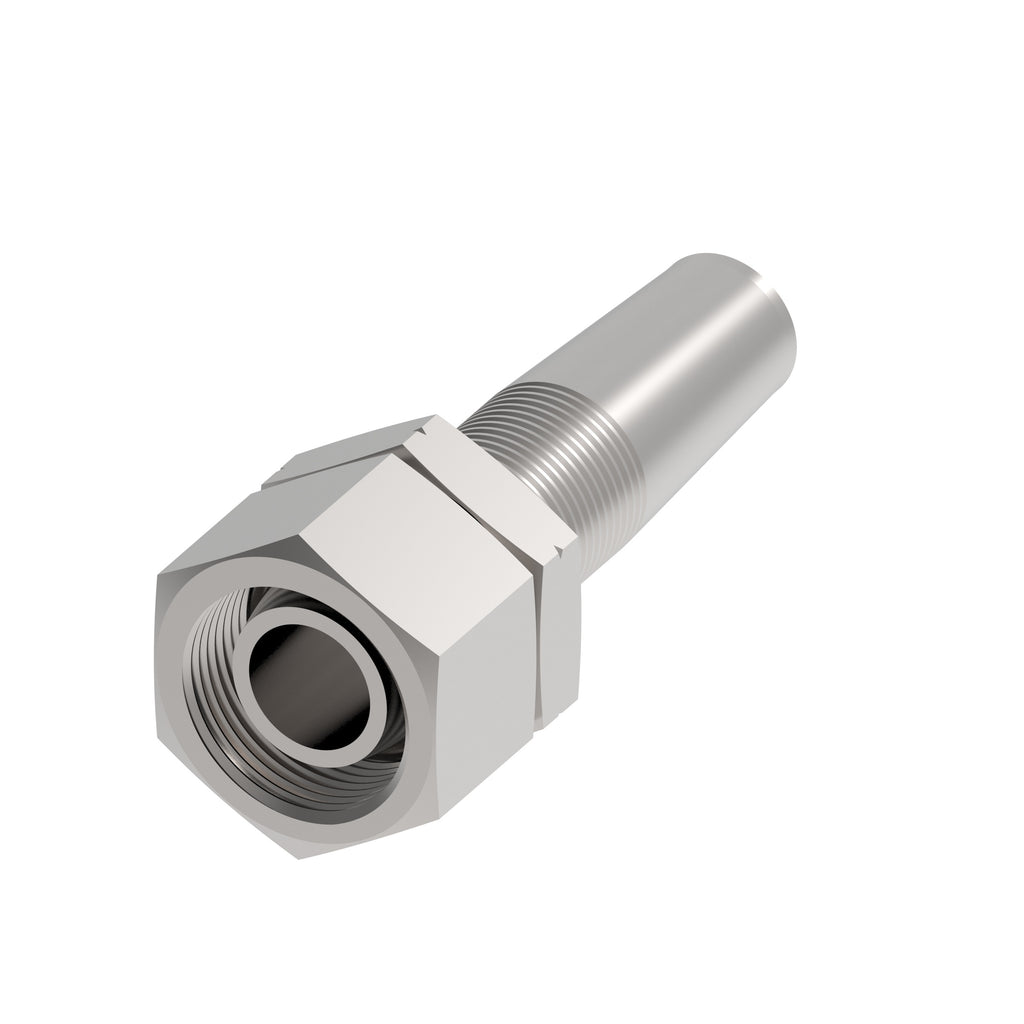

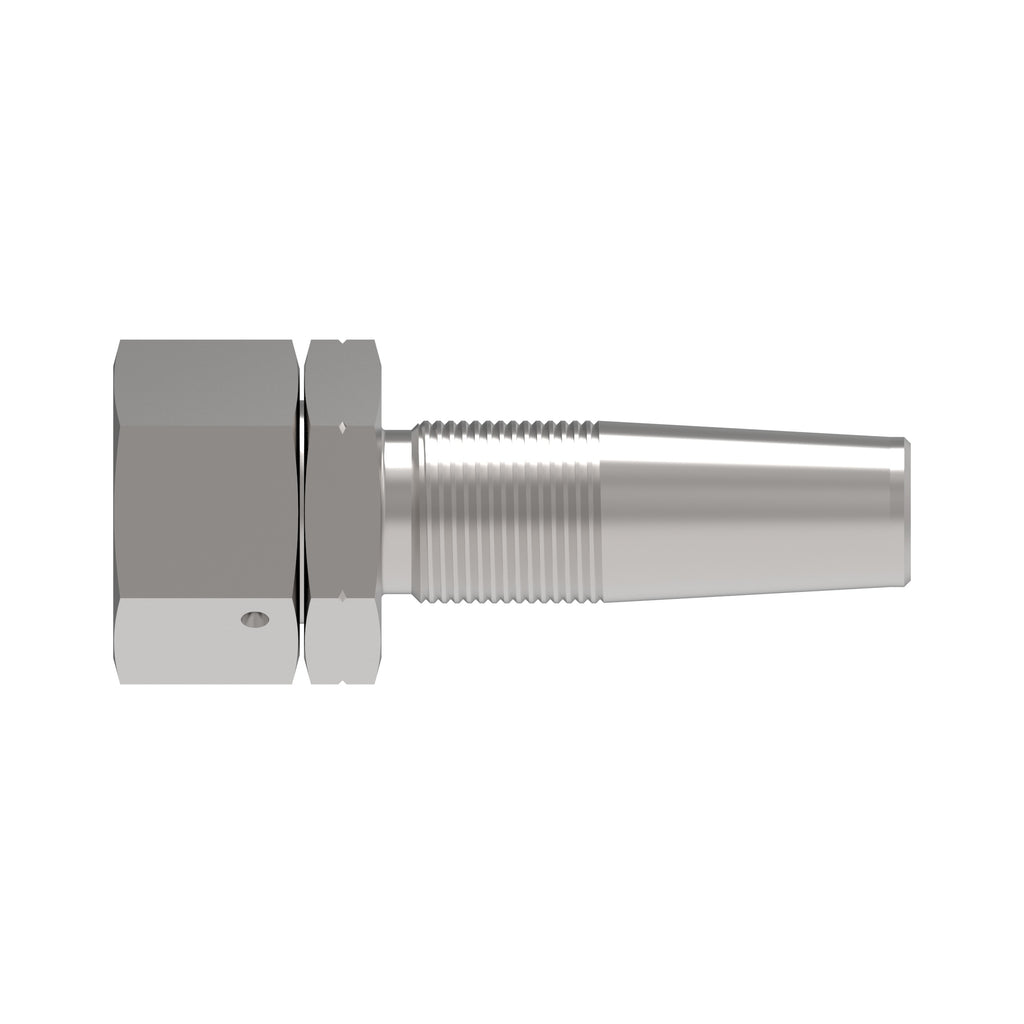

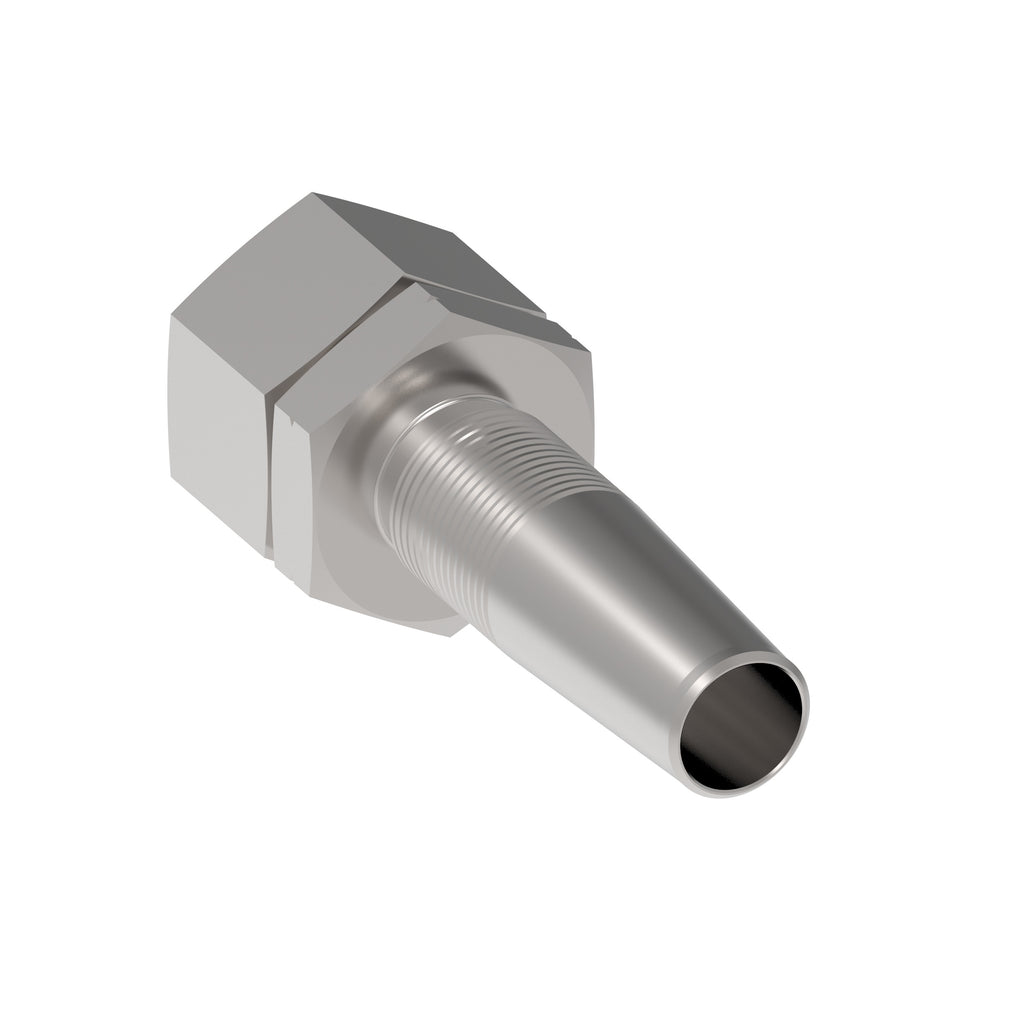

HOSE NIPPLE ASSY,5R/32,DKOL/42,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15772-32
€82,74
Technische Daten
| Legacy part number | GA15772-32 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 1.34 |
| Inside diameter MM | 34.1 |
| Product material | Carbon steel |
| Hose size | -32 |
| Thread size 1 | M52x2 |
| Angle shape | Straight |
| End size 1 | -32 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 2.362 |
| Hex size 2 IN | 2.362 |
| Hex size 1 MM | 60 |
| Hex size 2 MM | 60 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 3.63 |
| Compatible hose ID MM | 50.8 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.81 |
| A dimension MM | 92.2 |
| Hose cut off factor IN | 1.79 |
| Hose cut off factor MM | 45.5 |
| Seal material | Nitrile (NBR) |
| Product height in | 2.72 |
| Product width in | 2.36 |
| Product width mm | 59.944 |
| Product height mm | 69.088 |
| Product length mm | 92.202 |
| Product length in | 3.63 |
| End connection hex size in | 2.362 |
| End connection hex size mm | 60 |
| Backup hex size in | 2.362 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
