GA15772-5
€28,24
Zu Produktinformationen springen
Auf Lager
GA15772-5

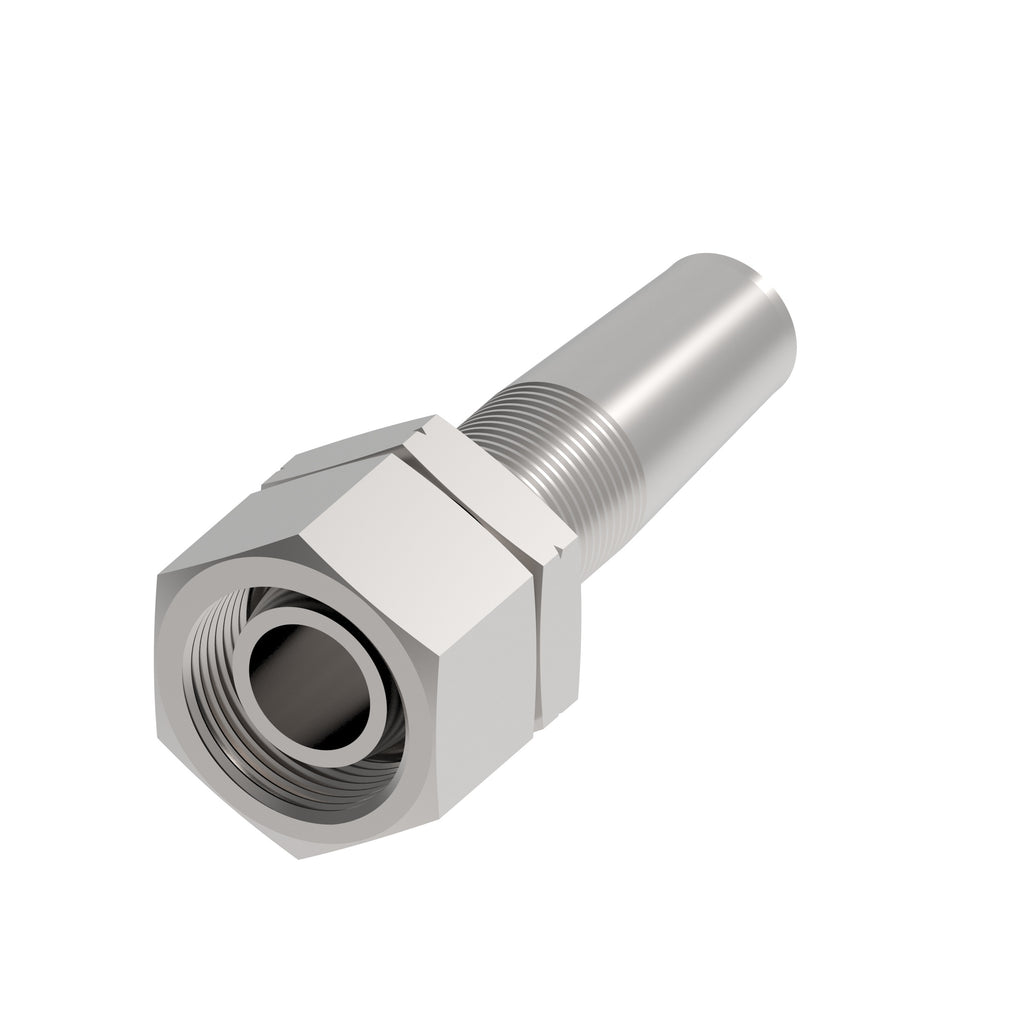

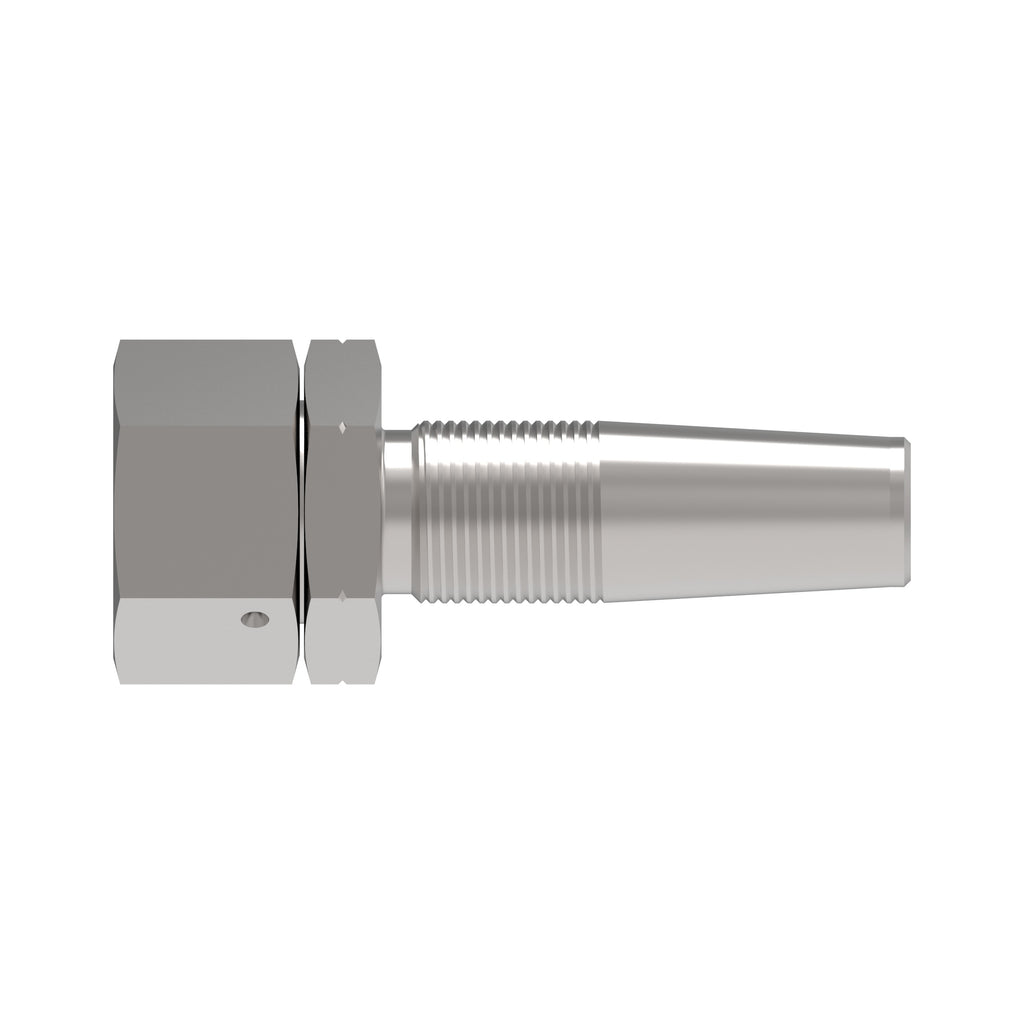

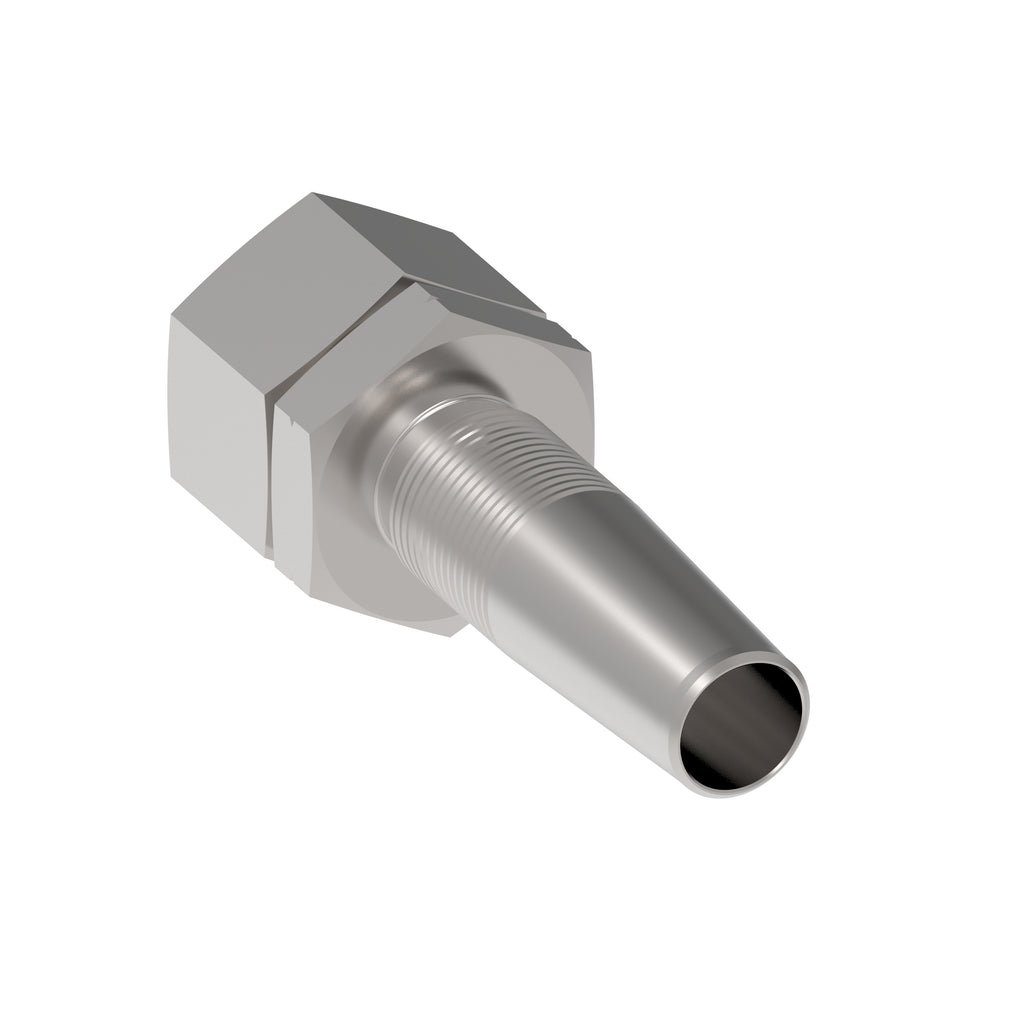

HOSE NIPPLE ASSY,5R/05,DKOL/08,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15772-5
€33,61
Technische Daten
| Legacy part number | GA15772-5 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.17 |
| Inside diameter MM | 4.4 |
| Product material | Carbon steel |
| Hose size | -5 |
| Thread size 1 | M14x1.5 |
| Angle shape | Straight |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.669 |
| Hex size 2 IN | 0.669 |
| Hex size 1 MM | 17 |
| Hex size 2 MM | 17 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 2.05 |
| Compatible hose ID MM | 7.874 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 0.25 |
| A dimension MM | 52 |
| Hose cut off factor IN | 1.3 |
| Hose cut off factor MM | 33 |
| Seal material | Nitrile (NBR) |
| Product height in | 0.77 |
| Product width in | 0.67 |
| Product width mm | 17.018 |
| Product height mm | 19.558 |
| Product length mm | 52.07 |
| Product length in | 2.05 |
| End connection hex size in | 0.669 |
| End connection hex size mm | 17 |
| Backup hex size in | 0.669 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
