GA15772-8
€30,90
Zu Produktinformationen springen
Auf Lager
GA15772-8

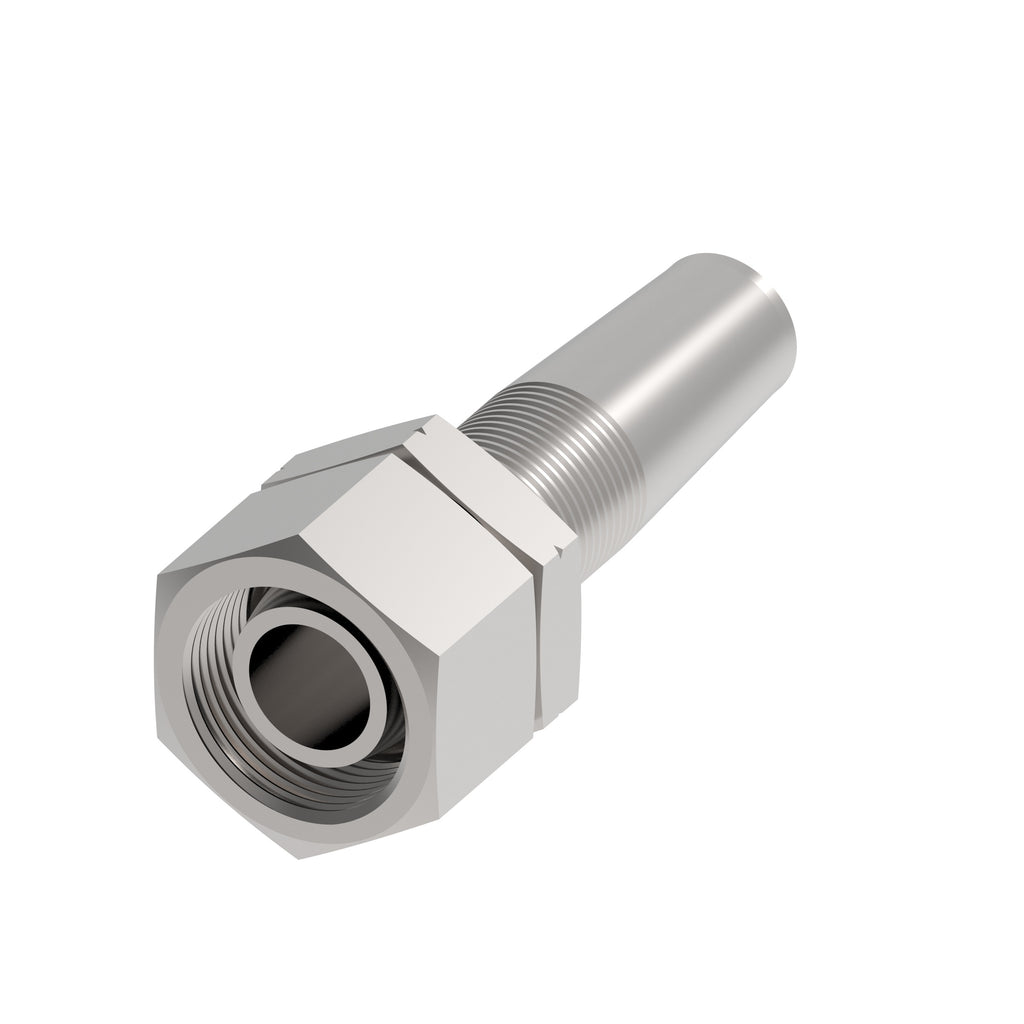

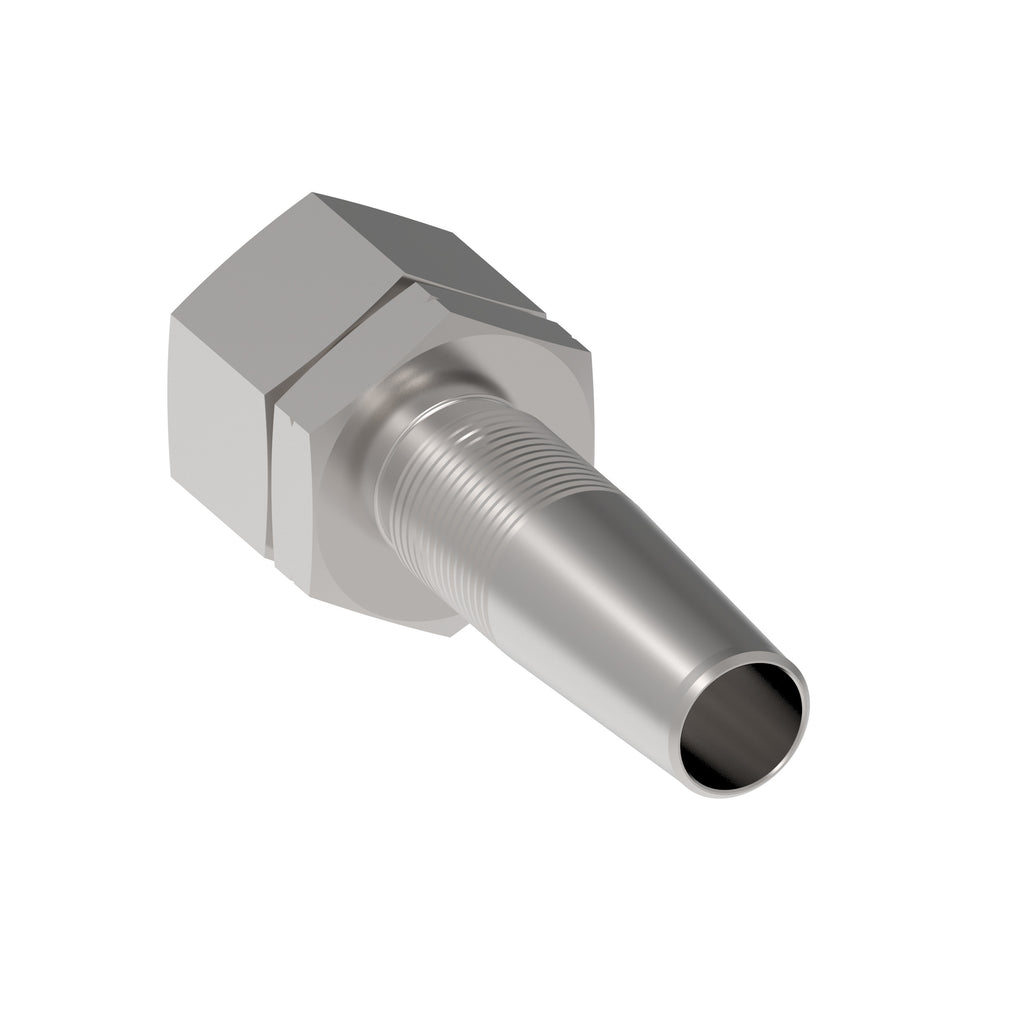

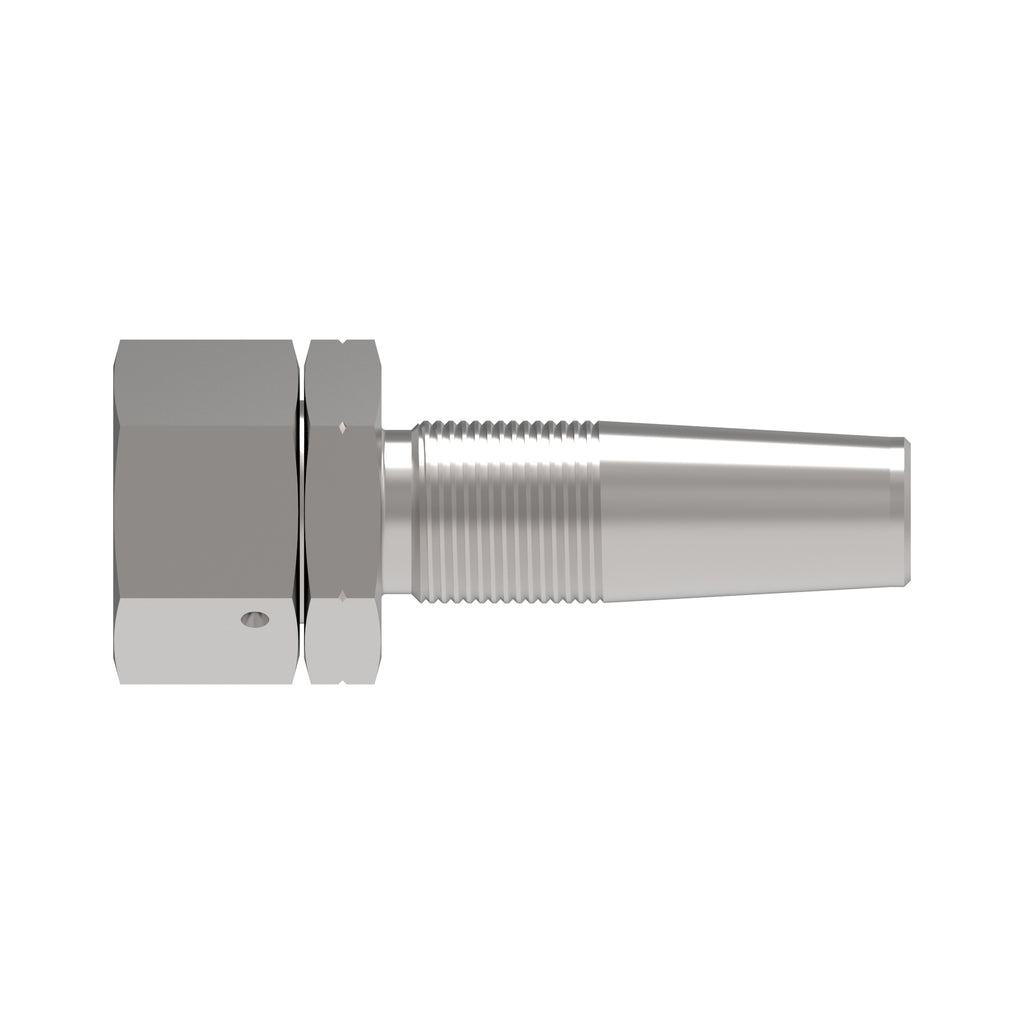

HOSE NIPPLE ASSY,5R/08,DKOL/12,CS,STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA15772-8
€36,77
Technische Daten
| Legacy part number | GA15772-8 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.31 |
| Inside diameter MM | 8 |
| Product material | Carbon steel |
| Hose size | -8 |
| Thread size 1 | M18x1.5 |
| Angle shape | Straight |
| End size 1 | -8 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.866 |
| Hex size 2 IN | 0.866 |
| Hex size 1 MM | 22 |
| Hex size 2 MM | 22 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 2.64 |
| Compatible hose ID MM | 12.7 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 0.41 |
| A dimension MM | 67 |
| Hose cut off factor IN | 1.56 |
| Hose cut off factor MM | 39.5 |
| Seal material | Nitrile (NBR) |
| Product height in | 1 |
| Product width in | 0.87 |
| Product width mm | 22.098 |
| Product height mm | 25.4 |
| Product length mm | 67.056 |
| Product length in | 2.64 |
| End connection hex size in | 0.866 |
| End connection hex size mm | 22 |
| Backup hex size in | 0.866 |
| Backup hex size mm | 22 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
