GA21866-24

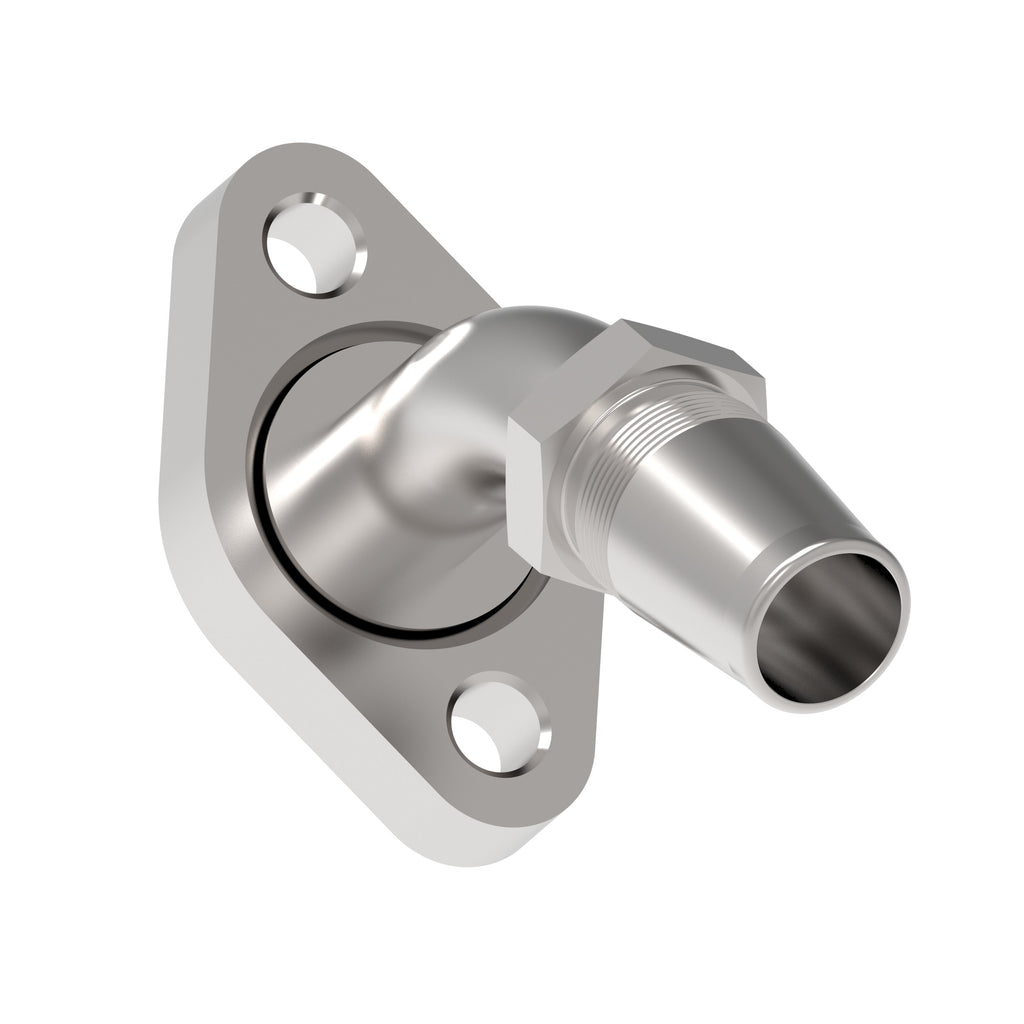

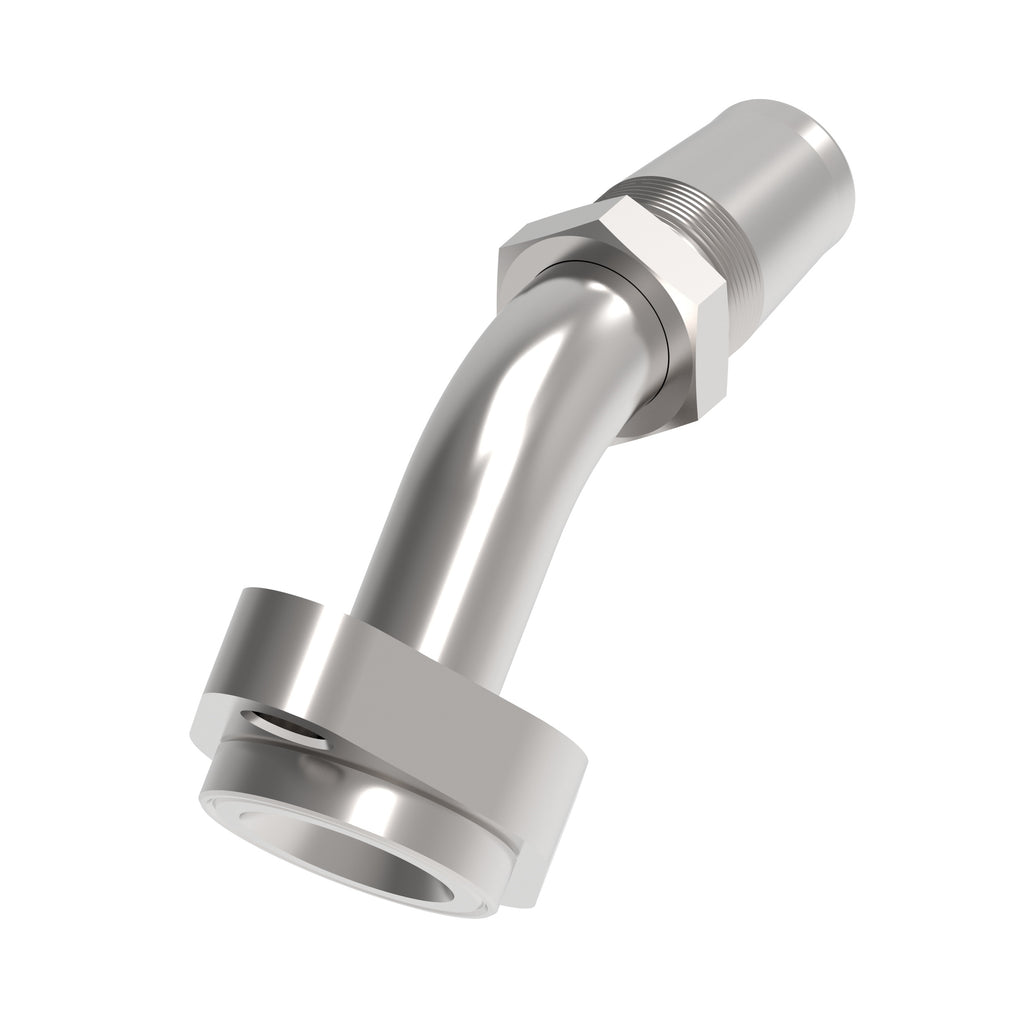

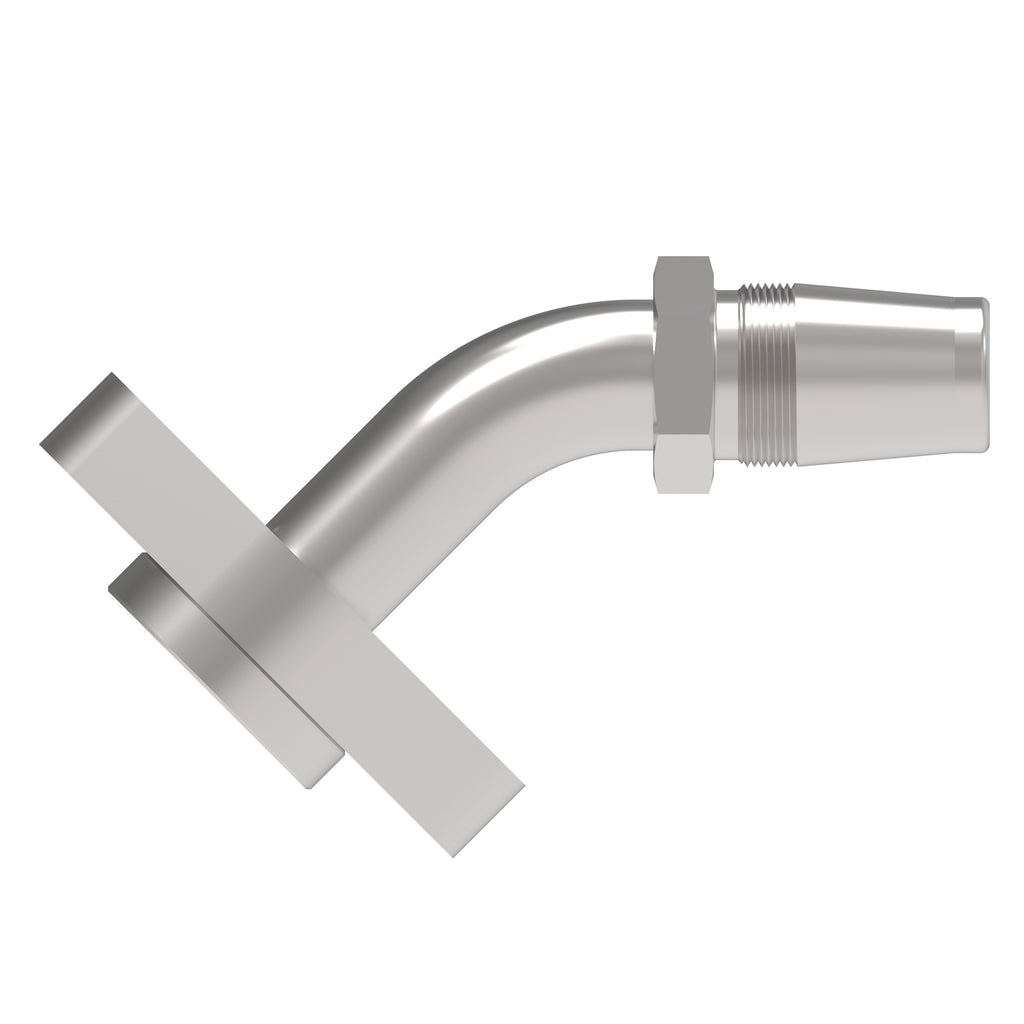

HOSE NIPPLE ASSY,5R/24, BOCK-M/24,CS,45D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA21866-24
€98,64
Technische Daten
| Legacy part number | GA21866-24 |
| Brand | Danfoss |
| Inside diameter IN | 1.19 |
| Inside diameter MM | 30.3 |
| Product material | Carbon steel |
| Hose size | -24 |
| Angle shape | 45 Degree |
| End size 1 | -24 |
| Hex size 1 IN | 1.81 |
| Hex size 2 IN | 1.811 |
| Hex size 1 MM | 45.974 |
| Hex size 2 MM | 46 |
| Drop dimension IN | 1.5 |
| Drop dimension MM | 38 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 5.26 |
| Compatible hose ID MM | 38.1 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.38 |
| A dimension MM | 133.7 |
| Hose cut off factor IN | 3.89 |
| Hose cut off factor MM | 98.7 |
| Product height in | 4.09 |
| Product width in | 3.36 |
| Product width mm | 85.344 |
| Product height mm | 103.886 |
| Product length mm | 176.022 |
| Product length in | 6.93 |
| End connection hex size in | 1.81 |
| End connection hex size mm | 45.974 |
| Backup hex size in | 1.811 |
| Backup hex size mm | 46 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
