GA21868-20E
€60,42
Zu Produktinformationen springen
Auf Lager
GA21868-20E

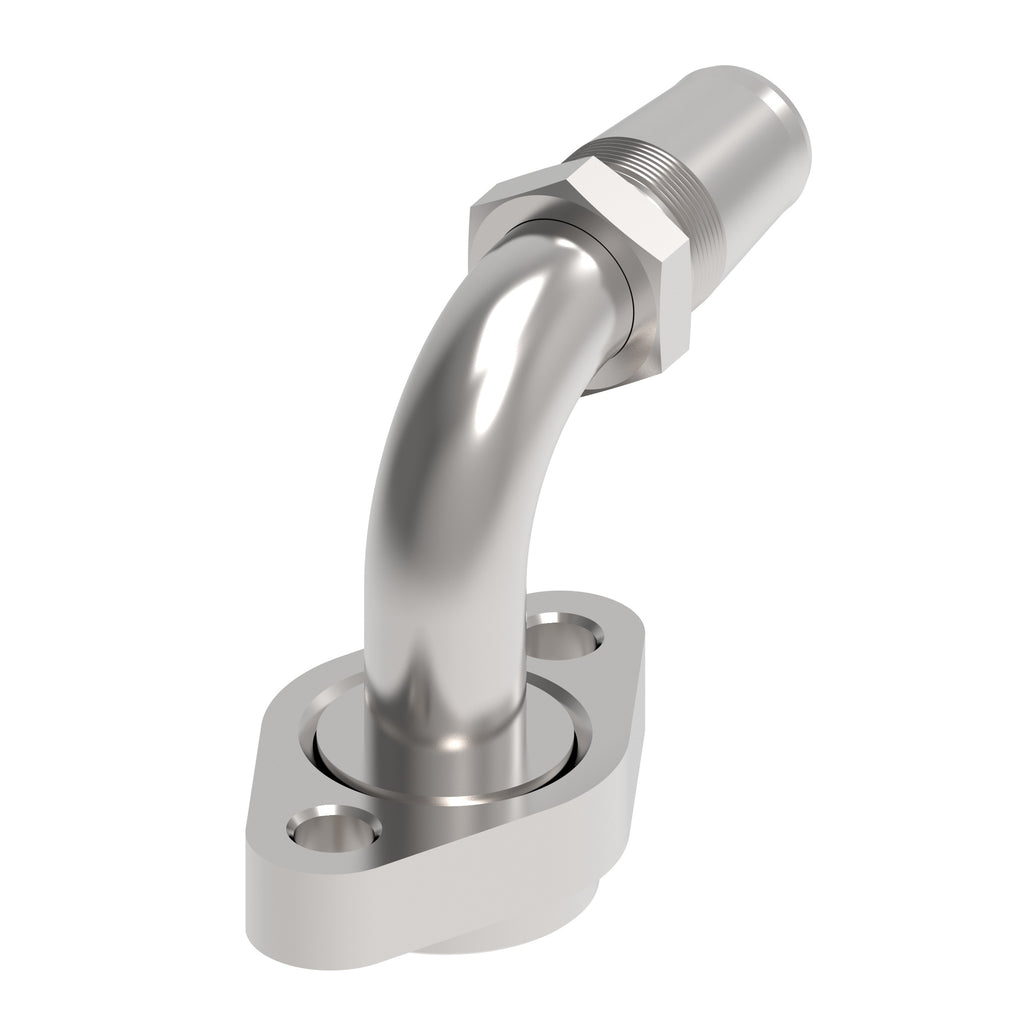

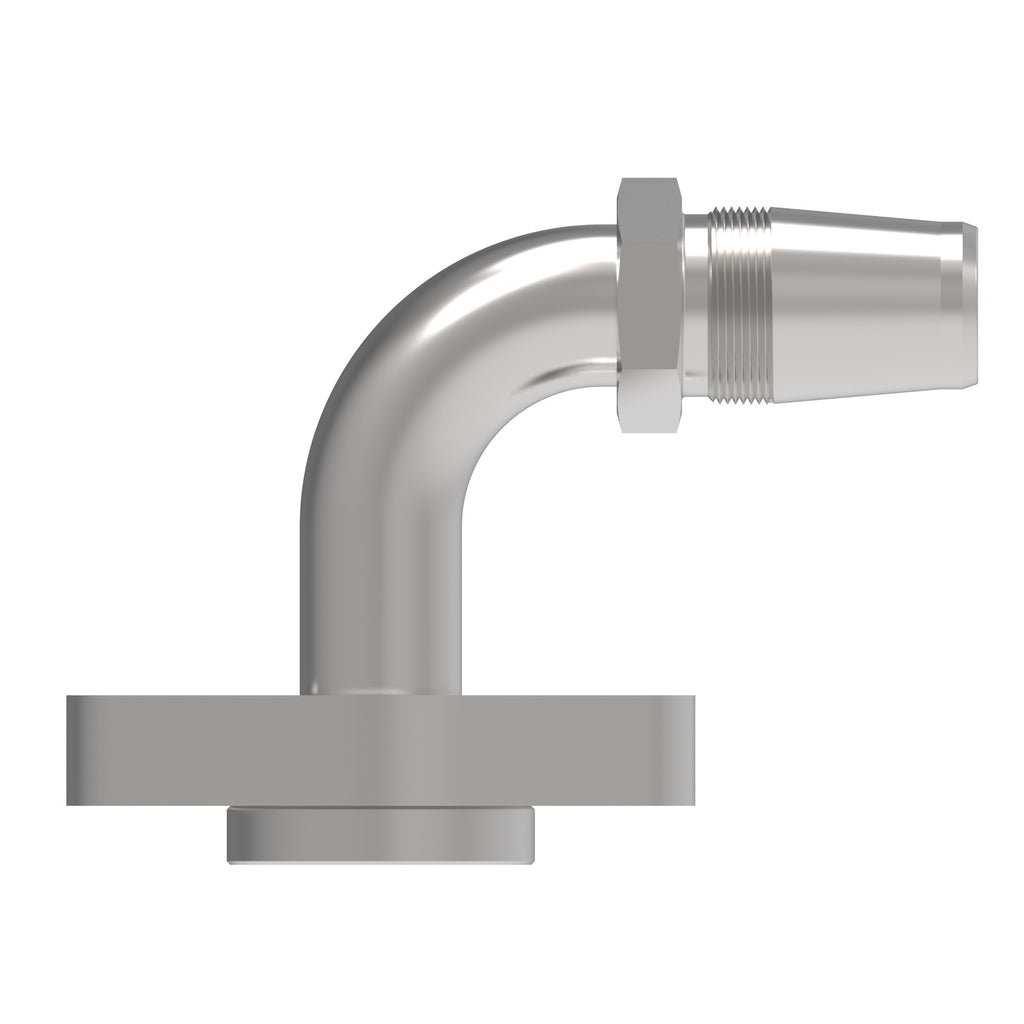

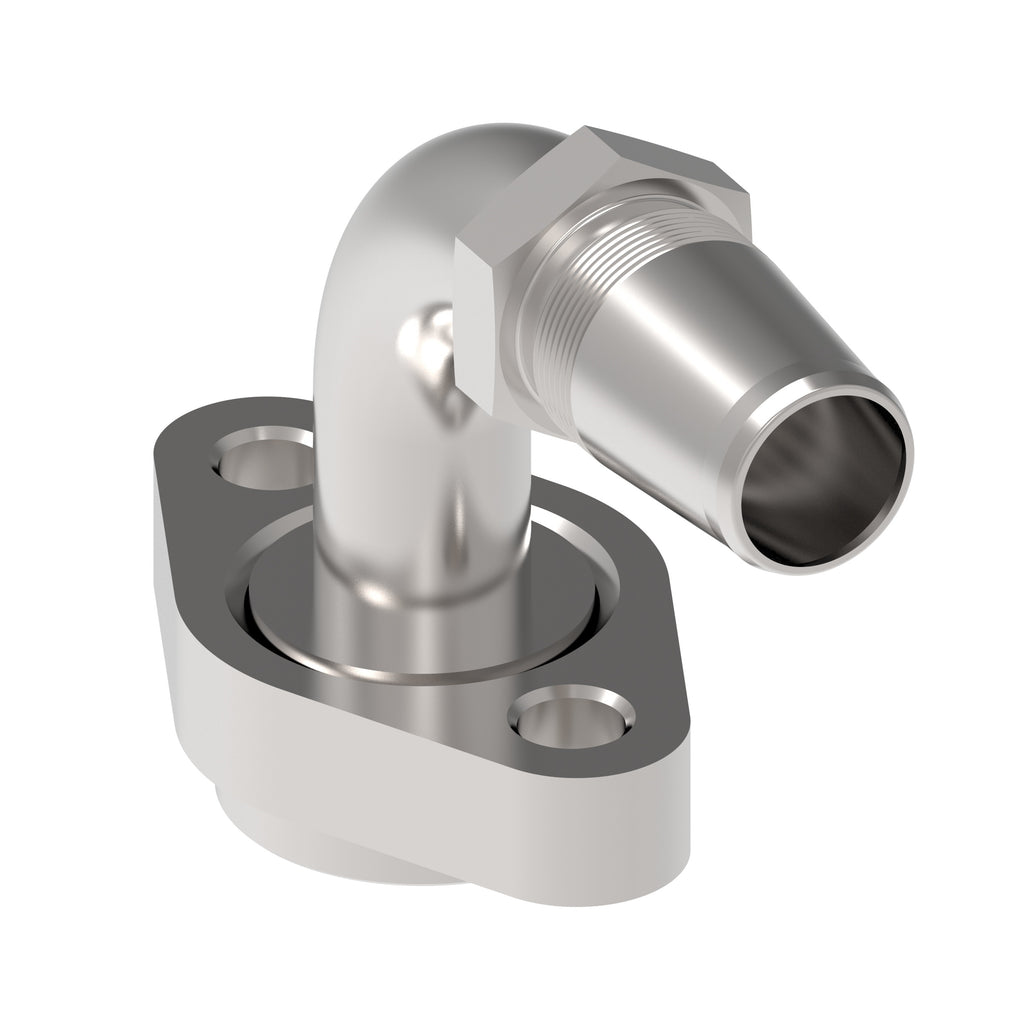

HOSE NIPPLE ASSY,5R/20,BOCK-M/20,CS,90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA21868-20E
€71,90
Technische Daten
| Legacy part number | GA21868-20E |
| Brand | Danfoss |
| Inside diameter IN | 0.95 |
| Inside diameter MM | 24.1 |
| Product material | Carbon steel |
| Hose size | -20 |
| Angle shape | 90 Degree |
| End size 1 | -20 |
| Hex size 1 IN | 1.42 |
| Hex size 2 IN | 1.417 |
| Hex size 1 MM | 36.068 |
| Hex size 2 MM | 36 |
| Drop dimension IN | 3.4 |
| Drop dimension MM | 86.4 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 3.78 |
| Compatible hose ID MM | 31.75 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.12 |
| A dimension MM | 96 |
| Hose cut off factor IN | 2.46 |
| Hose cut off factor MM | 62.5 |
| Product height in | 4.1 |
| Product width in | 3.36 |
| Product width mm | 85.344 |
| Product height mm | 104.14 |
| Product length mm | 138.43 |
| Product length in | 5.45 |
| End connection hex size in | 1.42 |
| End connection hex size mm | 36.068 |
| Backup hex size in | 1.417 |
| Backup hex size mm | 36 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
