GA21868-24
€86,30
Zu Produktinformationen springen
Auf Lager
GA21868-24

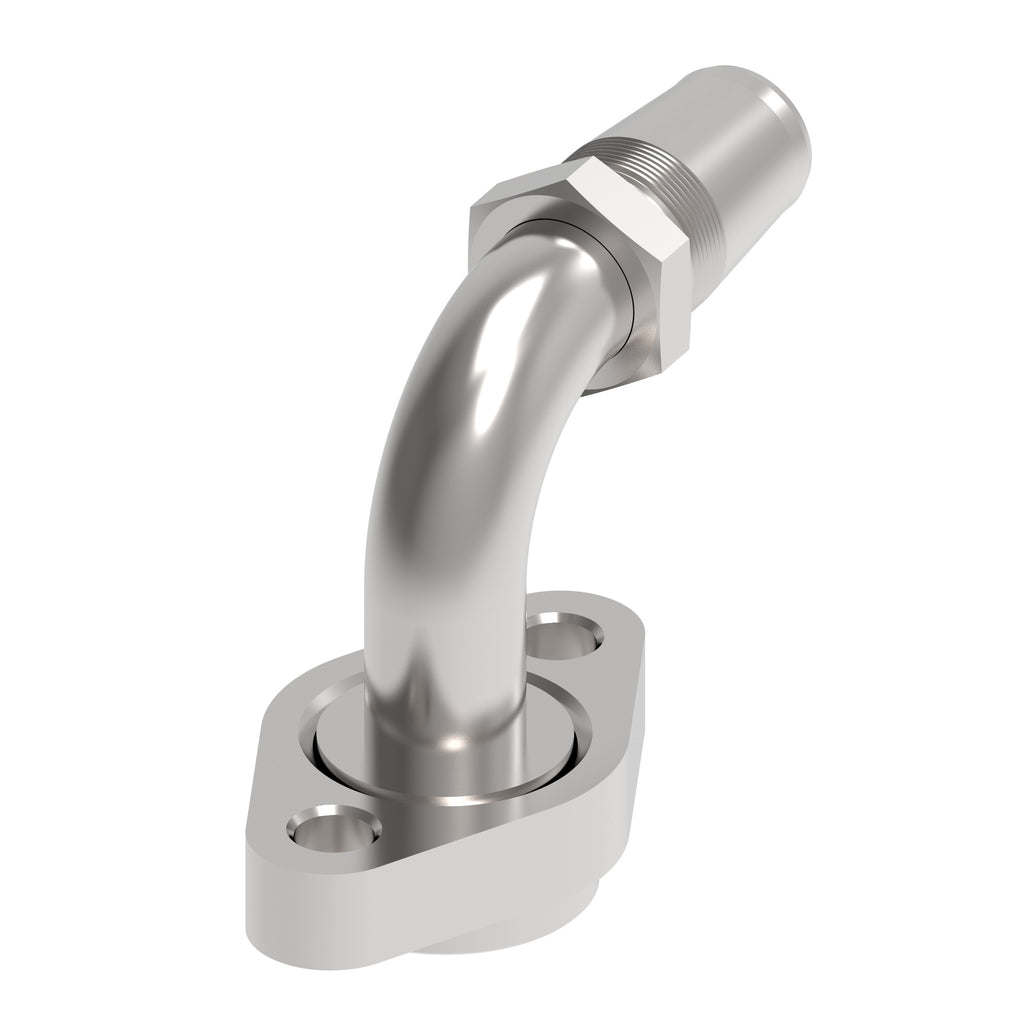

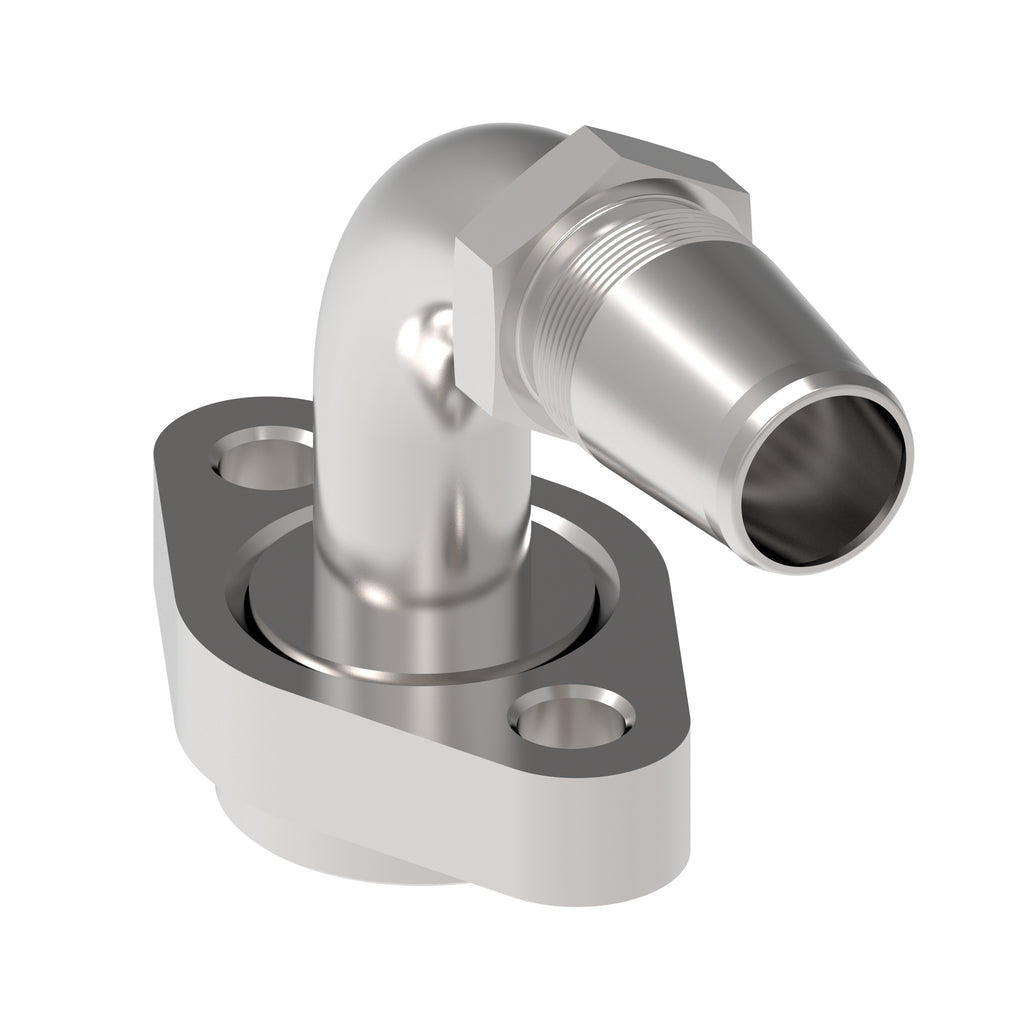

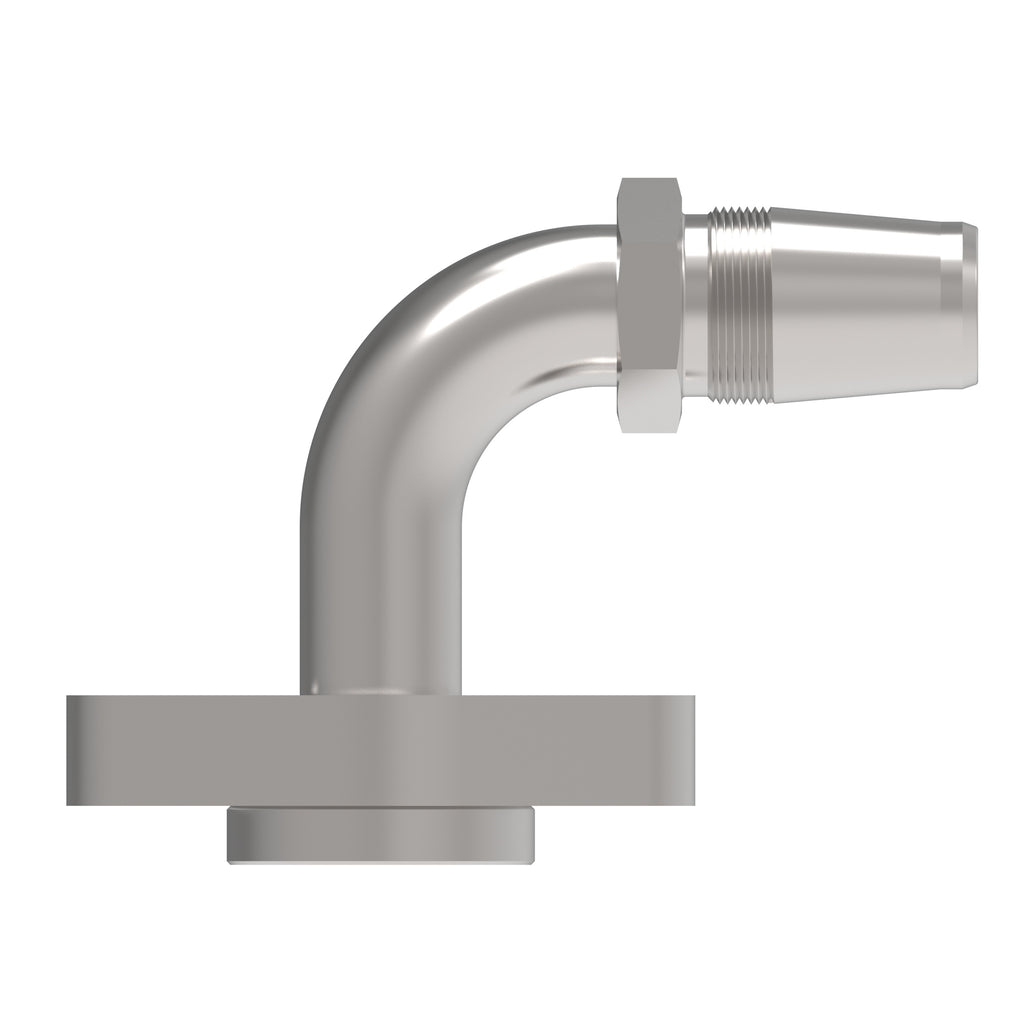

HOSE NIPPLE ASSY,5R/24,BOCK-M/24,CS,90D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA21868-24
€102,70
Technische Daten
| Legacy part number | GA21868-24 |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 1.28 |
| Inside diameter MM | 32.5 |
| Product material | Carbon steel |
| Hose size | -24 |
| Angle shape | 90 Degree |
| End size 1 | -24 |
| Hex size 1 IN | 1.81 |
| Hex size 2 IN | 1.811 |
| Hex size 1 MM | 45.974 |
| Hex size 2 MM | 46 |
| Drop dimension IN | 3.563 |
| Drop dimension MM | 90.5 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 4.272 |
| Compatible hose ID MM | 38.1 |
| Compatible hoses | 1503 |
| Compatible hose ID IN | 1.38 |
| A dimension MM | 108.5 |
| Hose cut off factor IN | 2.94 |
| Hose cut off factor MM | 73.5 |
| Product height in | 4.46 |
| Product width in | 3.36 |
| Product width mm | 85.344 |
| Product height mm | 113.284 |
| Product length mm | 150.876 |
| Product length in | 5.94 |
| End connection hex size in | 1.81 |
| End connection hex size mm | 45.974 |
| Backup hex size in | 1.811 |
| Backup hex size mm | 46 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
