GA23491-16E
€41,87
Zu Produktinformationen springen
Auf Lager
GA23491-16E

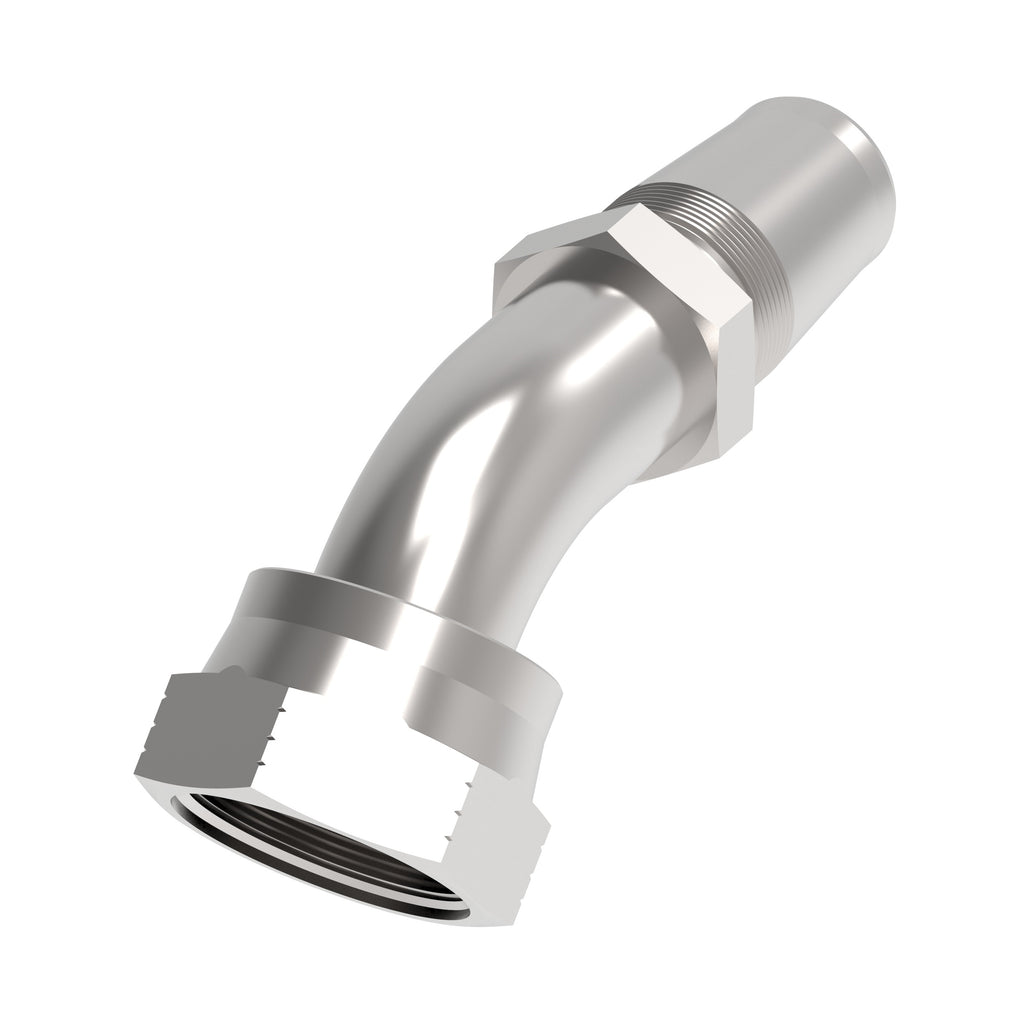

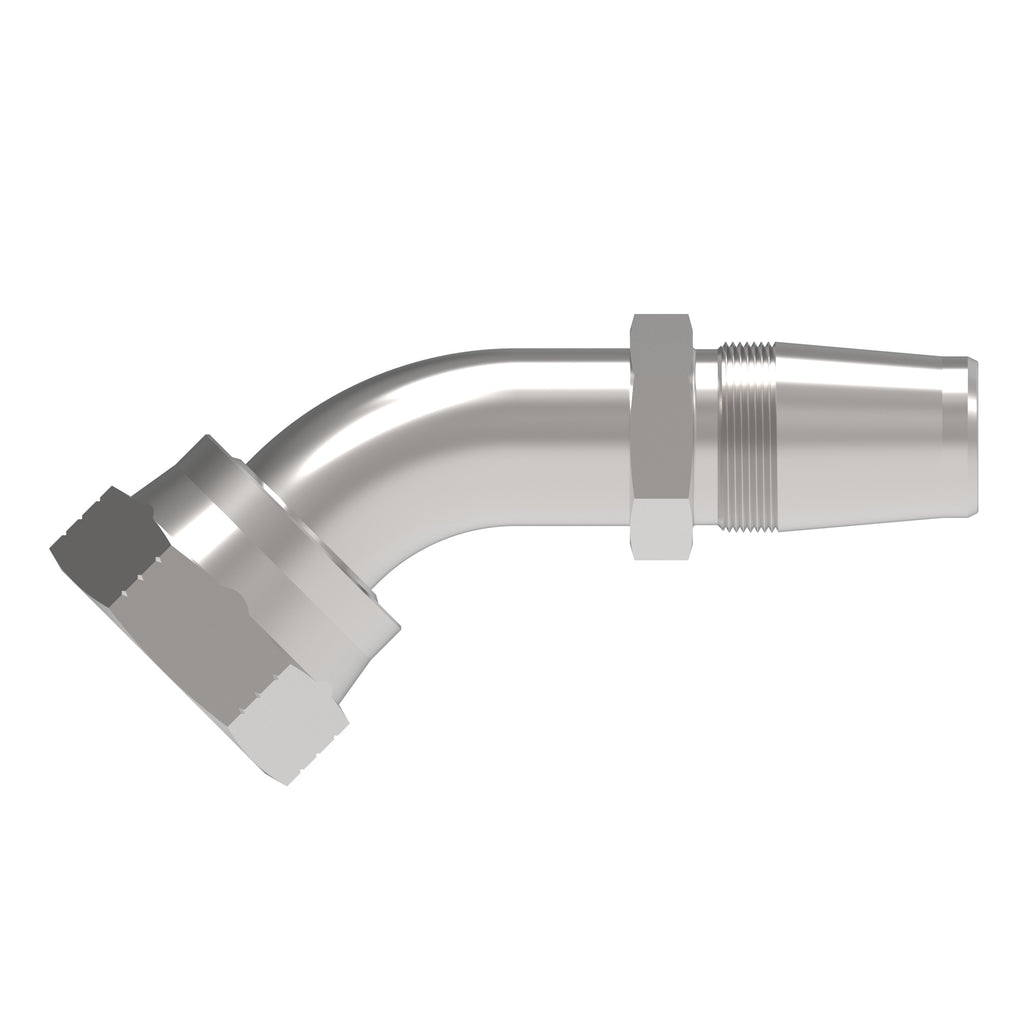

HOSE NIPPLE ASSY,5R/16,ORS-F/16,CS,45D
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: GA23491-16E
€49,83
Technische Daten
| Legacy part number | GA23491-16E |
| Brand | Aeroquip by Danfoss |
| Inside diameter IN | 0.76 |
| Inside diameter MM | 19.2 |
| Product material | Carbon steel |
| Hose size | -16 |
| Thread size 1 | 1 7/16-12 UN |
| Angle shape | 45 Degree |
| End size 1 | -16 |
| End type 1 | Female ORFS swivel |
| Hex size 1 IN | 1.614 |
| Hex size 2 IN | 1.181 |
| Hex size 1 MM | 41 |
| Hex size 2 MM | 30 |
| Drop dimension IN | 0.89 |
| Drop dimension MM | 22.7 |
| Finish plating | Dura-Kote |
| Construction Style | Reusable |
| A dimension IN | 4.11 |
| Compatible hose ID MM | 25.4 |
| Compatible hoses | GA494 |
| Compatible hose ID IN | 0.88 |
| A dimension MM | 104.3 |
| Hose cut off factor IN | 2.94 |
| Hose cut off factor MM | 74.8 |
| Product height in | 2.29 |
| Product width in | 1.86 |
| Product width mm | 47.244 |
| Product height mm | 58.166 |
| Product length mm | 124.714 |
| Product length in | 4.91 |
| End connection hex size in | 1.614 |
| End connection hex size mm | 41 |
| Backup hex size in | 1.181 |
| Backup hex size mm | 30 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
