HP3SB37M
€35,43
Zu Produktinformationen springen
Auf Lager
HP3SB37M

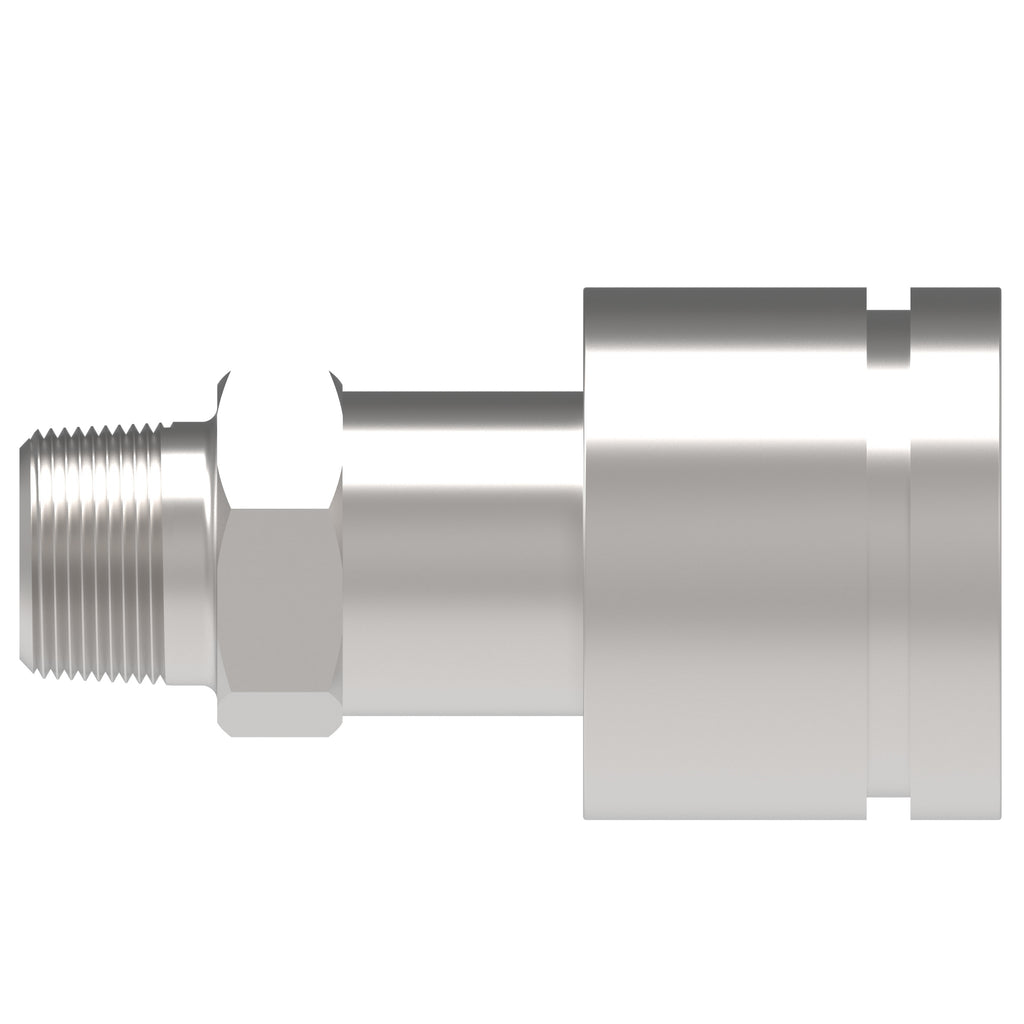

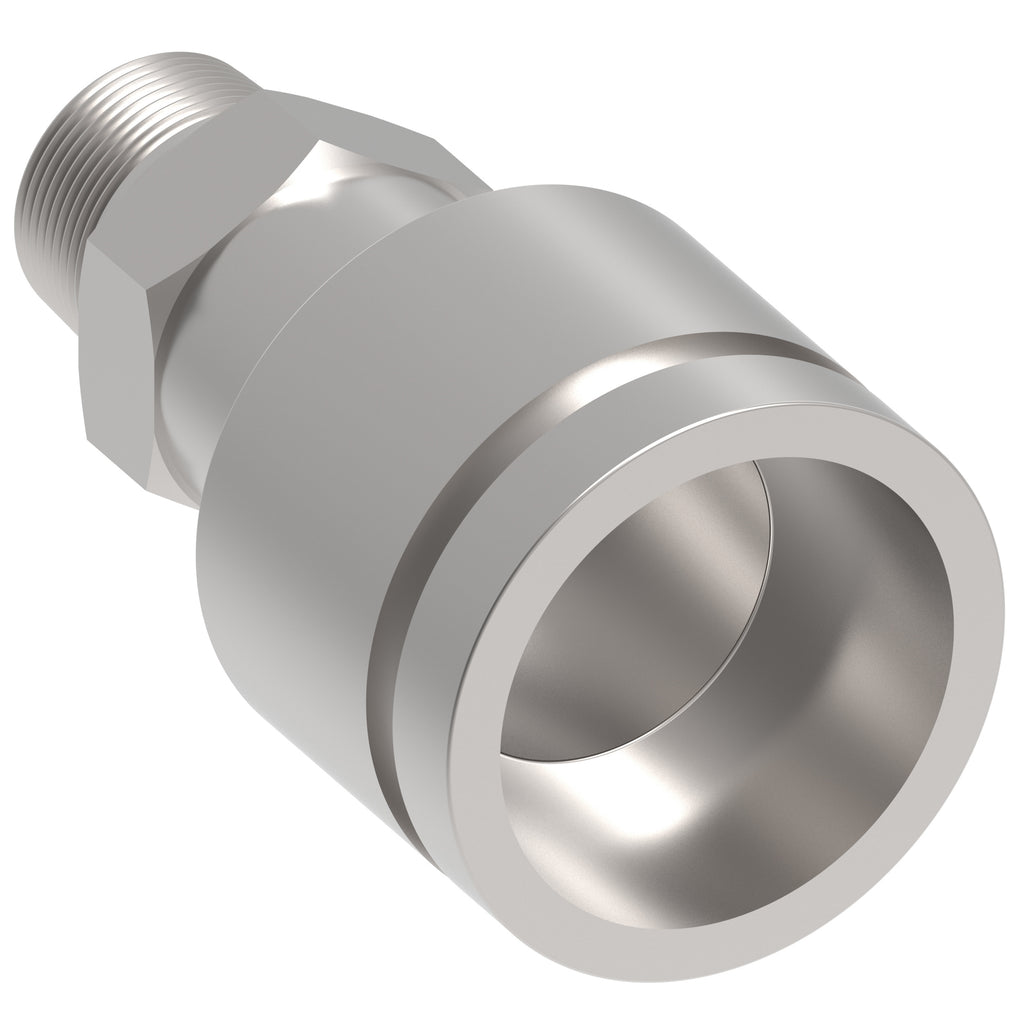

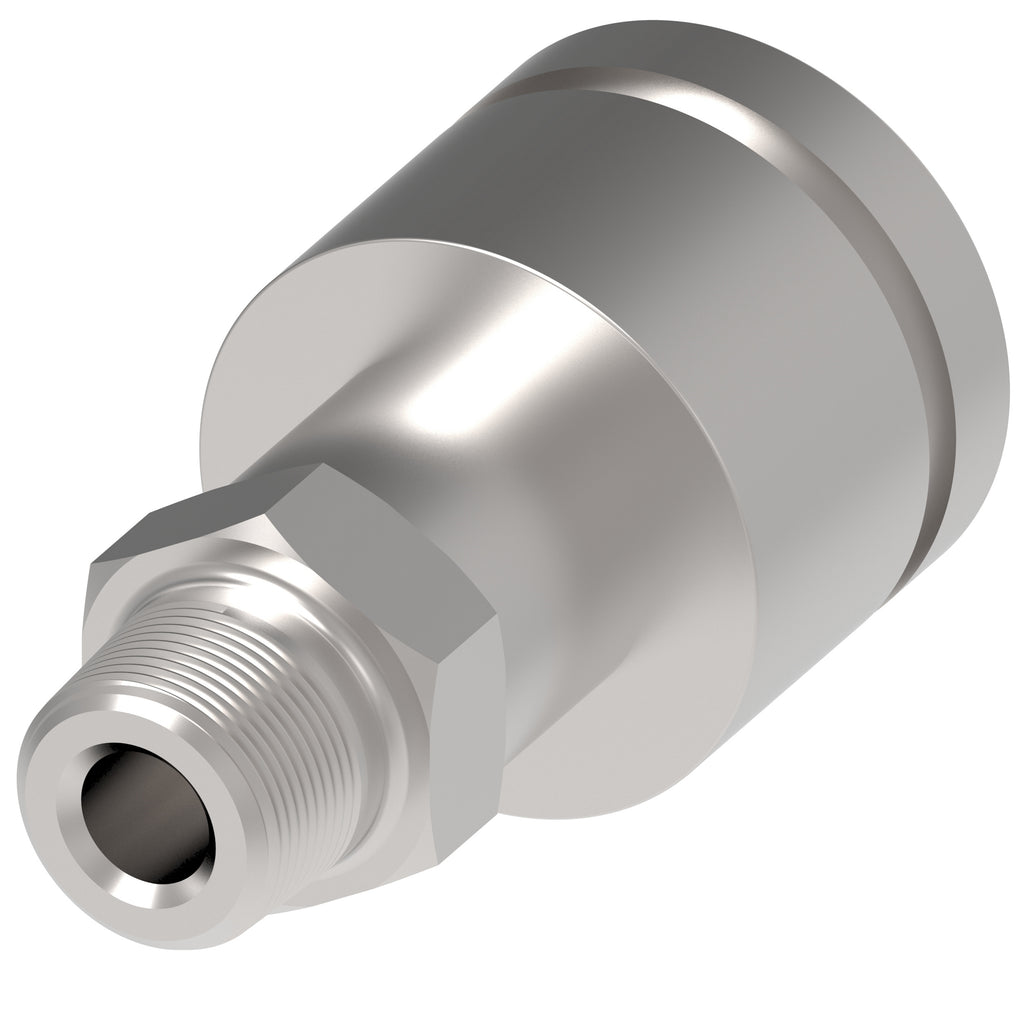

COUPLING,HP3,C,3/8,CS,-6NPT,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: HP3SB37M
€42,16
Technische Daten
| Application | Hydraulic cylinder Portable hydraulic rams |
| Legacy part number | HP3SB37M |
| Sub brand | Hansen |
| Brand | Danfoss |
| Working pressure max bar | 690 |
| Item type | Complete |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | 3/8-18 NPTF |
| Burst pressure min bar | 2199 |
| Body size | 3/8 |
| Burst pressure min psi | 31900 |
| End size 1 | -6 |
| End type 1 | Female Pipe (NPT) |
| Finish plating | Zinc trivalent |
| Hex size 1 IN | 0.94 |
| Hex size 1 MM | 23.876 |
| Latch type | Screw to connect |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 10000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min F | -13 |
| Product length mm | 72.136 |
| Product length in | 2.84 |
| Flow rate gpm | 6 |
Weitere Produktdaten
- Herkunftsland: Italy
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
