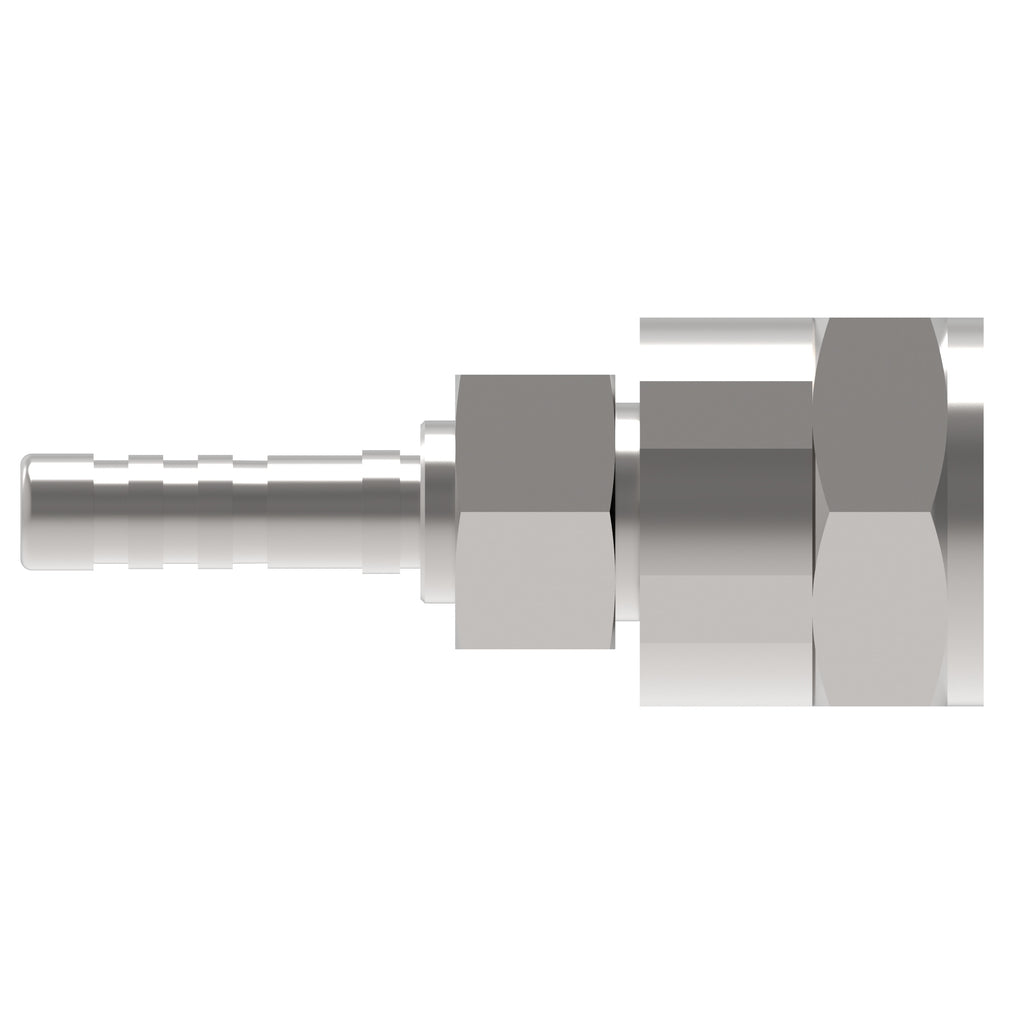

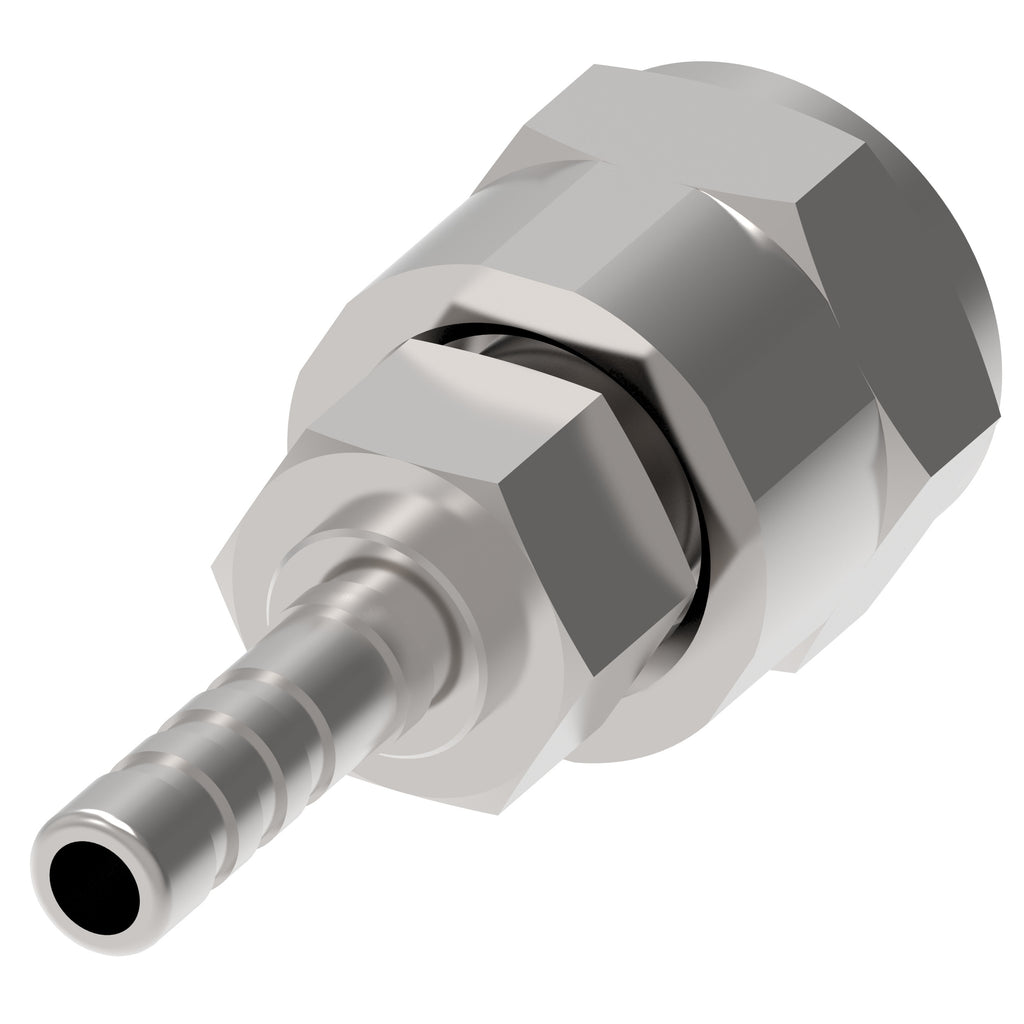

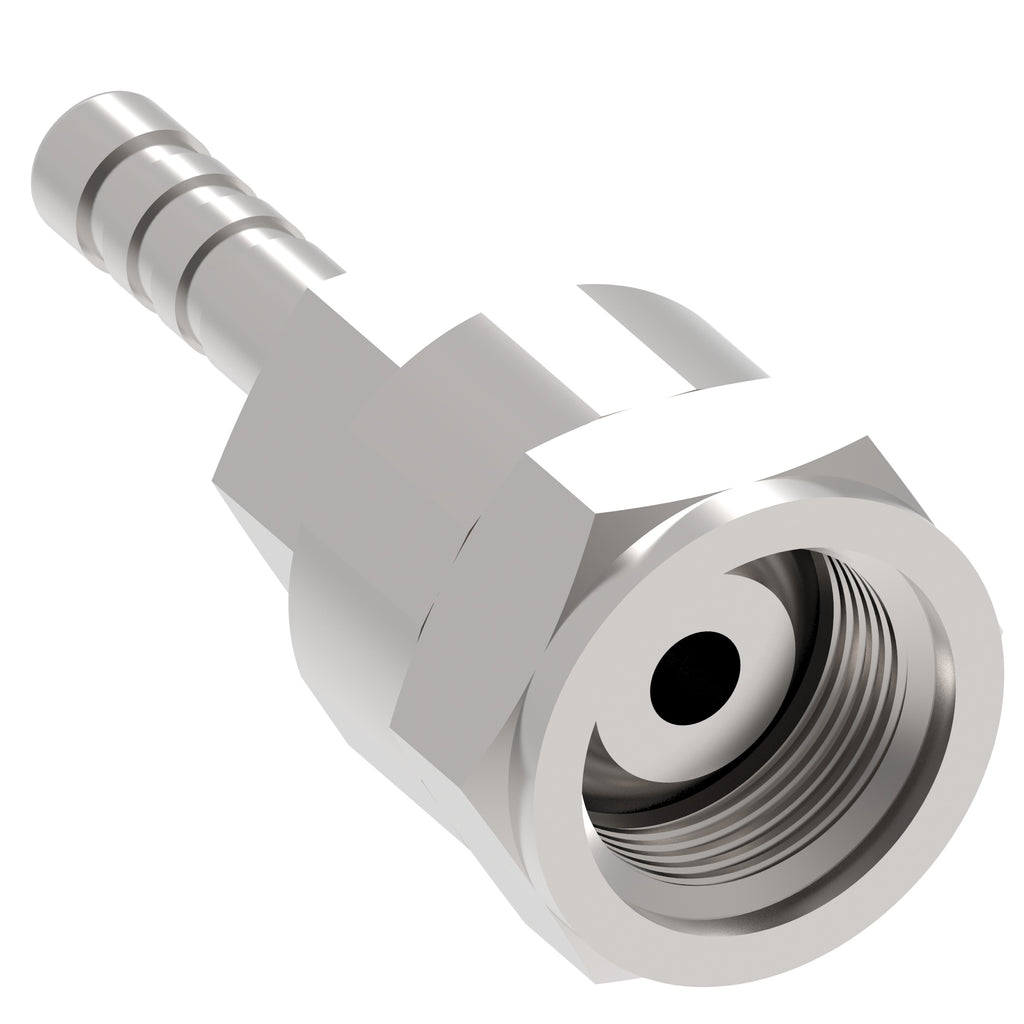

Danfoss Everflex SH17909-4 – PTFE-Schlaucharmatur
€4,04
Zu Produktinformationen springen
Auf Lager
Danfoss Everflex SH17909-4 – PTFE-Schlaucharmatur
HOSE NIPPLE ASSY, GR/04, BF/04, CS, STR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: SH17909-4
€4,81
Technische Daten
| Legacy part number | SH17909-4 |
| Sub brand | Everflex |
| Brand | Danfoss |
| Inside diameter IN | 0.125 |
| Inside diameter MM | 3.2 |
| Product material | Carbon steel |
| Hose size | -4 |
| Thread size 1 | G 1/4 |
| Angle shape | Straight |
| End size 1 | -4 |
| End type 2 | Line/hose/tube |
| End type 1 | Female BSPP swivel |
| Hex size 1 IN | 0.669 |
| Hex size 2 IN | 0.472 |
| Hex size 1 MM | 17 |
| Hex size 2 MM | 12 |
| Finish plating | Dura-Kote |
| Construction Style | Crimp |
| A dimension IN | 1.476 |
| Compatible hose ID MM | 6.35 |
| Compatible hoses | 2807 |
| Compatible hose ID IN | 0.25 |
| A dimension MM | 37.5 |
| Hose cut off factor IN | 0.885 |
| Hose cut off factor MM | 22.5 |
| Product height in | 0.77 |
| Product width in | 0.669 |
| Product width mm | 16.993 |
| Product height mm | 19.558 |
| Product length mm | 44.729 |
| Product length in | 1.761 |
| End connection hex size in | 0.669 |
| End connection hex size mm | 17 |
| Backup hex size in | 0.472 |
| Backup hex size mm | 12 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
