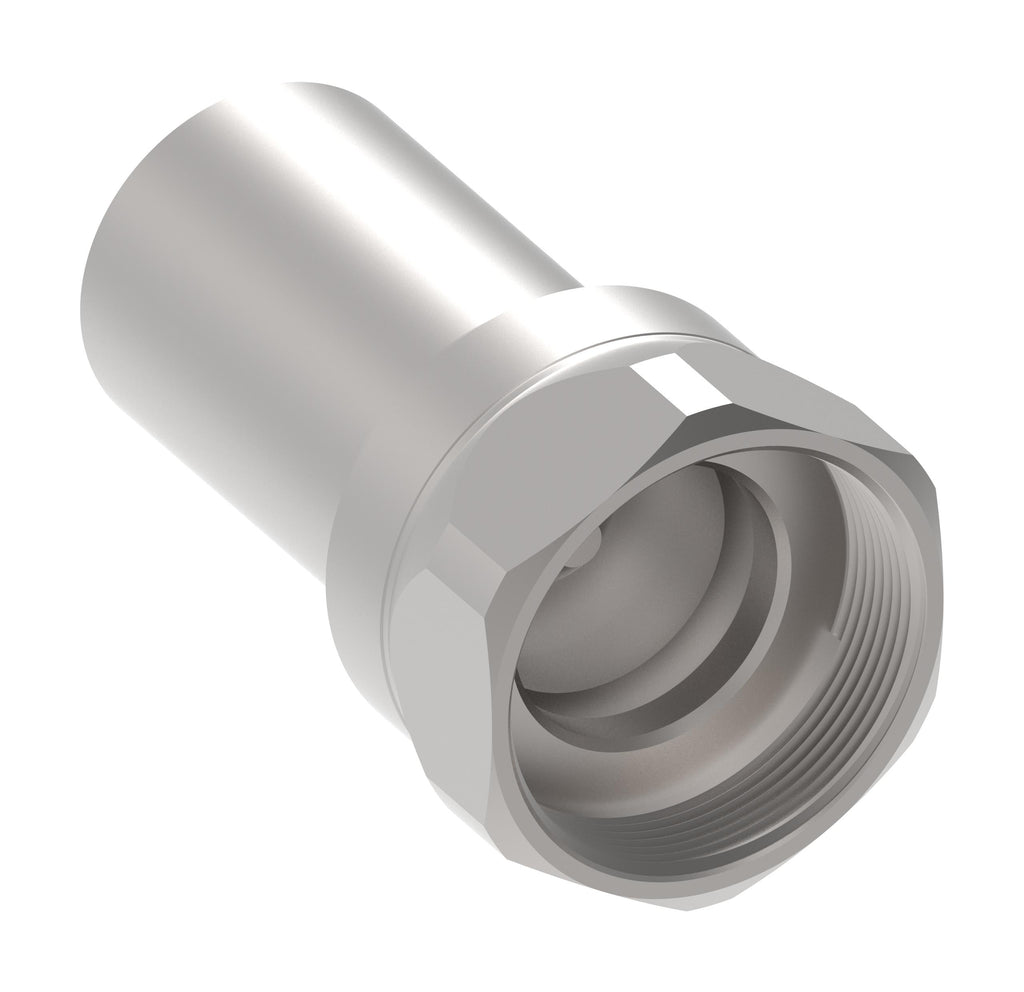

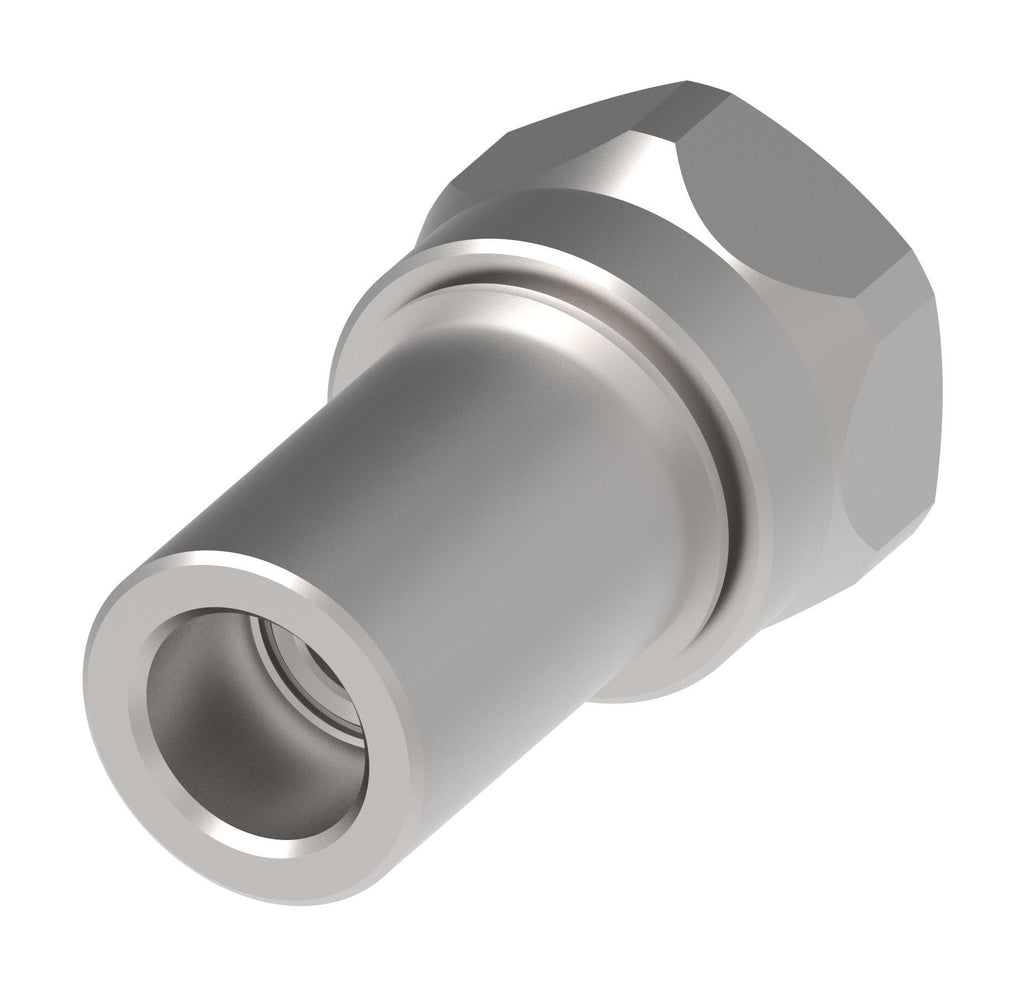

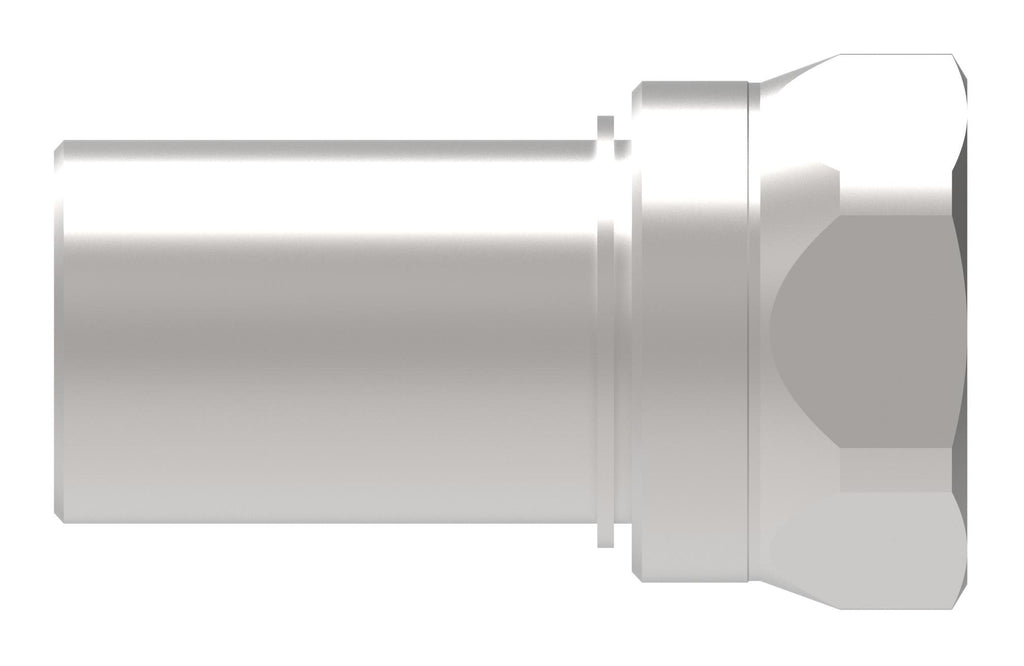

Danfoss Gromelle WA06047V0 – W6000 Kupplungsmuffe
€110,86
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WA06047V0 – W6000 Kupplungsmuffe
COUPLING,W6000,F,3/4,CS,-12BSP,FKM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WA06047V0
€131,92
Technische Daten
| Application | Construction General industry Heavy load and high pressure Material handler Petrochemical |
| Legacy part number | WA06047V0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | G 3/4 |
| Angle shape | Straight |
| Body size | 3/4 |
| End size 1 | -12 |
| End type 1 | Female BSPP port washer seal. |
| Finish plating | Zinc trivalent |
| Fluid loss cc | 5.8 |
| Hex size 1 IN | 1.97 |
| Latch type | Screw to connect |
| Safety locking mechanism | None |
| Seal material | Fluorocarbon (FKM) |
| Working pressure max psi | 9425 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Flow rate gpm | 14.53 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
