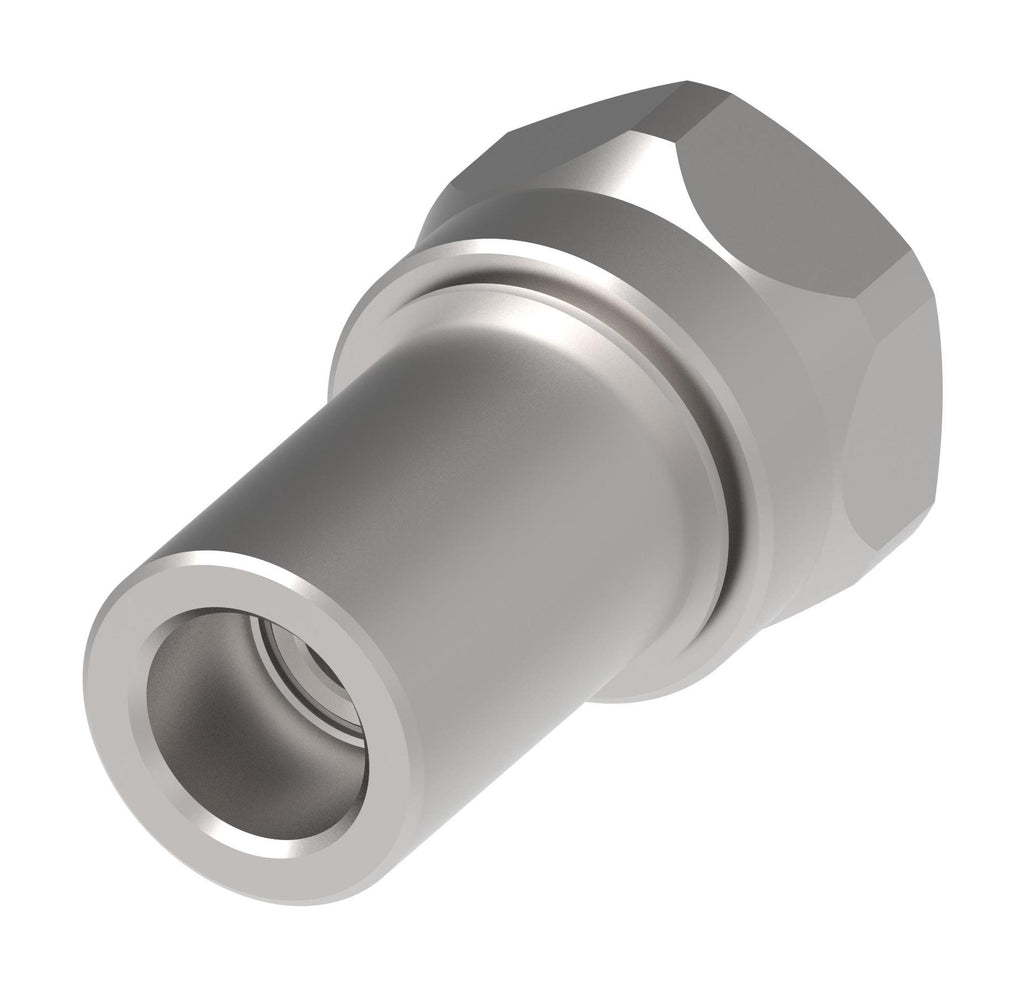

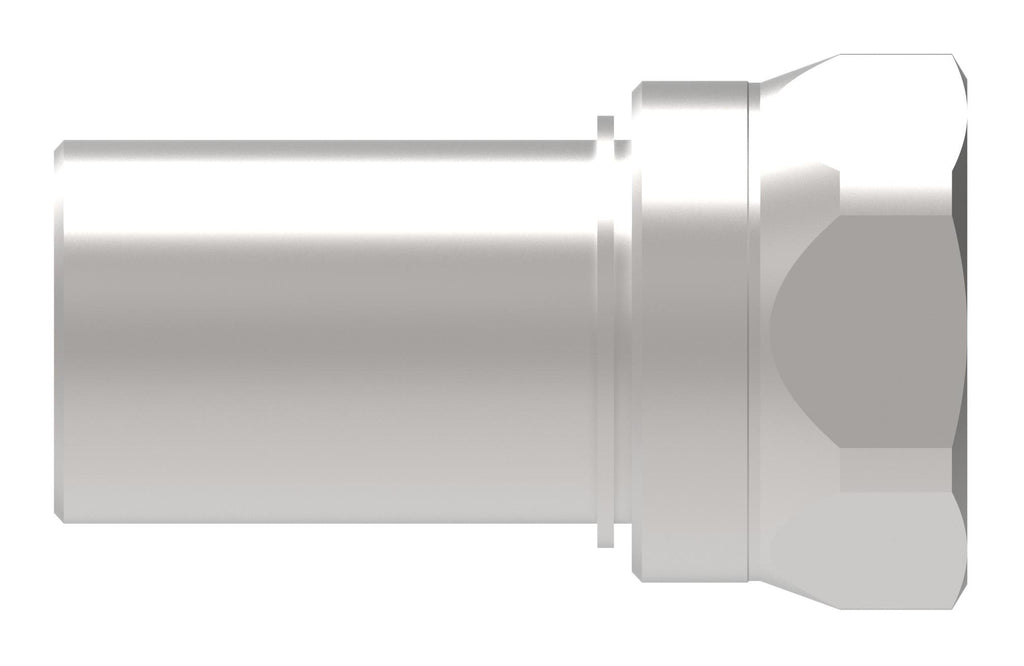

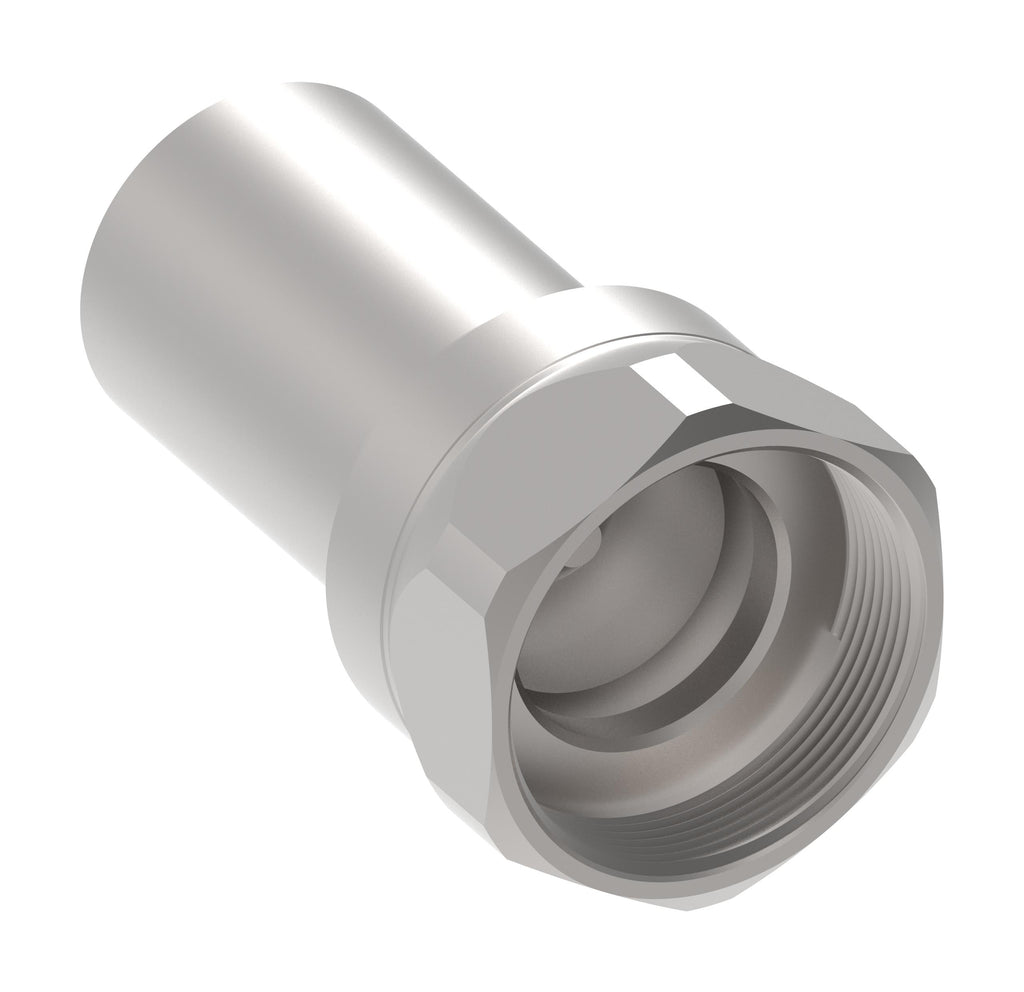

Danfoss Gromelle WA06237E0 – W6000 Kupplungsmuffe
€63,72
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WA06237E0 – W6000 Kupplungsmuffe
COUPLING,W6000,F,1/2,CS,-8NPT,EPDM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WA06237E0
€75,83
Technische Daten
| Application | Construction General industry Heavy load and high pressure Material handler Petrochemical |
| Legacy part number | WA06237E0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | 1/2-14 NPTF |
| Angle shape | Straight |
| Body size | 1/2 |
| End size 1 | -8 |
| End type 1 | Female Pipe (NPT) |
| Finish plating | Zinc trivalent |
| Fluid loss cc | 2.8 |
| Hex size 1 IN | 1.61 |
| Latch type | Screw to connect |
| Safety locking mechanism | None |
| Seal material | Ethylene propylene (EPDM) |
| Working pressure max psi | 10875 |
| Working temperature max F | 302 |
| Working temperature min F | -40 |
| Flow rate gpm | 6.74 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
