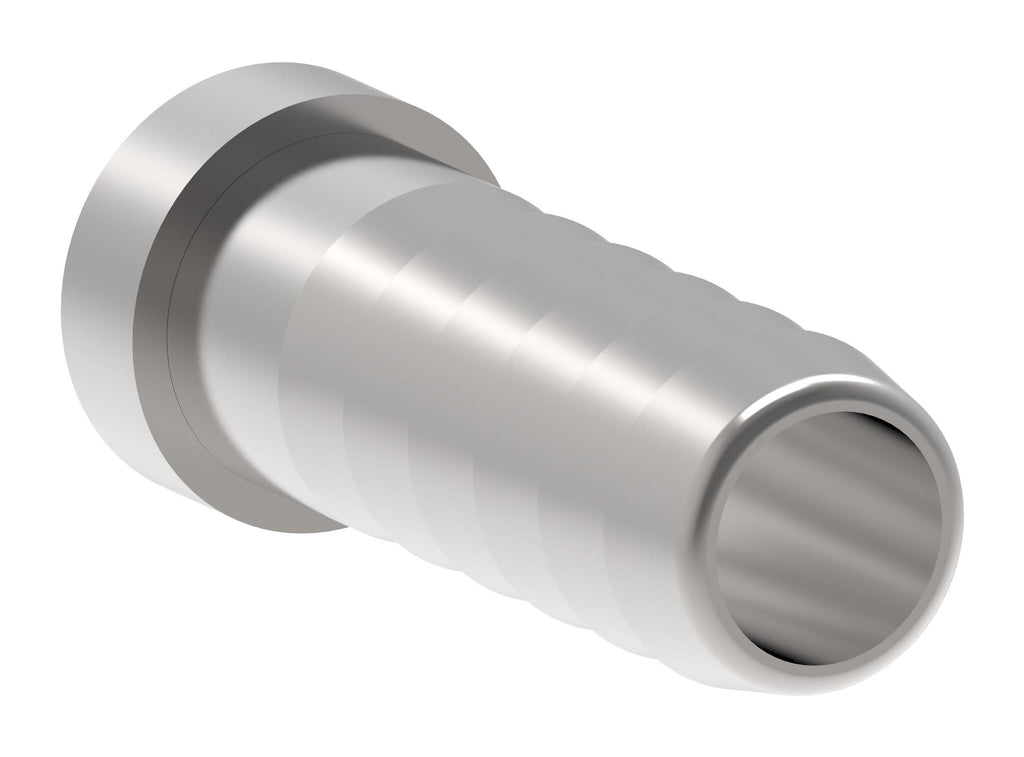

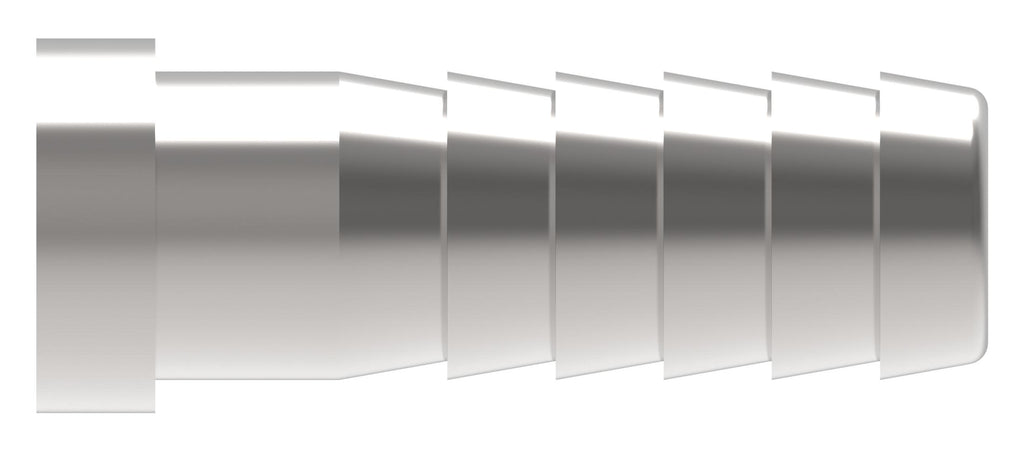

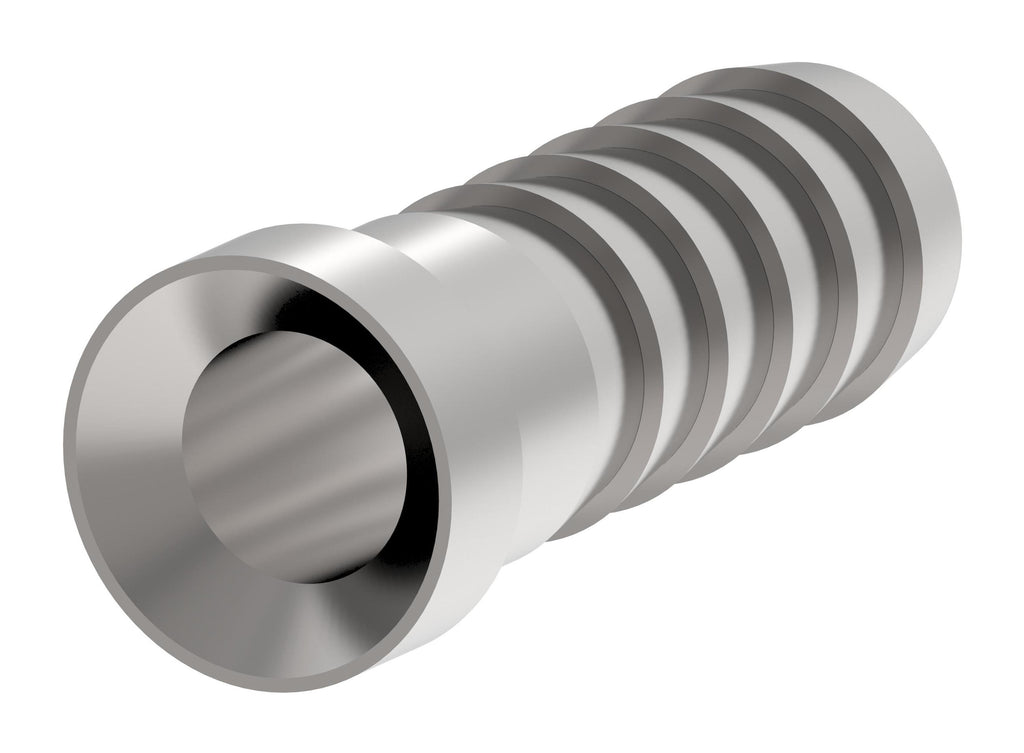

Danfoss Gromelle WA4604400 – W46000 Kupplungsmuffe
€46,76
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WA4604400 – W46000 Kupplungsmuffe
COUPLING,W46000,F,3/4,CS,-12BSP,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WA4604400
€55,64
Technische Daten
| Application | Hydraulics |
| Legacy part number | WA4604400 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Carbon steel |
| Thread size 1 | G 3/4 |
| Air inclusion max cc | 10 |
| Angle shape | Straight |
| Body size | 3/4 |
| Burst pressure min psi | 17404 |
| Connection style | Manual connect |
| End size 1 | -12 |
| End type 1 | Female BSPP port washer seal. |
| Finish plating | Zinc trivalent |
| Latch type | Screw to connect |
| Safety locking mechanism | None |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 3625 |
| Working temperature max F | 212 |
| Working temperature min F | -4 |
| Flow rate gpm | 16.64 |
Weitere Produktdaten
- Herkunftsland: Spain
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
