WAL024104
€11,17
Zu Produktinformationen springen
Auf Lager
WAL024104

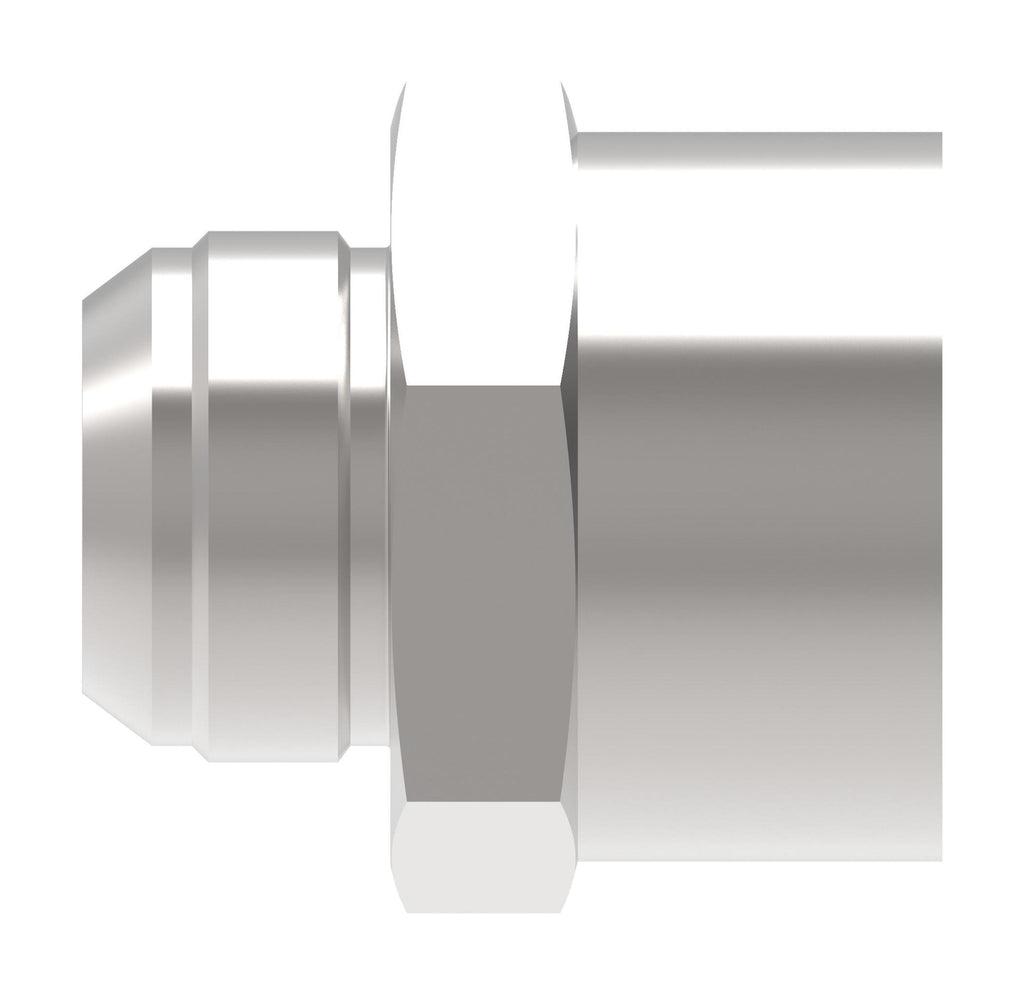

TUBE FTG, GES 28 L/R1 1/4 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL024104
€13,29
Technische Daten
| Legacy part number | WAL024104 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Male stud connector |
| Model Code 1 | GES 28 L/R1 1/4 A4GS |
| Product material | Carbon steel |
| Thread size 1 | M36x2 |
| Thread size 2 | G 1 |
| Angle shape | Straight |
| End size 1 | 28L |
| End type 2 | Male 1179-4 BSPP type B (L) |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 41 |
| Hex size 2 MM | 41 |
| Working pressure bar | 160 |
| Complete connector | No |
| Product serial name | GES … R |
| Tube outside diameter 2 MM | 28 |
| Finish plating | Guardian Seal |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
