WAL024127
€3,76
Zu Produktinformationen springen
6 übrig
WAL024127

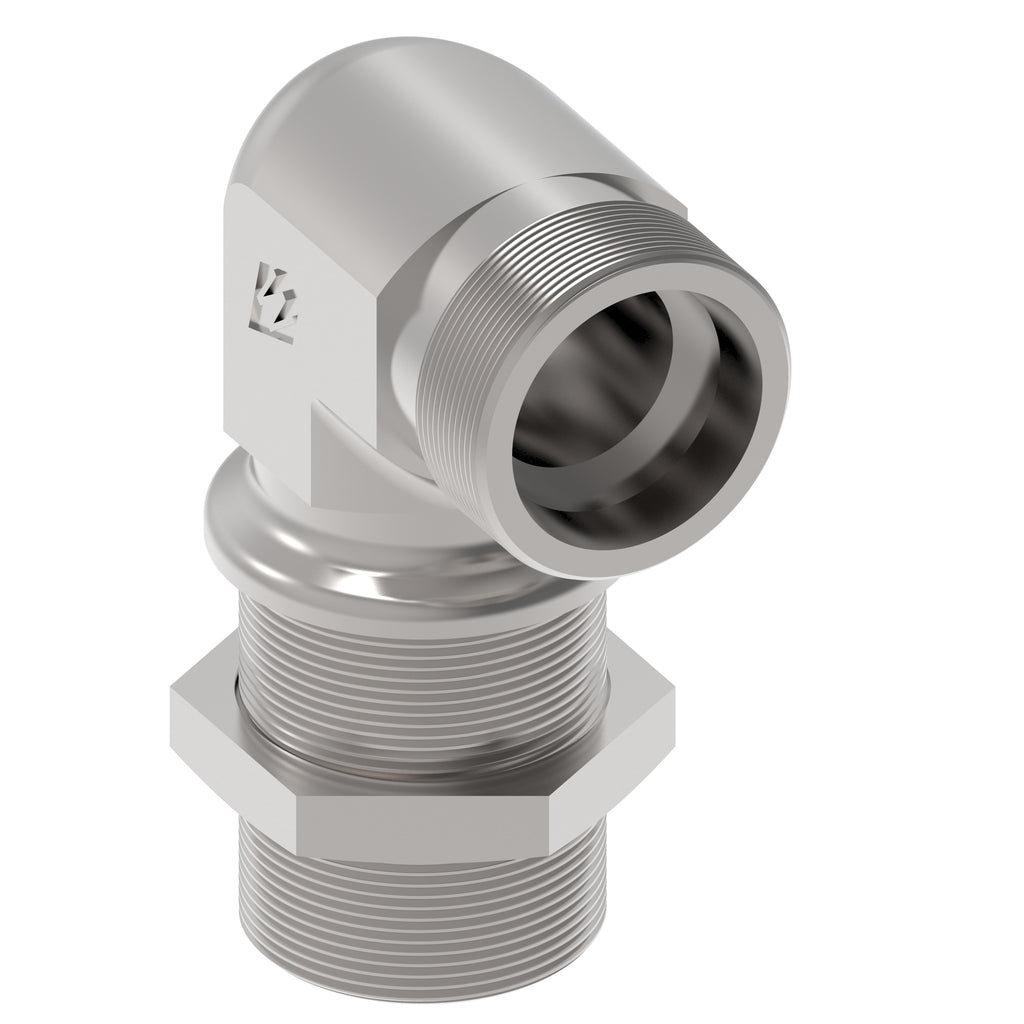

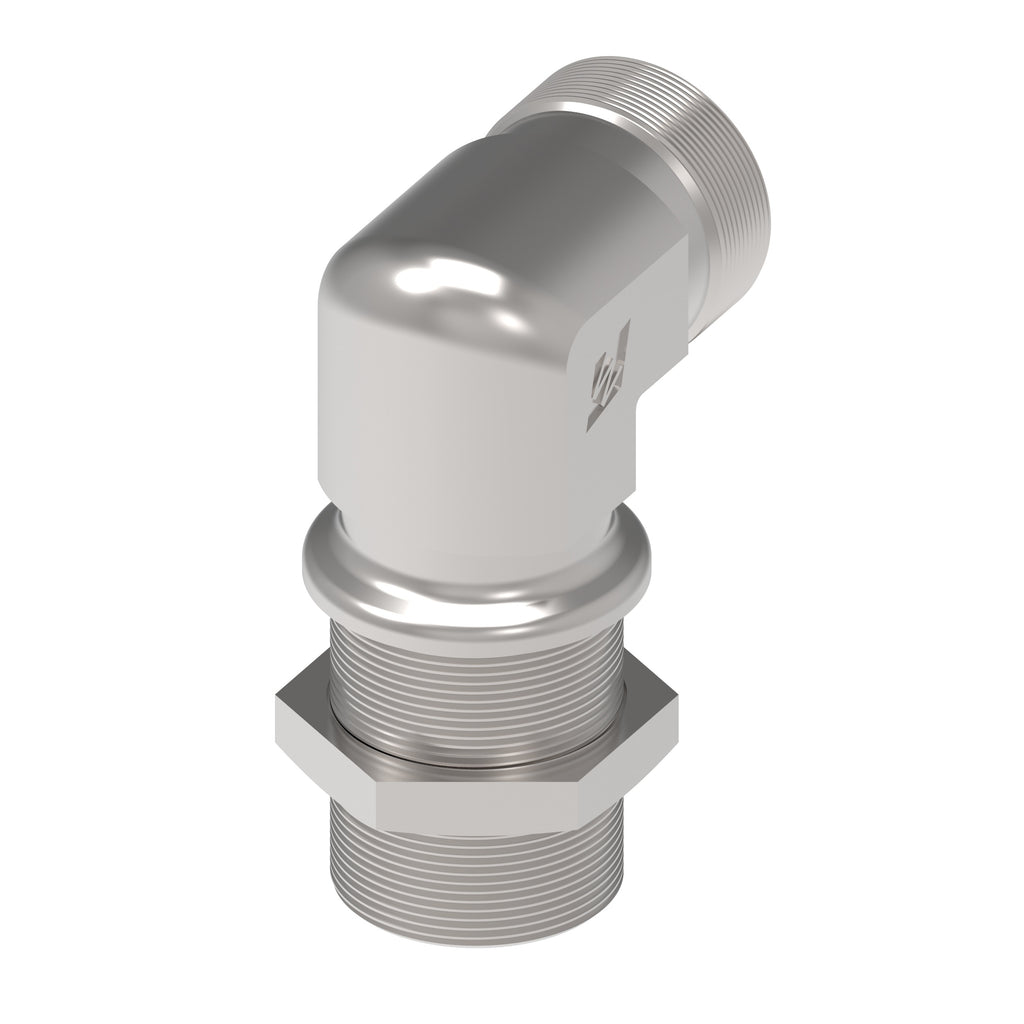

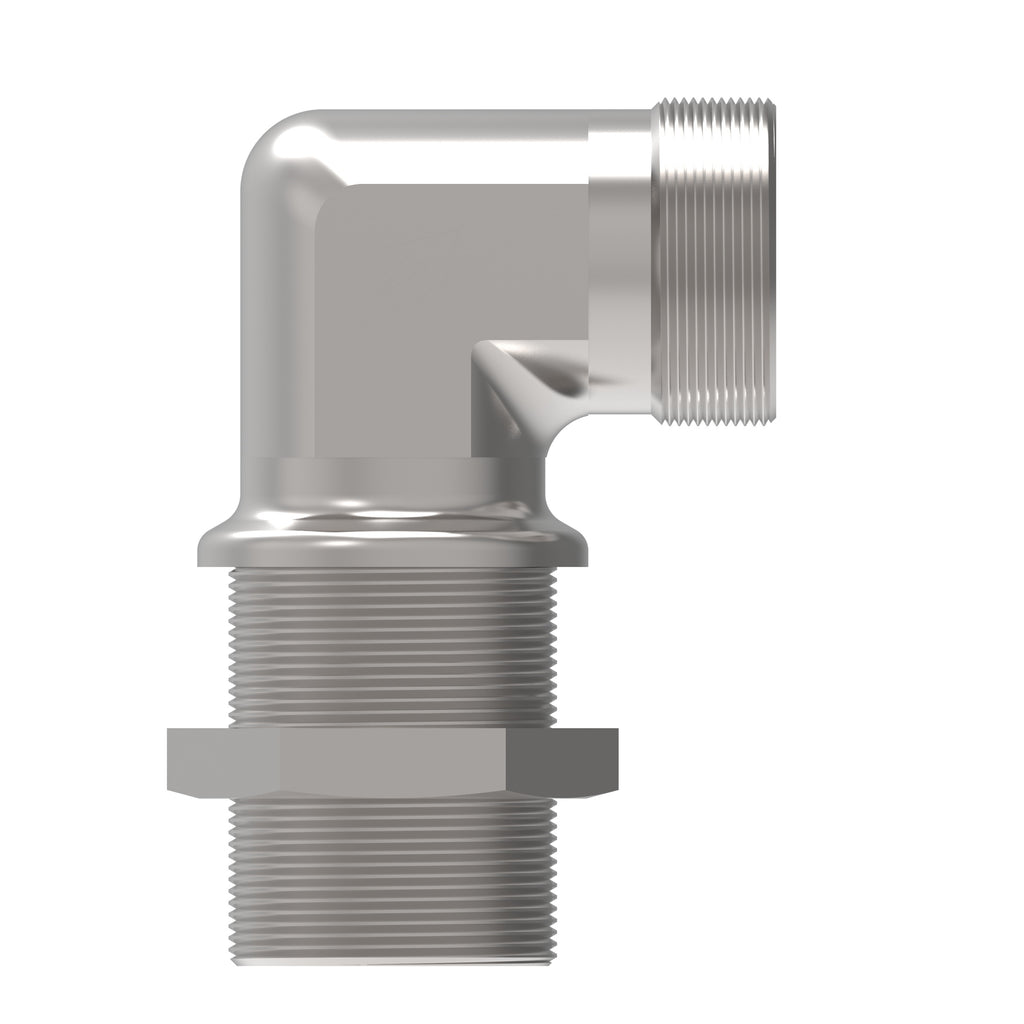

TUBE FTG, WSS 10 L A4GS M.SECHSKANTM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL024127
€4,47
Technische Daten
| Legacy part number | WAL024127 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | WSS 10 L A4GS M.SECHSKANTM |
| Product material | Carbon steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | M16x1.5 |
| Angle shape | Elbow 90 degree |
| End size 1 | 10L |
| End size 2 | 10L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 22 |
| Hex size 2 MM | 14 |
| Working pressure bar | 500 |
| Complete connector | No |
| Product serial name | WSS … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
