WAL024146
€3,74
Zu Produktinformationen springen
3 übrig
WAL024146

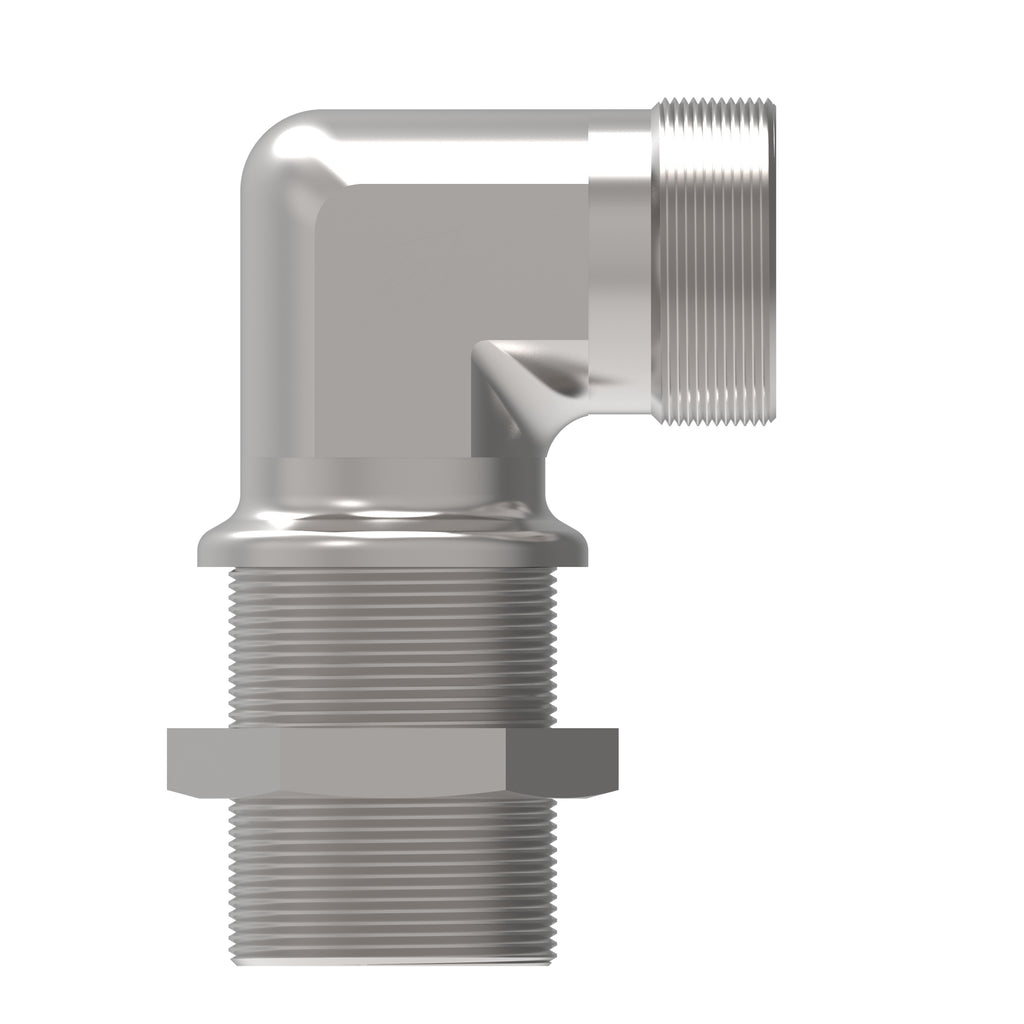

TUBE FTG, WSS 8 L A4GS M.SECHSKANTM.
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL024146
€4,45
Technische Daten
| Legacy part number | WAL024146 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | WSS 8 L A4GS M.SECHSKANTM. |
| Product material | Carbon steel |
| Thread size 1 | M14x1.5 |
| Thread size 2 | M14x1.5 |
| Angle shape | Elbow 90 degree |
| End size 1 | 8L |
| End size 2 | 8L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 12 |
| Hex size 2 MM | 19 |
| Working temperature min C | -60 |
| Working pressure bar | 500 |
| Complete connector | No |
| Product serial name | WSS … |
| Tube outside diameter 1 MM | 8 |
| Tube outside diameter 2 MM | 8 |
| Finish plating | Guardian Seal |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
