WAL024175
€6,58
Zu Produktinformationen springen
Auf Lager
WAL024175

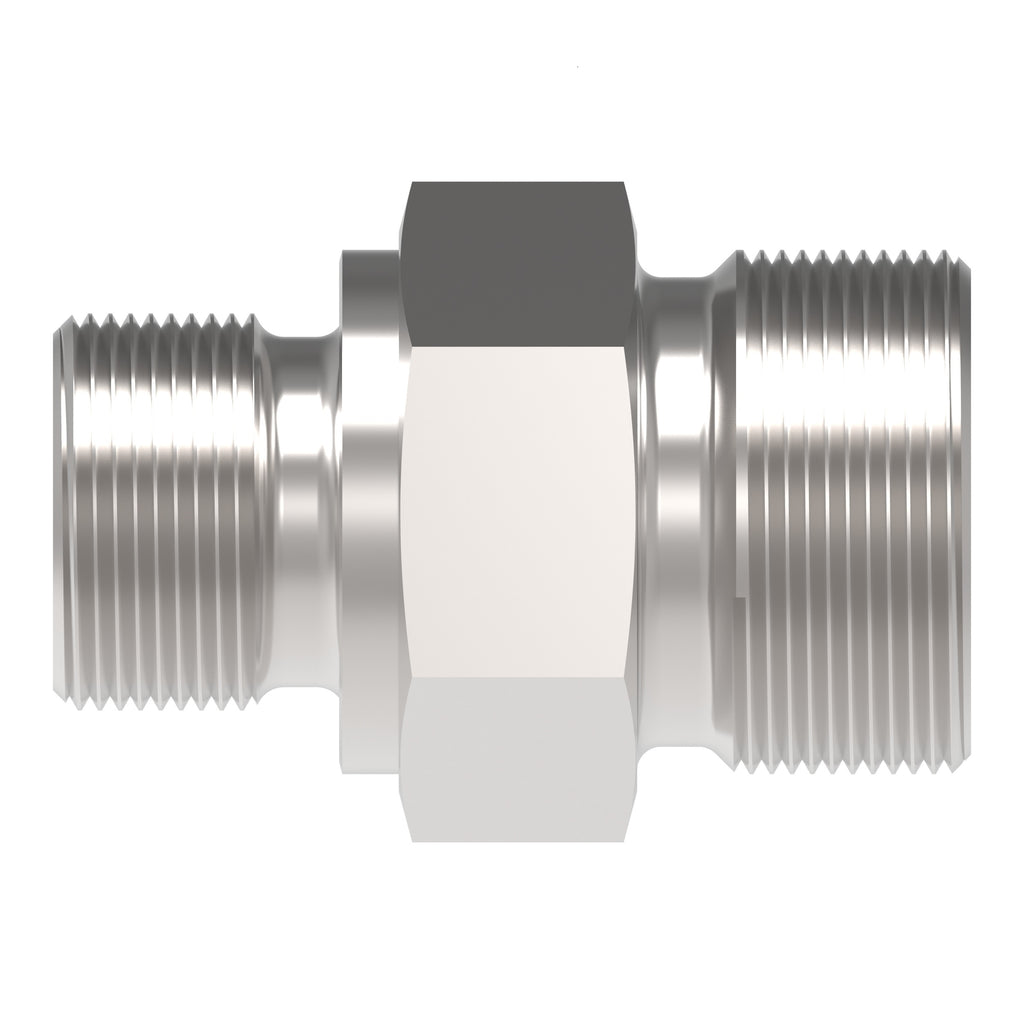

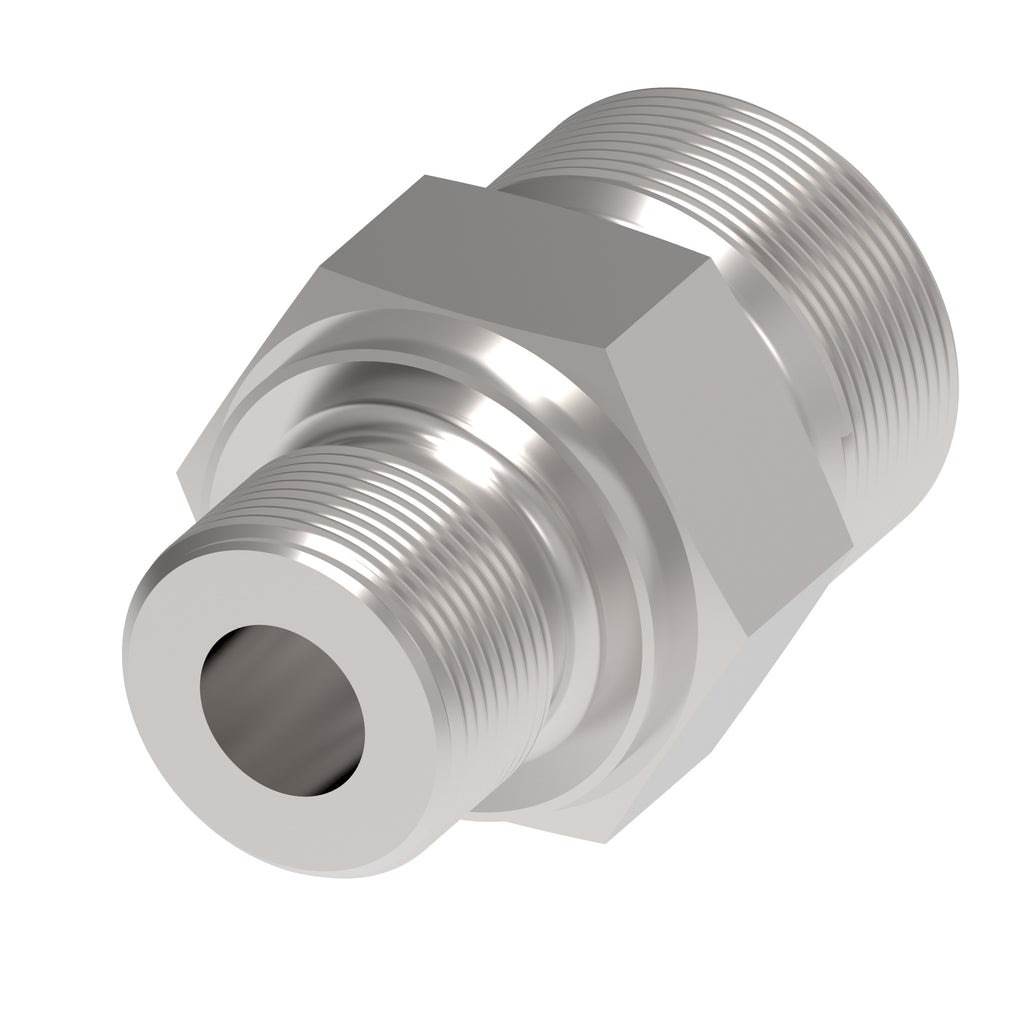

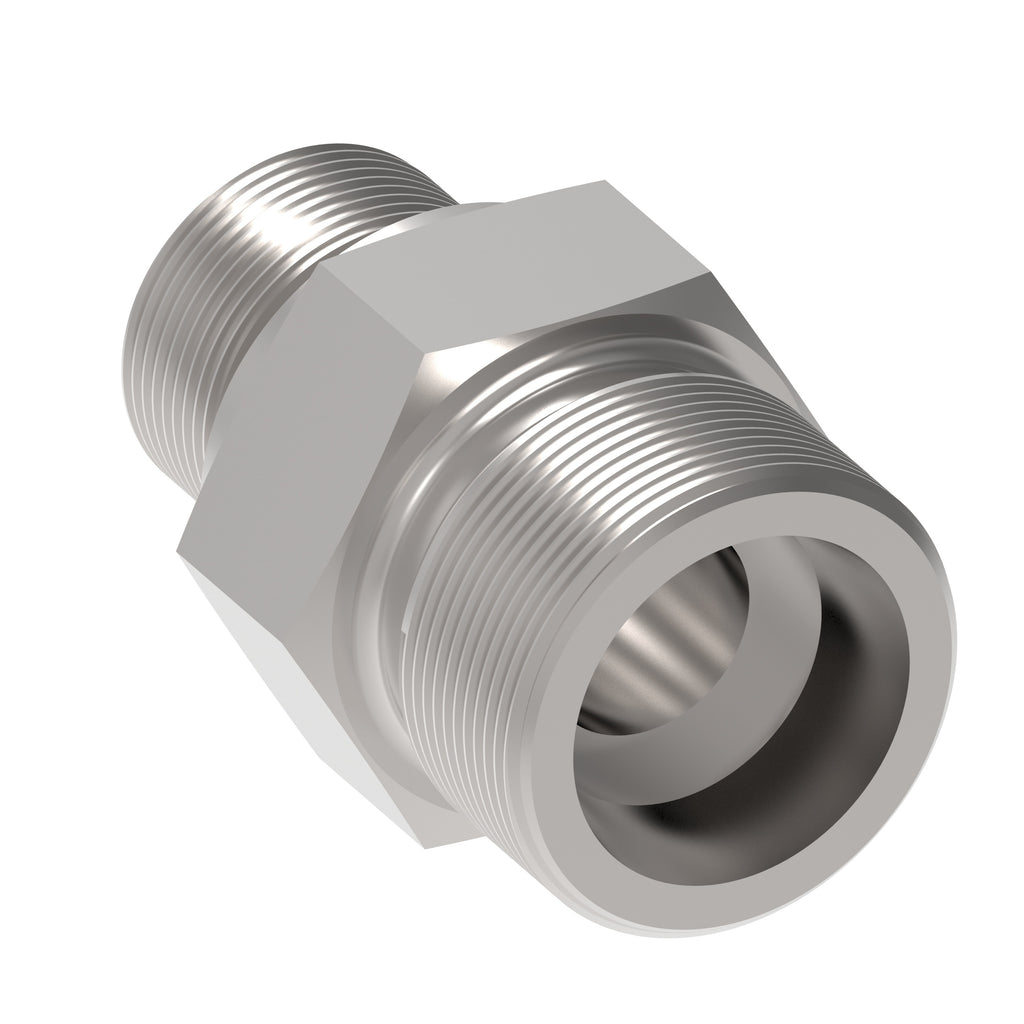

TUBE FTG, GES 8 L/R3/8-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL024175
€7,83
Technische Daten
| Legacy part number | WAL024175 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Male stud connector |
| Model Code 1 | GES 8 L/R3/8-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M14x1.5 |
| Thread size 2 | G 1/4 |
| Angle shape | Straight |
| End size 1 | 8L |
| End type 2 | Male 1179-4 BSPP type B (L) |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 22 |
| Working temperature max C | 400 |
| Working temperature min C | -60 |
| Working pressure bar | 400 |
| Complete connector | No |
| Product serial name | GES … R |
| Tube outside diameter 1 MM | 8 |
| Tube outside diameter 2 MM | 8 |
| Finish plating | Guardian Seal |
Weitere Produktdaten
- Herkunftsland: Croatia
- Zolltarifnummer: 73072910
- Danfoss Produktseite: Produkt bei Danfoss
