WAL060319
€23,34
Zu Produktinformationen springen
Auf Lager
WAL060319

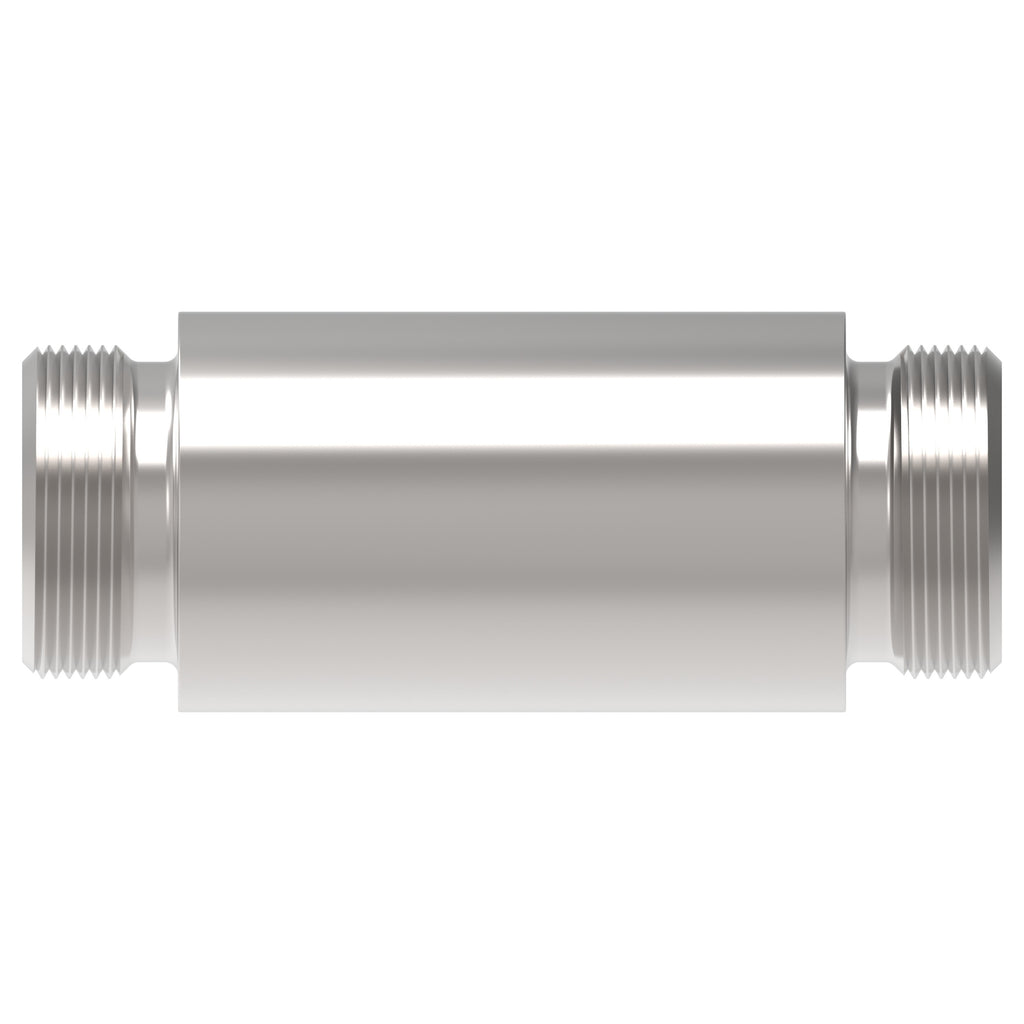

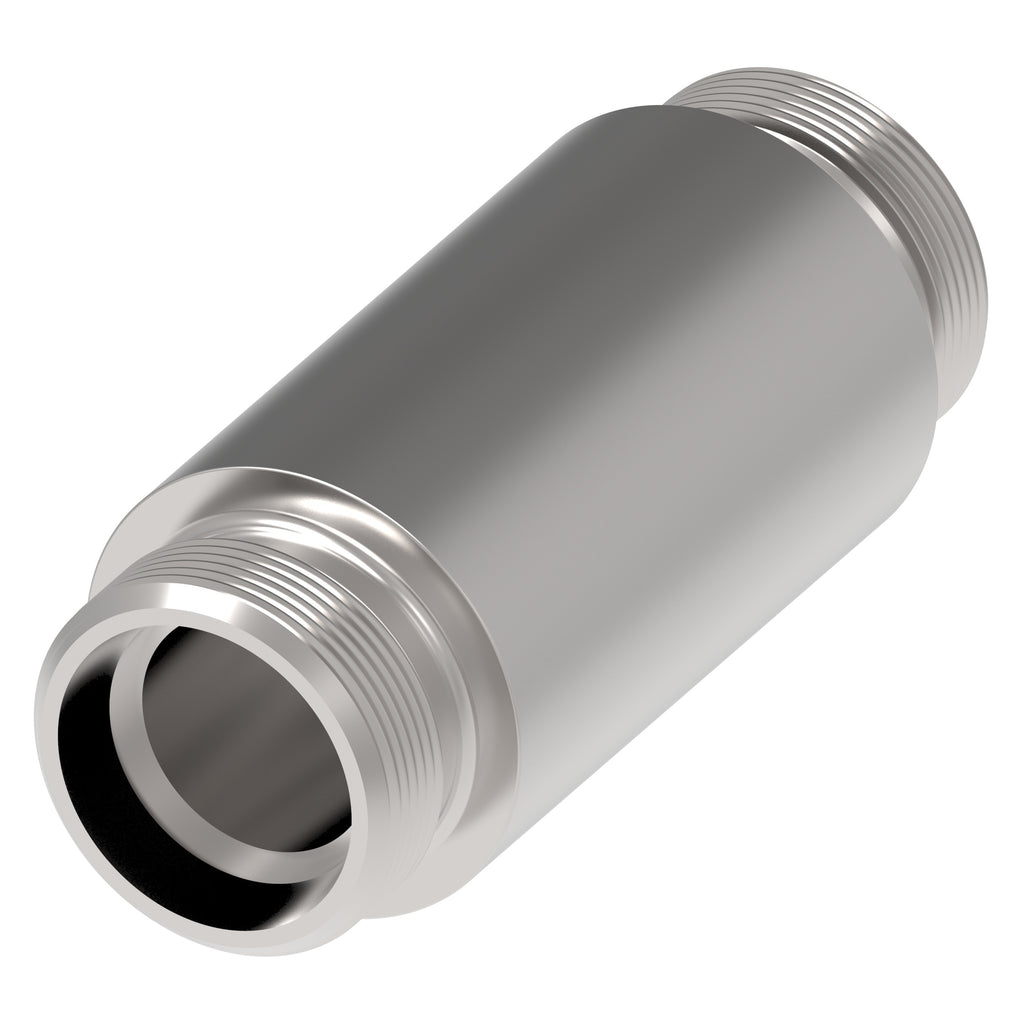

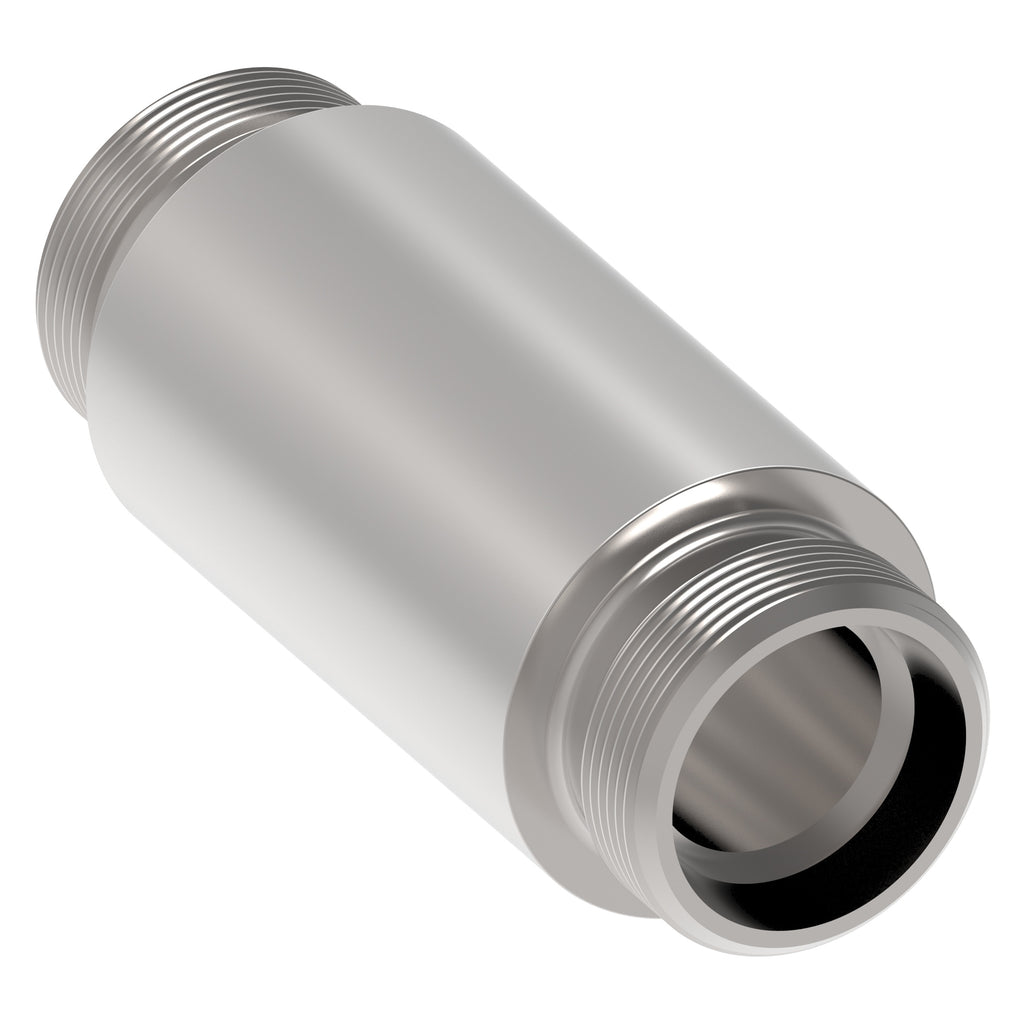

TUBE FTG, ESS 14 S-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL060319
€27,77
Technische Daten
| Legacy part number | WAL060319 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Weldable connector |
| Model Code 1 | ESS 14 S-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M22x1.5 |
| Thread size 2 | M22x1.5 |
| Angle shape | Straight |
| End size 1 | 14S |
| End size 2 | 14S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 28 |
| Working pressure bar | 630 |
| Complete connector | No |
| Product serial name | ESS … |
| Tube outside diameter 1 MM | 14 |
| Tube outside diameter 2 MM | 14 |
| Finish plating | Phosphate coating |
Weitere Produktdaten
- Herkunftsland: Croatia
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
