WAL061101
€10,00
Zu Produktinformationen springen
Auf Lager
WAL061101

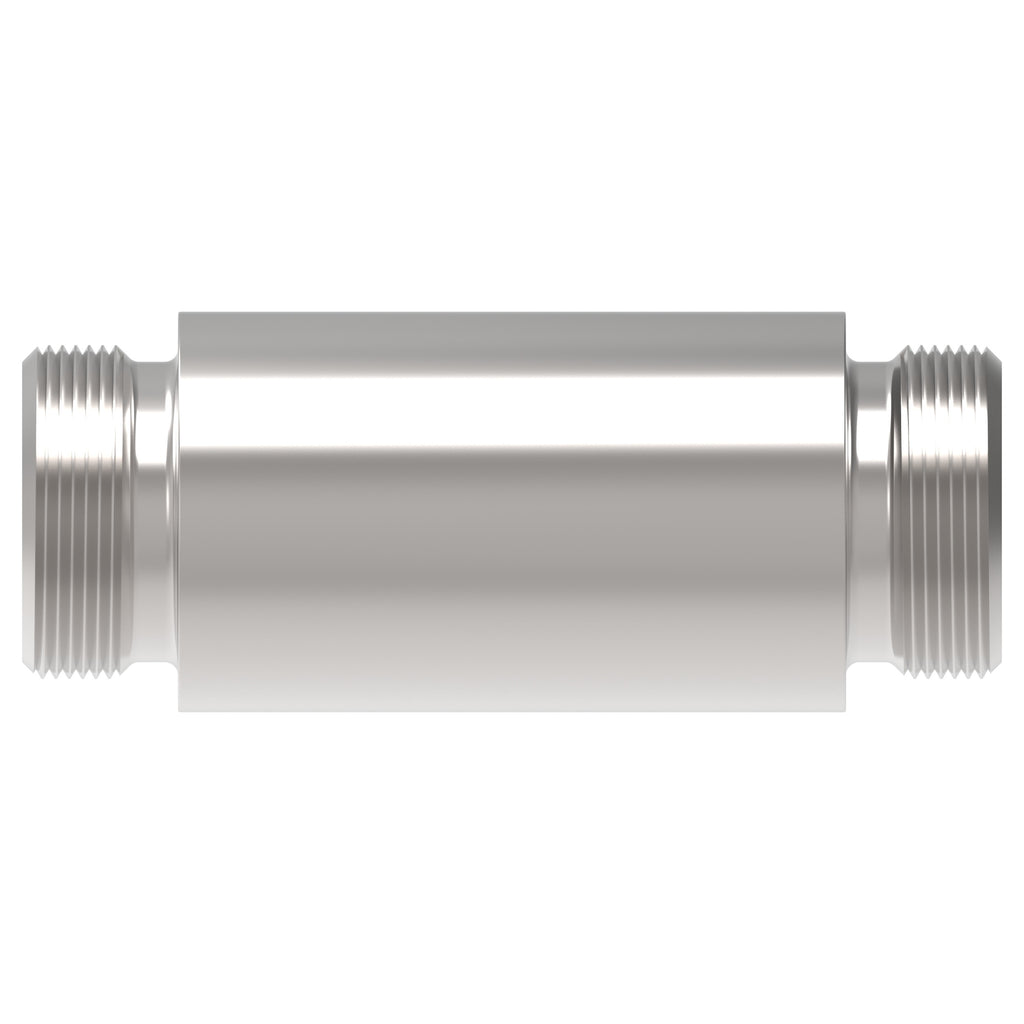

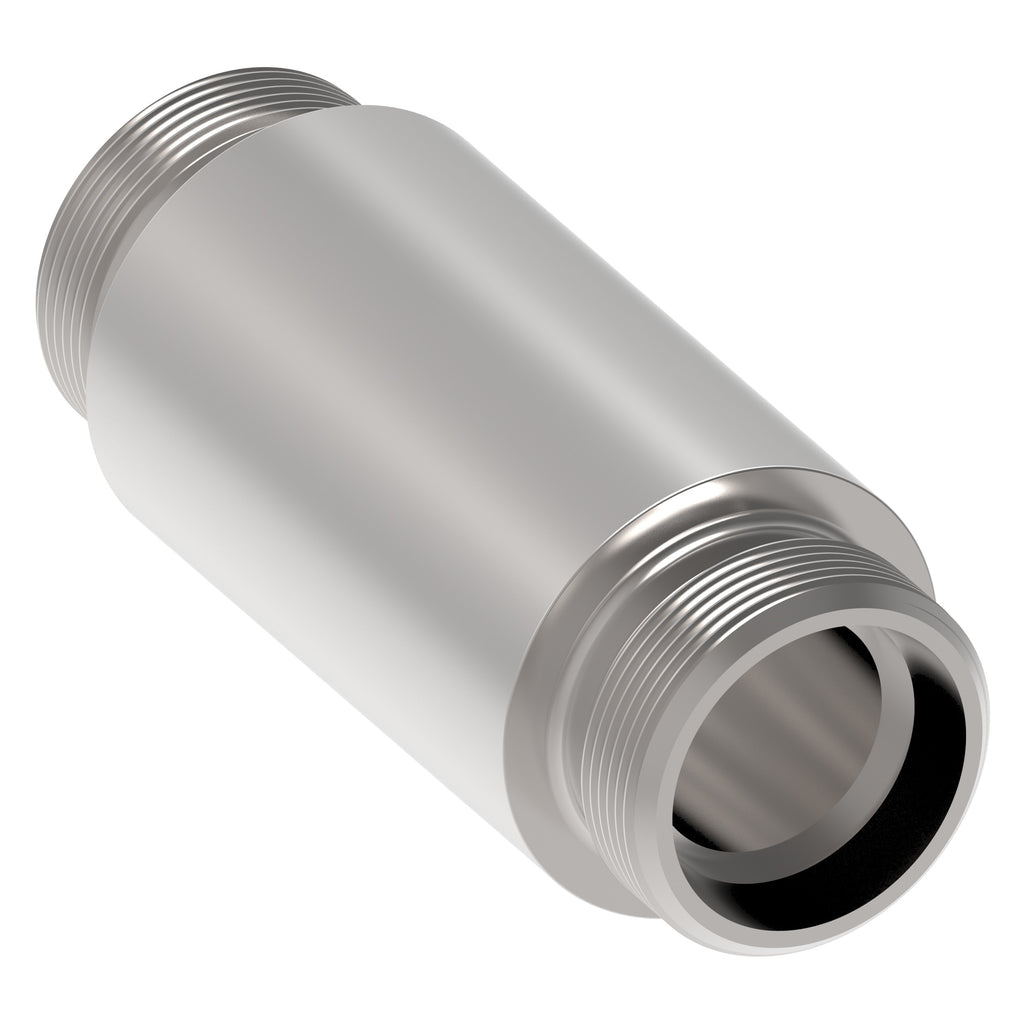

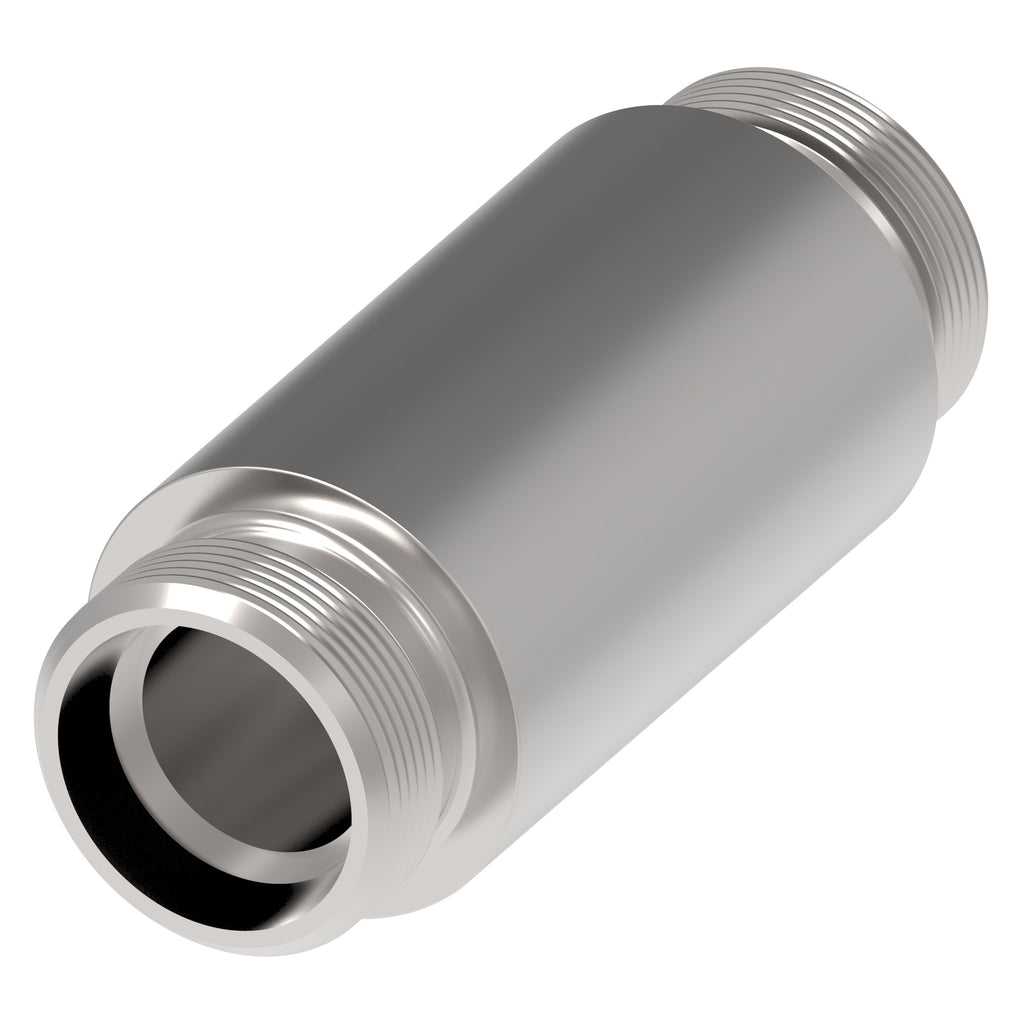

TUBE FTG, ESS 10 L-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL061101
€11,90
Technische Daten
| Legacy part number | WAL061101 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Weldable connector |
| Model Code 1 | ESS 10 L-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | M16x1.5 |
| Angle shape | Straight |
| End size 1 | 10L |
| End size 2 | 10L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Working pressure bar | 500 |
| Complete connector | No |
| Product serial name | ESS … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Phosphate coating |
Weitere Produktdaten
- Herkunftsland: Croatia
- Zolltarifnummer: 73072910
- Danfoss Produktseite: Produkt bei Danfoss
